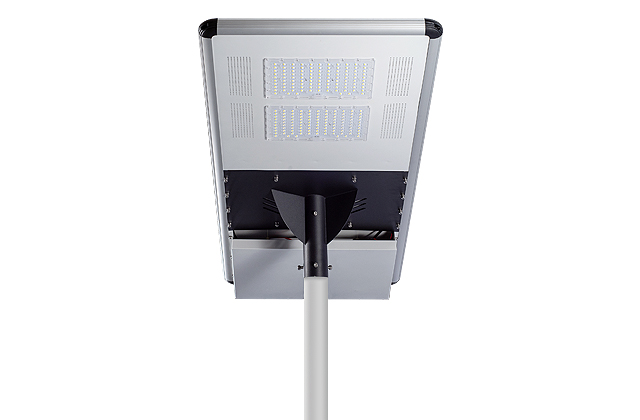

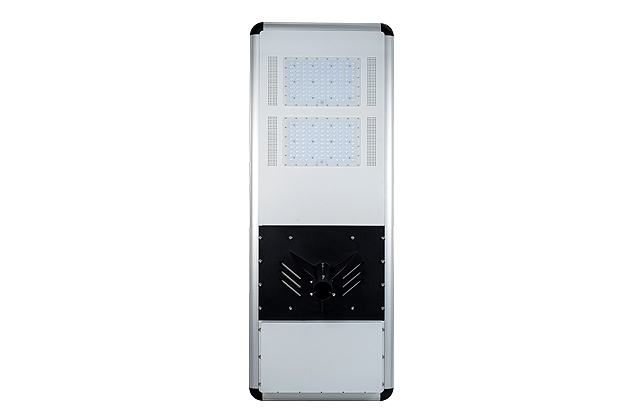

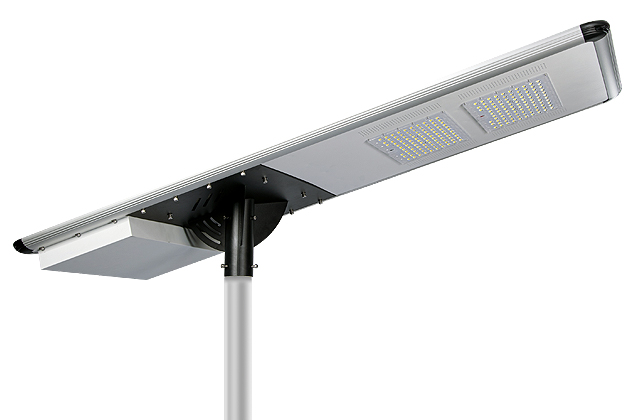

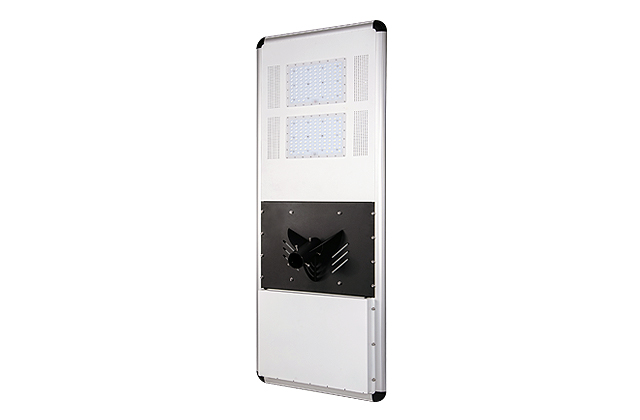

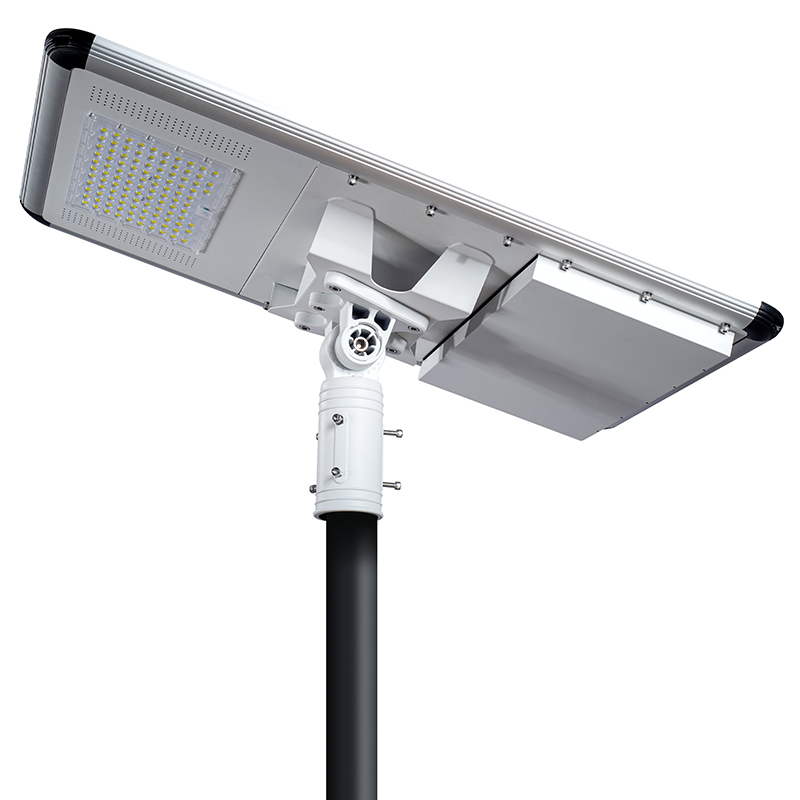

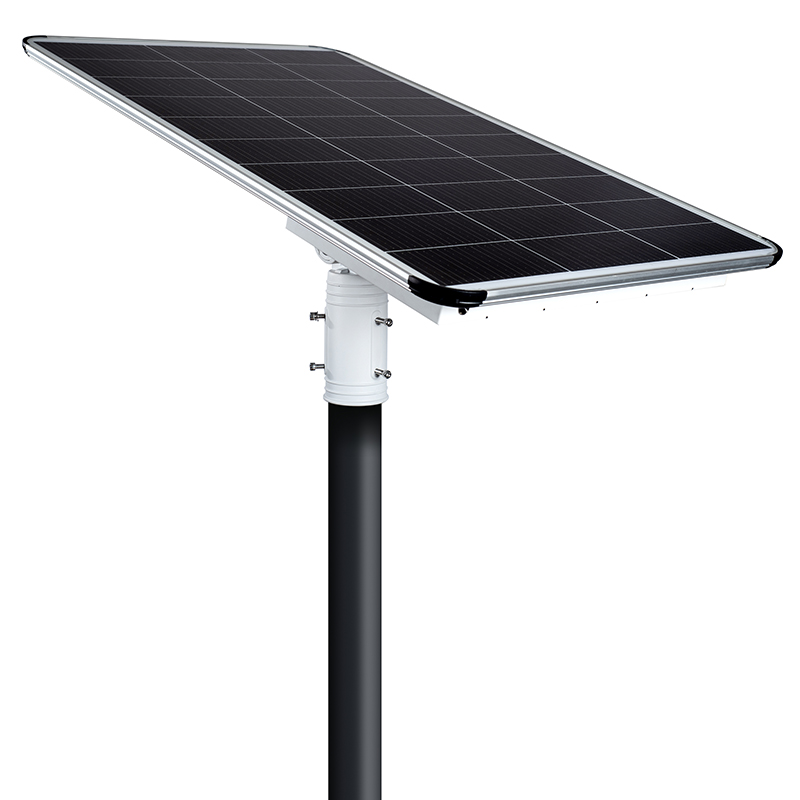

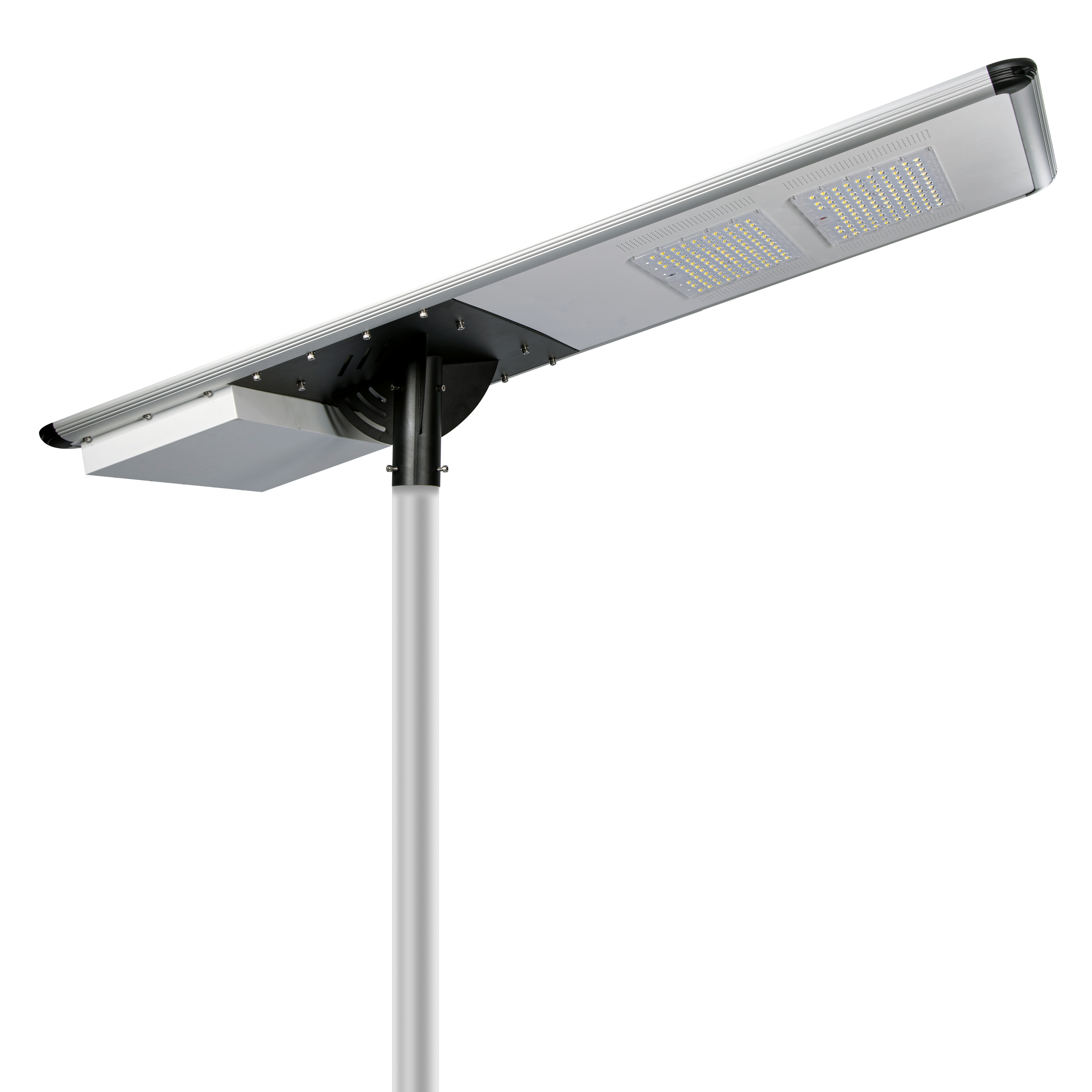

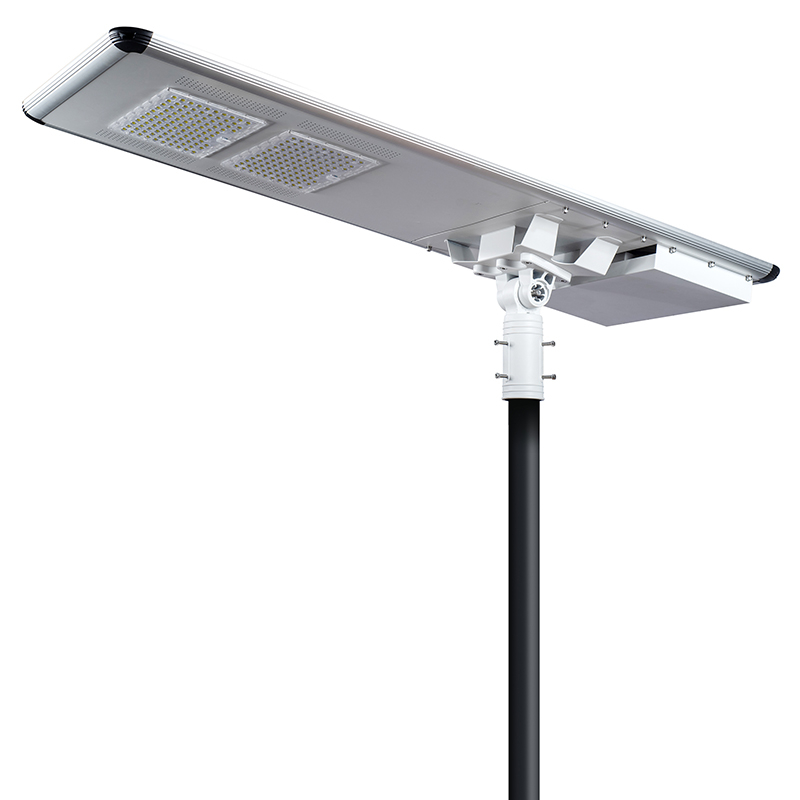

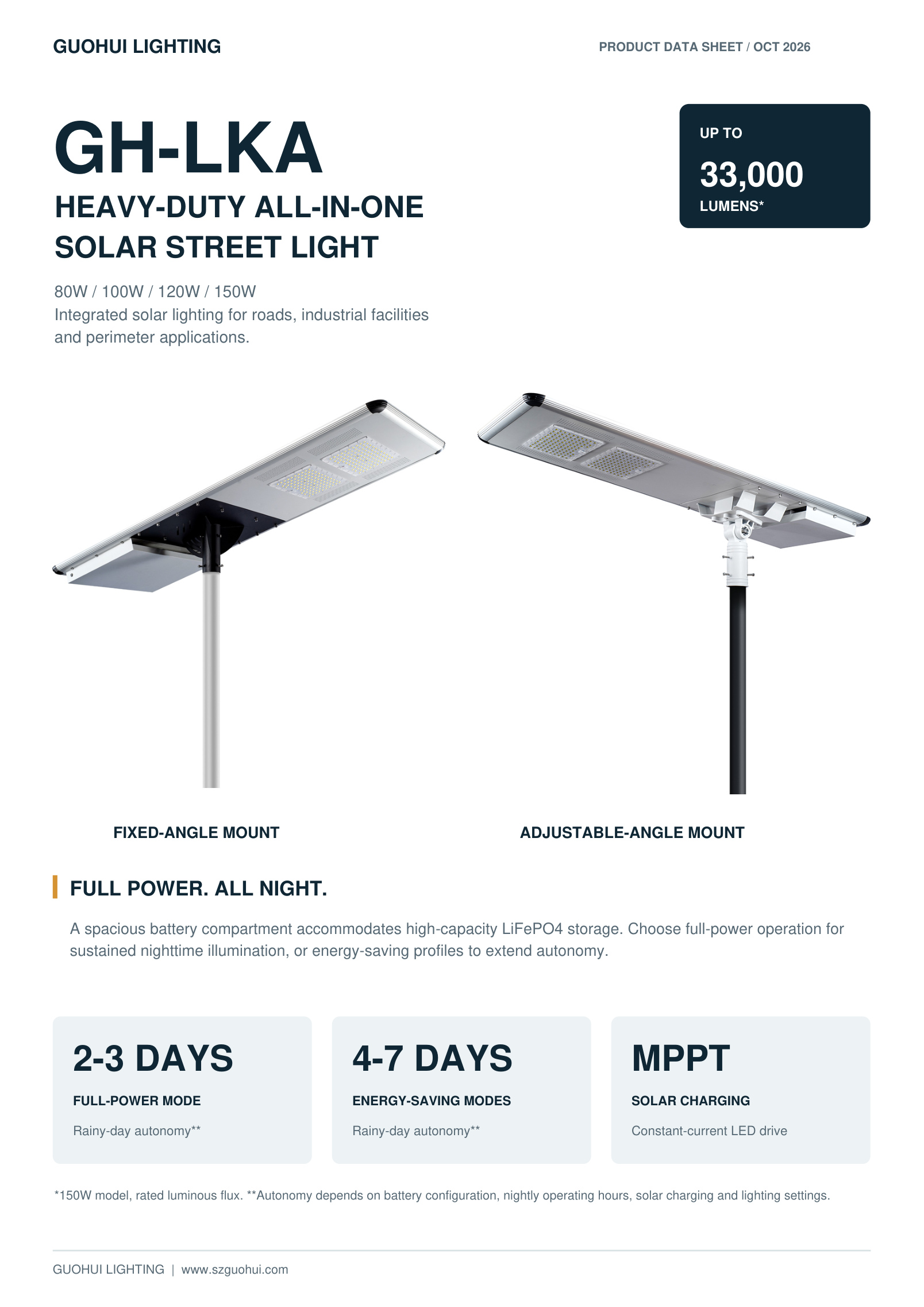

80W 100W 120W 150W All in One LED Solar Street Light Outdoor Waterproof IP65 With Remote Control
China solar street light manufacturer with 15 years experiences, support OEM and ODM, high quality, factory direct price; Rich experiences in road/government solar street light projects.
- Power(W):80W~150W
- LED Chip: Four-core SMD 5050
- Light Efficiency:220 lm/w
- Luminous Flux:17600~33000 Lumens
- CCT:2700k ~ 6500K
- Ra(CRI):80
- Protection:IP65
- Control method: light control
- Lifespan(hour):50000
- Certificate:CE, RoHS,IEC,LM79, LM80
- Warranty: 3~5 Years
- Description
- Video

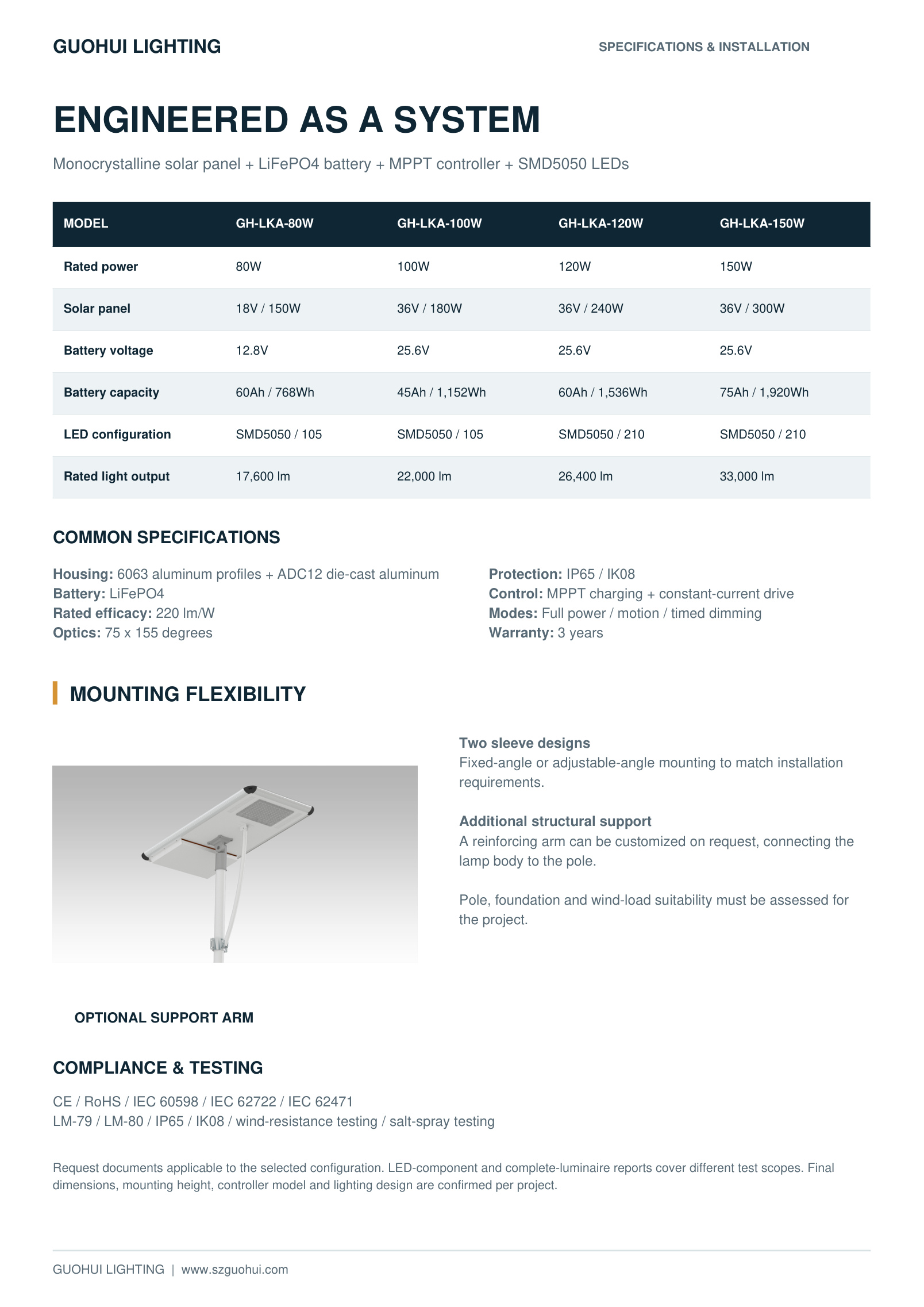

- Data sheet
- Optic & Dialux
- Application
1. 0 electricity fee no wiring required work continuously for 3-5 rainy and cloudy days

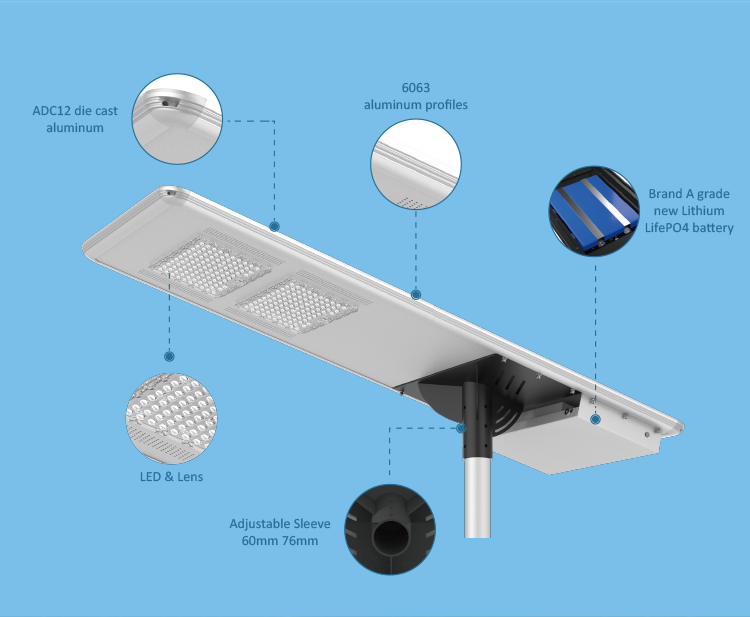

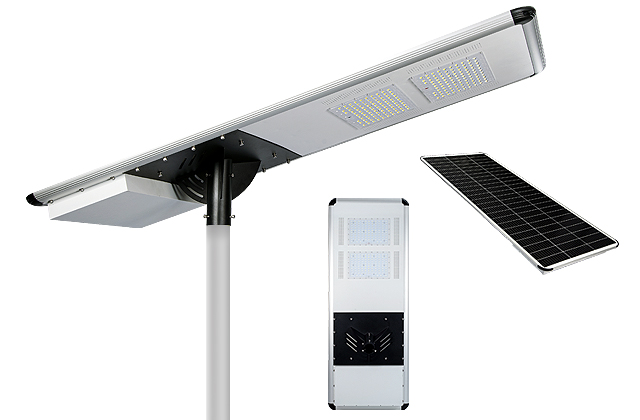

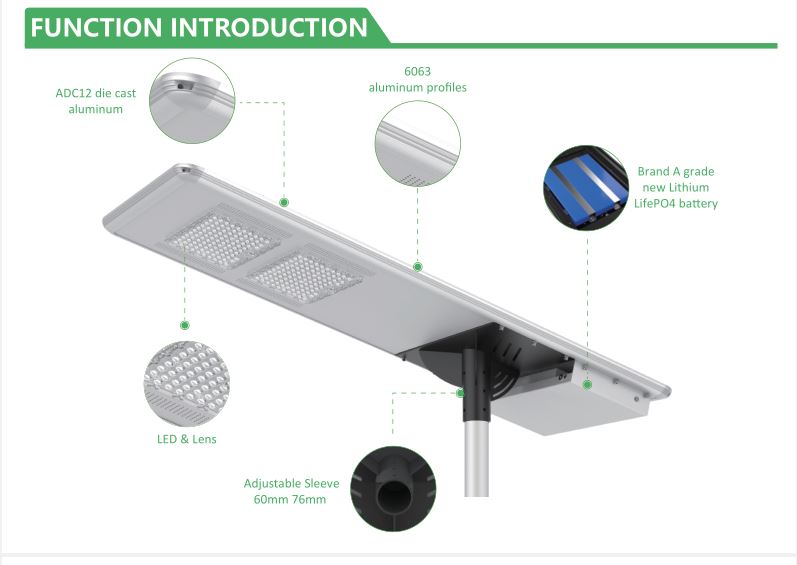

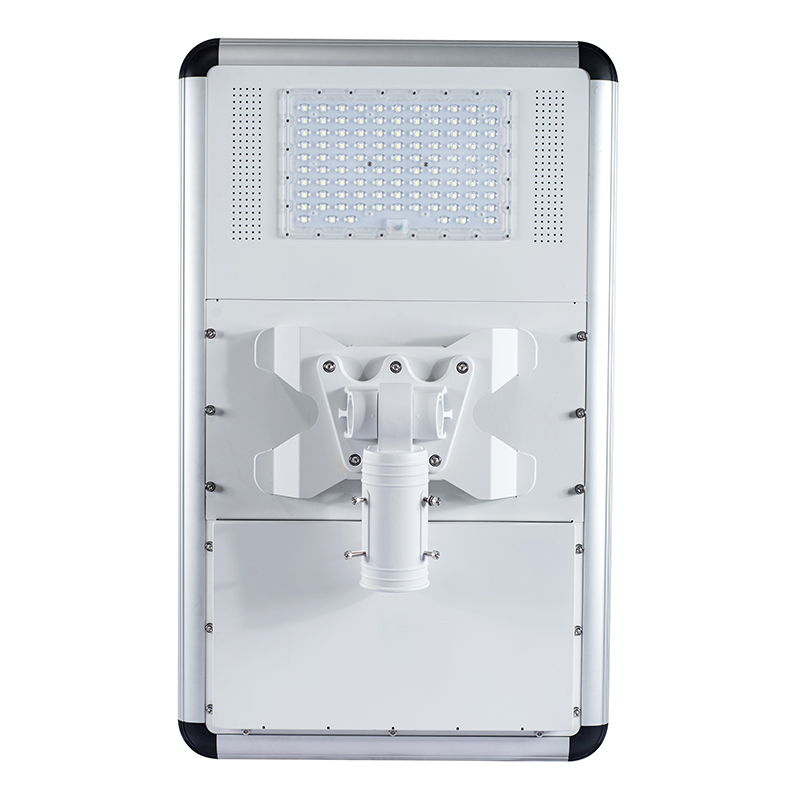

2. LKA series is All in One solar lighting system designed for cost-effective lighting for small to medium spaces. Reliability and easy installation, All key components are integrated within the solar panel and light head.
3. The design of the detachable battery compartment reduces maintenance difficulty and cost, which is conducive to the sustainable use of the product.
4. It uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.
5. Removable battery compartment for easy battery relacement, reducing maintenance time and maintenance costs.
6. High brightness Lumileds SMD 5050 LED chips up to 220lm/w ,super brightness ,reduce light decay.

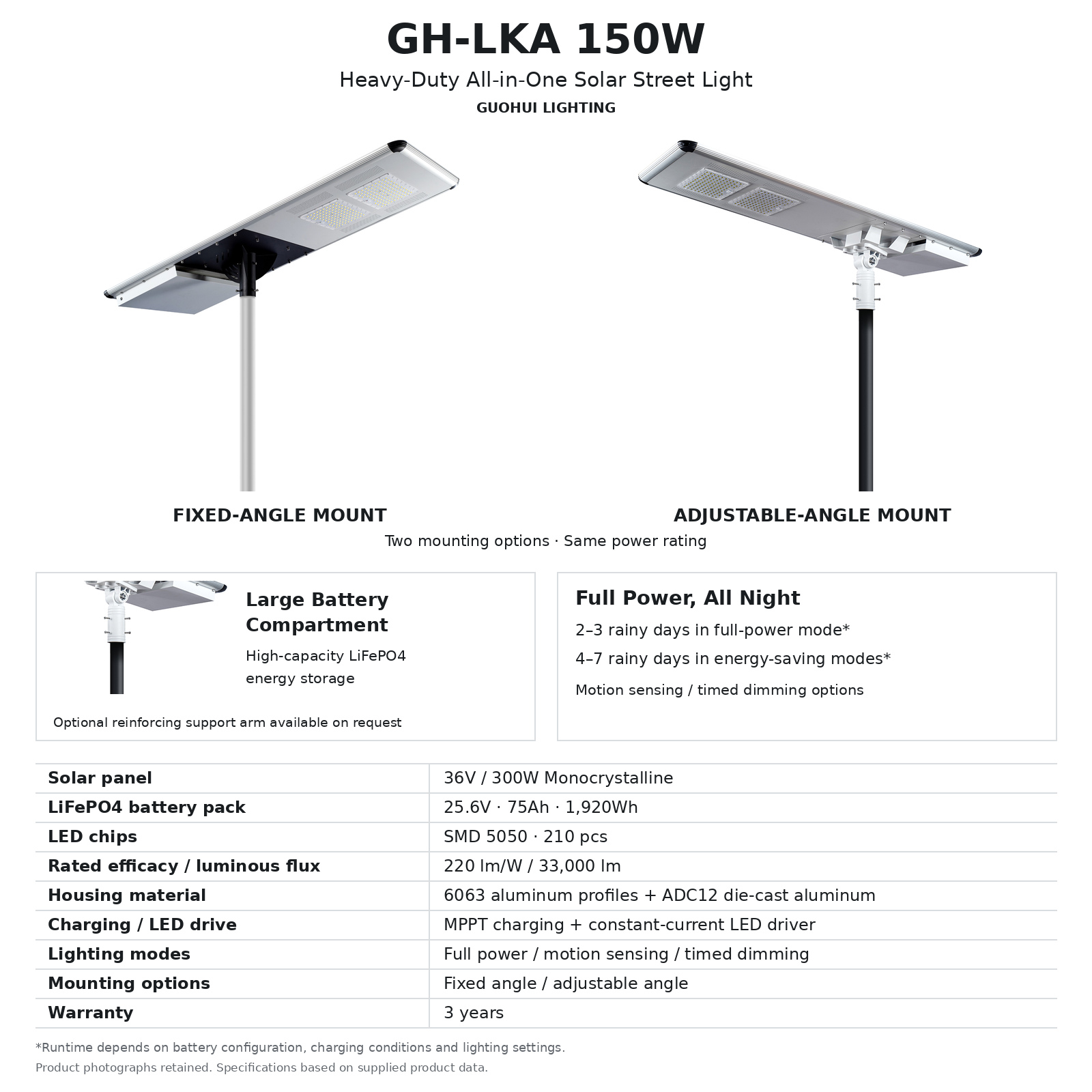

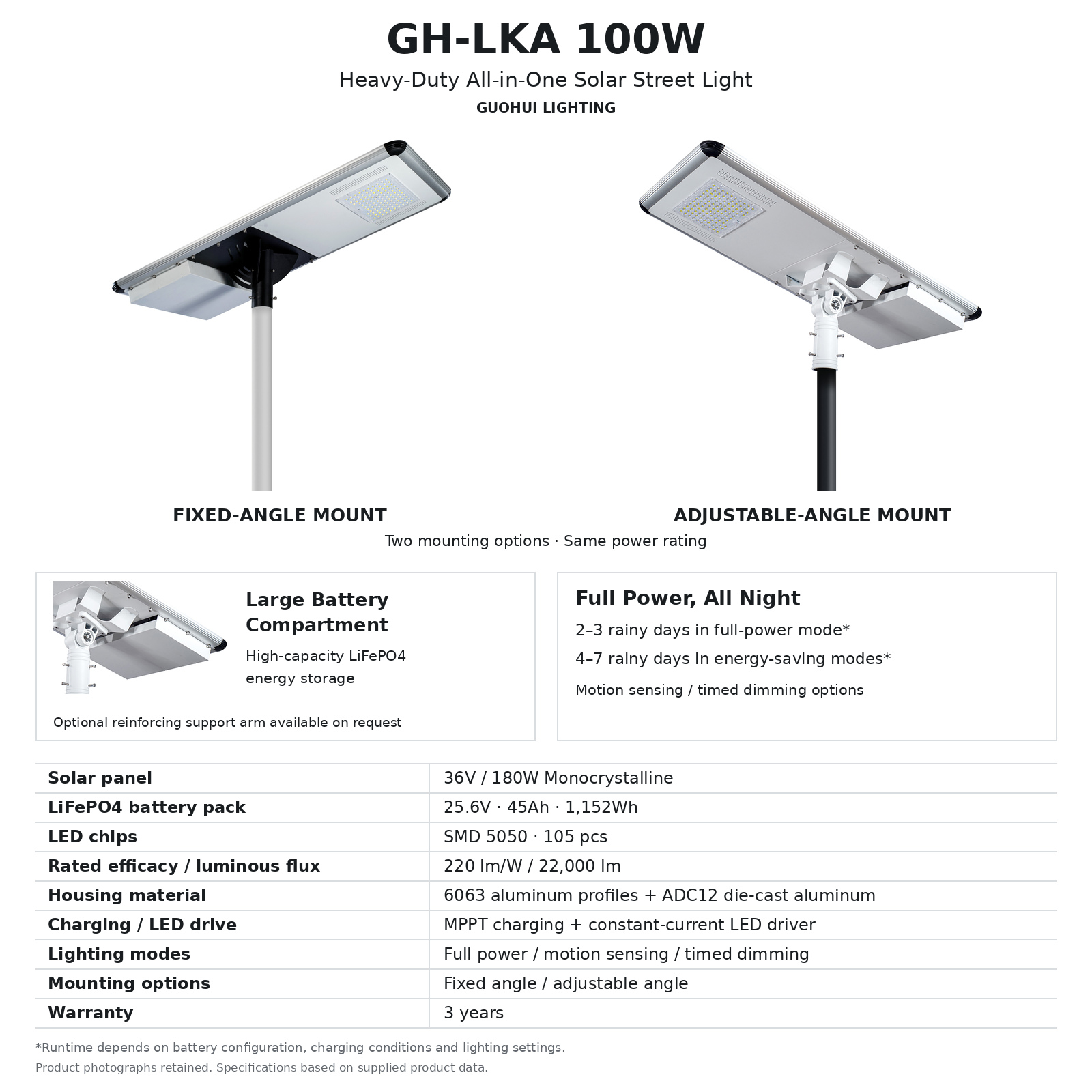

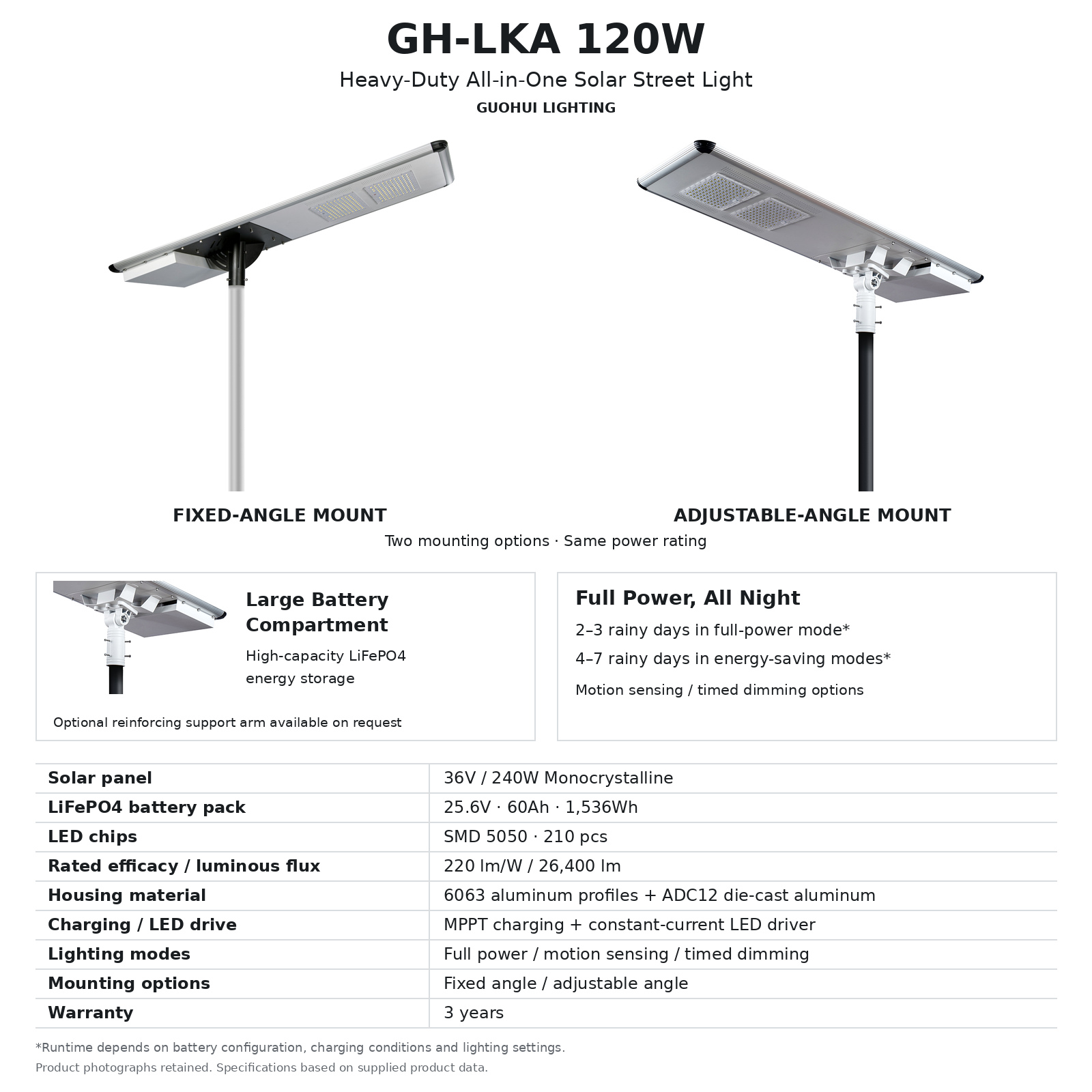

Model number | 80W | 100W | 120W | 150W |

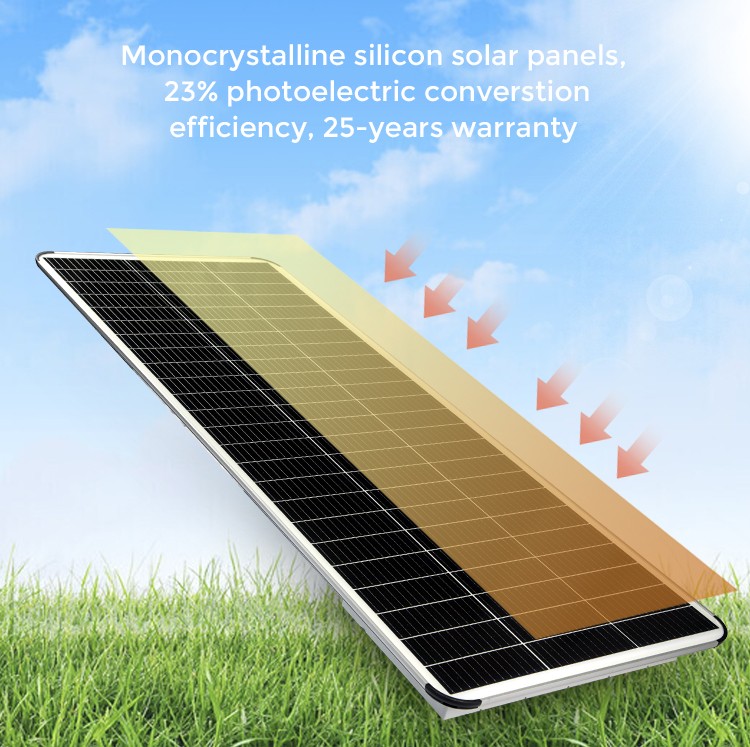

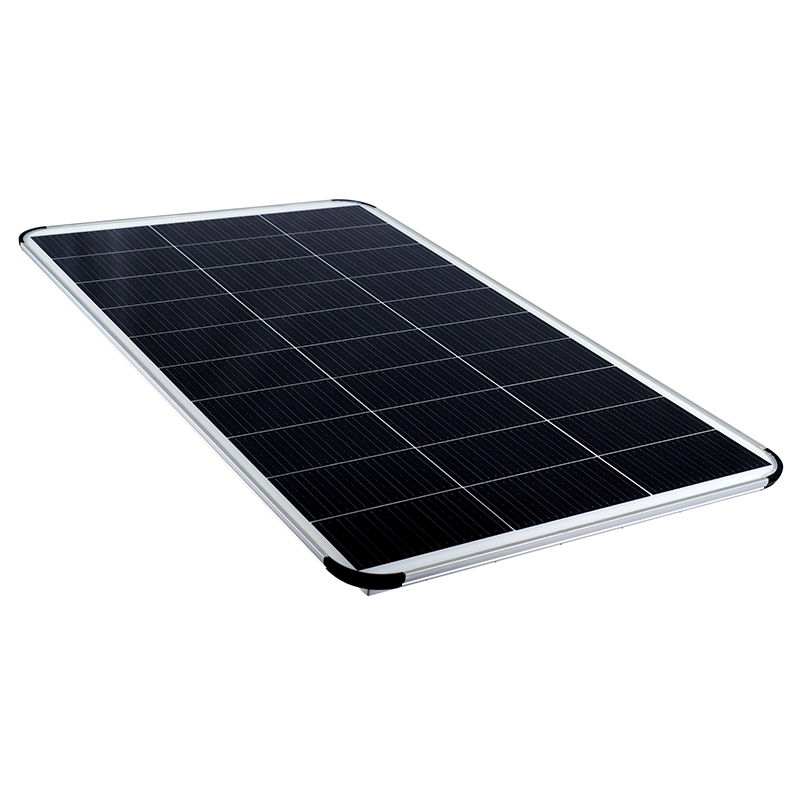

Single cystal solar panel | 18V/50W | 36V/180W | 36V/240W | 36V/300W |
Solar panel size | 1130*679*4mm | 1170*679*4mm | 1790*679*4mm | 1940*679*4mm |

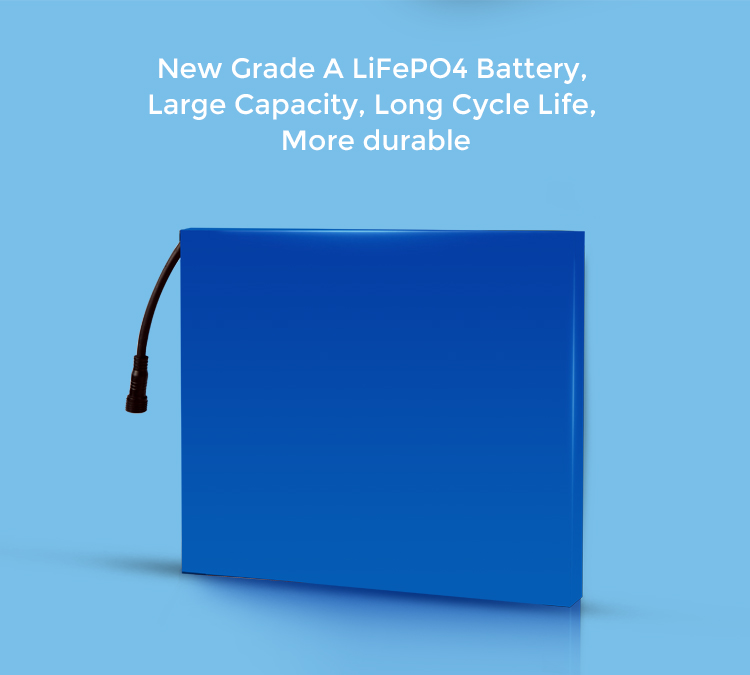

LiFePO4 battery | 12.8V/60Ah | 25.6V/45Ah | 25.6V/60Ah | 25.6V/75Ah |
LED chip | SMD 5050, 105PCS | SMD 5050, 105PCS | SMD 5050, 210PCS | SMD 5050, 210PCS |

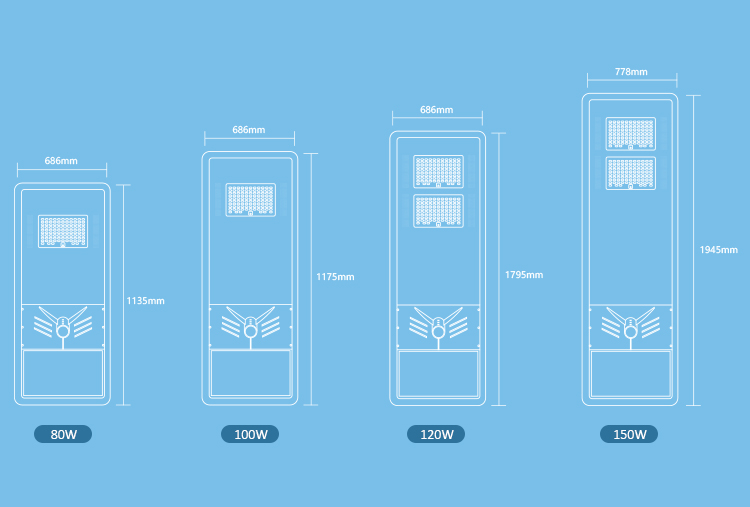

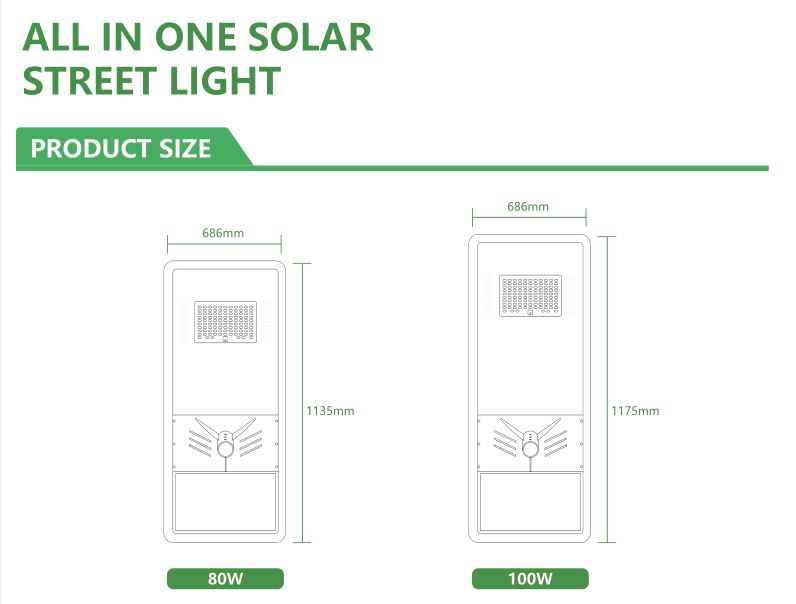

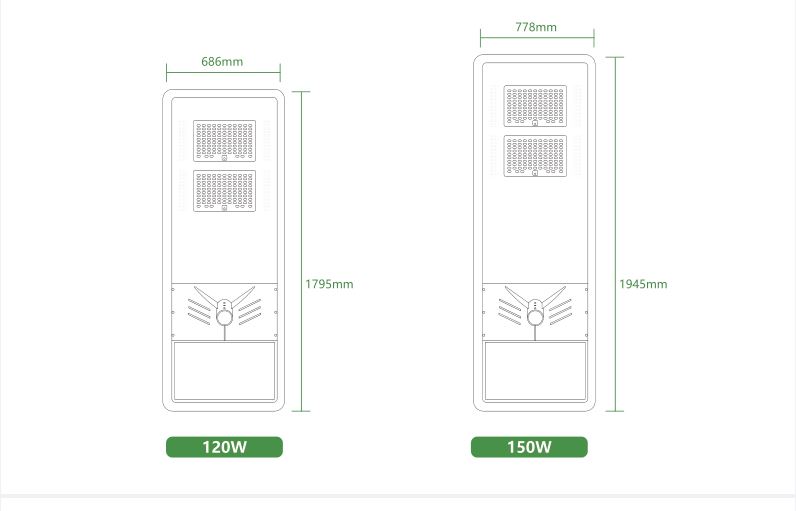

Product size | 1135*686*280mm | 1375*686*280mm | 1795*686*280mm | 1945*778*280mm |
Light efficiency | 220LM/W | |||
Controller | MPPT | |||
Lighting mode | segmented time control+intelligent control | |||
Recommended installation height | 8-10m | 10-12m | 12-13m | 13-15m |
-

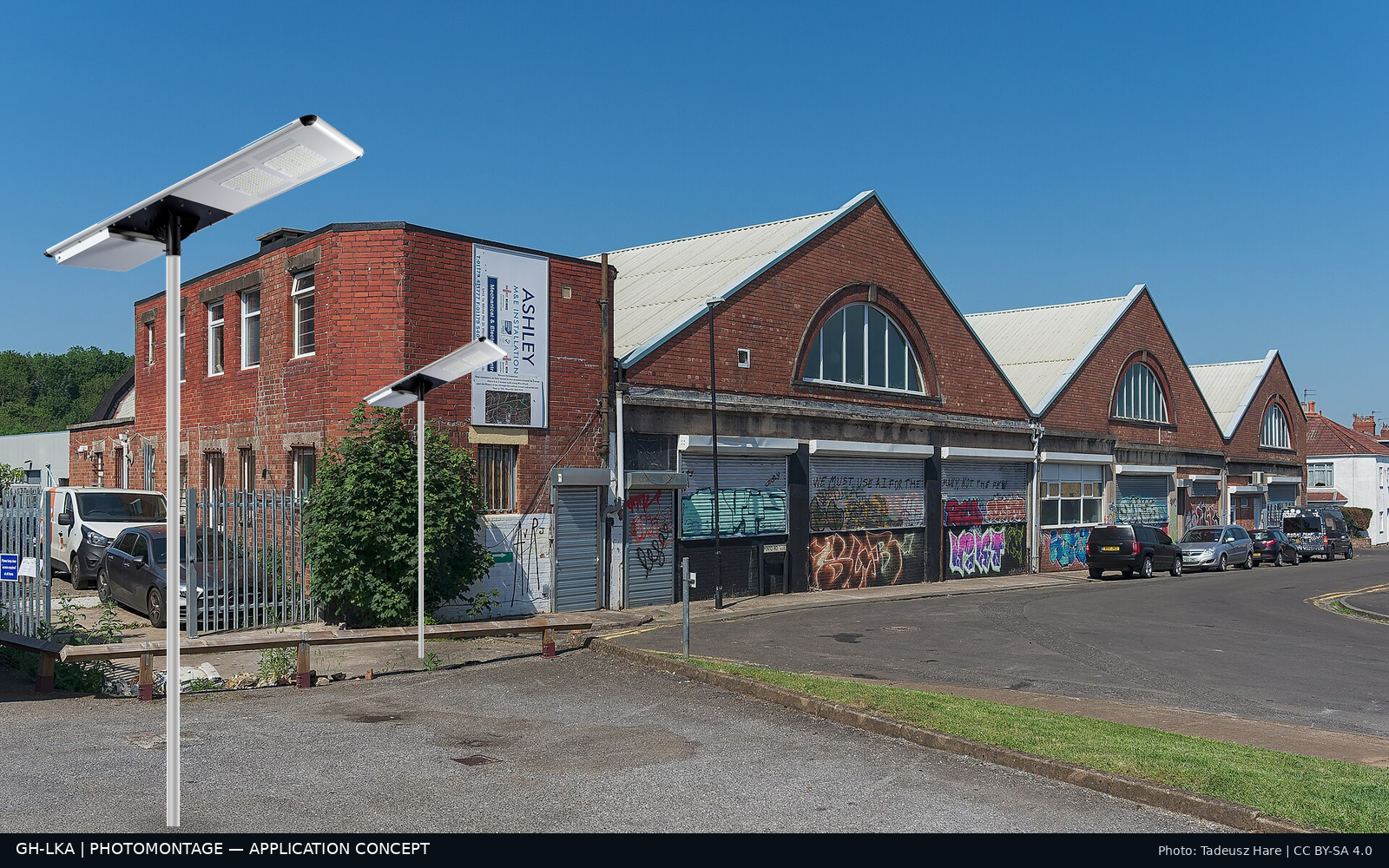

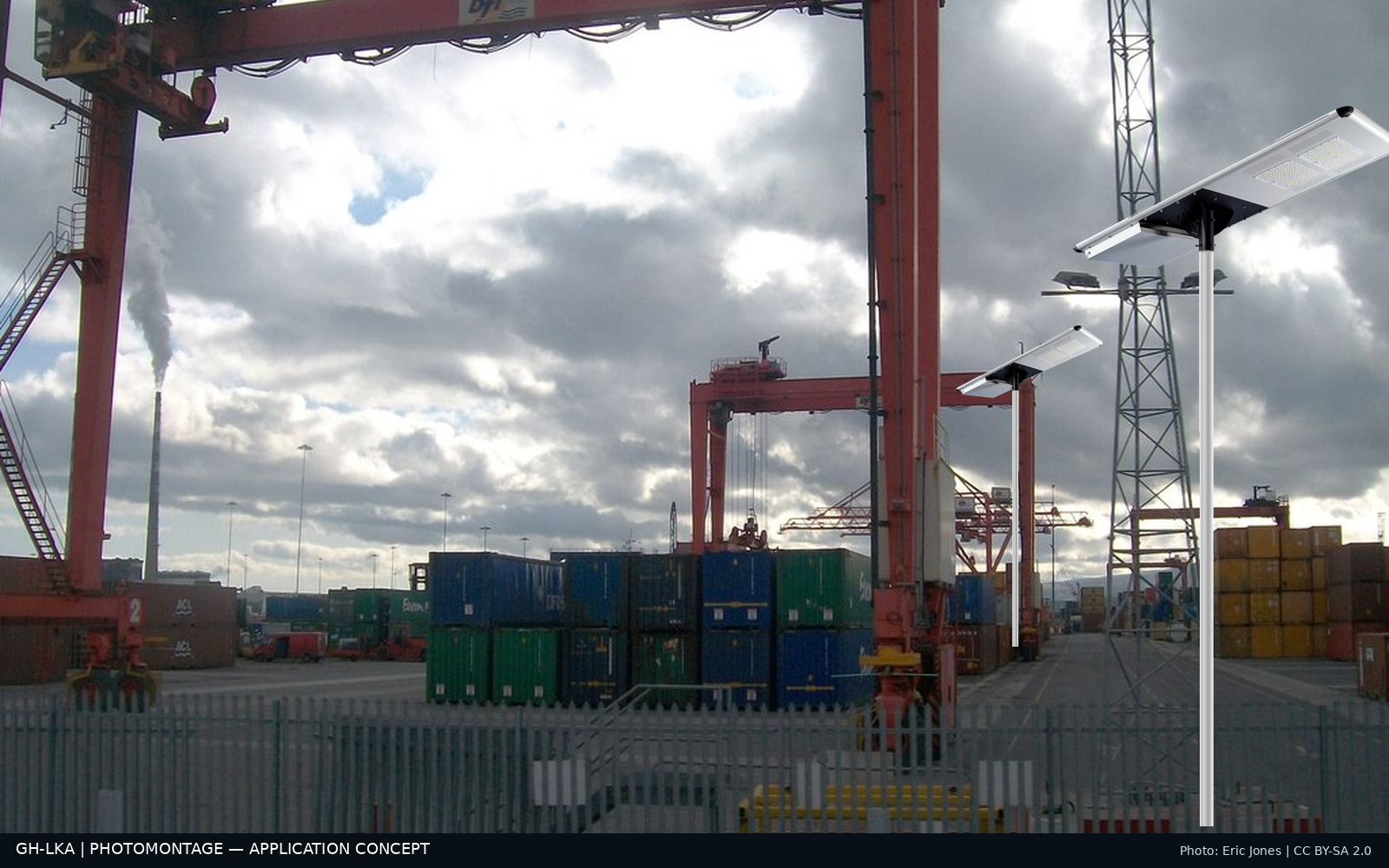

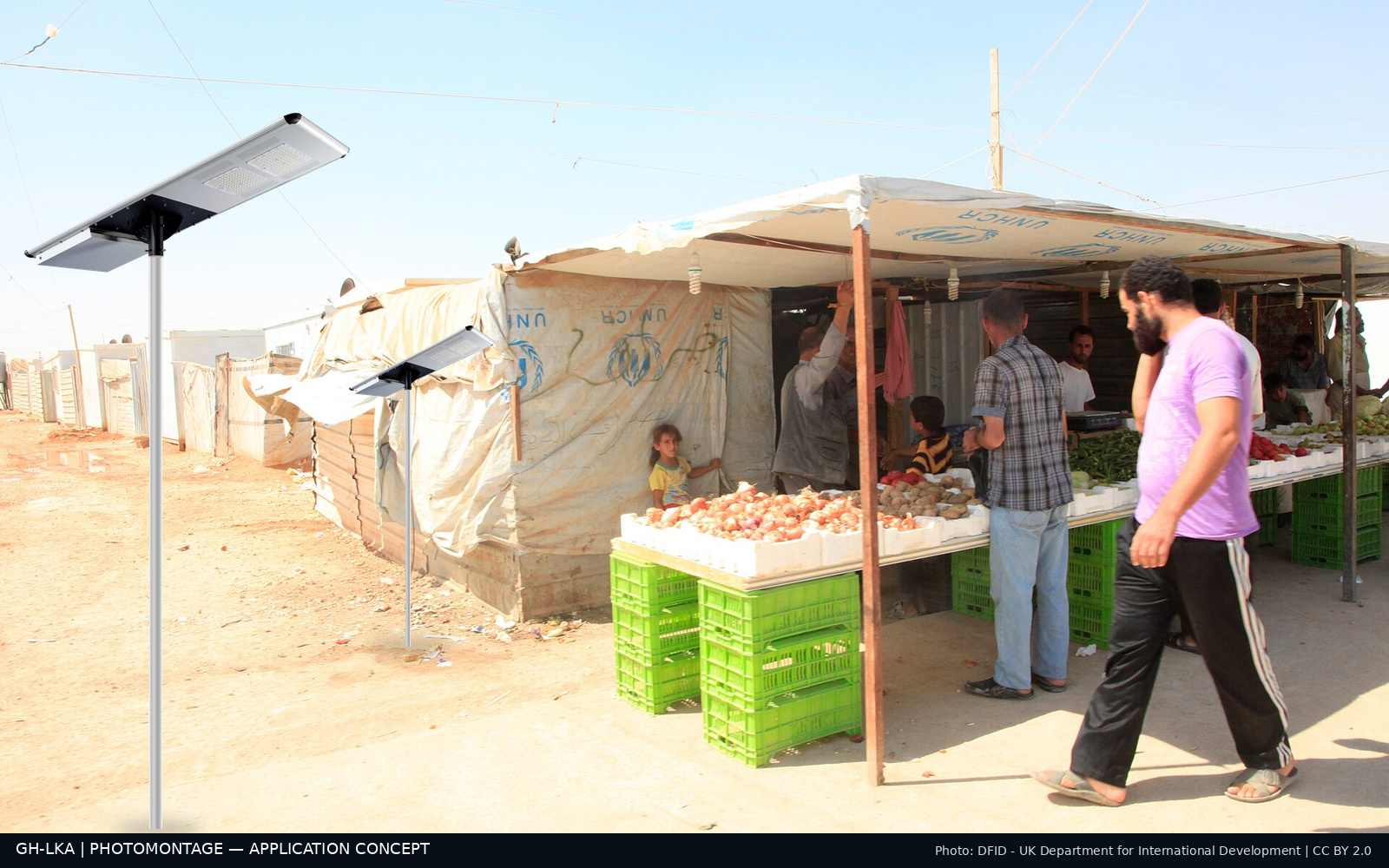

Country Road
-
Front Yard
-
Parking Lot
-

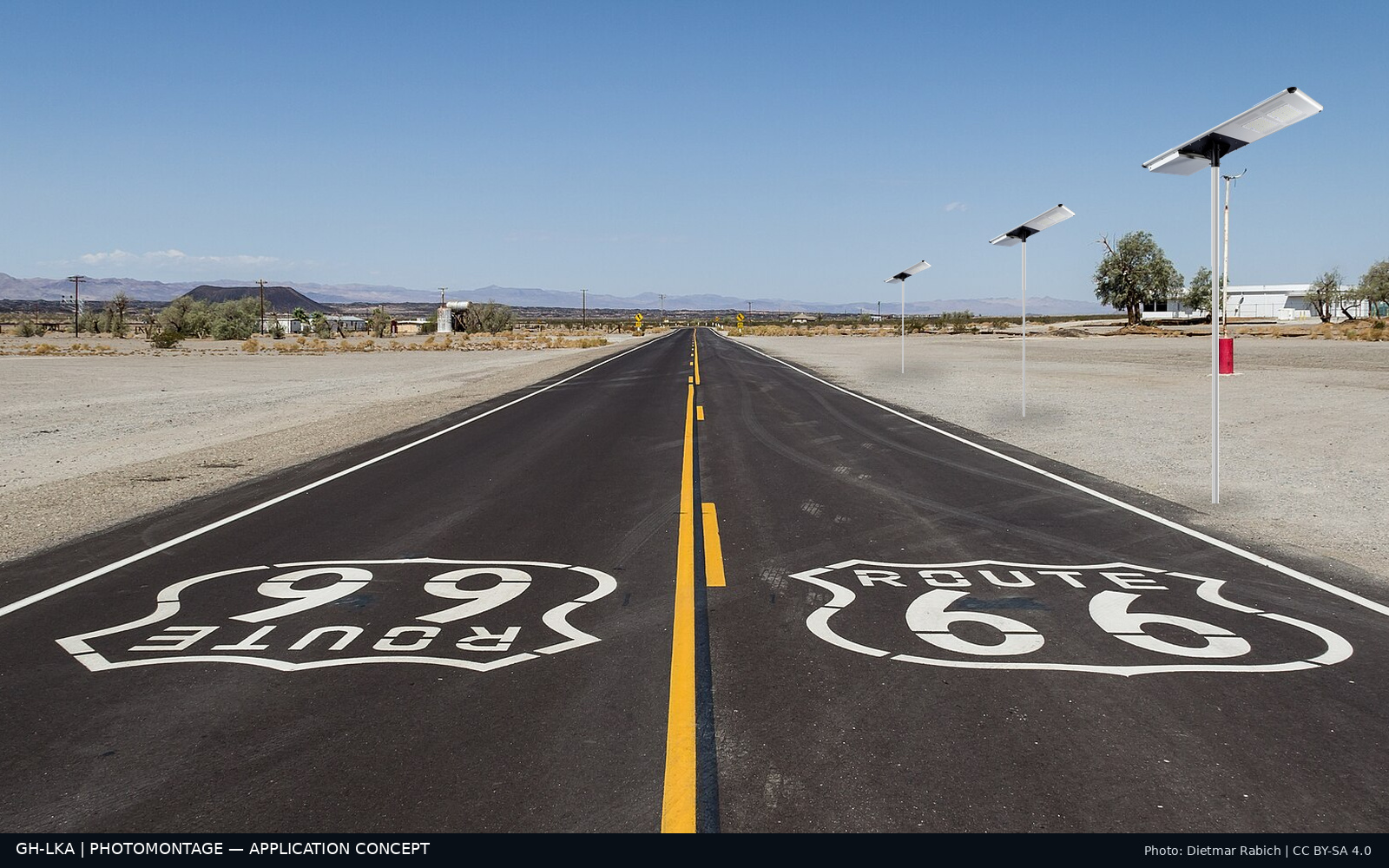

High Way
-
Rural Road
-
Viaducts
-
