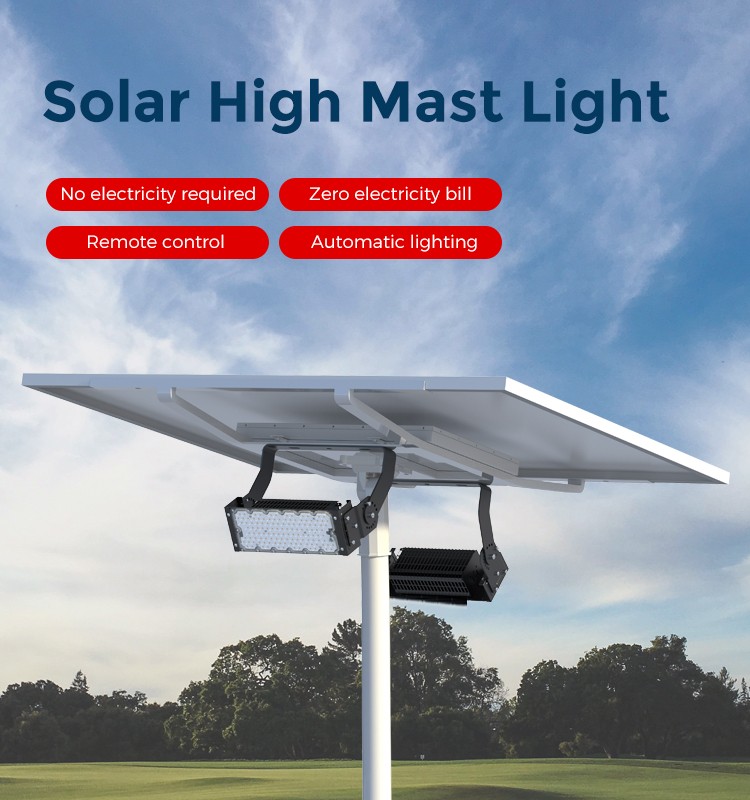

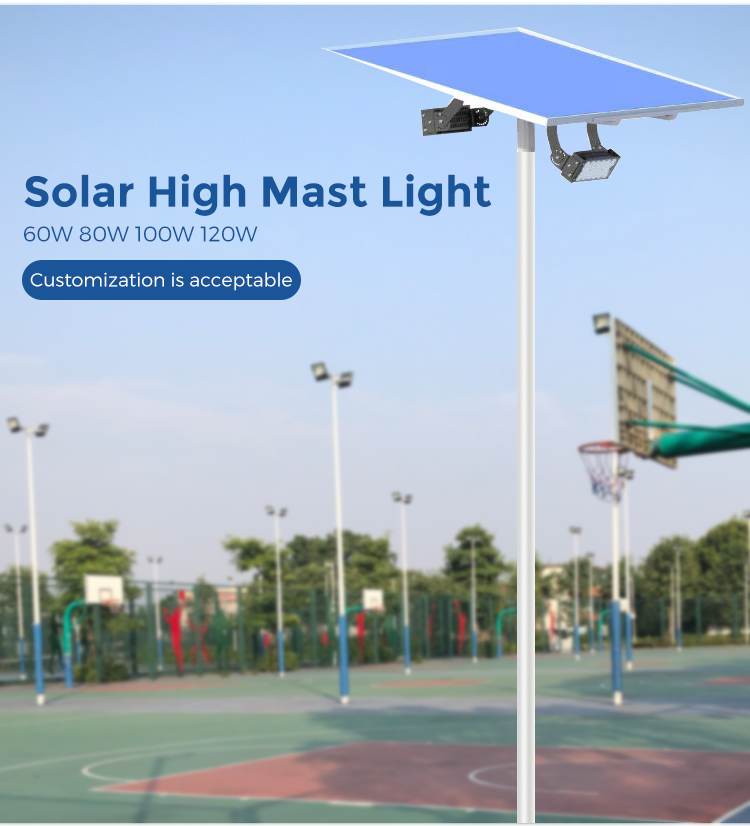

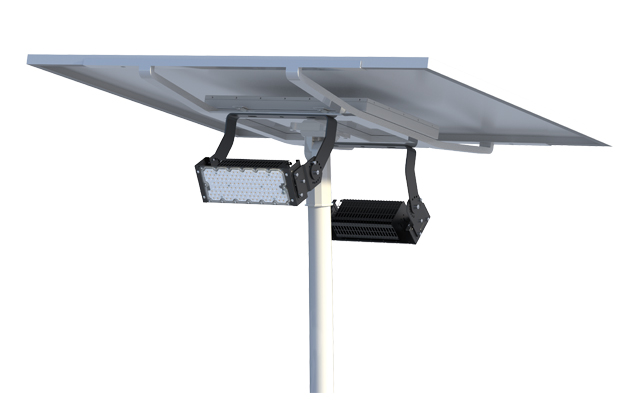

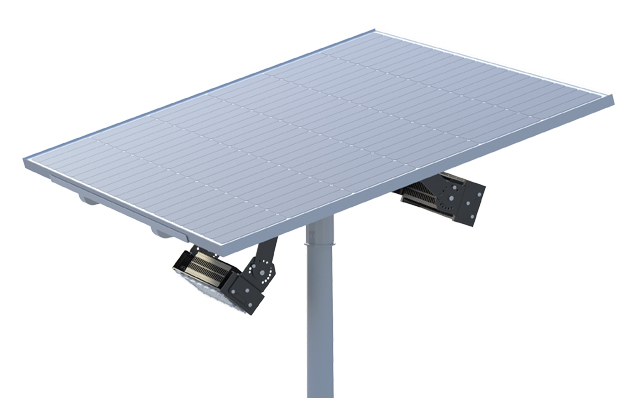

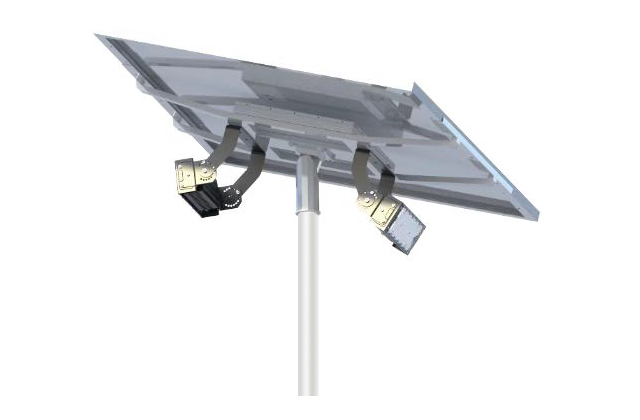

60W 80W 100W 120W Solar High Mast Light

China LED flood light manufacturer with 15 years experiences, support OEM and ODM, high quality, factory direct price

Request A Free Quote
  • Description
  • Video
  • Data sheet
  • Optic & Dialux
  • Application

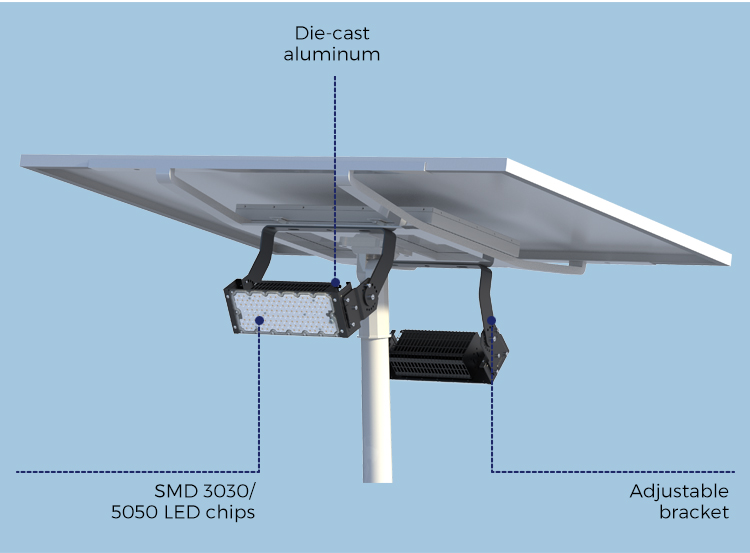

1. ADC12 Die-casting all-in-one molding tempered glass and PC leneses can solve both higher protective luminaires and meet them optical angle requirements

2. Lumileds SMD3030/5050 led chips, the luminous efficiency is up to 200lm/w. The led chips will not turn yellow after long time using.

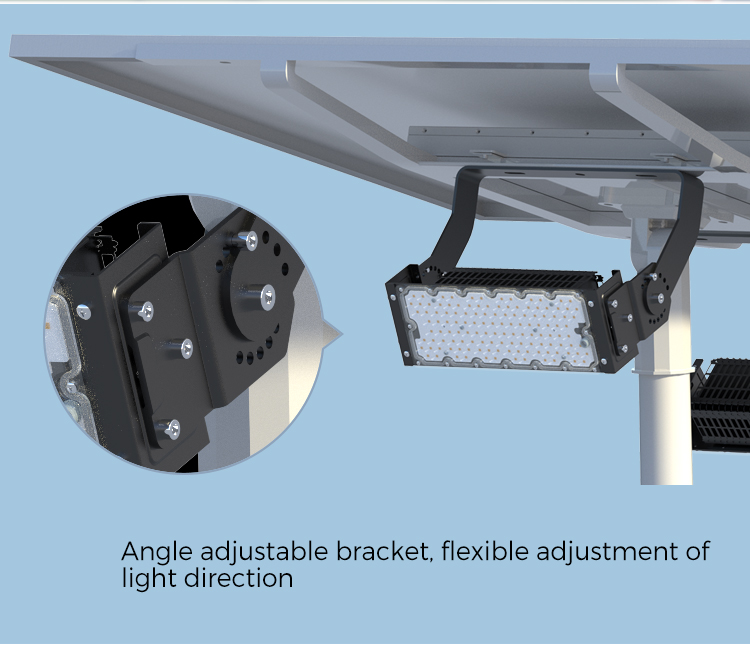

3. Single-model group adjustment angle lighting design, 60°/90°/75°*150°

4. Using Meawell/Sosen/Inventronics driver with waterproof and 5 years warranty.

5. Internal wiring is waterproof, safe, convenient. Use 304 stainless steel screws. Refined iron phosphide bracket.

6. Working environment temperature -30 °C-+55 °C storage

7. As a floodlight outdoor with an IP65 rating, it can be against terrible weather like a rainstorm, sleet, or snow, suitable for both indoor and outdoor lighting.


undefined



ModelSLA-60W
SLA-80WSLA-100WSLA-120W

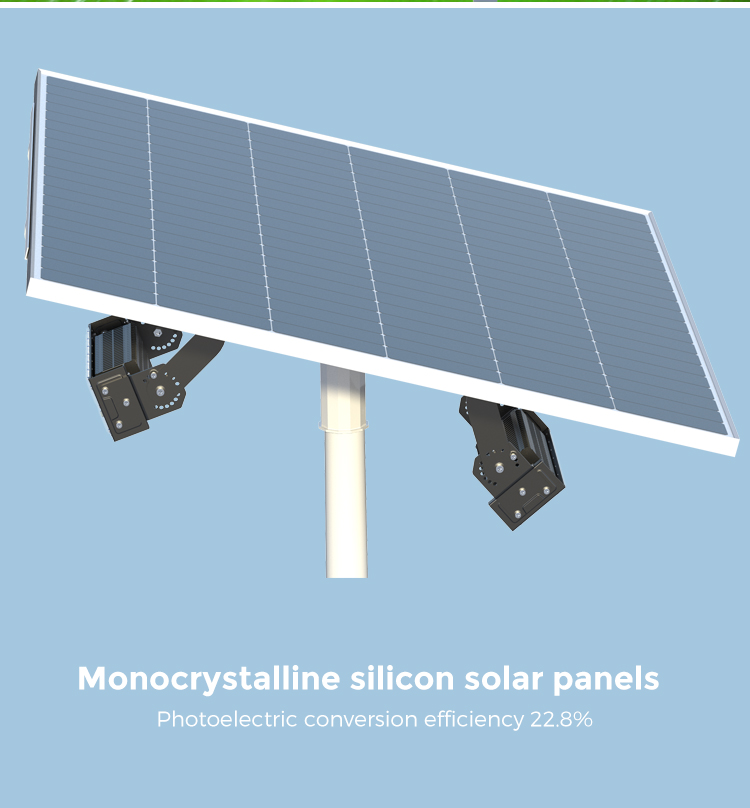

Solar panel18V/150W18V/180W36V/250W36V/300W
Solar panel size
900*760*30mm1180*760*30mm1540*760*30mm1290*1134*35mm
LiFePO4 battery12.8V 60Ah12.8V 75Ah25.6V 45Ah25.6V 60Ah
Lamp size366**249*142mm366**249*142mm366**249*142mm366**249*142mm
LED chipsSMD3030, 252pcsSMD3030, 252pcsSMD3030, 504pcsSMD3030, 504pcs
Lamp efficiency200lm/w200lm/w200lm/w200lm/w
Lamp lumens12000lm16000lm20000lm24000lm
ControllerMPPTMPPTMPPTMPPT
Lighting modefirst 5 hour 100%, second 7 hour 50%first 5 hour 100%, second 7 hour 50%first 5 hour 100%, second 7 hour 50%first 5 hour 100%, second 7 hour 50%
WaterproofIP65IP65IP65IP65
Discharge time
3-5 rainy days3-5 rainy days3-5 rainy days3-5 rainy days
installation height8-10 meter8-10 meter10-12 meter12-15 meter

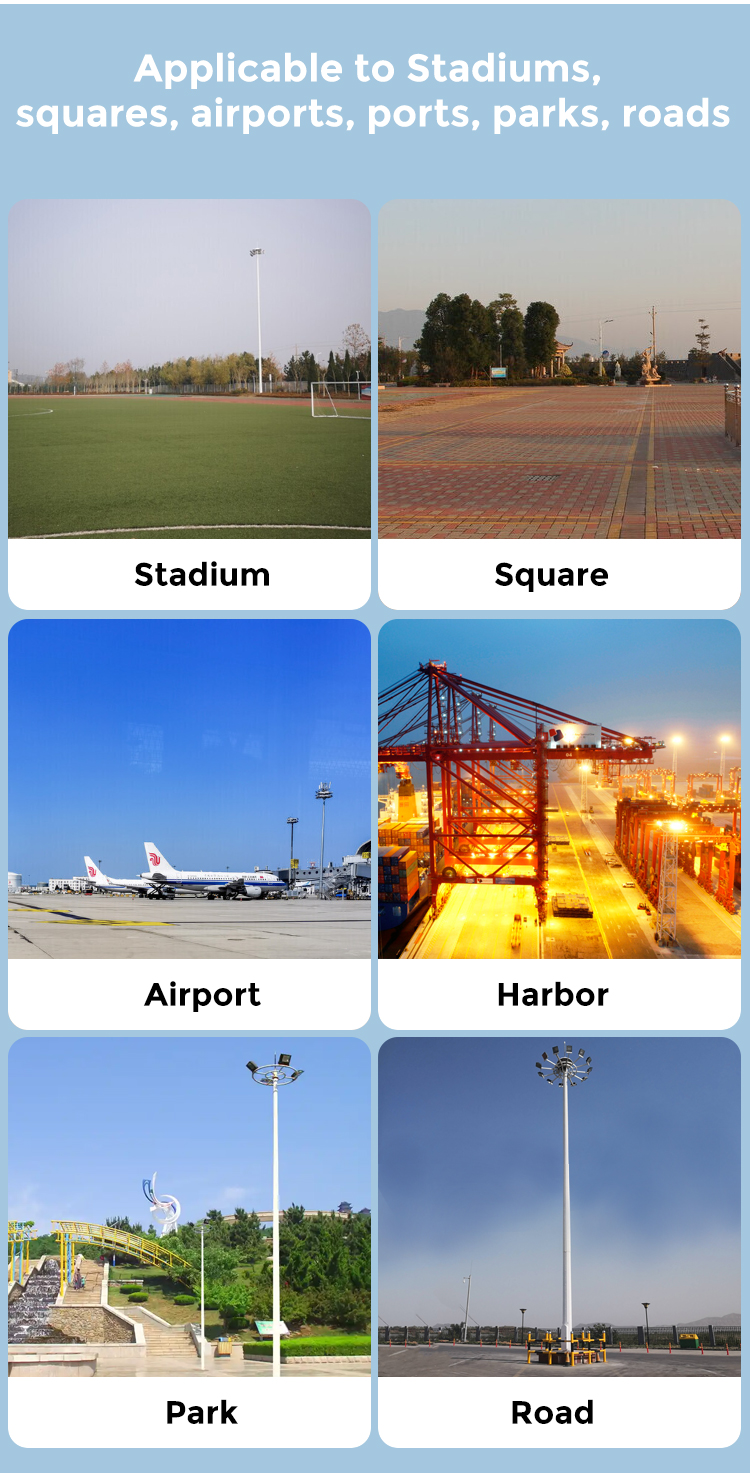

  • Stadium

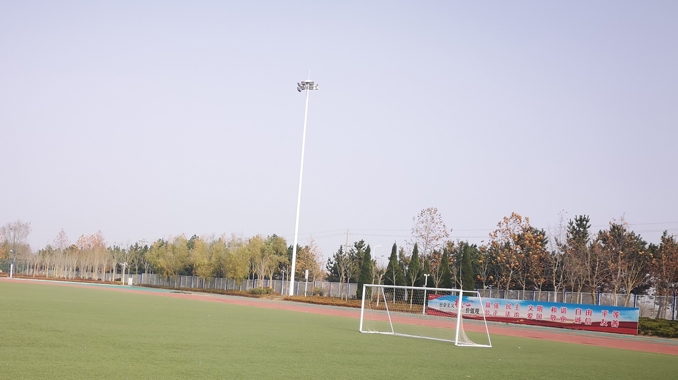

    Stadium

  • Square

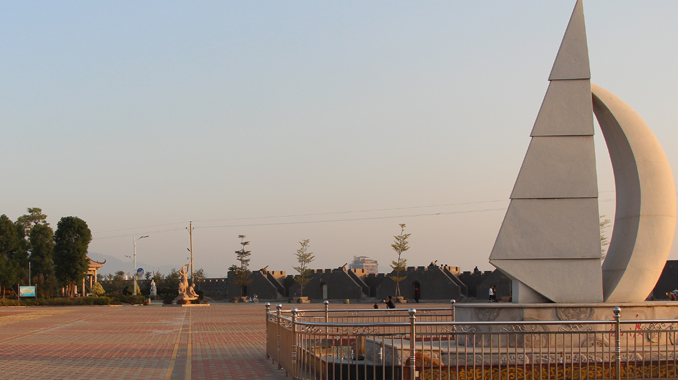

    Square

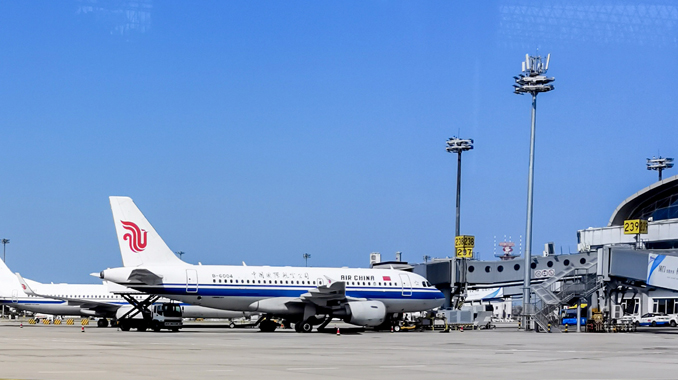

  • Airport

    Airport

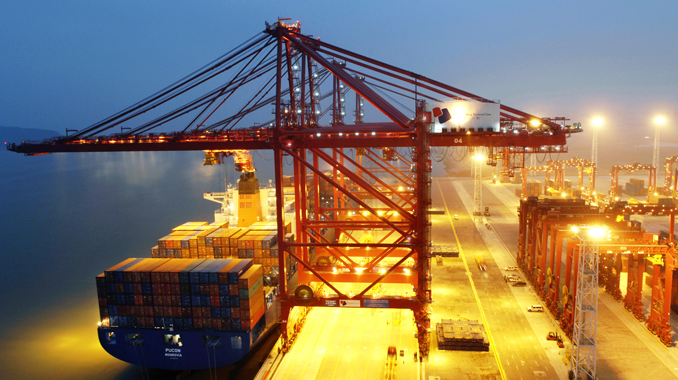

  • Seaport

    Seaport

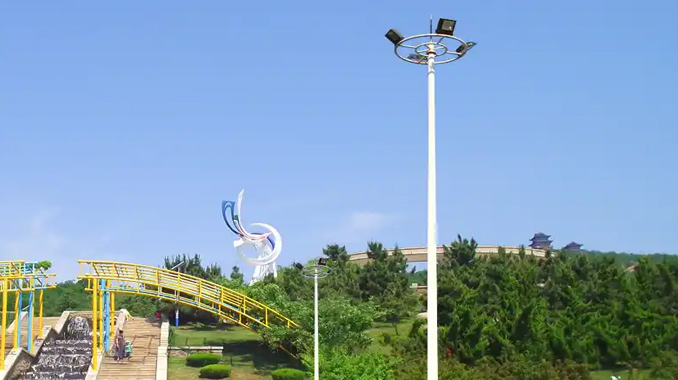

  • Park

    Park

  • Road

    Road
