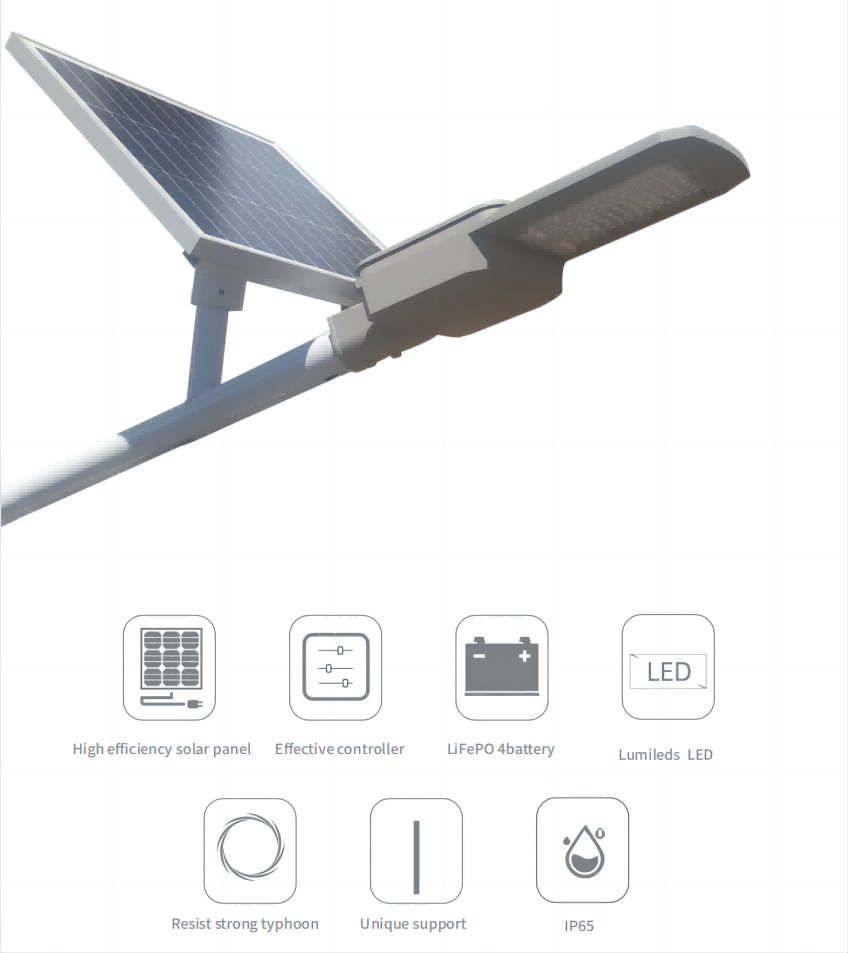

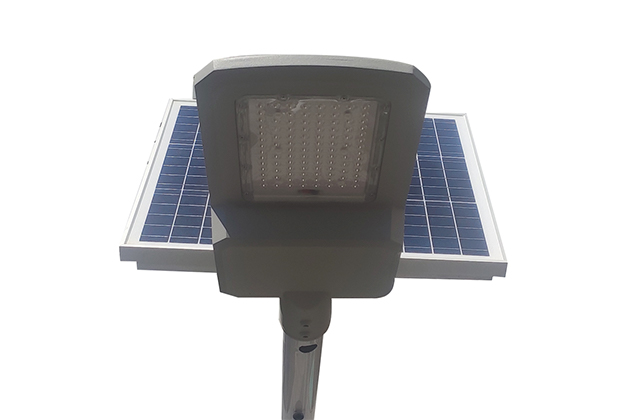

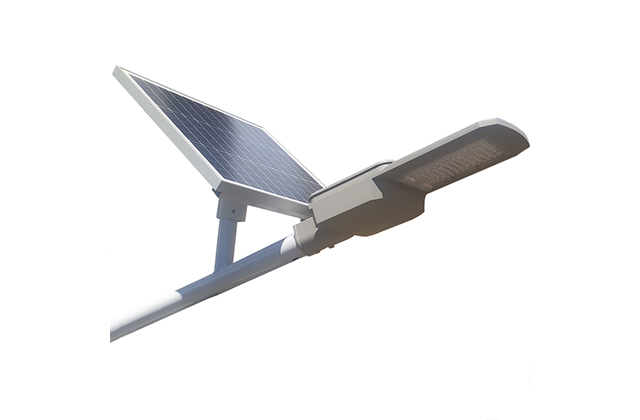

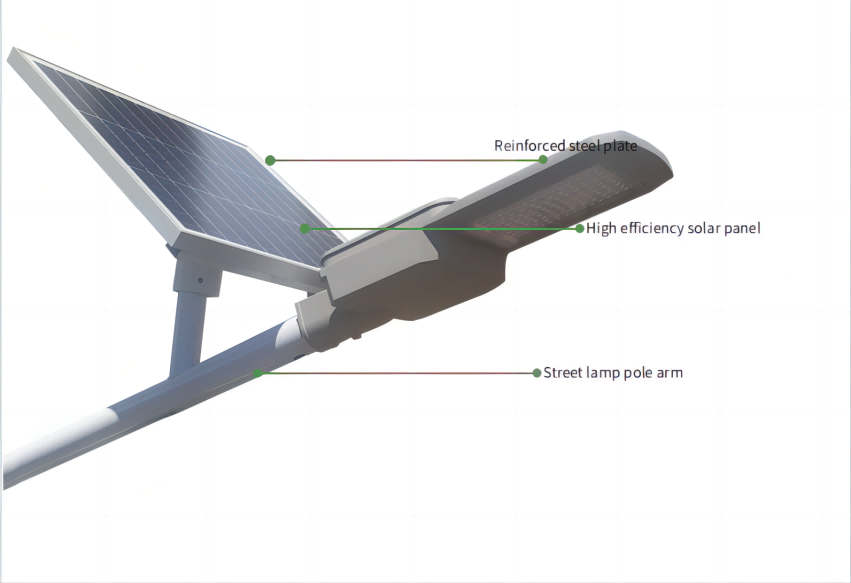

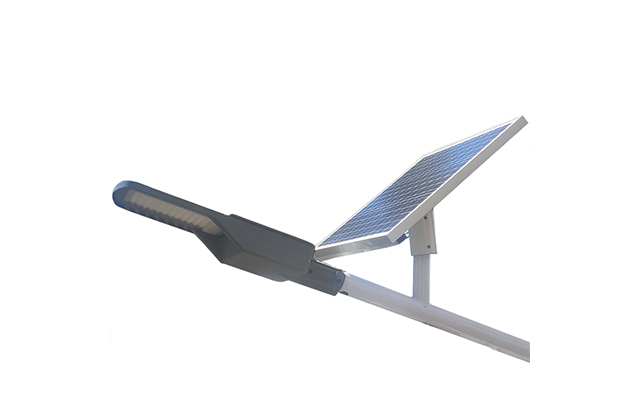

20W Split Panel Solar Lighting System Solar LED Street Lights for Outdoor use
Professional optical design, effectively reduce glare With high efficiency lumen output, light efficiency ≥200lm/w, uniform brightness, meet the needs of urban road lighting perfectly
- 20W/ 30W/ 40W
- Material: Die-casting + tempered glass
- Monocrystalline solar panel
- Color Temperature: 2700K-6500K
- Infrared induction + segmented time control + intelligent control
- Lithium iron phosphate battery
- Charge Duration: 6-8 hour (specific local lighting duration)
- Discharge Durable: supporting 2-3 consecutive rainy days
- IP65 waterproof
- 3 Years warranty.







- Description
- Video
- Data sheet
- Optic & Dialux
- Application

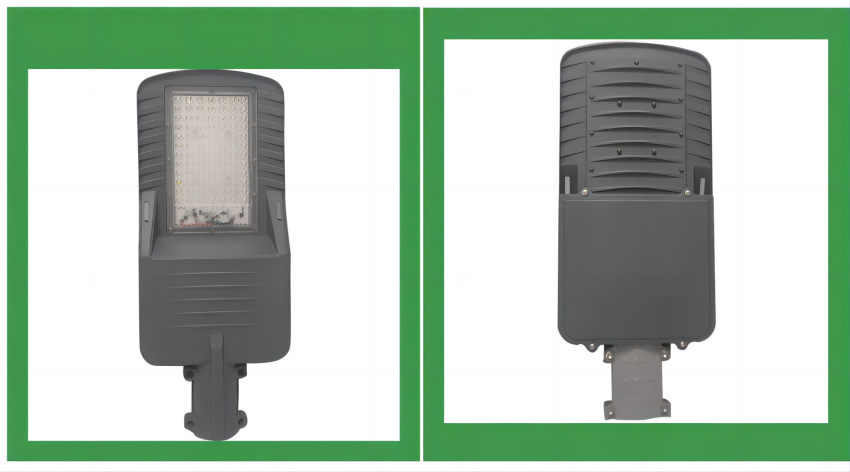

1.The radiator is made of 6063 aluminum, which is treated with thickened anti-corrosion paint.

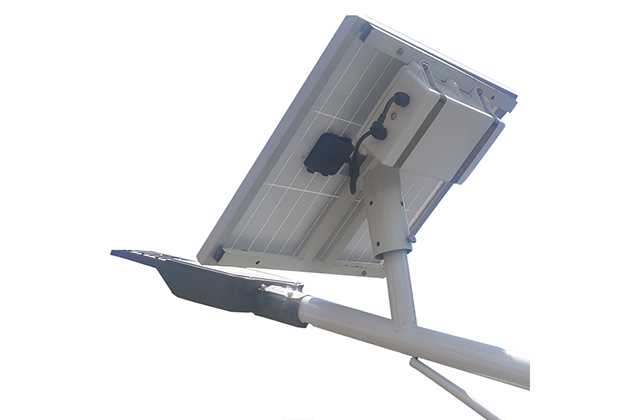

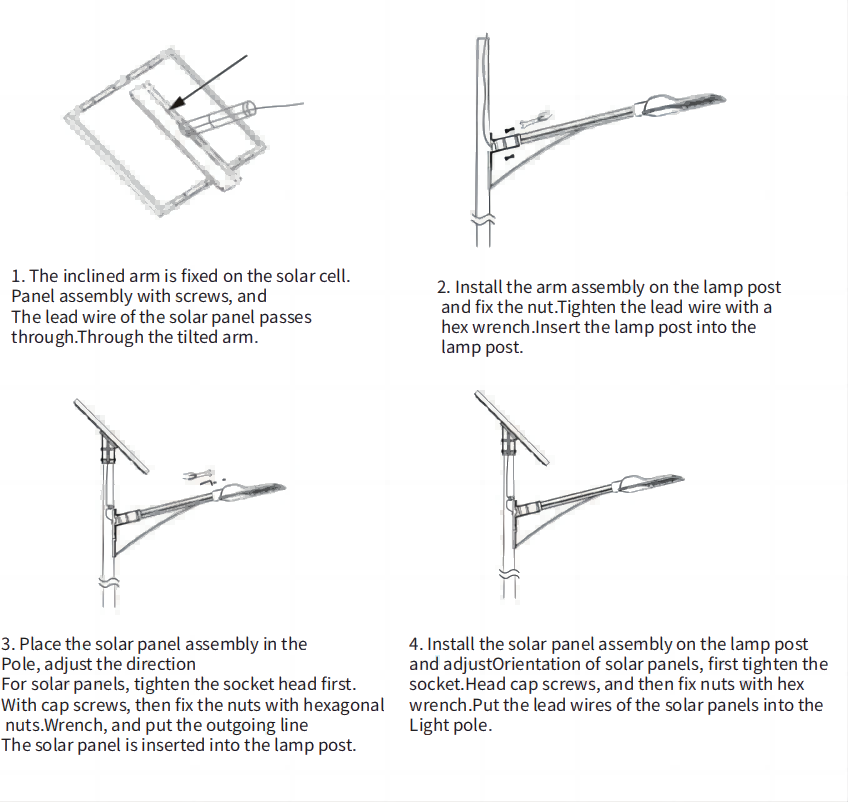

No additional wiring is required, saving expenses; multiple mounting brackets can be installed in tubes, arms, etc.
2.Direct lighting design, high light transmittance PC protective cover, light transmittance over 90%, high Light effect.

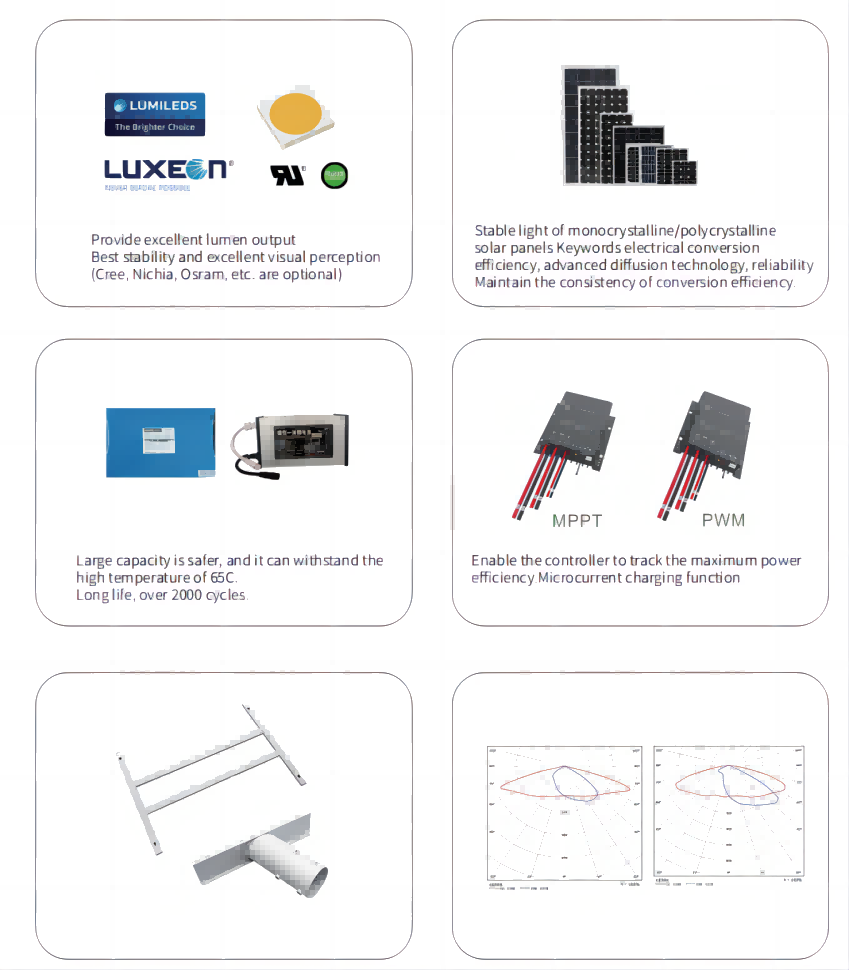

3.Genuine imported chip lamp beads, high Light effect, low light decay, high energy saving efficiency.
4.High thermal conductivity aluminum substrate and radiator, low temperature rise, good heat dissipation of the whole lamp, and more guaranteed life.
5.3-year warranty commitment, lifetime cost price maintenance.

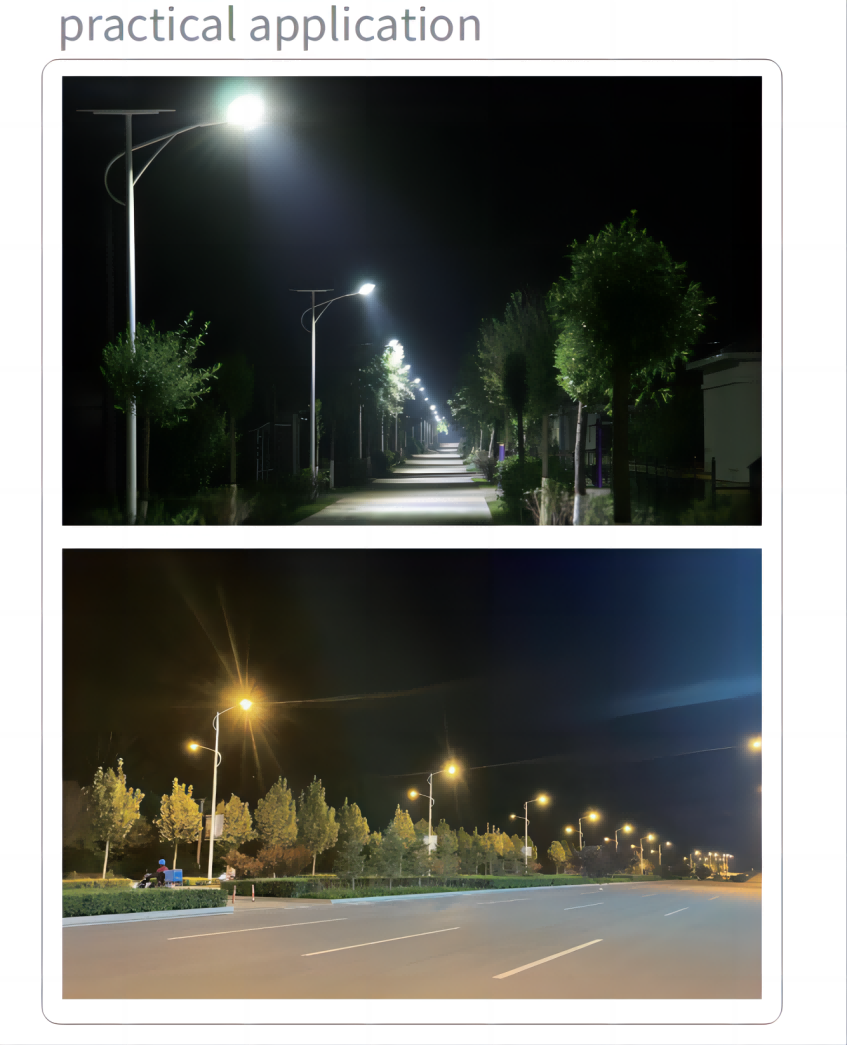

6.Scope of application: main roads, road lighting in industrial parks, highways, viaducts, urban street, country road, sidewalk and other road lighting.

Product Model | GH-LFA-20W | GH-LFA-30W | GH-LFA-40W |
Monocrystalline solar panel | 18VV/50W | 18V/50W | 18V/80W |
Battery | Lithium iorn phosphate 3.2V 60AH | Lithium iorn phosphate 3.2V 60AH | Lithium iorn phosphate 3.2V 105AH |
LEDs Chips | Philips 5050 | ||
Material | Die-casting aluminum | ||
Luminous Efficiency | 200lm/w | ||
Controller | MPPT boost constant current integrated control | ||
Lighting Mode | Microwave induction+segmented time control+intelligent control | ||
Charge Time | Supporting 2-3 rainy days | ||
Discharge Time | Sunshine lasts for 6-8 hours | ||
Working Hours | >50,000 hours | ||
IP Grade | IP65 | ||
Warranty | 3 years |
-
Country Road
-
Front Yard
-
Parking Lot
-
High Way
-
Rural Road
-
Viaducts
-
