50W 60W 80W High Brightness LED Solar Street Lights With Motion Sensor
China solar street light manufacturer with 15 years experiences, support OEM and ODM, high quality, factory direct price; Rich experiences in road/government solar street light projects.
- 50W 60W/ 80W
- Made of 6063 aluminum
- Monocrystalline solar panel
- Auto On/Off + Microwave induction + time control + intelligent control
- LiFePO4 Lithium battery
- Charge Time: 4-6 hours
- Discharge Time: 3-7 rainy days
- HD Camera for option
- IP66 waterproof
- 3 Years warranty.
- Description
- Video
- Data sheet
- Optic & Dialux
- Application
1.The STL range uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.
2.Professional outdoor lights IP65 waterproof and lighting protection.

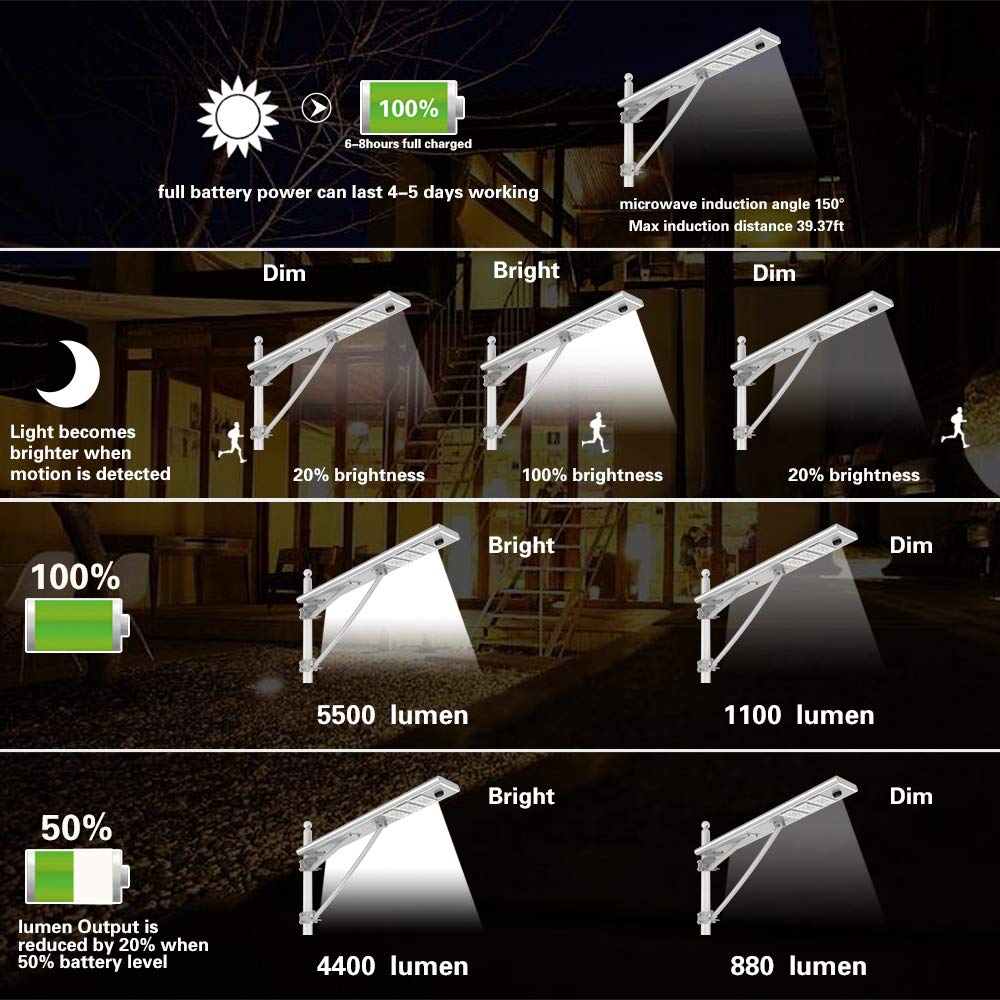

3.Working Mode: Automatic turn on at dusk, turn off dawn. When motion is detected, it becomes brighter.If the movement leaves, it will turn back to dark mode again.In order to save electricity, at dusk, counting from begin lighting. 1-6H: motion mode 100% brightness, dark mode 20% brightness; After 6H : motion mode 70% brightness, dark mode 20% brightness;The daytime turns off automatically and starts charging.
4.Applications: Coastal Areas, Jetties,Parking Lots,Perimiter Lighting,Security,Entrance Lighting,Signage,Billboard Lighting,Construction Sites,Rural,Remote Area Lighting,Mining & Industrial Sites
Product Number | GH-LK-50W | GH-LK-60W | GH-LK-80W |
Solar Panel | Monocrystalline 18V/70W | Monocrystalline 18V/90W | Monocrystalline 18V/110W |
Panel Size | 1130*340 mm | 990*500 mm | 1210*500 mm |
LEDs Brand | Lumileds SMD 2835/3030 | ||
Light Efficiency | 180lm/w | ||
Lumen | 9000lm | 10800lm | 14400lm |
Controller | PWM / MPPT | ||
Lighting Method | Auto On/Off + Microwave Induction + Time Control + Intelligent Control | ||
Charging Time | 4-6 hours | ||
Battery | LiFePO4 Lithium 12.8V 30AH | LiFePO4 Lithium 12.8V 36AH | LiFePO4 Lithium 12.8V 42AH |
IP Grade | IP65 | ||
CCT | 2700K-6500K | ||
Beam Angle | TYPE II, TYPE III, TYPE IV, TYPE V | ||
Material | 6063 Aluminum + PMMA Lens | ||
Lifetime | 50,000 Hours | ||
Working Temp | -30℃~+55℃ | ||
Warranty | 3 Years | ||
Certifications | CE RoHs LM80 IP65 | ||
Package | Support customized company logo and package, OEM & ODM are available | ||
Packing Size | 1200*400*130mm | 1250*568*135mm | 1300*568*135mm |
Gross Weight | 14.5KG | 18KG | 22KG |
-
Country Roads
-
Front Yard
-
Parking Lot
-
Viaducts
-
Rural Roads
-
High Way
