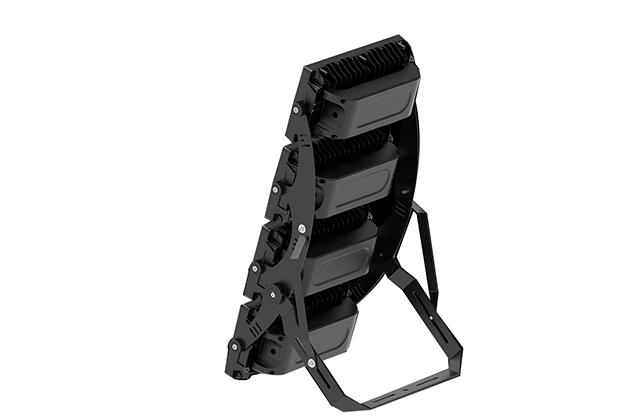

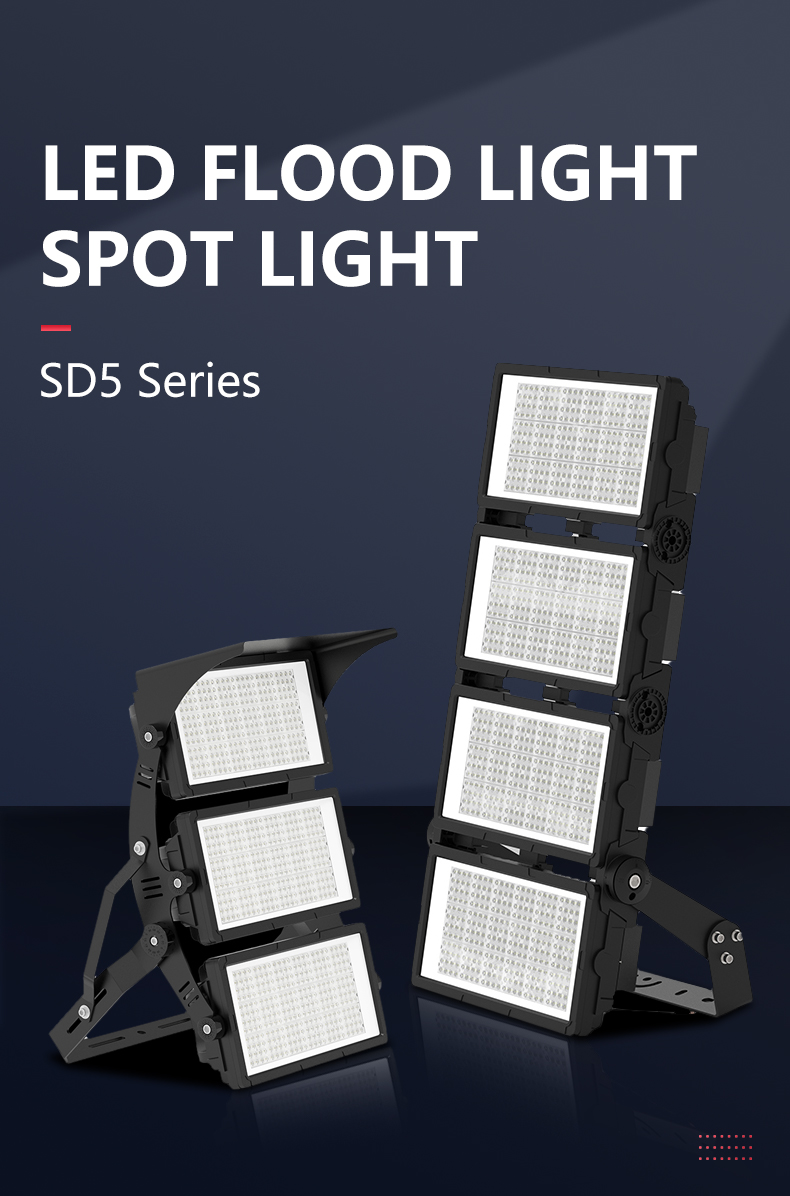

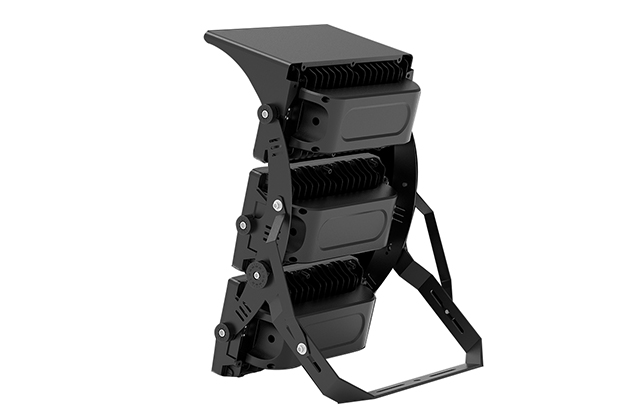

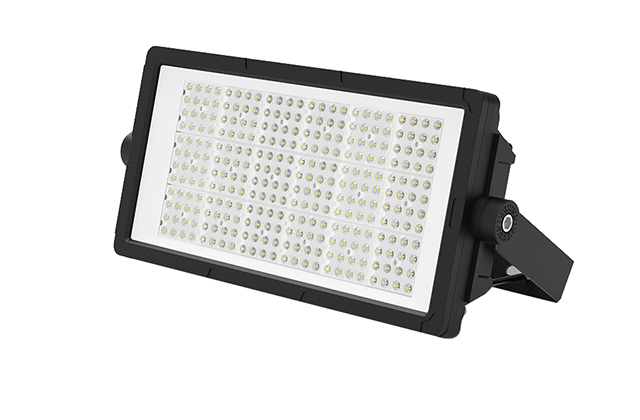

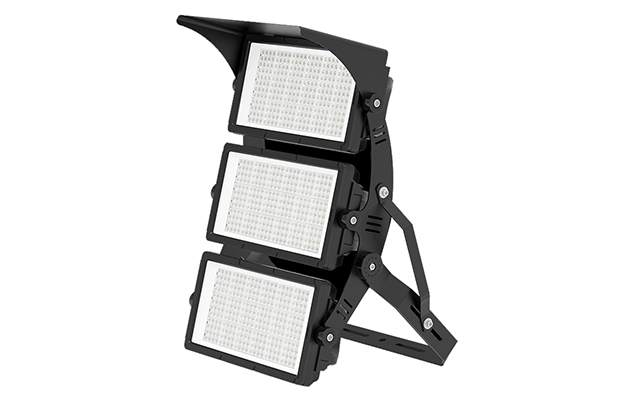

250W 500W 750W 1000W LED Stadium Flood Light
- Lamp beads：Philips SMD3030
- Light efficiency：≥130LM/W
- Input voltage：AC85-265V
- Power factor：PF≥0.95
- Power supply：DONE/Mingwei
- Surge：≥4KV
- CCT：2700-6500K
- CRI：Ra≥70
- Colour：Black
- Beam angle：30°/60°/90° optional
- Protection level：IP66
- Service life：50000Hours
- Certificate：CE RoHS
- Material：ADC12 die-cast aluminum
- Working temperature：-30°C - +55°C
- Warranty：3 years/5 years
- Description
- Video
- Data sheet

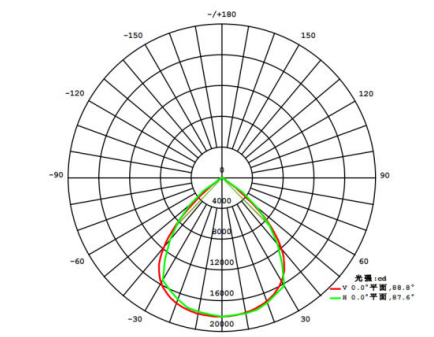

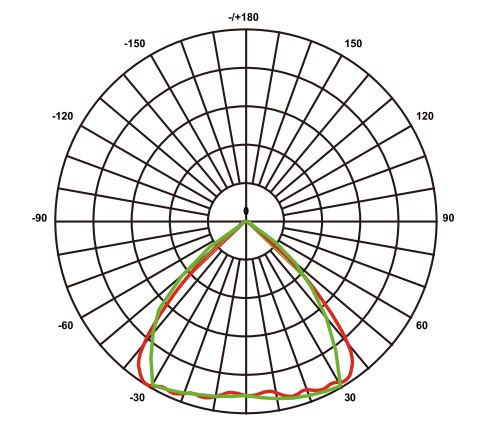

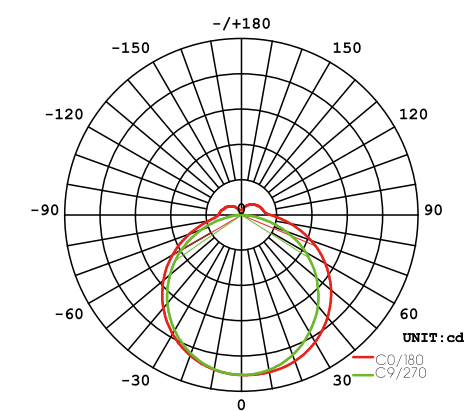

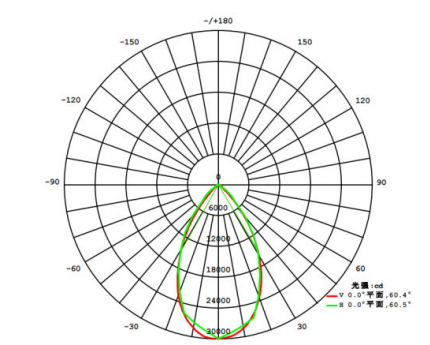

- Optic & Dialux
- Application

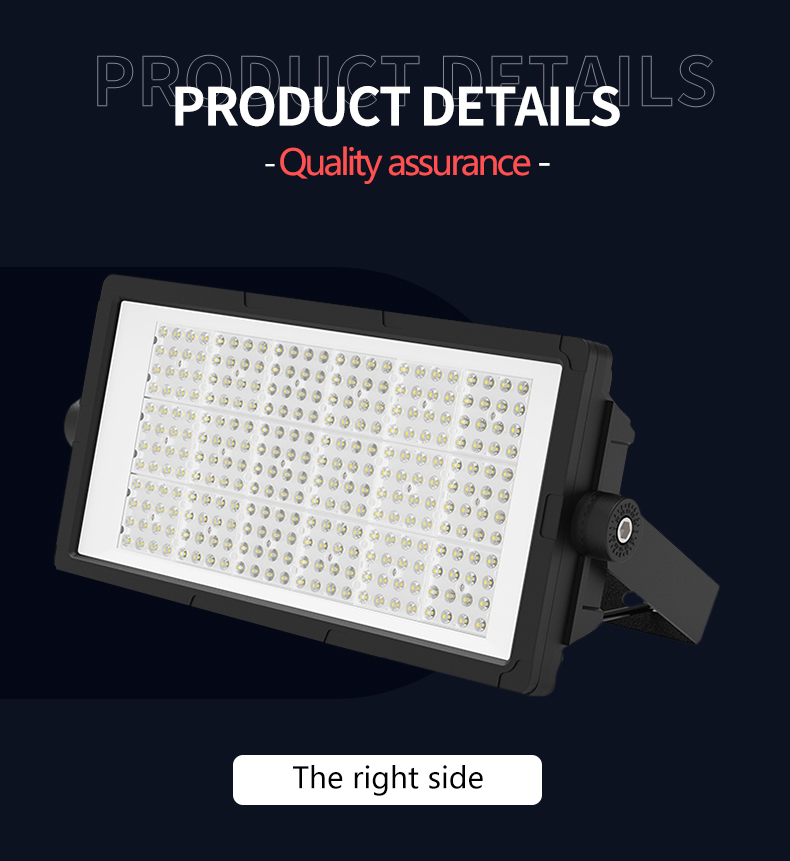

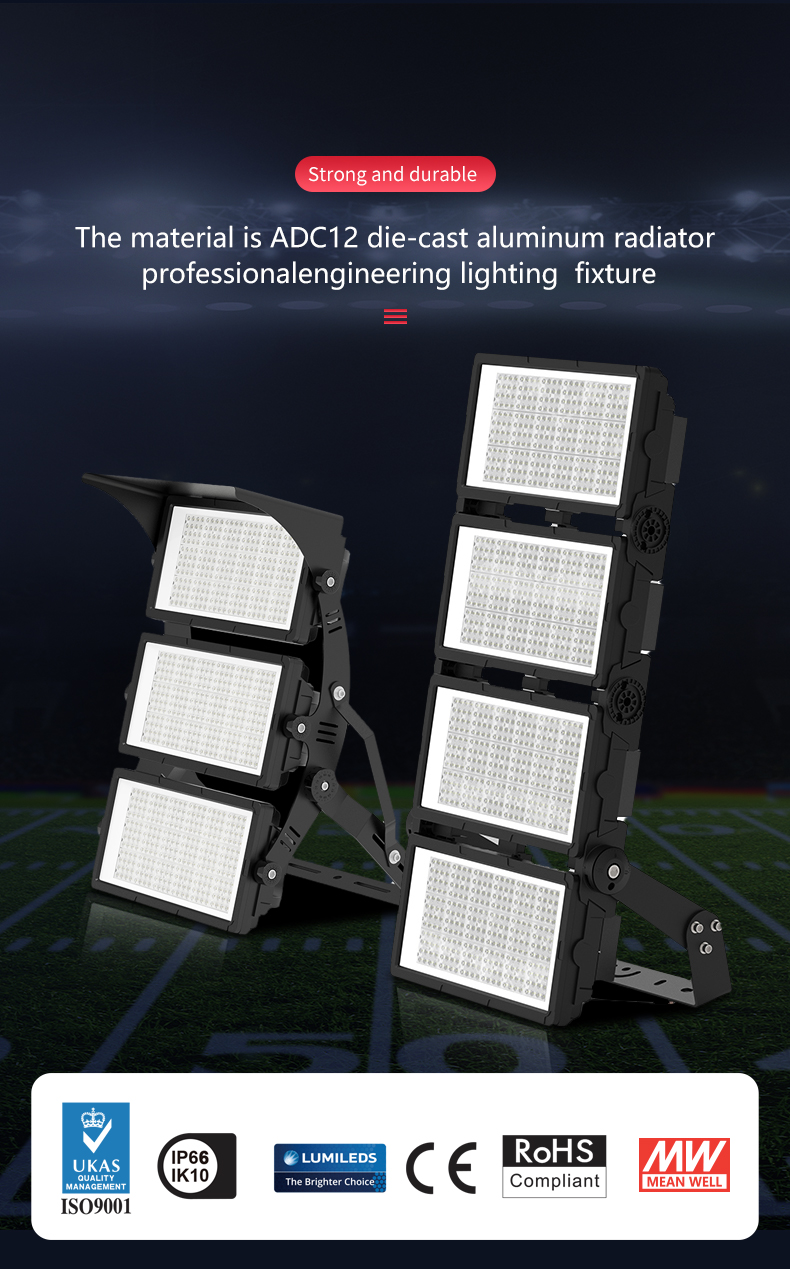

1. ADC12 Die-casting all-in-one molding tempered glass and PC leneses can solve both higher protective luminaires and meet them optical angle requirements
2. Lumileds SMD3030/5050 led chips, the luminous efficiency is up to 130lm/w. The led chips will not turn yellow after long time using.
3. Single-model group adjustment angle lighting design, 60°/90°/75°*150°
4. Using Meawell/Sosen/Inventronics driver with waterproof and 5 years warranty.

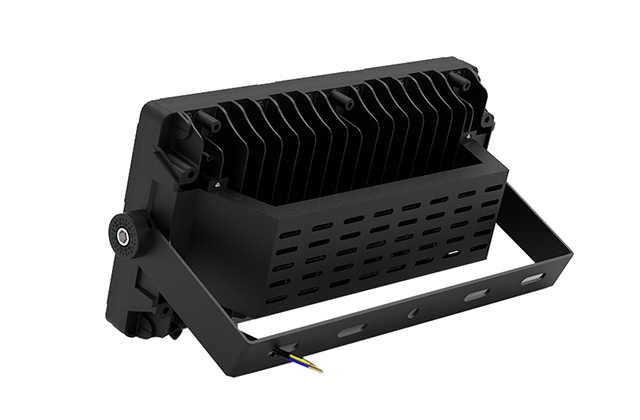

5. Internal wiring is waterproof, safe, convenient. Use 304 stainless steel screws. Refined iron phosphide bracket.
6. Working environment temperature -30 °C-+55 °C storage
7. As a floodlight outdoor with an IP65 rating, it can be against terrible weather like a rainstorm, sleet, or snow, suitable for both indoor and outdoor lighting.
| Model | SD5-250W | SD5-500W | SD5-750W | SD5-1000W |
| Input power | 250W | 500W | 750W | 1000W |
| Lamp beads | Philips SMD3030 (288Pcs) | Philips SMD3030 (576Pcs) | Philips SMD3030 (864Pcs) | Philips SMD3030 (1152Pcs) |
| Light efficiency | ≥130LM/W | |||
| Input voltage | AC85-265V | |||
| Power factor | PF≥0.95 | |||
| Power supply | DONE/Mingwei | |||
| Surge | ≥4KV | |||
| CCT | 2700-6500K | |||
| CRI | Ra≥70 | |||
| Beam angle | 30°/60°/90° optional | |||
| Protection level | IP66 | |||
| Service life | 50000Hours | |||
| Certificate | CE RoHS | |||
| Material | ADC12 die-cast aluminum | |||
| Working temperature | -30°C - +55°C | |||
| Warranty | 3 years/5 years | |||
-

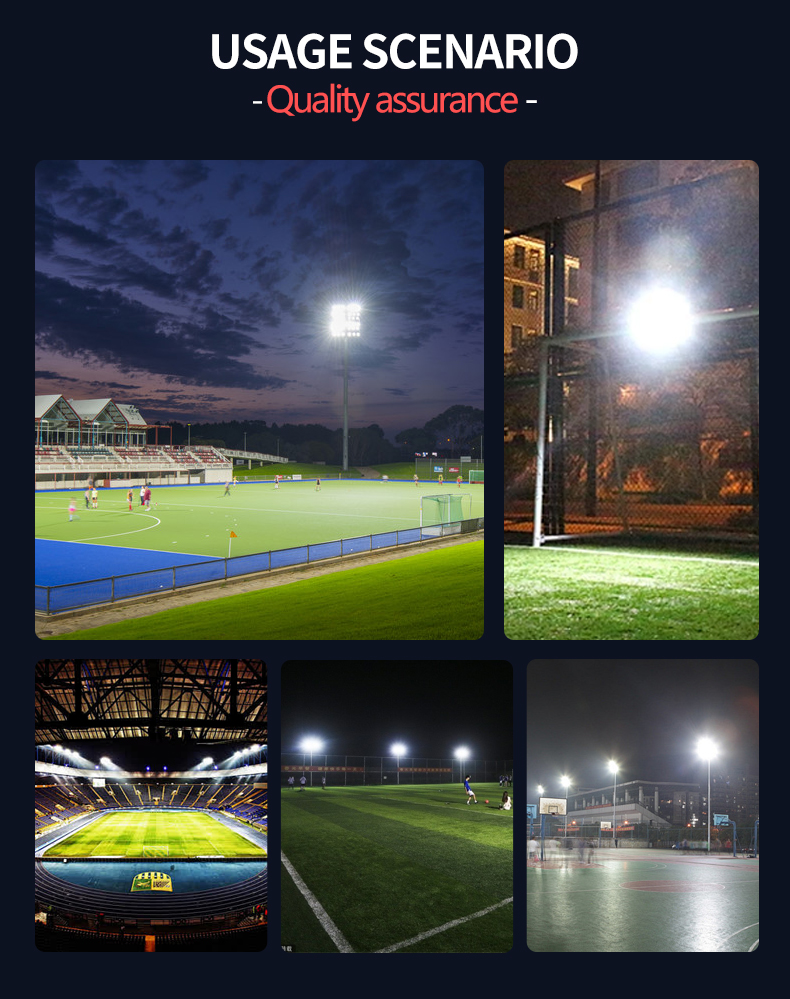

TENNIS COURT
-
FOOTBALL PITCH
-
Stadium Area
-
Racetrack Area
-
Basketball Area
-
Marine Terminal
