1200W 1500W High Lumen 165lm/w Energy Saving Stadium Lighting for Badminton Court
The TFD series is a patent modular design.The cost-effective and versatile lighting system suits large-sized appplications and is available for modular swivel version which allows adjustment of the light head for better light distribution.
- Power: 1200W/1500W
- Material: Fin-type 1060 aluminum
- Input Voltage: AC100-305V
- Meawell Driver, Lumileds SMD 3030/5050
- light efficiency: 140lm/w standard, 165lm/w for optional
- DALI, 0-10, 1-10 Dimming
- IP67 Waterproof
- 5 & 7 years warrany
- Certifications: CE, RoHs
- Description
- Video
- Data sheet
- Optic & Dialux
- Application

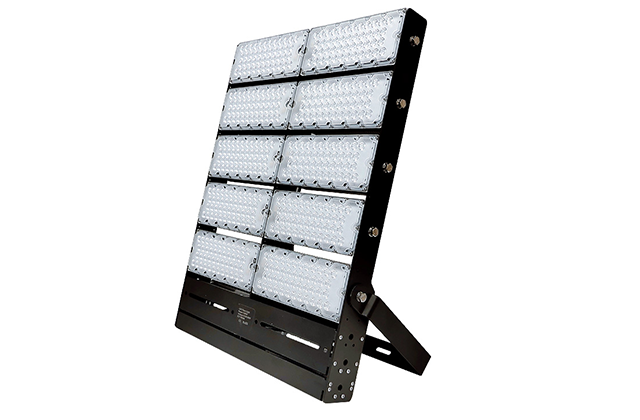

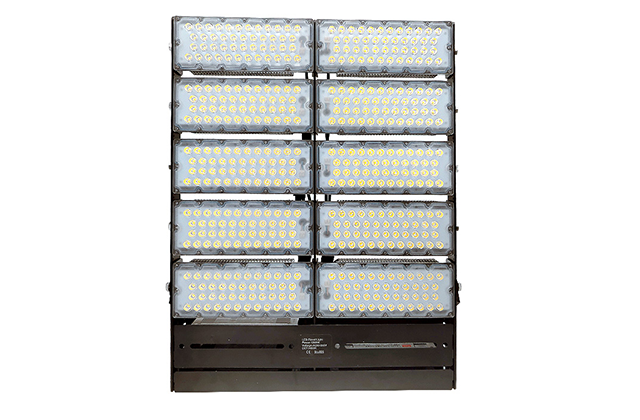

1500 Watts Modular LED Flood Lights Spotlight Lamp for Outdoor Football Tunnel Stadium Field
1. Fin-type 1060 aluminum is adopted, thermal conductivity efficiency 230W/M.K. Heat sinking surface is 80% more than traditional die-casting aluminum, lighter weight compared to same wattage die-casting flood light. Lower pressure for project roofs and saves a lot of freight.
2. Angle adjustable for each single modules.
3. Using Meanwell driver, Lumileds SMD3030/5050 led chips, light efficiency up to 165lm/w, avoiding trouble for project.
4. High presion optical lens with different beam angles for options. Do not turn yellow after use long time. High brightness and better lumen maintenace rate.
5. Optional 5 or 7 years warranty
6. Stainless steel screw, anti-corrosion, reliable performance.
7. Applications: parking lot lighting, sports stadium lighting, billboard lighting, outdoor and indoor area lighting, warehourse and security areas.
Model No. | GH-TFD-1200W | GH-TFD-1500W |
Power | 1200W | 1500W |
Input Voltage | AC100-305V | |
Material | Fin-type 1060 aluminum | |
Light Efficiency | 140lm/w & 165lm/w | |
LEDs Brand | Lumileds SMD3030/5050 | |
Driver | Meanwell/Sosen/Inventronics | |
CCT | 2700K-6500K | |
Beam Angle | 20°/40°/60°/90°/120°/140°*100° | |
Lifespan | 50,000 Hours | |
Warranty | 5 Years | |
Certifications | CE, RoHs, IP67 LM-80 | |
Product Size | 625*855*83mm | |
Net Weight | 27.5KG | 28.45KG |
-
Tennis Court
-
Football Pitch
-
Stadium Area
-
Racetrack Area
-
Basketball Area
-
Marine Terminal
