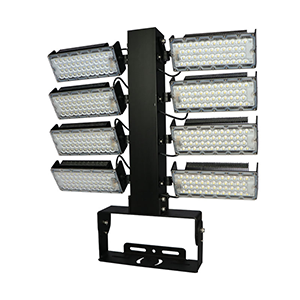

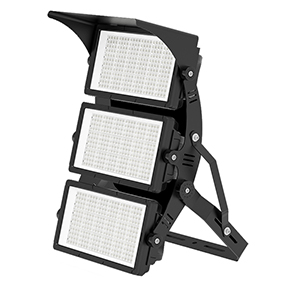

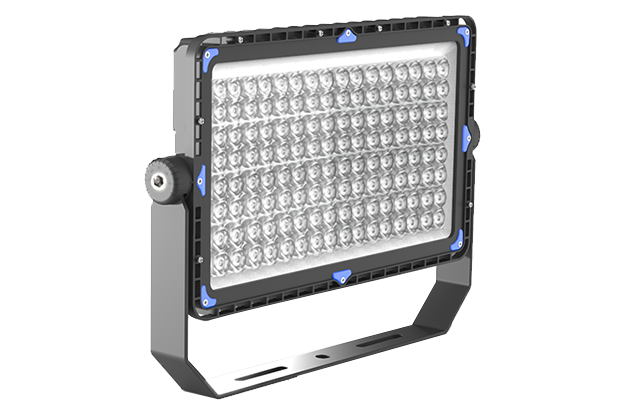

High Power Modular 400W 500W 600W LED Flood Light for Outdoor High Mast Sports Stadium Floodlight

Application: square lighting, high mast area lighting, Large building projection lighting, long-distance lighting, airport high mast lighting, highway, park high pole lighting, basketball court, football field, tennis, baseball field, etc.

  • Power: 400W/500W/600W/
  • Material: Die-casting Aluminum
  • Input Voltage: AC100-305V
  • Meawell Driver, Lumileds SMD 3030/5050
  • light efficiency: 160lm/w
  • CRI/Ra: ≥70
  • DALI, 0-10, 1-10 Dimming
  • Beam Angle: 7°/15°/60°/90°/120°/T2M/T3M/T4M
  • IP66 Waterproof
  • 5 years warrany
  • Certifications: CE, RoHs
Request A Free Quote
  • Description
  • Video
  • Data sheet

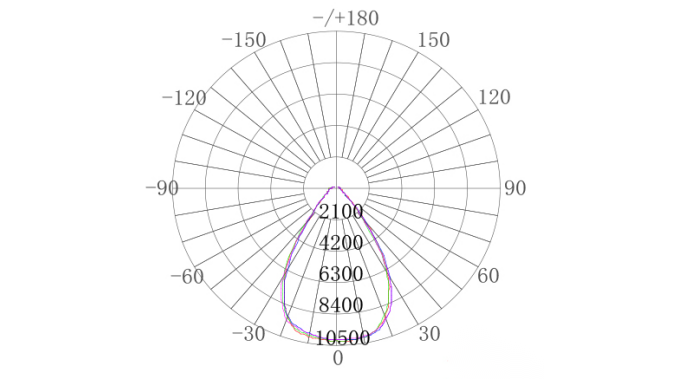

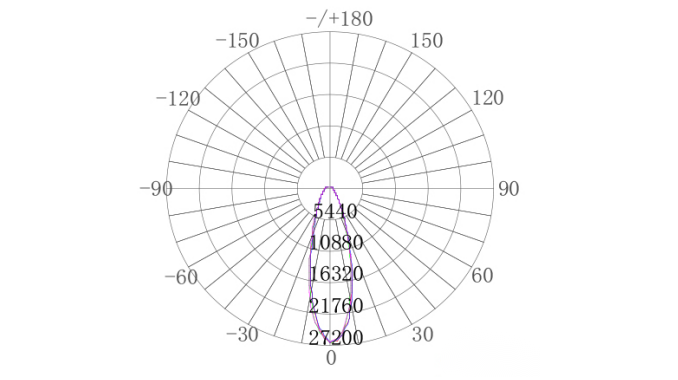

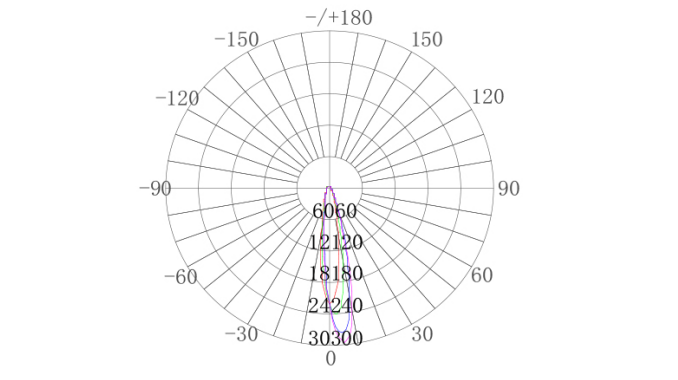

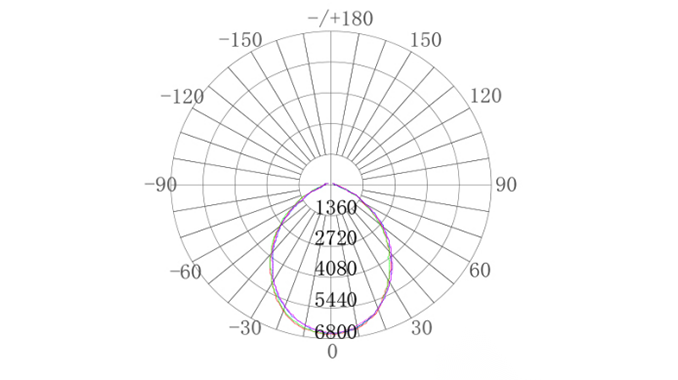

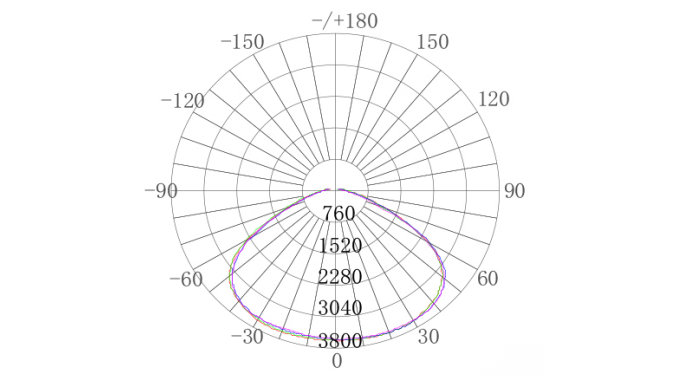

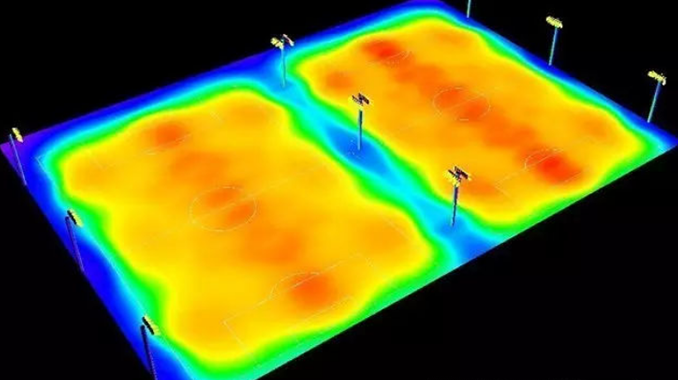

  • Optic & Dialux
  • Application

IP66 400w/500w/600w high mast led lights high mast pole flood light specialized for baseball basketball tennis area lighting

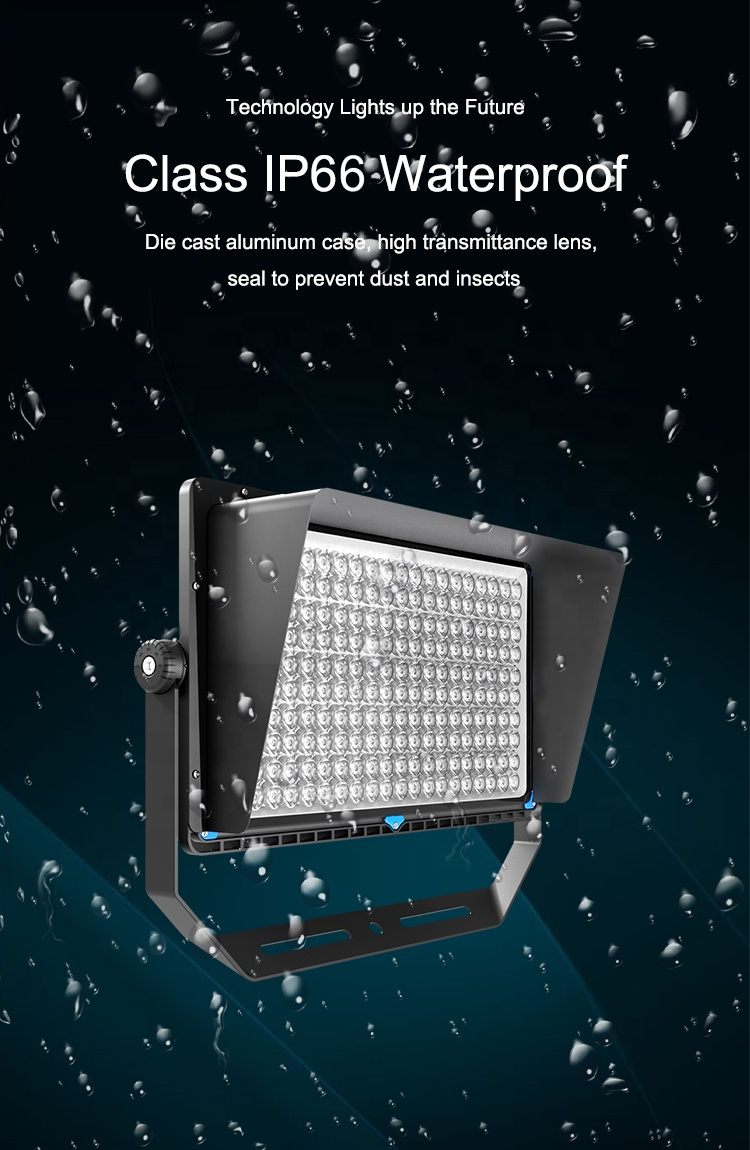

The protection level reaches IP66


Pure Aluminum 6063 body. The surface of the lamp body is anodized for a higher level of corrosion protection.


Both ends are molded by ADC12 die-casting, electrostatic spraying on the surface, strong anti-corrosion

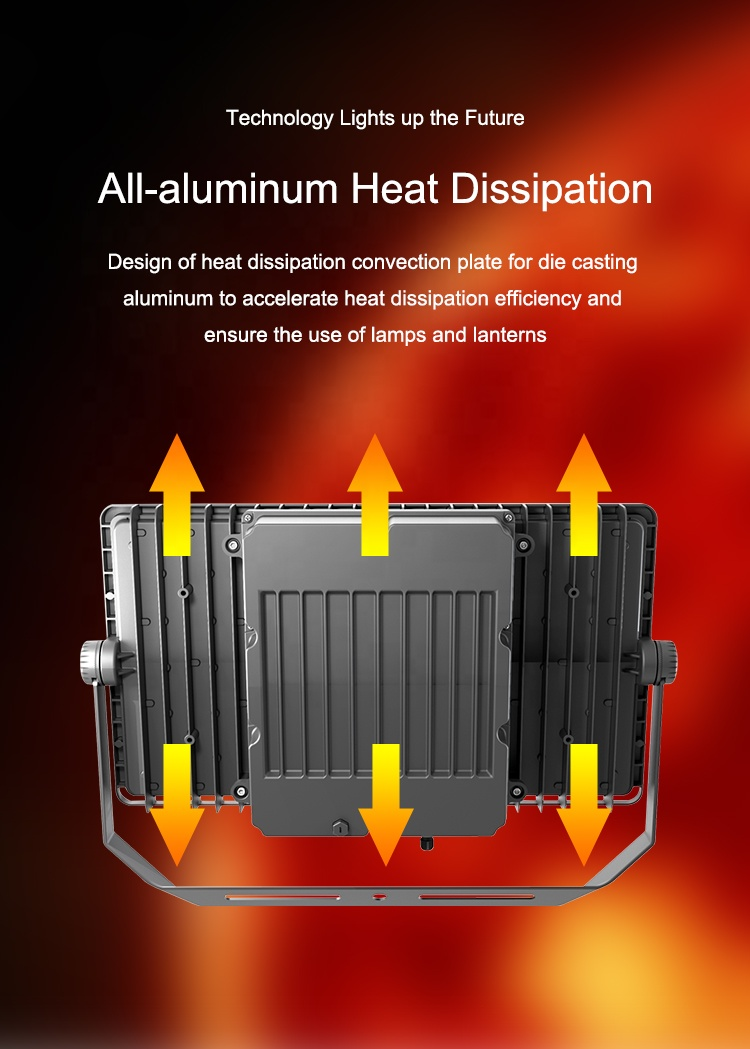

Air convection cooling method to ensure the working temperature of the light source.


The product has a large built-in space and can be equipped with intelligent PLC, Zigbee, induction and other modules.

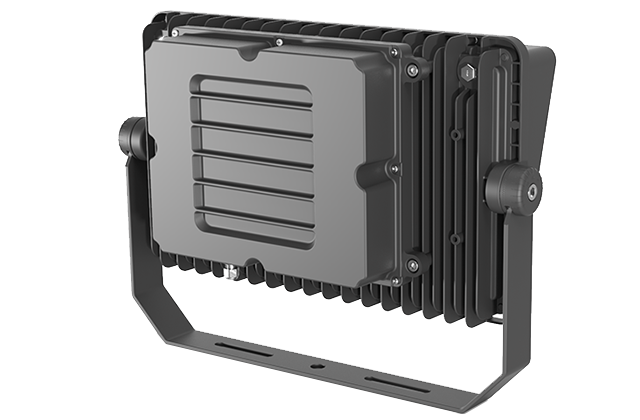

Independent power box design to support more power, which is beneficial to ligh body heat dissipation,

     reducing light decay and prolonging service life.


Meanwell driver : Built-in waterproof power + shell protection, placed under the lamp body, operating temperature

range -40℃~50℃,  with short-circuit / overload / over-voltage / over-temperature protection.

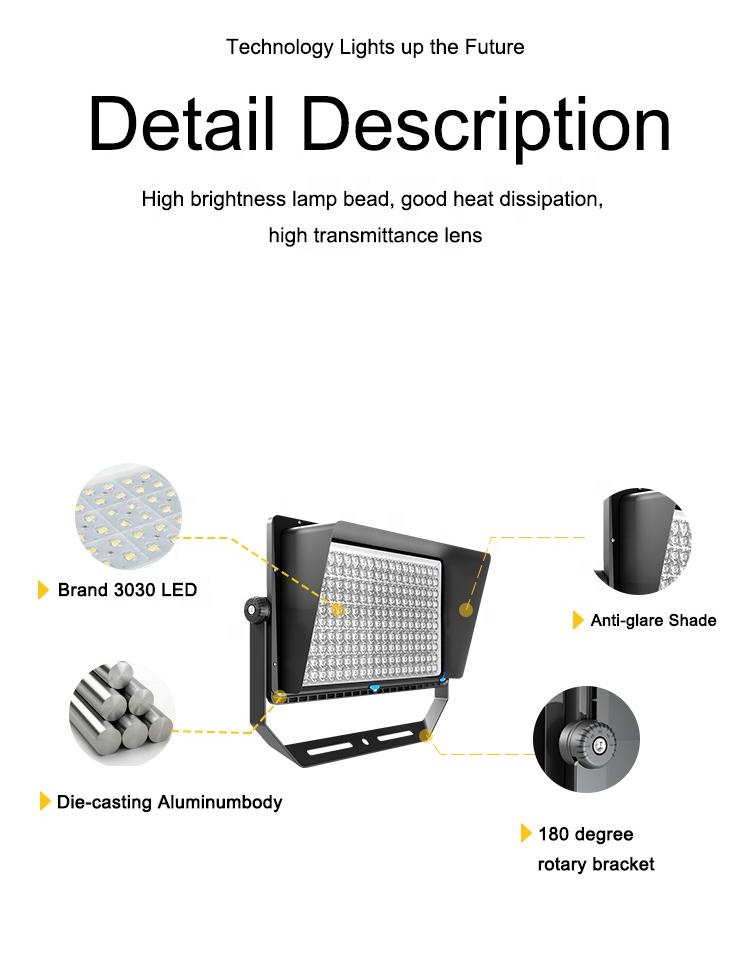

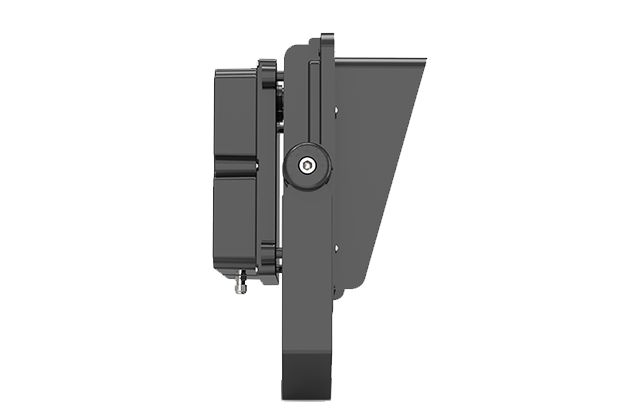

The bracket mounting angle adjusts the nuclear rotation to the full size disc, using 316 stainless steel screws.


Rotating bracket mounting, ₵60 pole, wall mounted

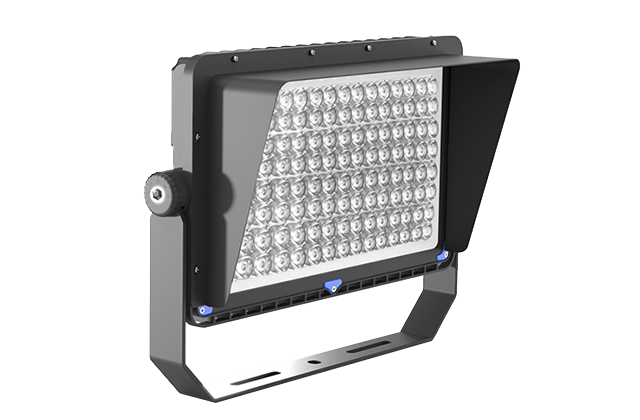

Anti-glare shell improving the surface Lux.


Lumileds SMD3030 led chips, light efficiency up to 160lm/w. Three drives for optional: Meanwell/Sonsen/Inventronics


 High thickness modular aluminum heat sink. Mult beam angle option PC optical lens.


Model No.

GH-TFG-400W

GH-TFG-500W

GH-TFG-600W

Power

400W

500W

600W

Input Voltage

AC100-305V

Material

Die-casting Aluminum

Light Efficiency

160lm/w

LEDs Brand

Lumileds SMD3030/5050

Power Supply

Meanwell/Sosne/Inventronics

CCT

3000K/4000K/5000K/6000K

Beam Angle

7°/15°/30°/60°/90°/120°/T2M/T3M/T4M

Lifespan

50,000 Hours

Warranty

5 Years

Certifications

CE RoHs LM80 IP66

Product Size

531*377*129mm
637*462*134mm

Net Weight

10.5KG15KG


  • Tennis Court

    Tennis Court

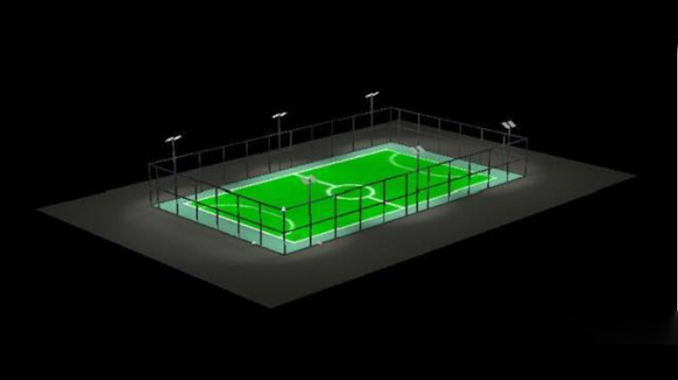

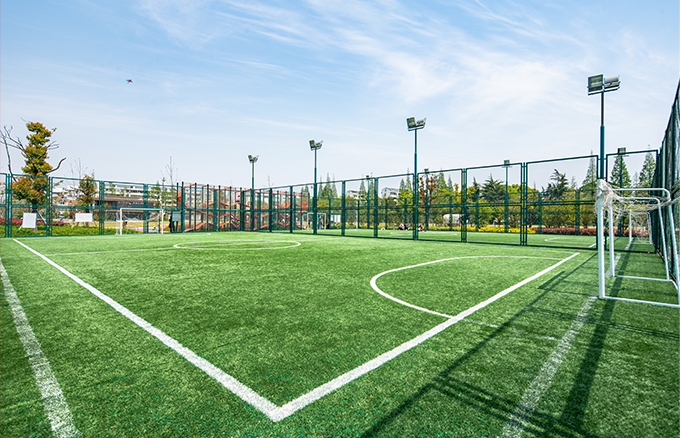

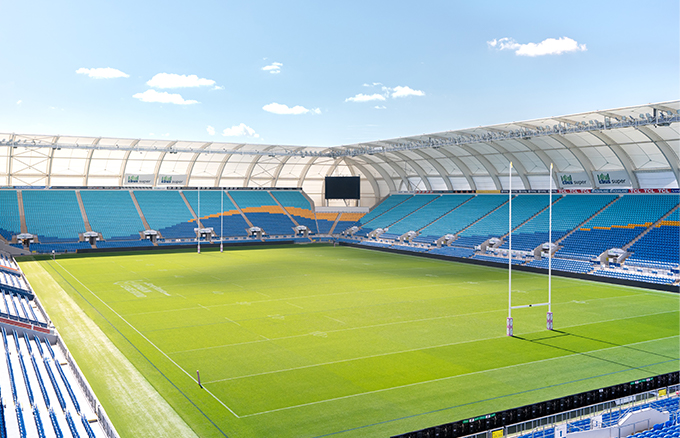

  • Football Pitch

    Football Pitch

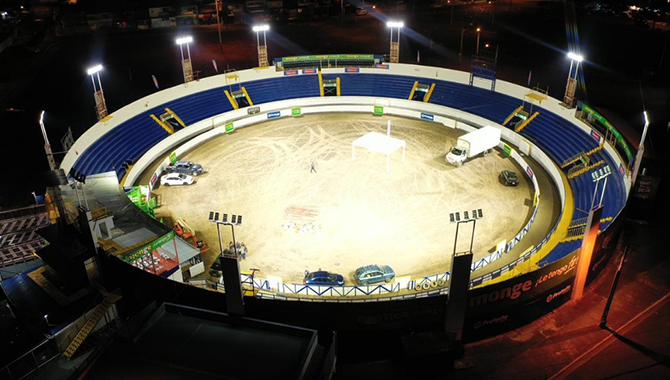

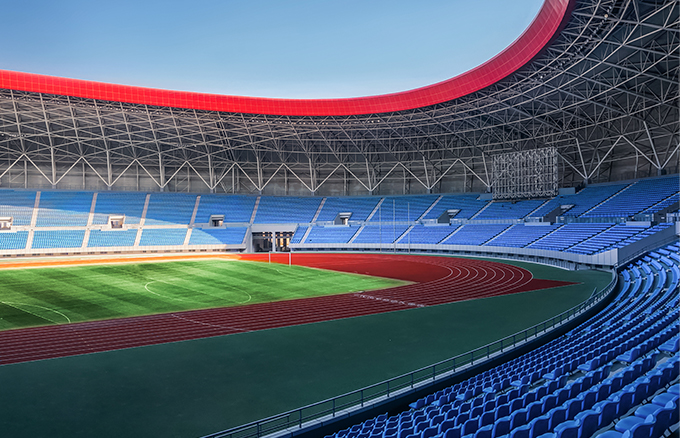

  • Stadium Area

    Stadium Area

  • Racetrack Area

    Racetrack Area

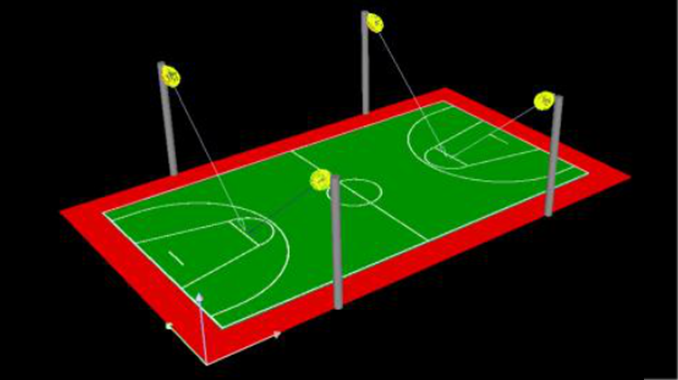

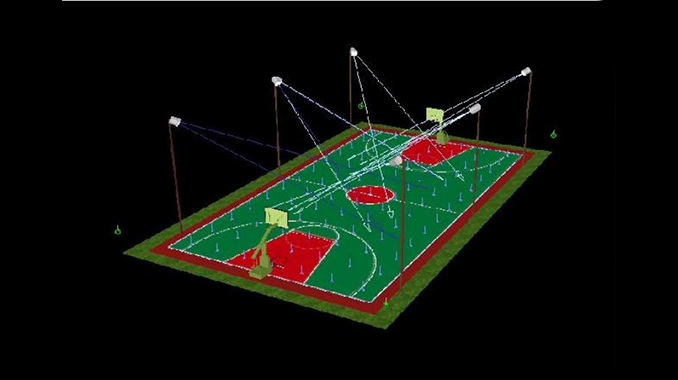

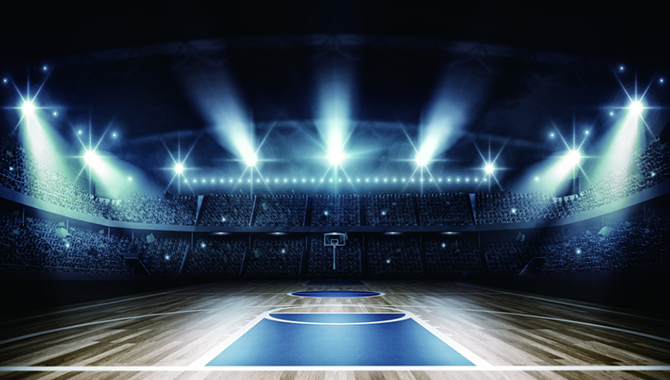

  • Basketball Area

    Basketball Area

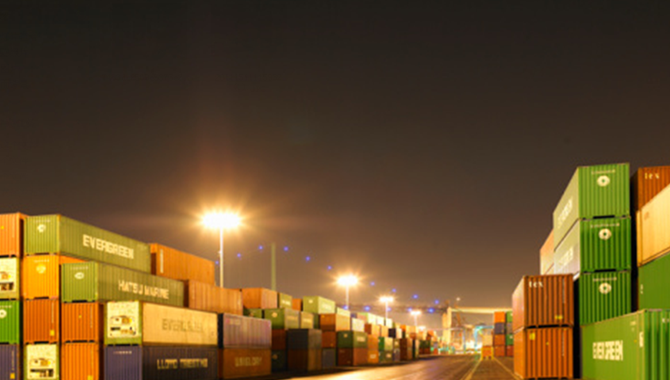

  • Marine Terminal

    Marine Terminal
