2024 Private Model High Lumens 210LM/W 30W 40W 60W 80W 100W 120W LED Solar induction Street Lamp Outdoor Waterproof IP65

China solar street light manufacturer with 15 years experiences, support OEM and ODM, high quality, factory direct price; Rich experiences in road/government solar street light projects.

Power(W):30W~120W
LED Chip: Philips
Light Effciency:210 lm/w
Luminous Flux:6300~25200 Lumens
CCT:2700k ~ 6500K
Ra(CRI):80
Protection:IP65
Control method:Human body induction + light control
Lifespan(hour):50000
Certificate:CE, RoHS,IEC,LM79, LM80
Warranty: 3~5 Years

Request A Free Quote

Description
Video
Data sheet
Optic & Dialux
Application

1.0 electricity fee no wiring required work continuously for 3-5 rainy and cloudy days

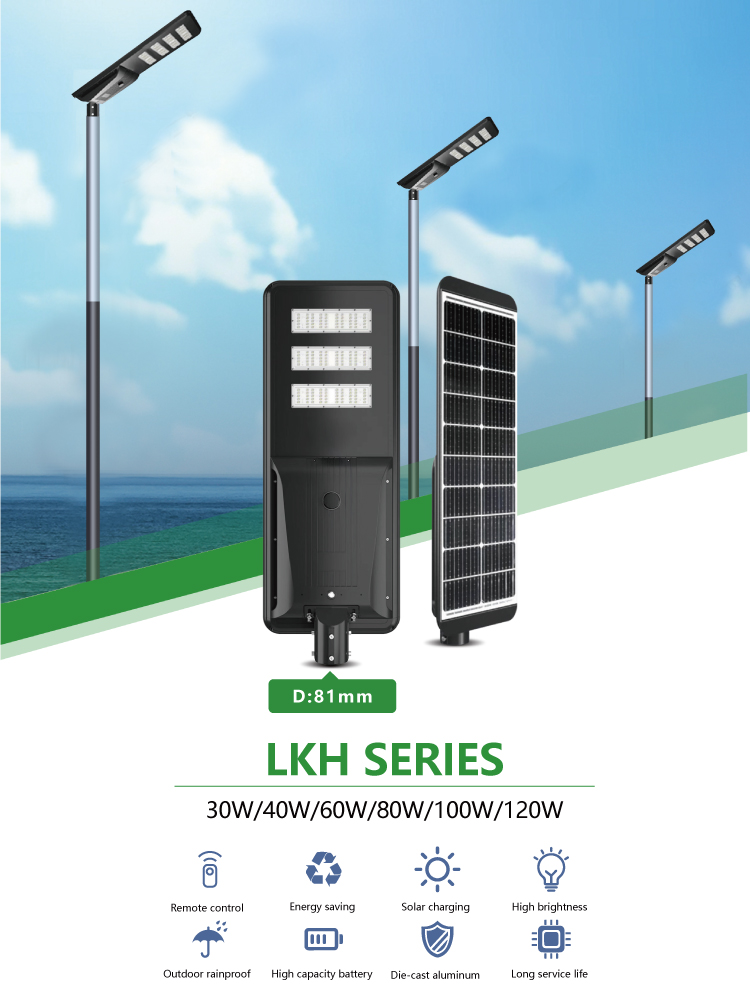

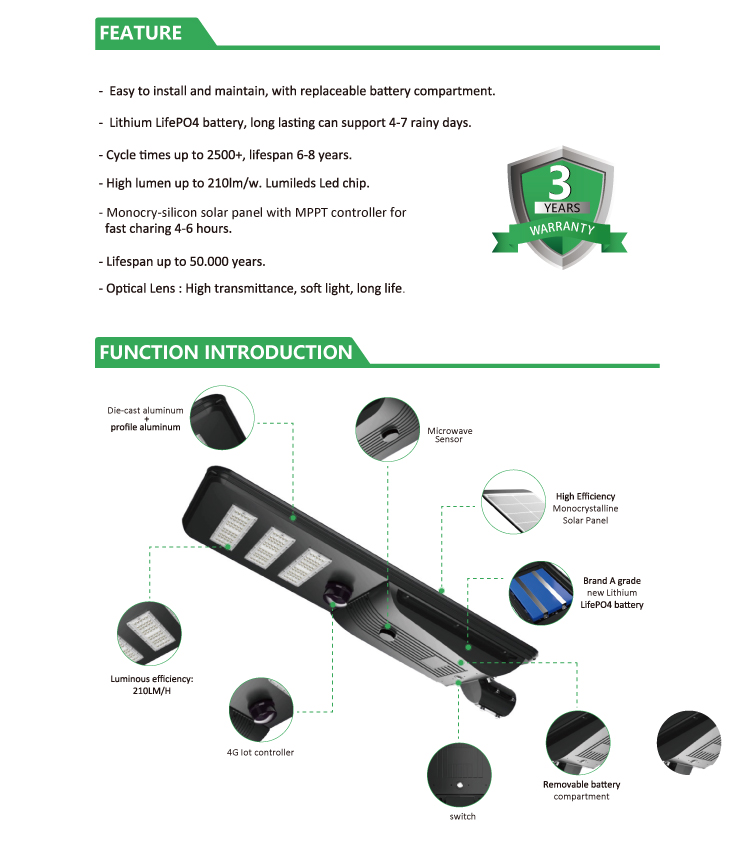

2.GH-LKH series is All in One solar lighting system designed for cost-effective lighting for small to medium spaces. Reliability and easy installation, All key components are integrated within the solar panel and light head.

3.The design of the detachable battery compartment reduces maintenance difficulty and cost, which is conducive to the sustainable use of the product.

4.It uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.

5.Removable battery compartment for easy battery relacement, reducing maintenance time and maintenance costs.

6.High brightness Lumileds Philips 3030 LED chips up to 210lm/w ,super brightness ,reduce light decay.

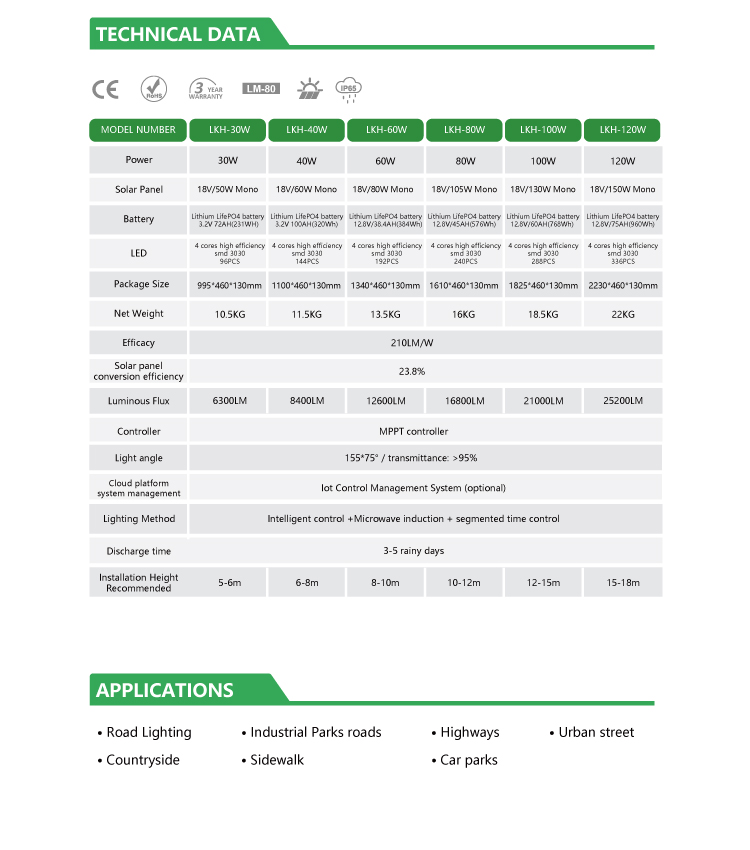

Model number	30W	40W	60W	80W	100W	120W
Single cystal solar panel	18V/50W	18V/60W	18V/80W	18V/105W	18V/130W	18V/150W

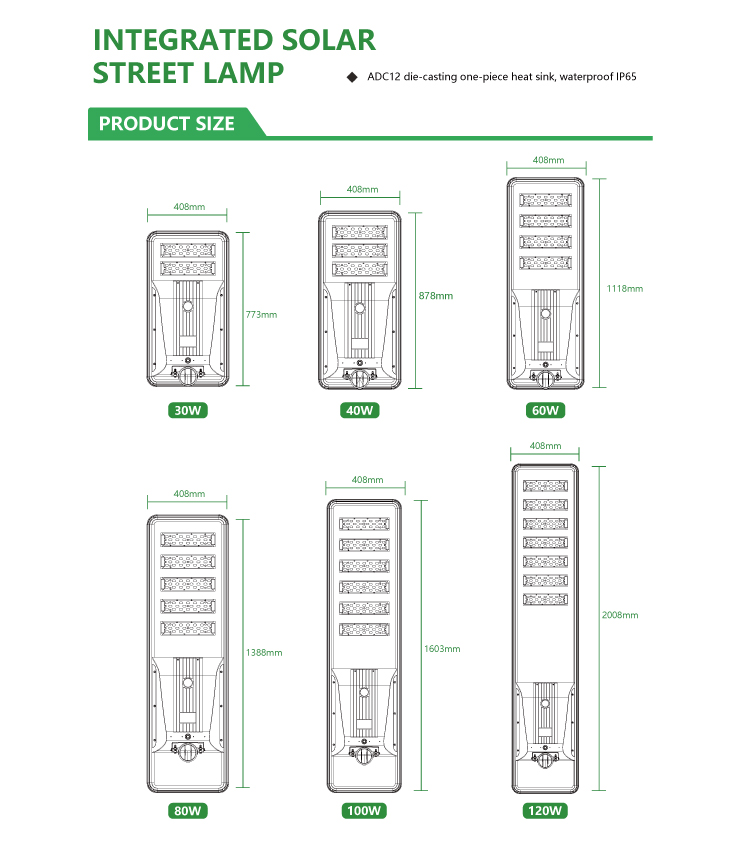

Solar panel size	680*398mm	785*398mm	1025*398mm	1298*398mm	1510*398mm	1915*398mm
LiFePO4 battery	3.2V,72AH	3.2V,100AH	12.8V 30AH	12.8V,45AH	12.8V,60AH	12.8V,75AH
LED chip	Philips 3030, 96PCS	Philips 3030, 144PCS	Philips 3030, 192PCS	Philips 3030, 240PCS	Philips 3030, 288PCS	Philips 3030, 336PCS
Product size	773408135mm	878408135mm	1118408135mm	1388408135mm	1603408135mm	2008408135mm
Light efficiency	210LM/W
Controller	MPPT
Lighting mode	infrared sensing+segmented time control+intelligent control
Recommended installation height	5~7 meter	6~8 meter	8~10 meter	10~12 meter	12~15 meter	14~16 meter

Country Road
Front Yard
Parking Lot
High Way
Rural Road
Viaducts
