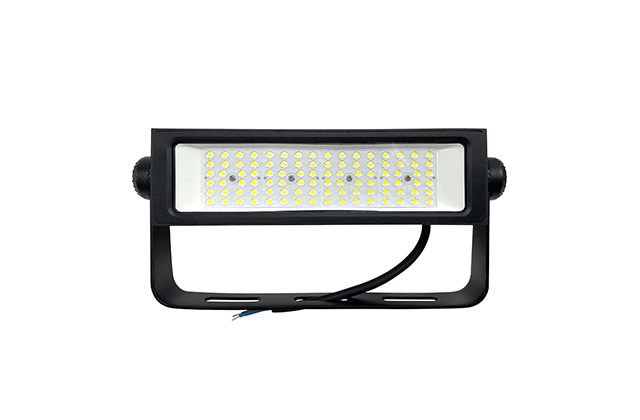

IP67 waterproof Warehouse Tunnel Industrial 50W 75W 100W Outdoor LED Flood Light
This is new private economic modular Led Flood light, applied for tunnel lighting, buiding lighting, parking lots, sports lighting and other industrial lighting.
- Power: 50W/75W/100W
- Size: 115*315*91mm
- Beam Angle: 15/30/60/90/120 Degree
- CRI/Ra: >70
- Driver: Meanwell/Sosen/Inventronics
- Cooling technology:Copper cooling fins
- Material: ADC12 Die-casting Aluminum
- Luminous Efficiency: 120lm/w
- Input Voltage: 100-305VAC
- Frequency: 50/60Hz
- Color Temperature: 2700-6500K Cool White/White/Warm White
- Light Source: Philips SMD 3030/5050 led chips
- Life Span: 50,000 hours
- Warranty: 5 years
- Description
- Video
- Data sheet
- Optic & Dialux
- Application
IP67 5 years warranty reflectores led lighting 50 watts to 500 watts for stadium outdoor flood lights
1.Powerful bracket with tooth dribble to show installation angle.
2.Streamliend heat sink & air convection make heat dissipation more thoroughly
3.With a respirator lens, making the lamp breathable, dry, fog. 15/30/60/90/120 beam angles + PC cover, meet different lighting projects need
4.Precious light distribution, high quantity big power Phillips SMD 3030/5050 led chip for high quality lighting places, excellent performance.
5.High quality and reliable material, high quality cast alumiunm housing and excellent IP 67 rating for harsh environment.
6.Facades of buildings, bridges, stadiums, tunnel lights, road lighting, gardens, freight centers, billboards, indoor and outdoor public places.
Model No. | GH-TGH-50W | GH-TGH-75W | GH-TGH-100W |
Power | 50W | 75W | 100W |
Light Source | Lumileds SMD3030/5050 | ||
Light Effect | 120lm/w | ||
Driver TYPE | Meanwell/Sosen/Inventronics | ||
Input Voltage | AC100-305V | ||
CRI/Ra | >70 | ||
CCT | 2700K-6500K | ||
Beam Angle | 15°/30°/60°/90°/120° | ||
Material | ADC12 Die-casting Aluminum | ||
Warranty | 5 Years | ||
Certifications | CE RoHs LM80 | ||
Product Size | 115*315*91mm | ||
Net Weight | 2.13KG | 2.3KG | |
