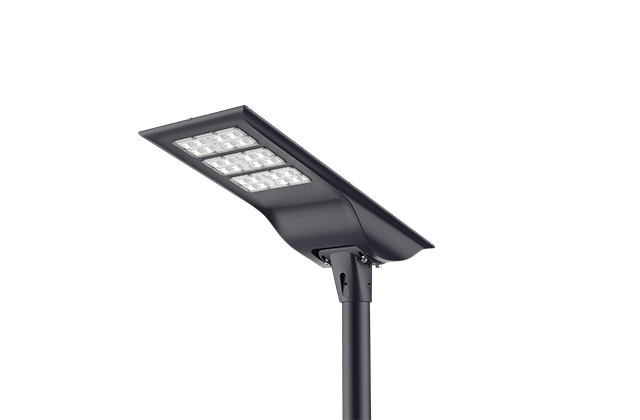

30W 200lm/w 3 years warranty Solar Energy System LED Solar Street Lamp
High-quality professional LED focus on lighting engineering construction, lamps can be used for a variety of occasions professional lighting technology to provide customers with high quality lighting production services.
- Led power: 20W( 4200LM), 30W(6600lm), 30W(8000lm)
- Solar panel: Monocrystalline silicon
- Battery: LifePO4 Lithium battery
- Light efficiency: 200lm/w Philips smd 5050(Osram, Cree, Bridgelux both available)
- Controller: MPPT controller. 98% charging efficiency.
- IP grade: IP65 outdoor using
- Working mode: Dusk to dawn + Time controll + motion sensor
- Lifespan: 8-10 years.
- Warranty: 3 years, if any faulty during warranty, we will replace you new ones.
- Application: Countryside, road lighting, town road, village road, urban roads, sports fields.
- Data sheet
- Optic & Dialux
1.The STL range uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.
2.Professional outdoor lights IP67 waterproof and lighting protection.
3.Working Mode: Automatic turn on at dusk, turn off dawn. When motion is detected, it becomes brighter.If the movement leaves, it will turn back to dark mode again.In order to save electricity, at dusk, counting from begin lighting. 1-6H: motion mode 100% brightness, dark mode 20% brightness; After 6H : motion mode 70% brightness, dark mode 20% brightness;The daytime turns off automatically and starts charging.
4.Applications: Coastal Areas, Jetties,Parking Lots,Perimiter Lighting,Security,Entrance Lighting,Signage,Billboard Lighting,Construction Sites,Rural,Remote Area Lighting,Mining & Industrial Sites
Lithium LifePO4 3.2V 36AH
MPPT boost constant current integrated control
Microwave induction+segmented time control+intelligent control
Supporting 5-7 rainy days
Sunshine lasts for 6 hours
