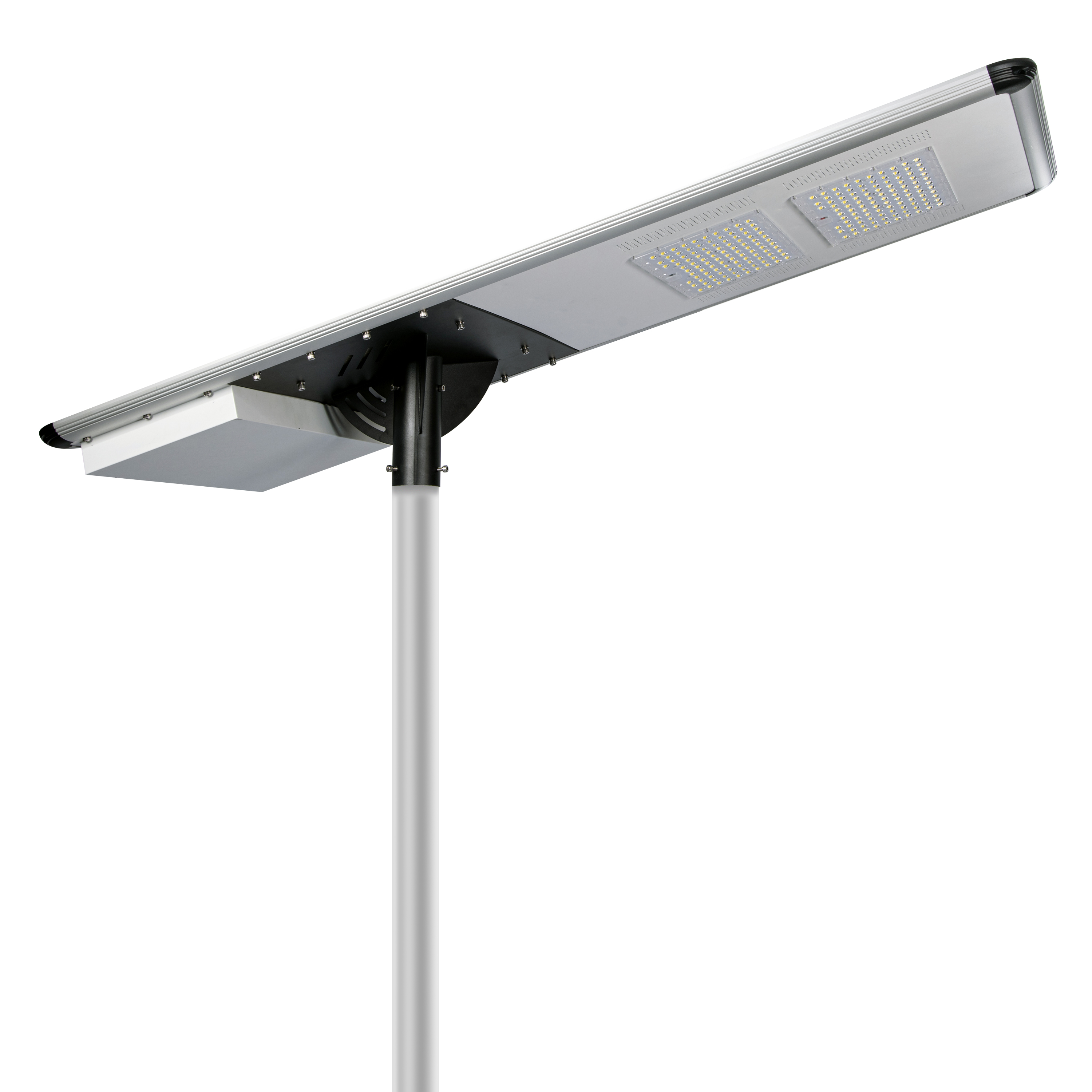

GH-LKA Heavy-Duty All-in-One Solar Street Light

The GH-LKA heavy-duty all-in-one solar street light combines high-output LED lighting, a monocrystalline solar panel and high-capacity LiFePO4 battery storage in one integrated unit. Available in 80W, 100W, 120W and 150W models, it supports full-power illumination throughout the night for demanding road, industrial and perimeter lighting projects.

Full-Power Solar Street Lighting, All Night

For sites that remain active after midnight, consistent illumination matters. The GH-LKA supports an all-night full-power lighting mode for roads, industrial access routes and security areas where continuous visibility is required.

It also offers motion sensing, timed dimming and combined operating modes, allowing the lighting profile to match traffic patterns and project requirements.

• Full-power mode: 2–3 rainy days of autonomy.

• Energy-saving modes: 4–7 rainy days of autonomy.




Actual runtime depends on battery configuration, nightly operating hours, charging conditions and lighting settings.

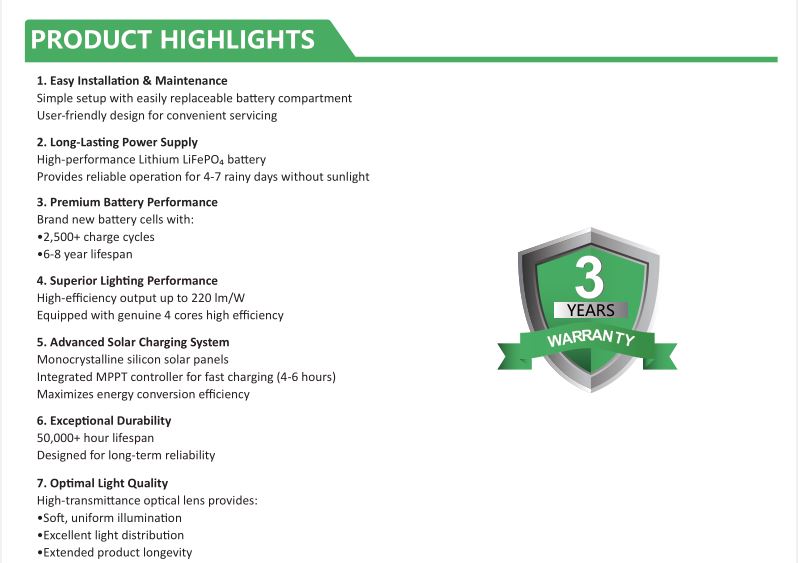

Large Battery Compartment with LiFePO4 Storage

The spacious battery compartment accommodates high-capacity LiFePO4 battery packs to support sustained nighttime operation. The design also allows battery access and replacement for ongoing maintenance.

GUOHUI Lighting operates its own LiFePO4 battery pack factory, enabling battery configurations to be matched to the required lighting power, operating schedule and autonomy.

Monocrystalline Solar Panel and MPPT Charging

The GH-LKA integrates a monocrystalline solar panel with an MPPT solar charge controller. Maximum power point tracking helps make effective use of available solar energy, while constant-current LED driving supports stable light output.

The solar panel, battery and lighting profile are selected together according to local sunlight conditions and project requirements.

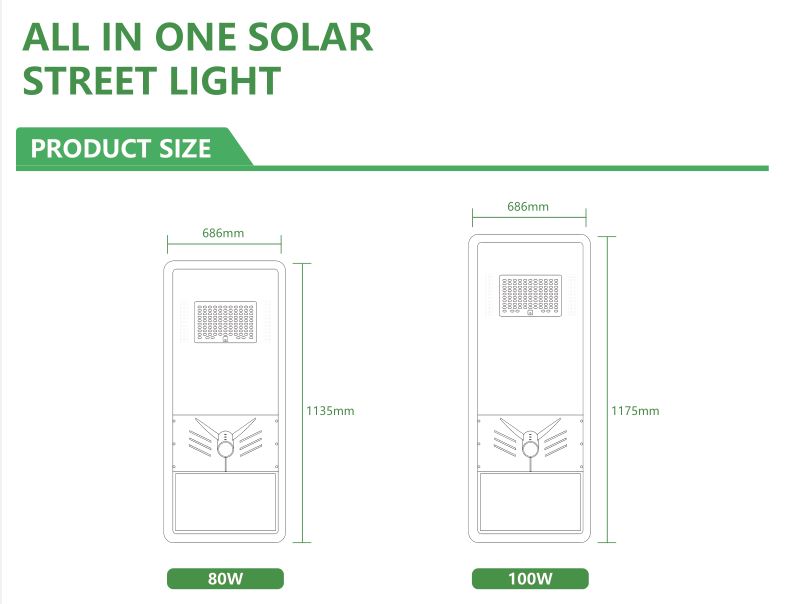

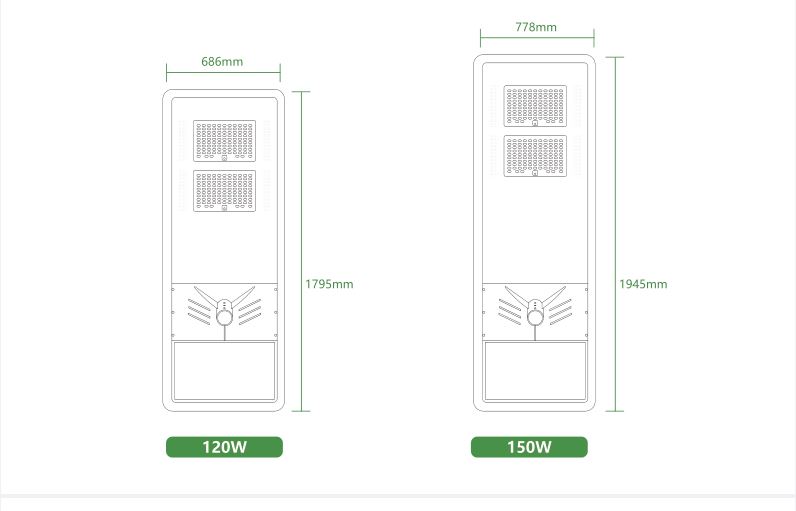

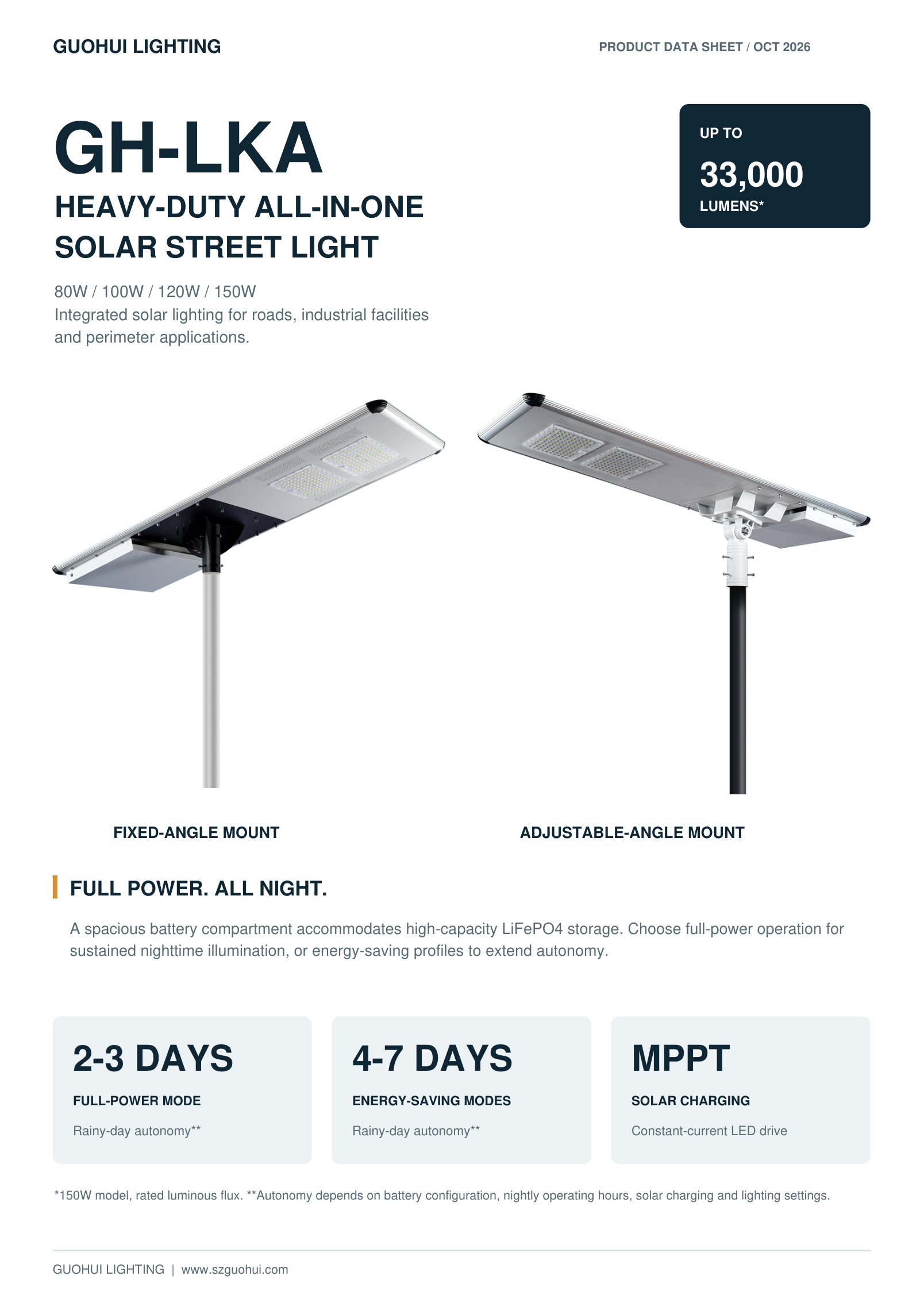

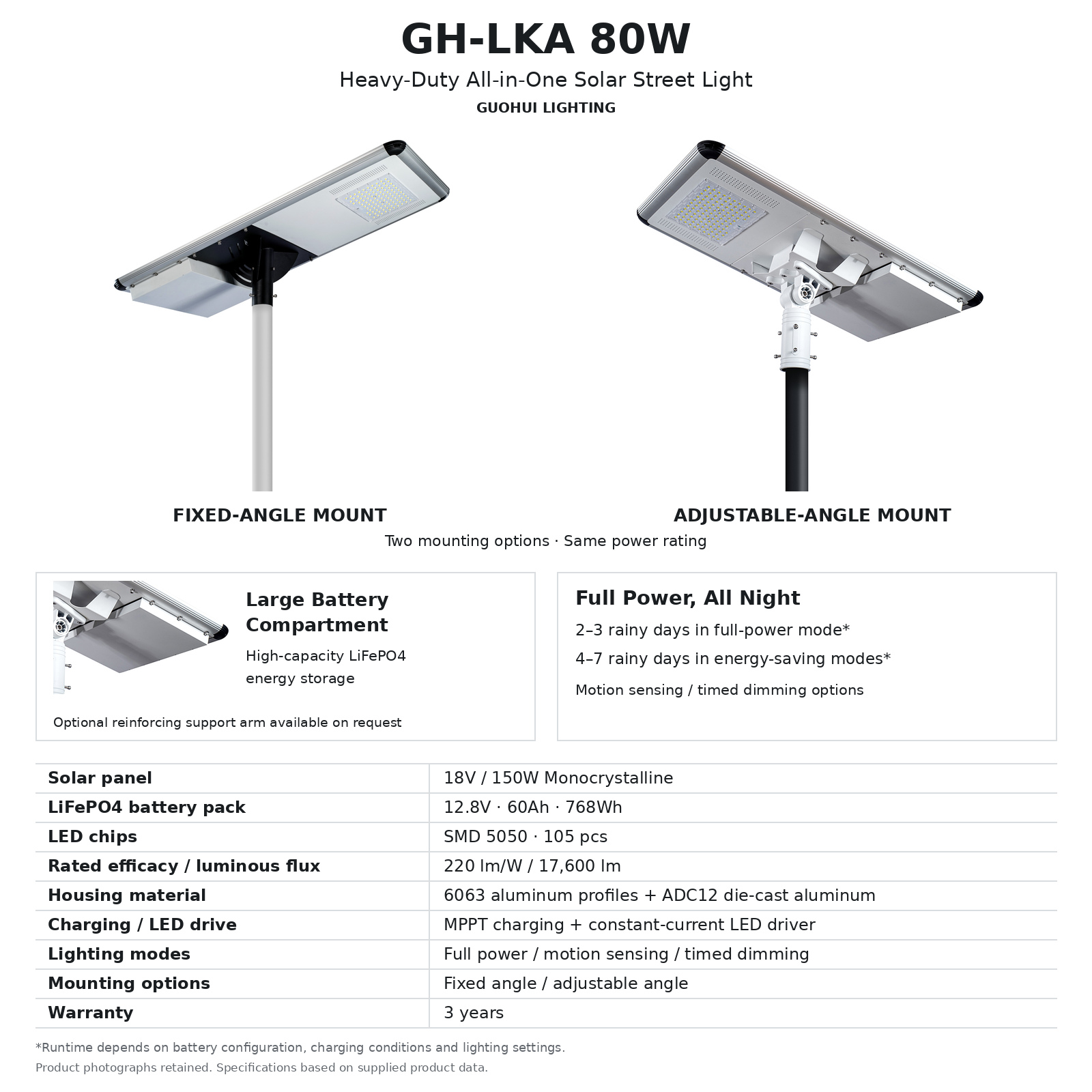

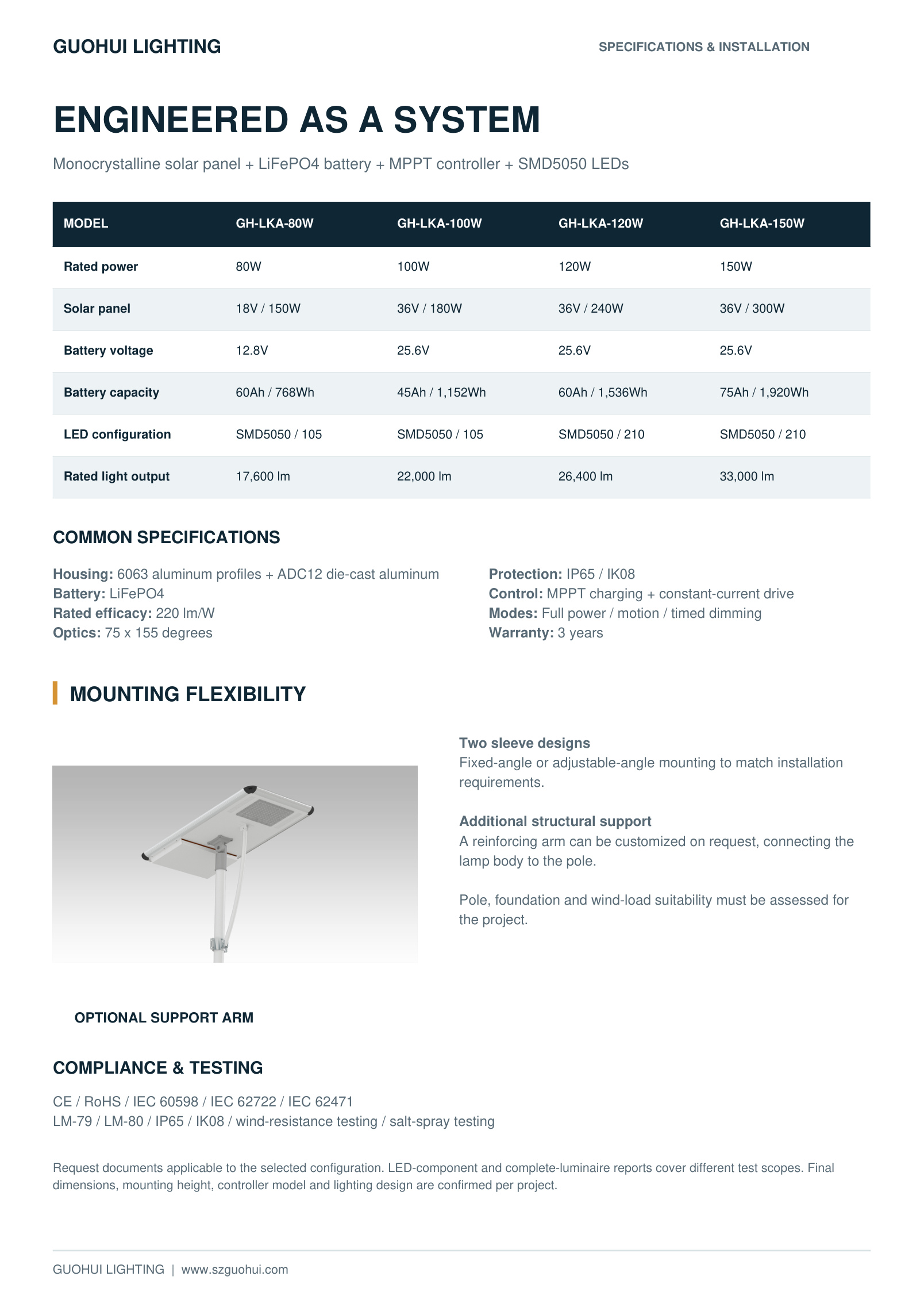

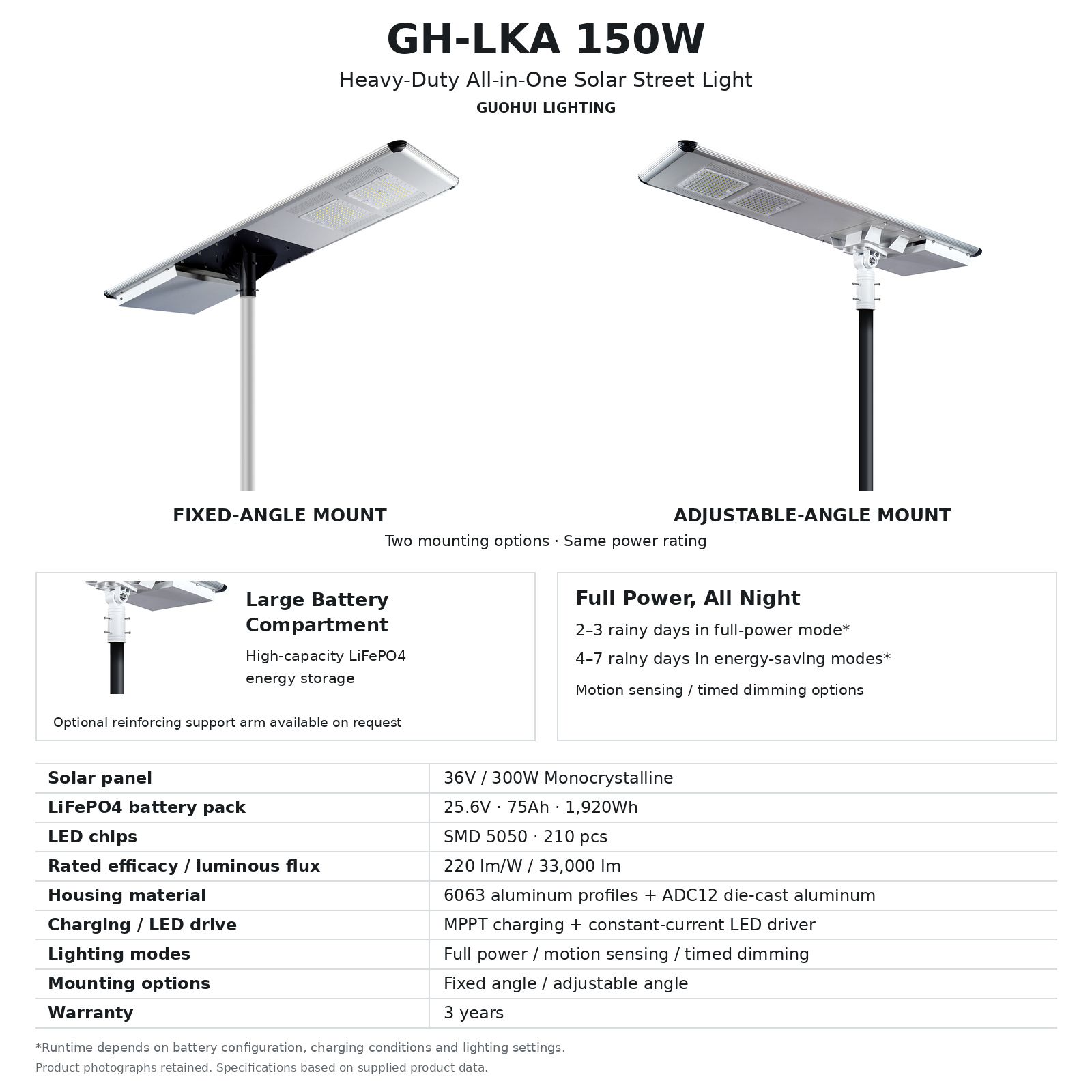

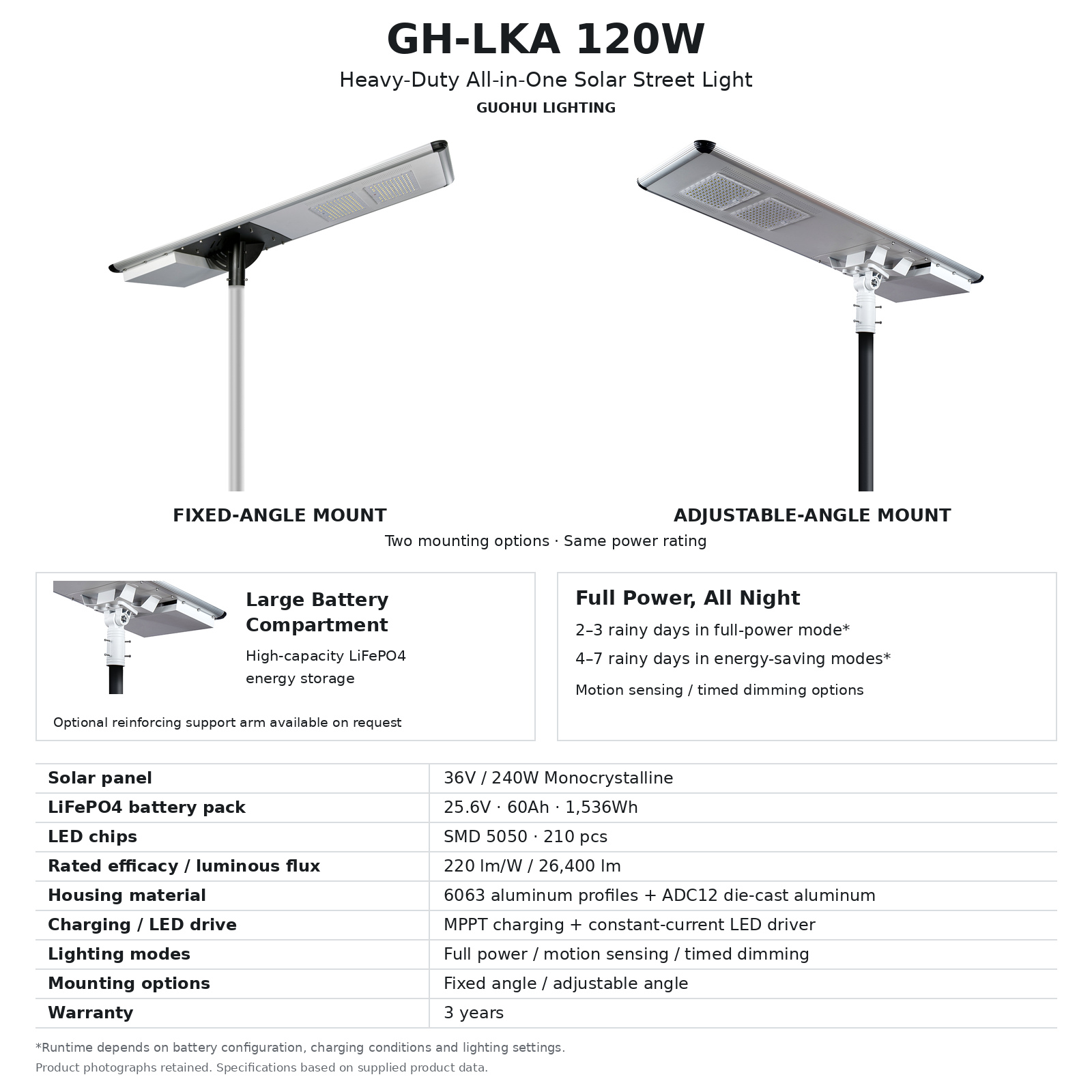

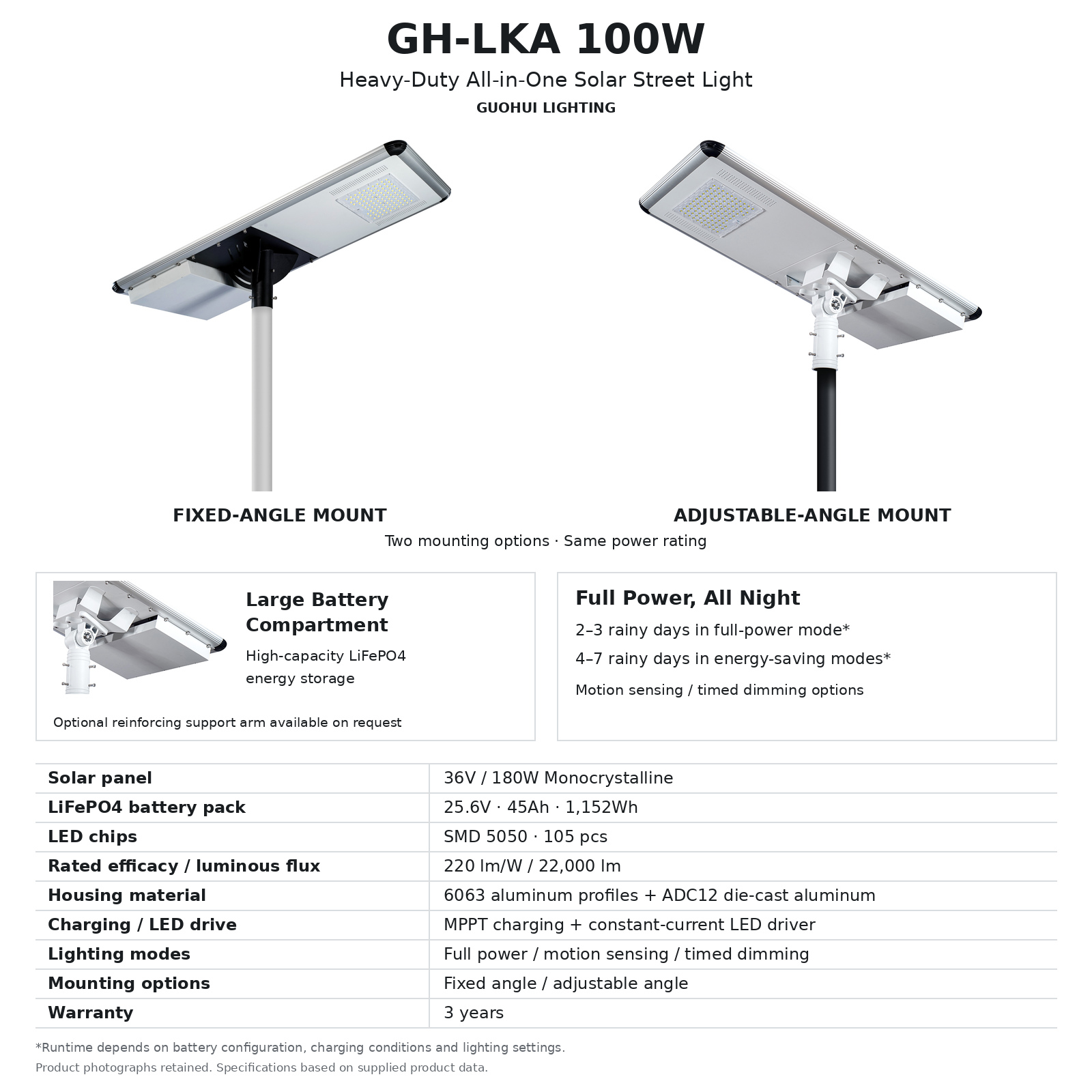

80W–150W Solar Street Light Specifications

The series uses SMD5050 LEDs, with a rated luminous efficacy of 220 lm/W. Confirm the final configuration and photometric data when selecting a model for your project.

Fixed-Angle and Adjustable-Angle Mounting

Two mounting options accommodate different installation requirements:

• Fixed-angle mount: provides a preset installation angle.

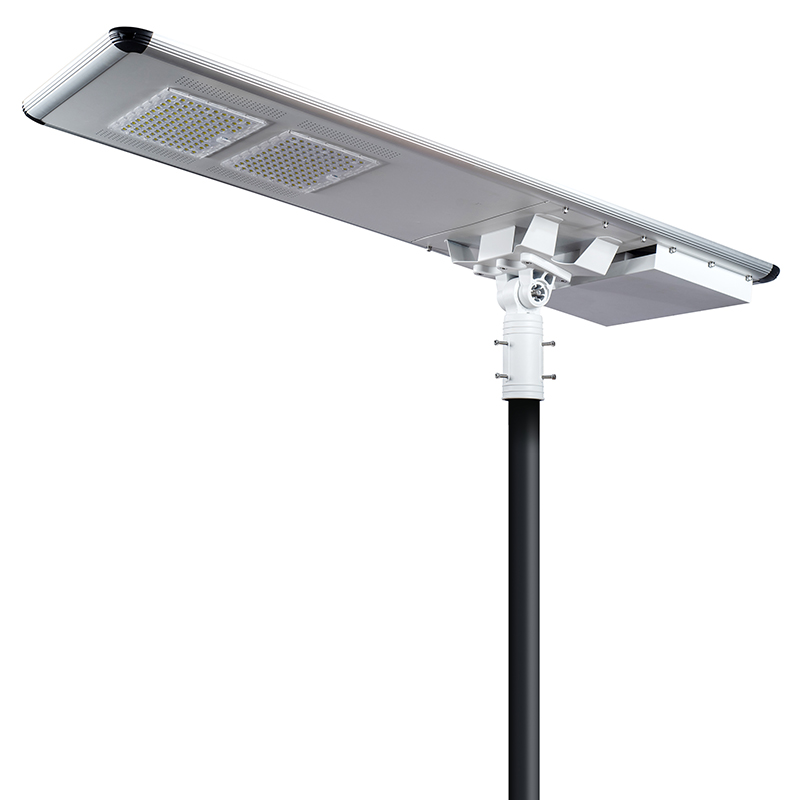

• Adjustable-angle mount: allows the lamp inclination to be adjusted and secured during installation.

An optional reinforcing support arm can be customized on request. It connects the lamp body to the pole, providing additional support for the heavy-duty assembly. Pole and foundation requirements should be assessed for the installation site.

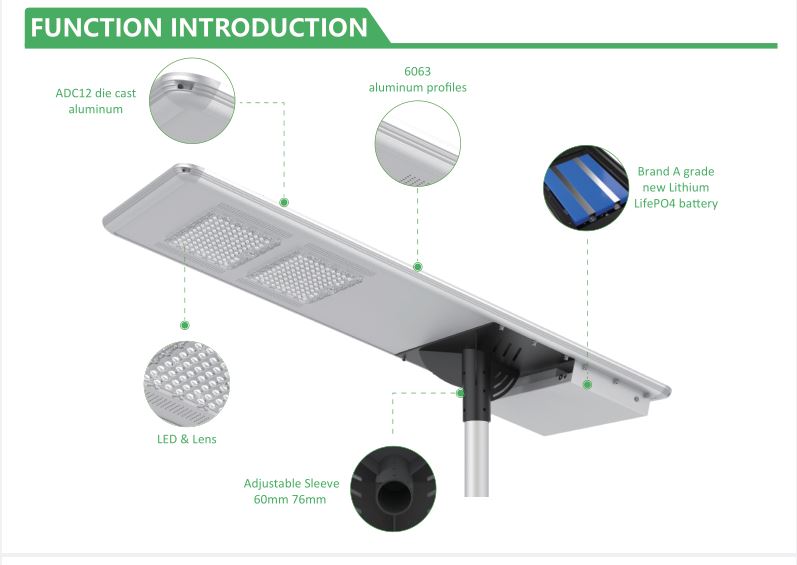

Robust Aluminum Construction for Outdoor Use

The housing combines 6063 aluminum profiles with ADC12 die-cast aluminum, providing structural strength and heat dissipation for outdoor solar street lighting.

Product compliance and testing documentation includes CE, RoHS, IEC 60598, IEC 62722, IEC 62471, LM-79, LM-80, IP65 and IK08, together with wind-resistance and salt-spray testing. Contact GUOHUI Lighting for documents applicable to your selected configuration.

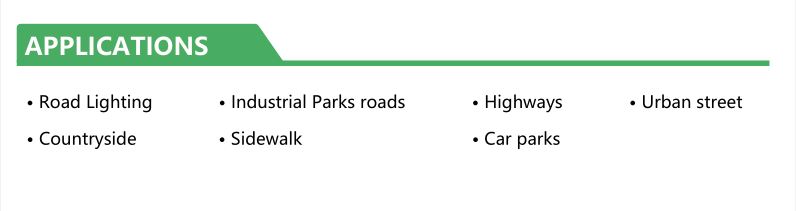

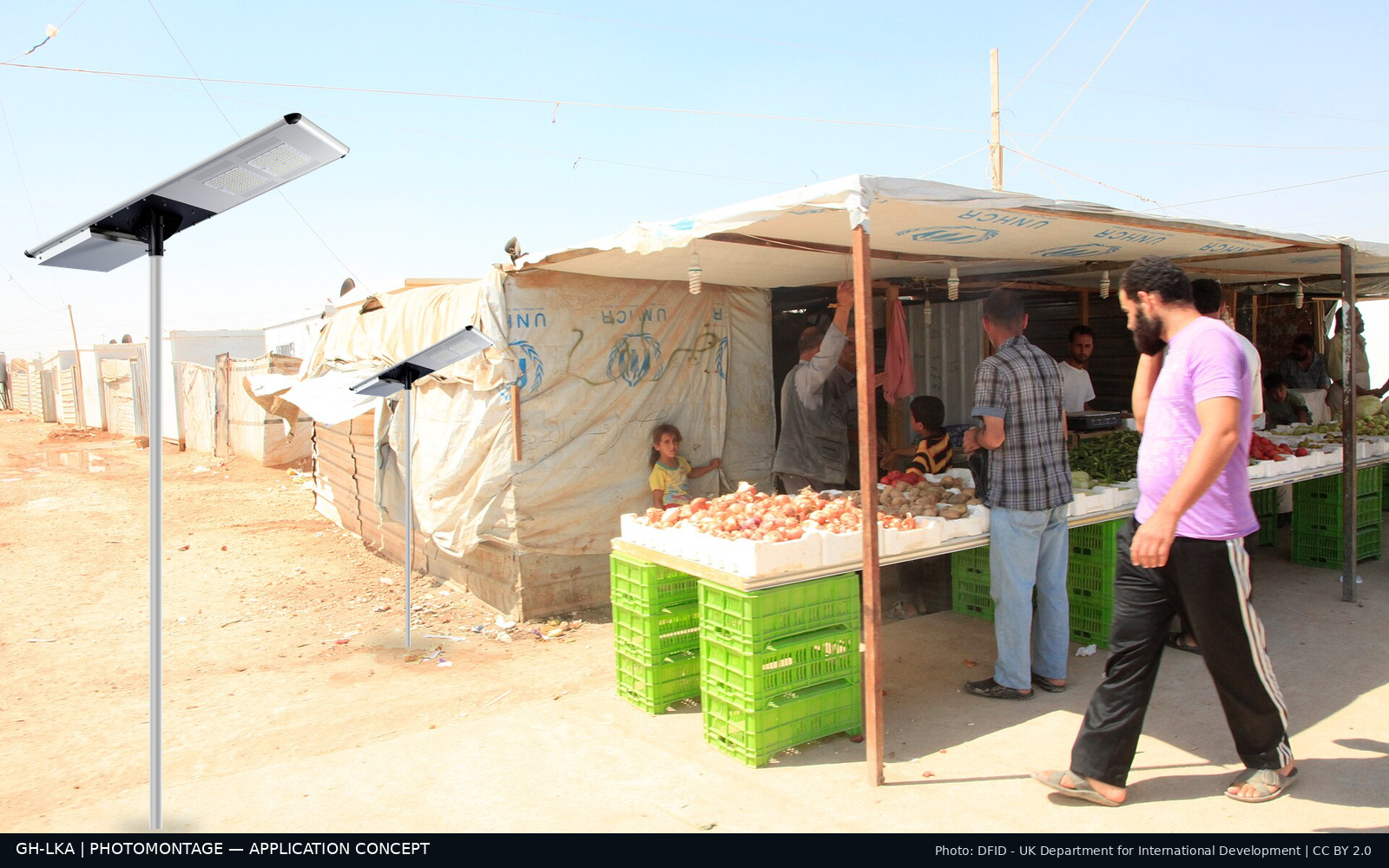

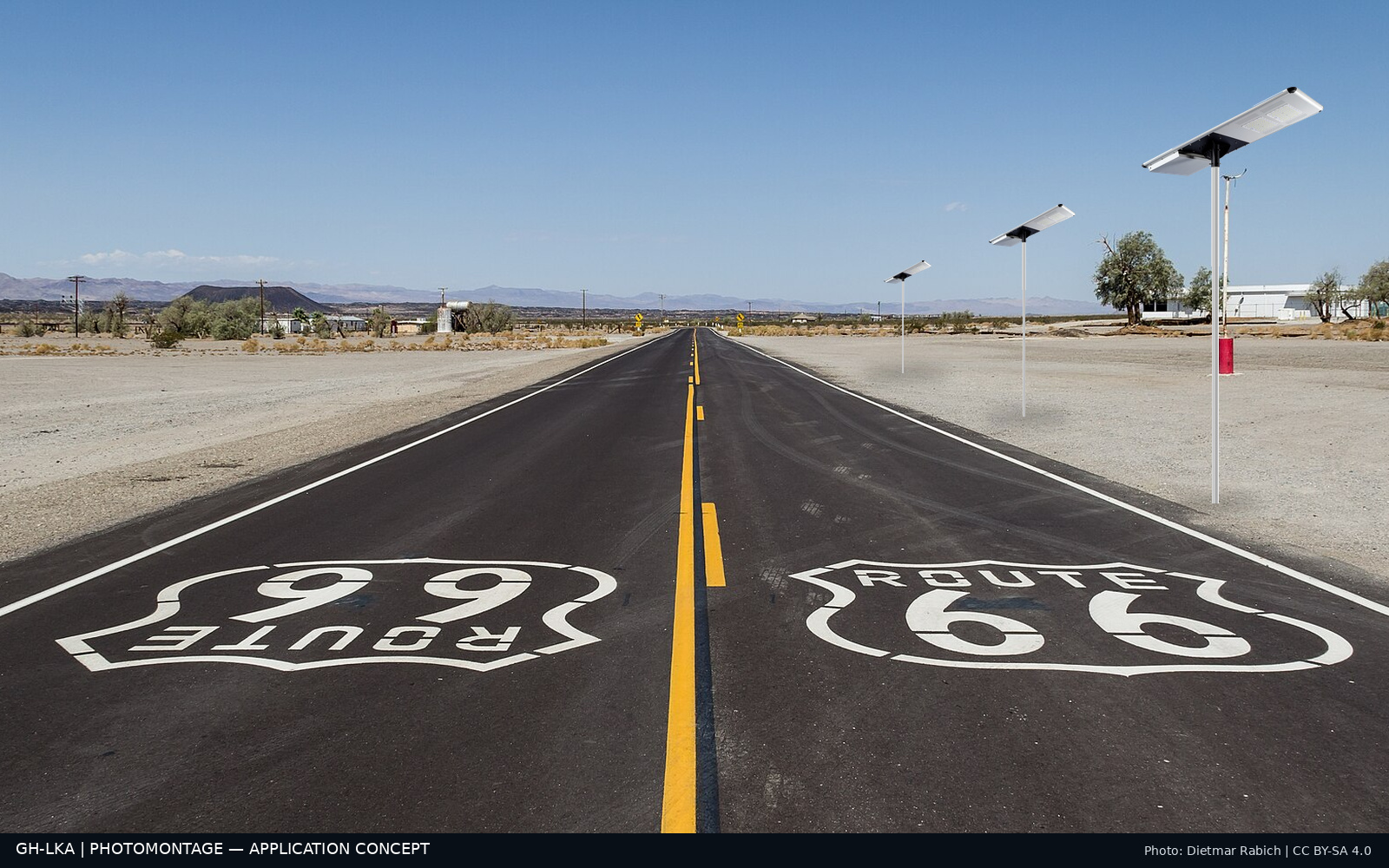

Solar Lighting for Roads, Industrial Parks and Security Areas

The GH-LKA is an off-grid solar street lighting option for:

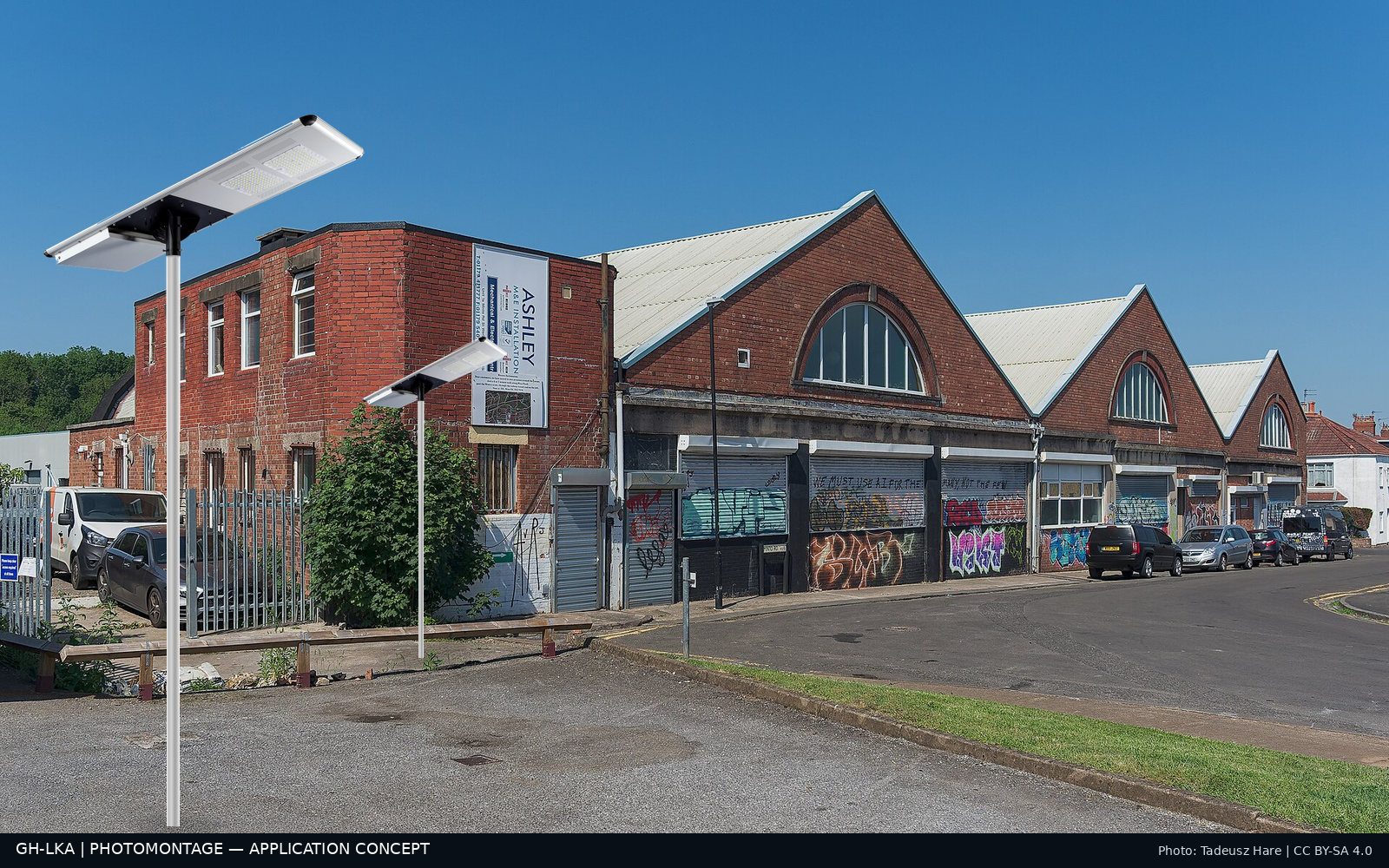

• Municipal roads and industrial access roads.

• Logistics parks, warehouse roads and fleet parking areas.

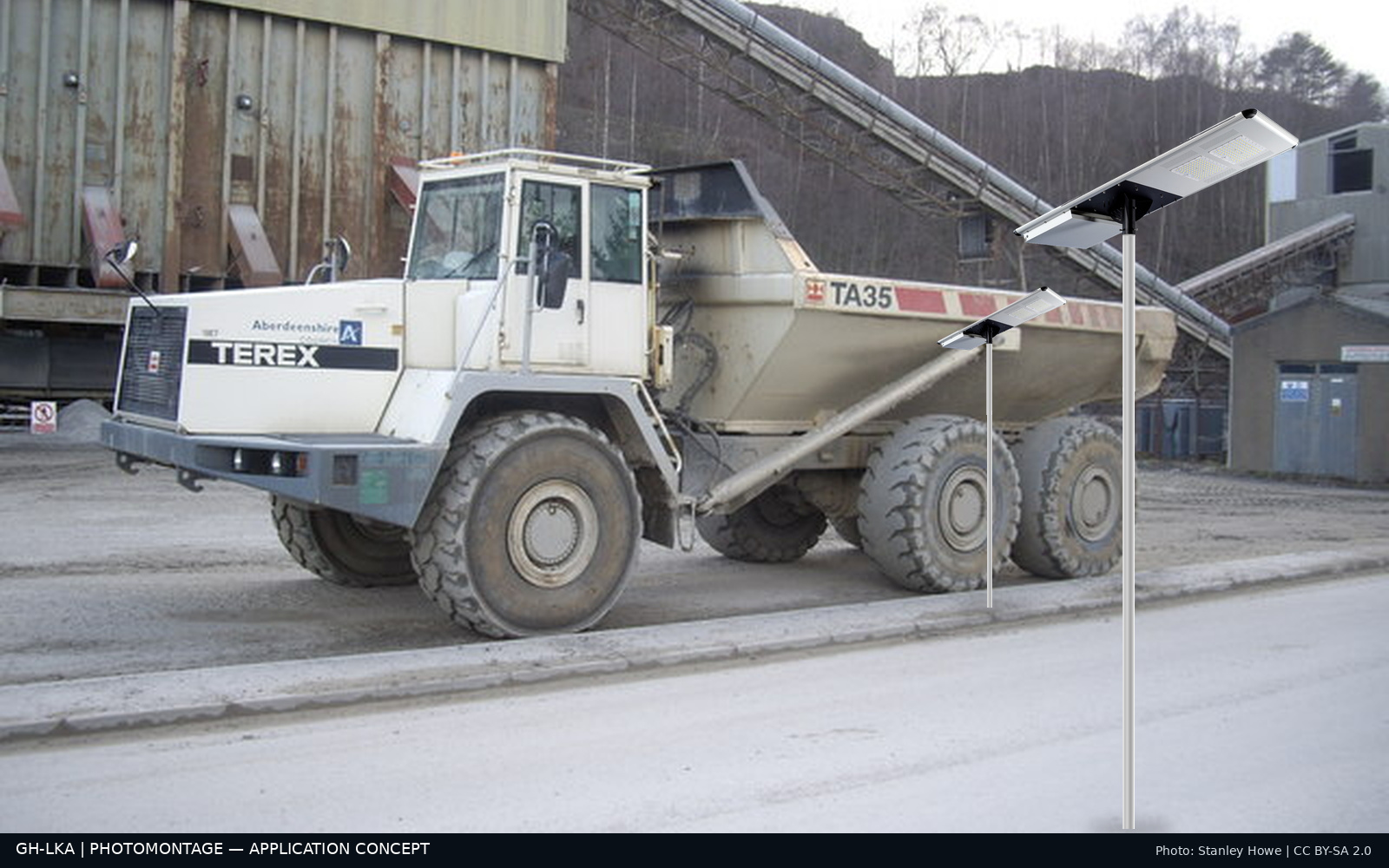

• Mining access roads and selected traffic junctions.

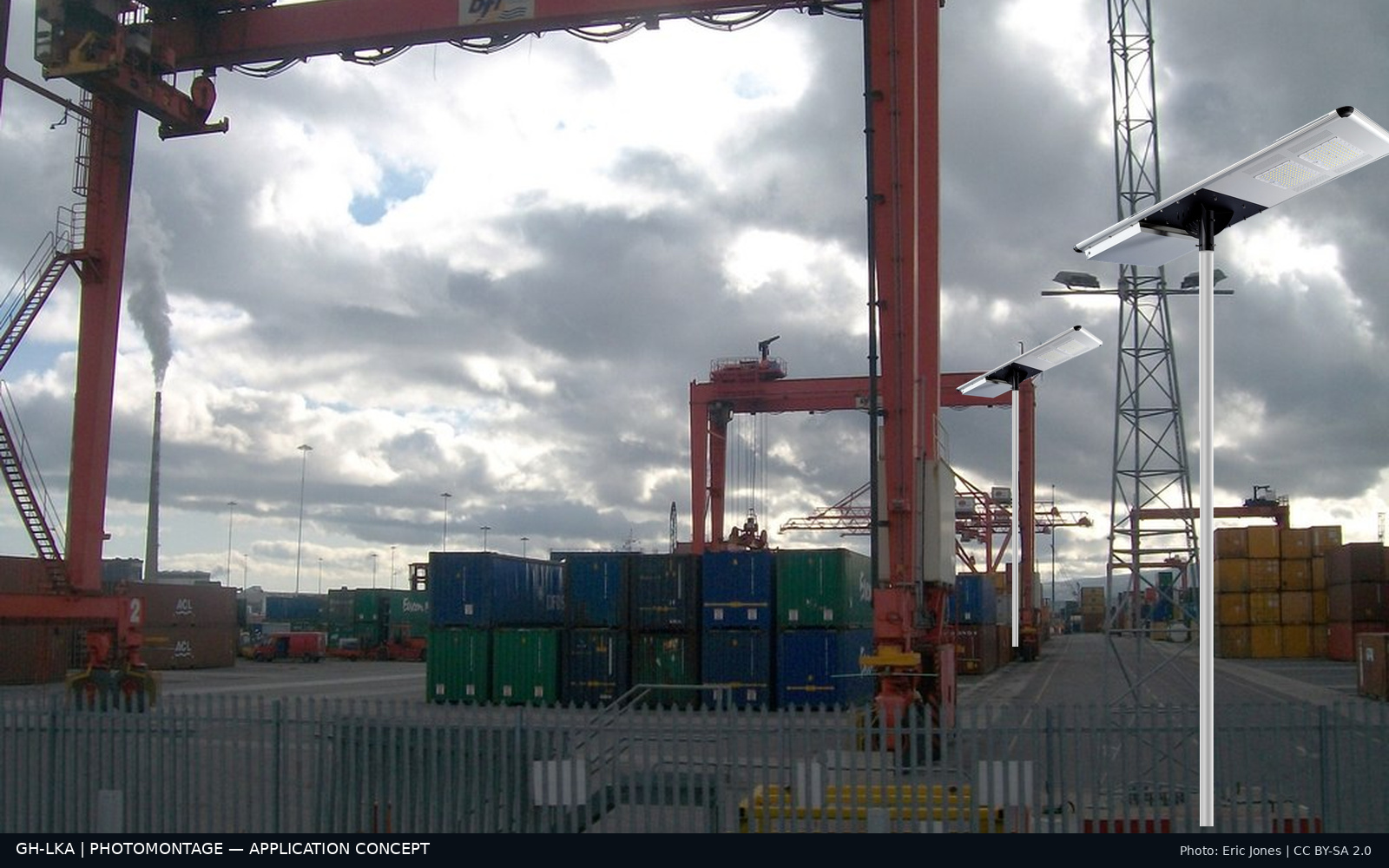

• Port access routes and coastal industrial roads.

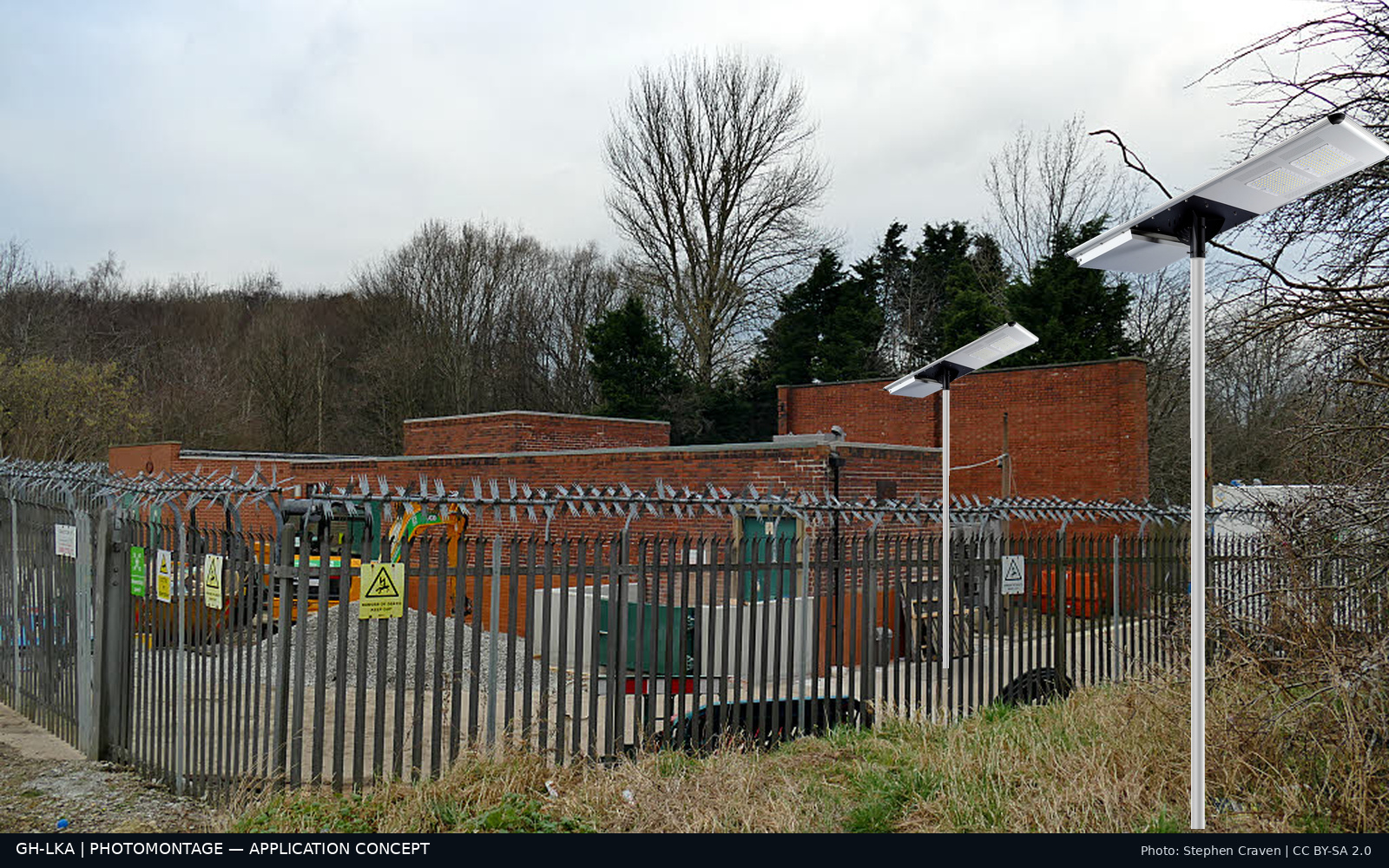

• Facility perimeters and security patrol routes.

• Remote roads where grid connections are difficult or costly.

Model selection, pole spacing and mounting height should follow the required illumination level, road geometry and site conditions.

Direct from GUOHUI Lighting

GUOHUI Lighting manufactures integrated solar street lights and custom LiFePO4 battery packs for distributors, contractors and project developers. We provide OEM/ODM customization, DIALux lighting simulation and technical documentation for project evaluation.

Send us your project location, road width, pole height and required lighting hours. Our team will recommend a GH-LKA configuration and prepare a project quotation.
