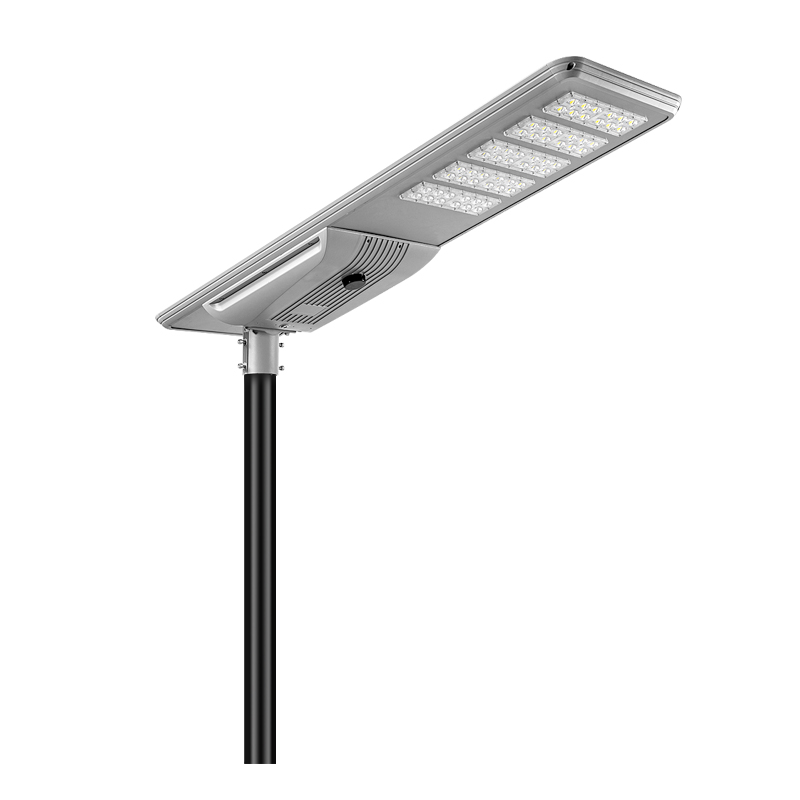

GH-LKX Series 60-140W

100% EL Tested Solar Panels<br/> IES Reports Available<br/> High-Temp BMS Protection<br/> External Smart Controller<br/> Easy Trouble-Shooting<br/> Pull-Out Battery Replacement<br/> Self-Made LiFePO4 Battery Pack

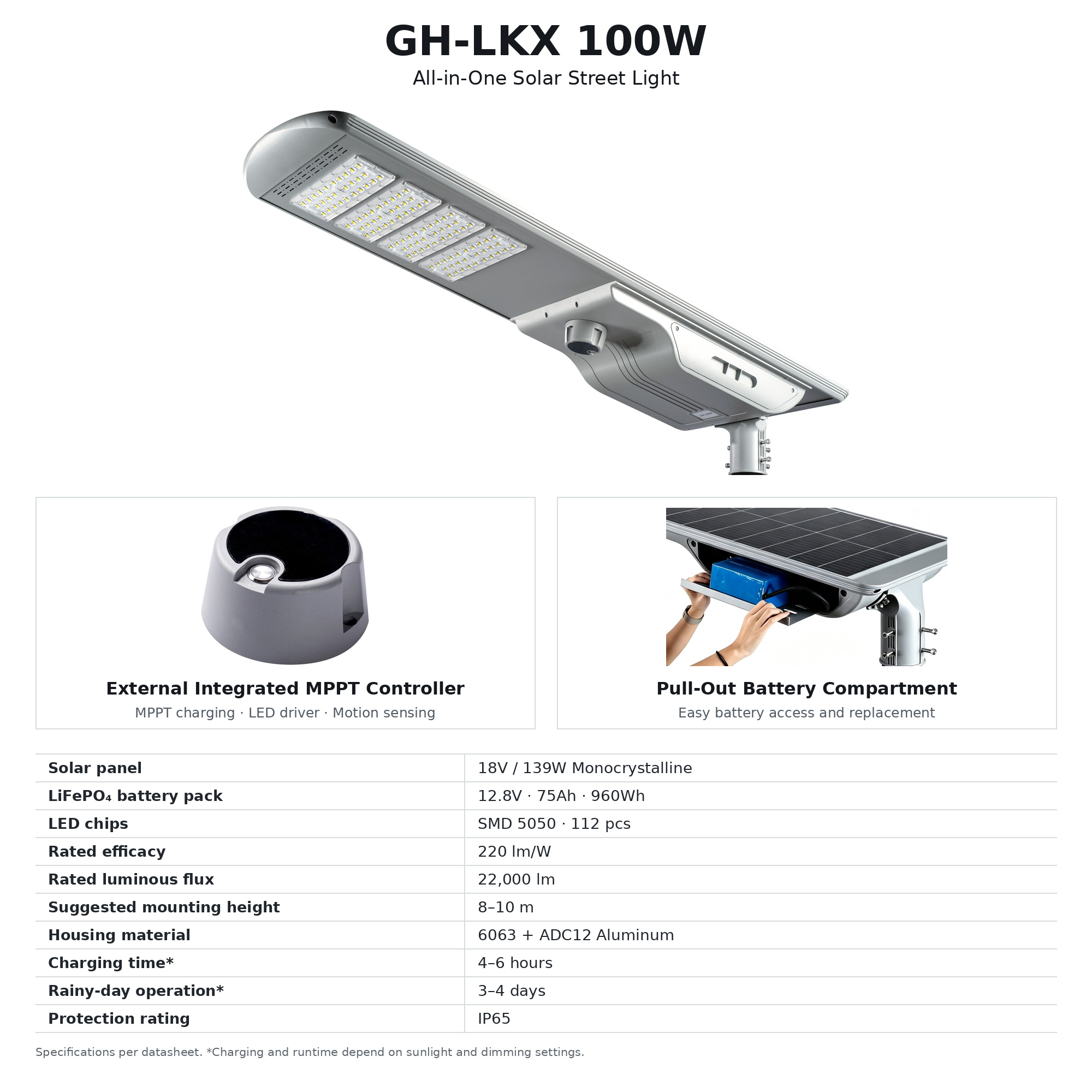

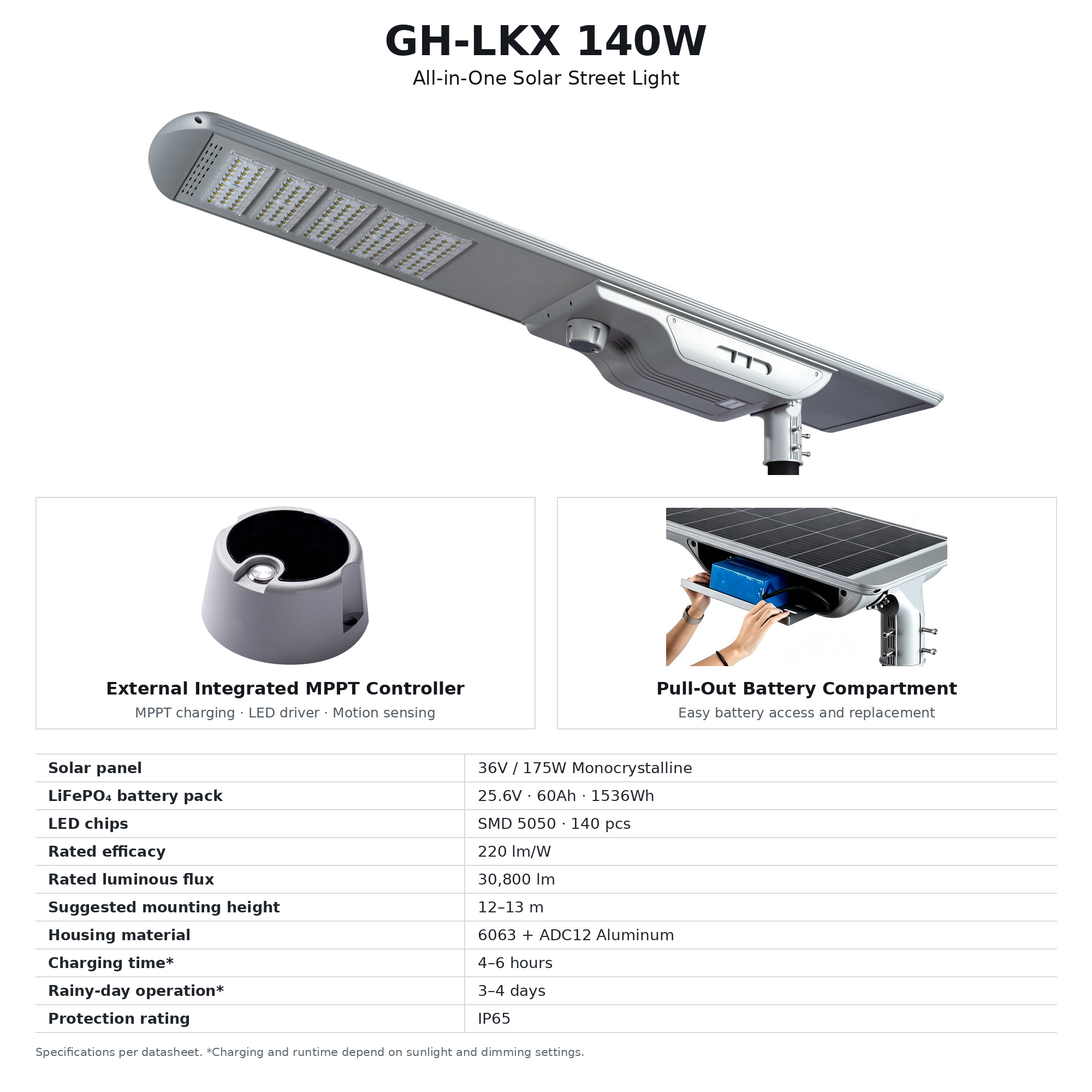

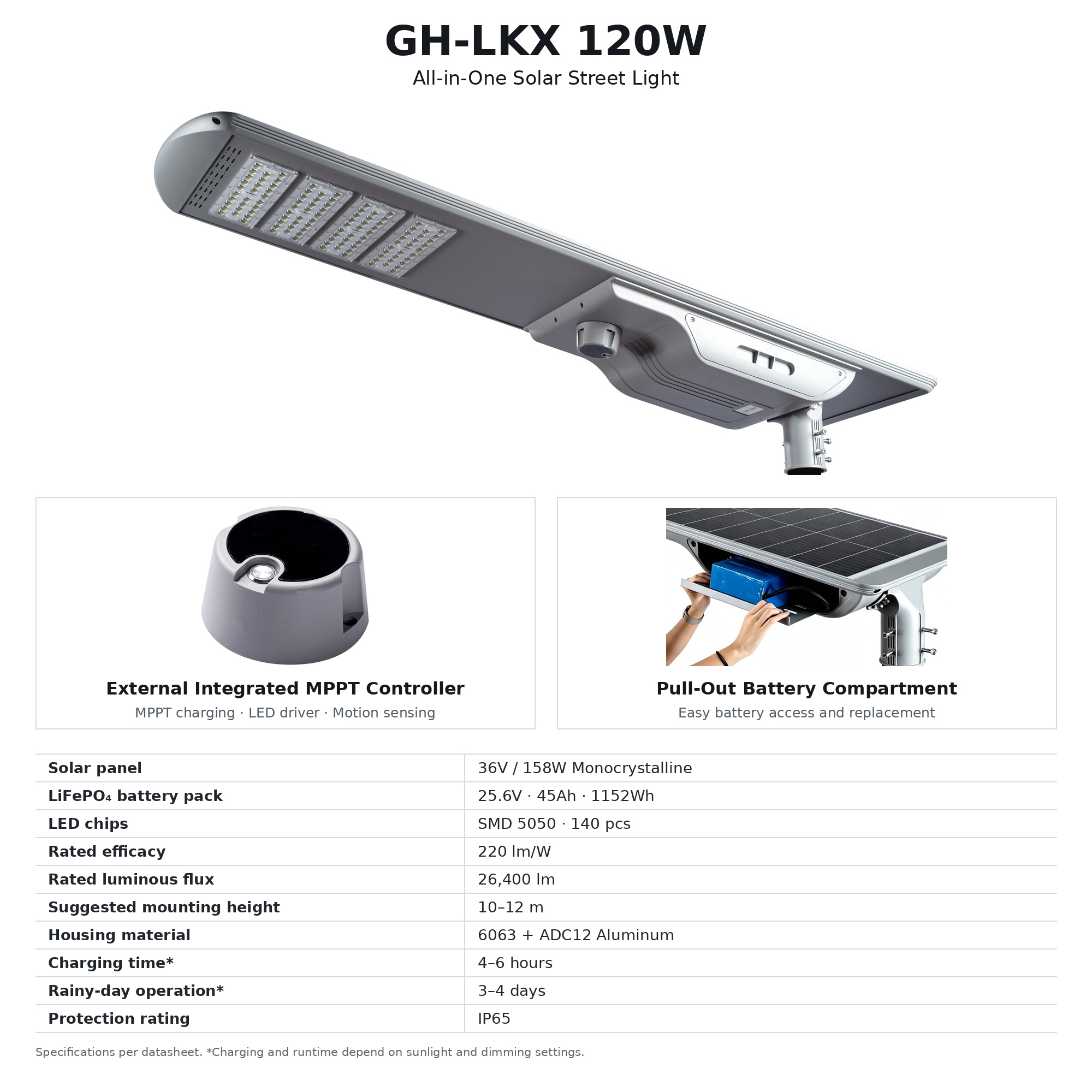

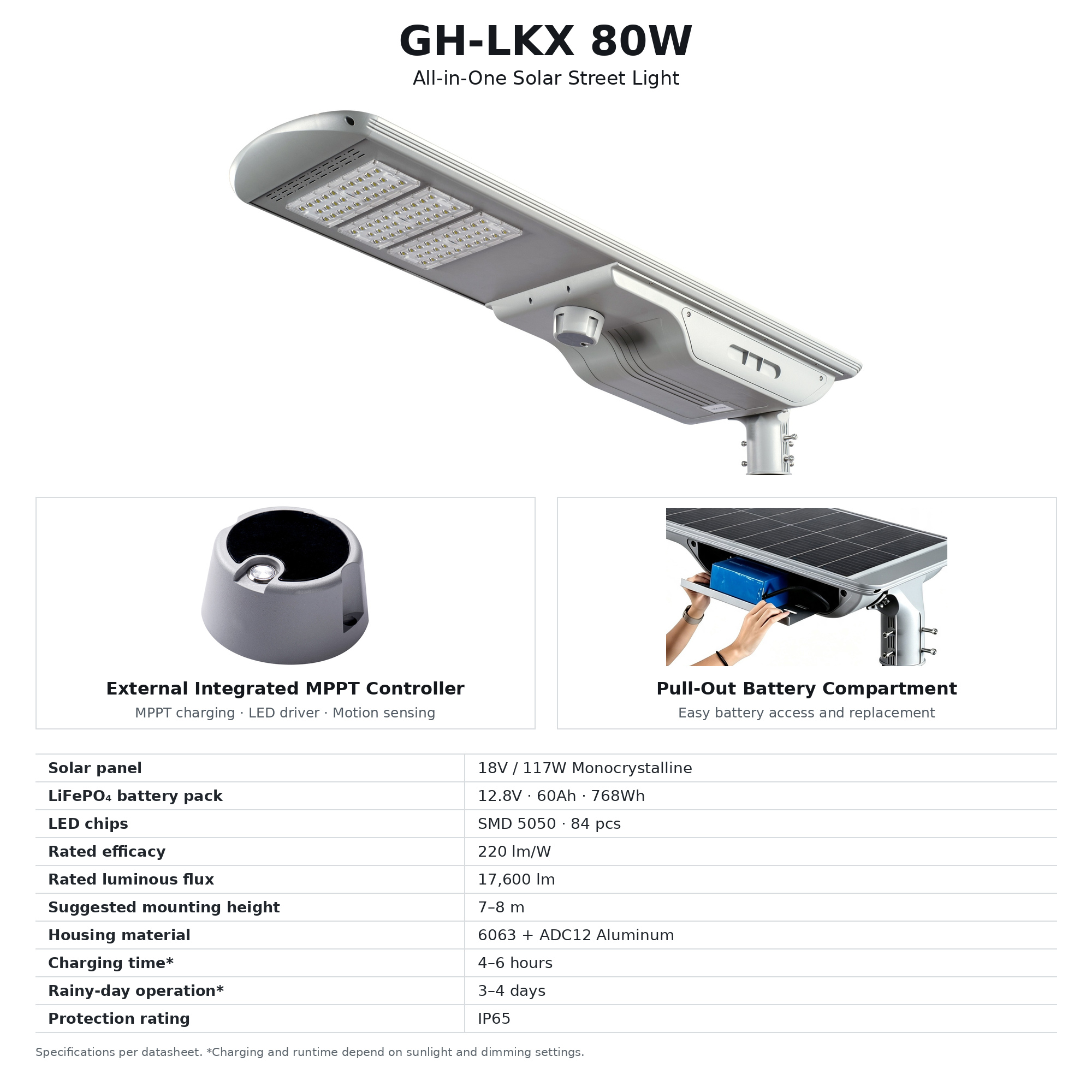

  • Power(W):60W,80W,100W,120W,140W
  • LED Chip: Ten-core SMD5050
  • Light Efficiency:220 lm/w
  • Luminous Flux:13200-28600 Lumens
  • CCT:2700k ~ 6500K
  • Ra(CRI):80
  • Protection:IP65
  • Control method:Microwave Motion Sensor + Multi-Period Time Control
  • Lifespan(hour):50000
  • Certificate:CE, RoHS,IEC,LM79, LM80
  • Warranty: 3~5 Years
Request A Free Quote
  • Description
  • Video

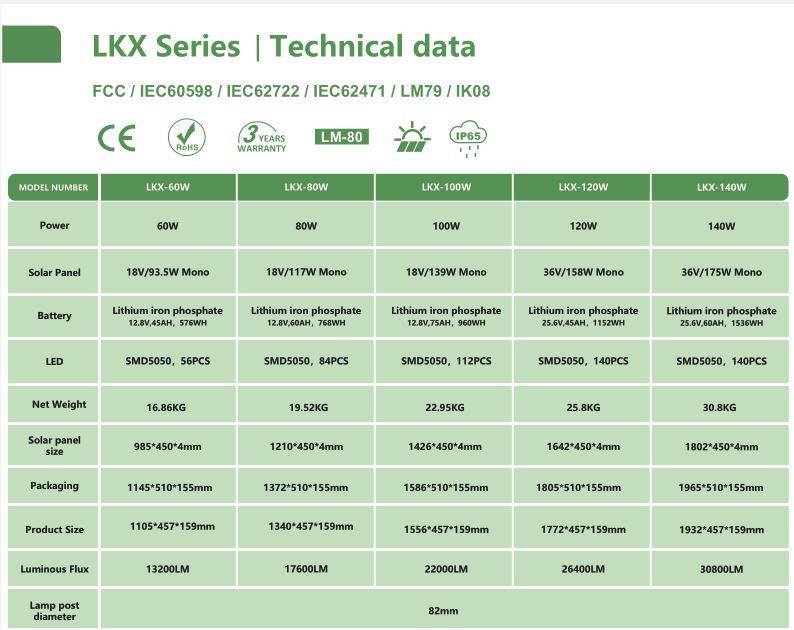

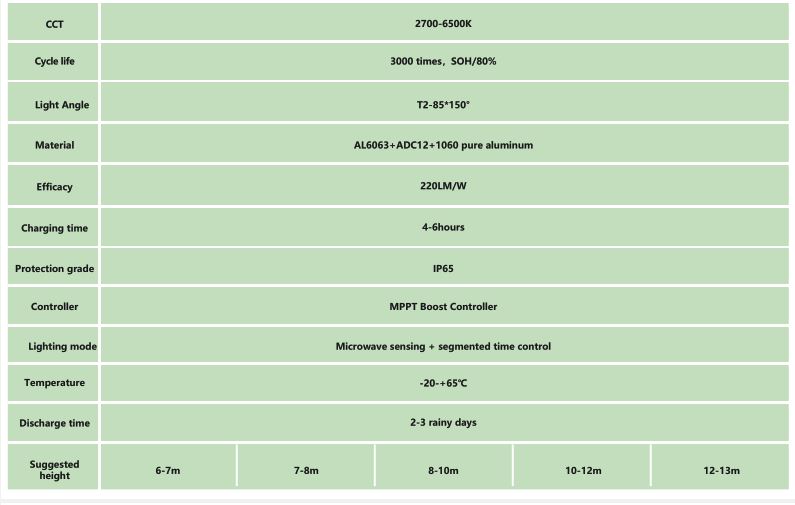

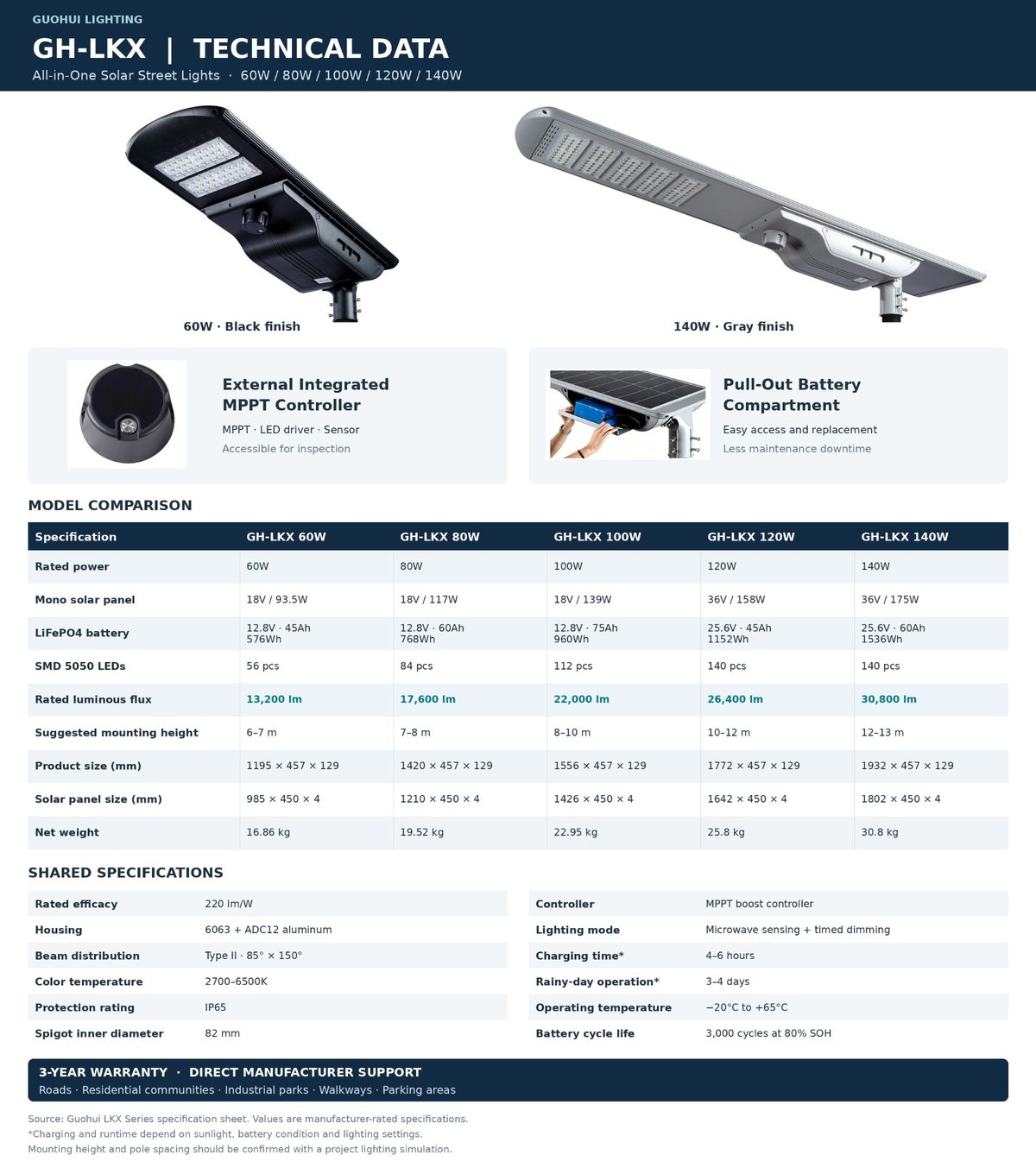

  • Data sheet
  • Optic & Dialux
  • Application


GH-LKX Core Selling Points & Advantages

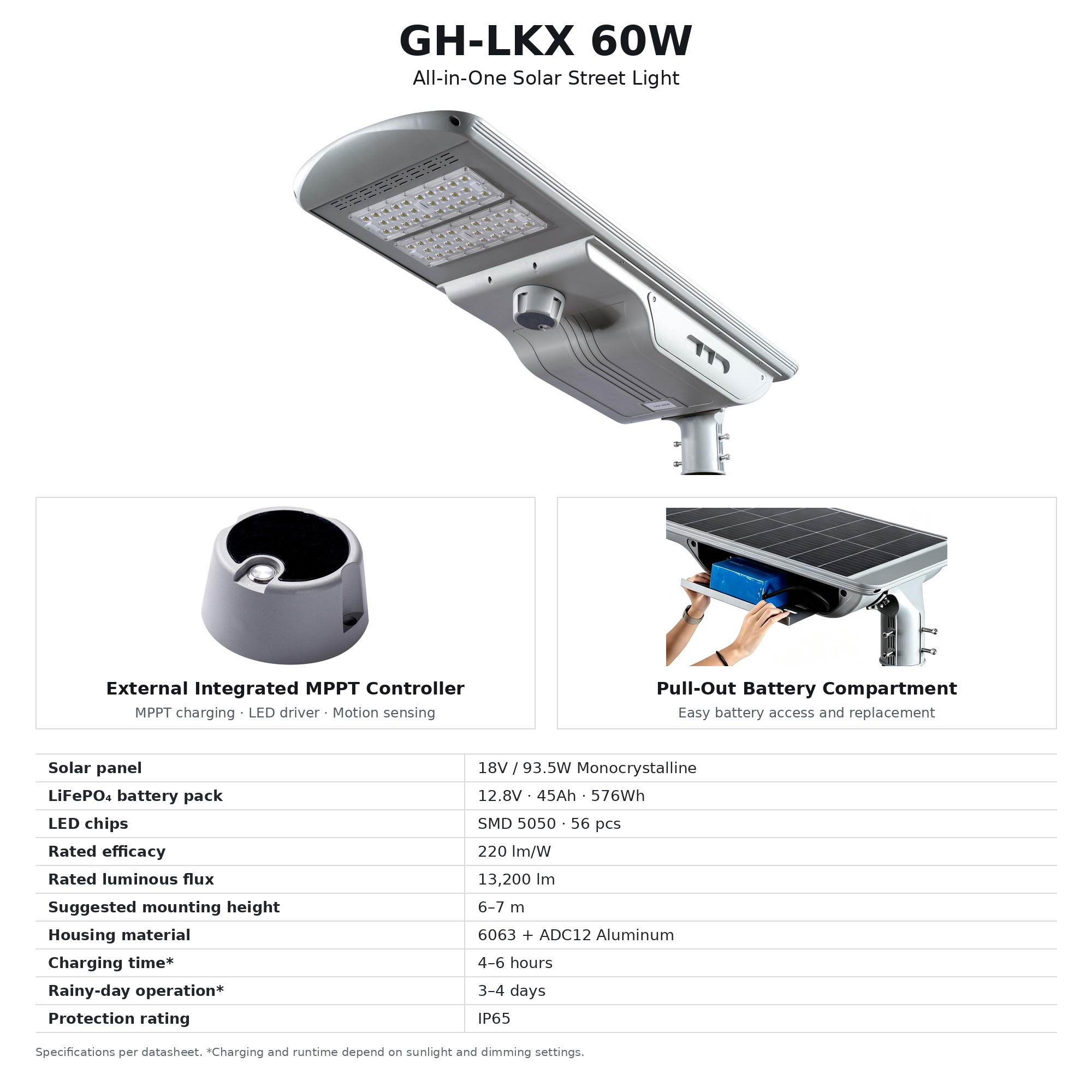

1. External Smart Controller with Trouble-Shooting – Displays system status or faults via 7 indicator colors, making post-installation maintenance simpler, faster, and more intuitive.


2. Pull-Out Battery Replacement – Innovative design allows batteries to be swapped without dismantling the lamp body, saving time and reducing operational complexity.


3. Premium LED Technology – Equipped with 5050 LED chips, delivering high brightness and energy efficiency for streets, highways, commercial areas, parking lots, and rural communities.


4. Advanced Aluminum Construction – Full-aluminum housing with ADC12 + Die-Casting + 6063 Aluminum, optimized for different lamp parts for strength, heat dissipation, and durability.


5. High-Quality LiFePO4 Battery Pack – Proprietary Guohui battery packs using latest Gotion High-Tech cells, ensuring long lifespan, stability, and reliable energy storage.


6. Best-in-Class Components – Every accessory has been carefully selected to match the high standard of the GH-LKX, guaranteeing premium quality, performance, and value.














  • Country Road

    Country Road

  • Front Yard

    Front Yard

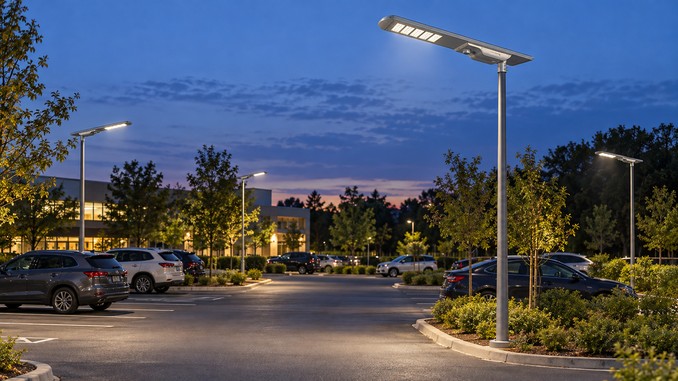

  • Parking Lot

    Parking Lot

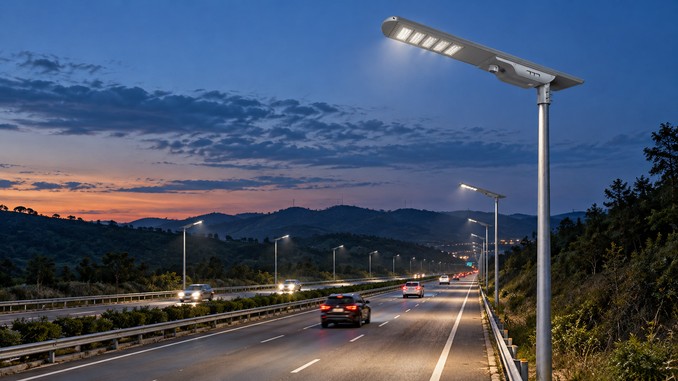

  • High Way

    High Way

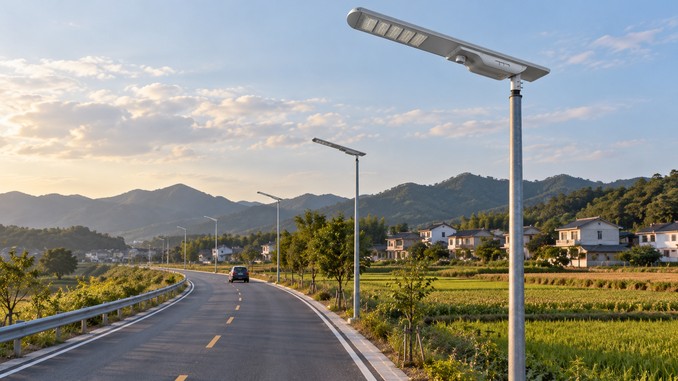

  • Rural Road

    Rural Road

  • Viaducts

    Viaducts
