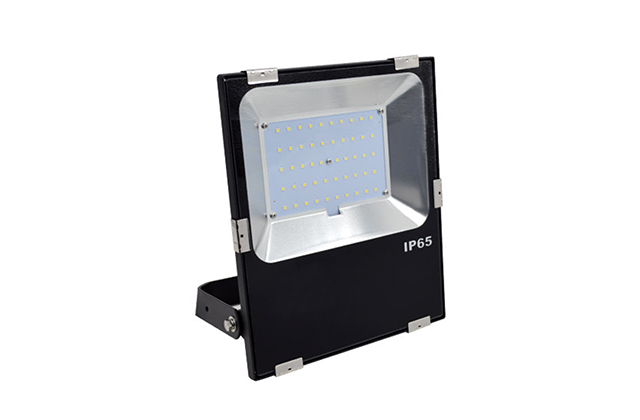

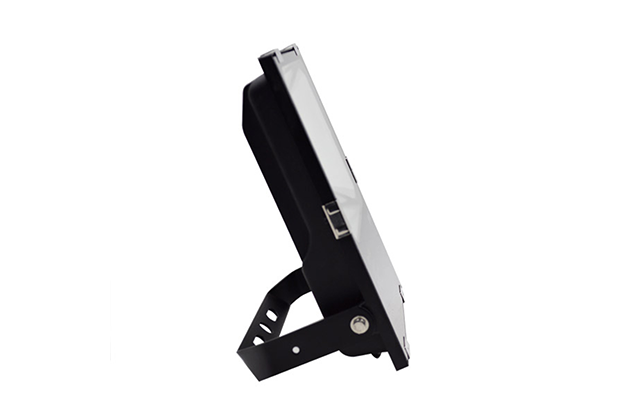

IP65 Waterproof 20W 30W 50W 80W Flood Lights Thick Aluminum Dimmable 0-10V for Outdoor use
This model is composed of ADC12 die-casting aluminum radiator, high-reflection reflector, high transmittance, high-strength tempered glass, and meanwell waterproof power supply.
- Power:20W, 30W, 50W, 80W
- Material: Aluminum + Toughened glass
- Input Voltage: AC85-265V/AC100-277V/AC100-305V
- LEDs Chips: Lumileds SMD 3030
- CRI/Ra: >80
- Light Efficiency:130lm/w
- Luminous Flux: 2600lm/3900lm/6500lm/10400lm
- Color: Warm white/ Neutral white / Cool white
- Beam Angle: 30°/60°/90°
- IP65 waterpoof
- 3/5 years warranty
- Environment Temperature:-20℃-+45℃
- Description
- Video
- Data sheet
- Optic & Dialux
- Application
Flood light 20-500 watts, 2600-65000 lumens, available in 3000K or 6500K color temperature (CCT), 50,000 hours working life, 3-5 year's warranty.
1.It's made of Lumileds SMD3030 led chips and Meanwell/Sosen/Inventronics driver for application which requires maximum performance and minimum maintenance.
2.Heavy duty die-cast aluminum housing, fully sealed to be dirt and bug proof. Polyester powder-coated finish, rust and corrosion proof, stabilized to extreme climate changes without cracking or peeling.
3.IP 65 waterproof protection.
4.High quality polycarbonate lens with high lumen effeciency 130lm/w,30°&60°&90° beam angle.
5.This fixture can get the same lume flood in tensity asone-fourth wattage of HPS / HID / Metal halide lamp for wall wash, Football Stadium, Seaport, Airport, and High Mast Poles lighting.
Model No. | GH-TG-20W | GH-TG-30W | GH-TG-50W | GH-TG-80W |
Power | 20W | 30W | 50W | 80 |
Luminous Efficacy | 130lm/w | |||
Input Voltage | AC85-265V/AC100-277V | |||
Frequency | 50-60HZ | |||
Power Factor | >0.98 | |||
CCT | 3000K/4000K/5000K/6500K | |||
LED Chips | Lumileds SMD3030 | |||
CRI | >80 | |||
Beam Angle | 30°/60°/90° | |||
Environment Temp | -20℃-+45℃ | |||
Lifespan | 50000 hours | |||
Warranty | 3 & 5 years | |||
Certifications | CE RoHs ETL | |||
Product Size | 216.5*152*40mm | 226.5*167*40 | 310.5*220*50 | 354.5*245*55mm |
