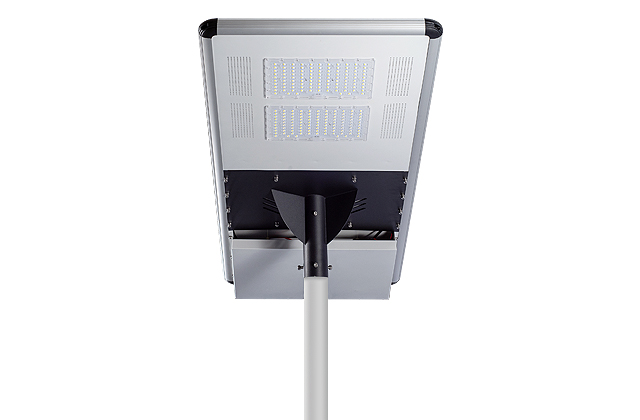

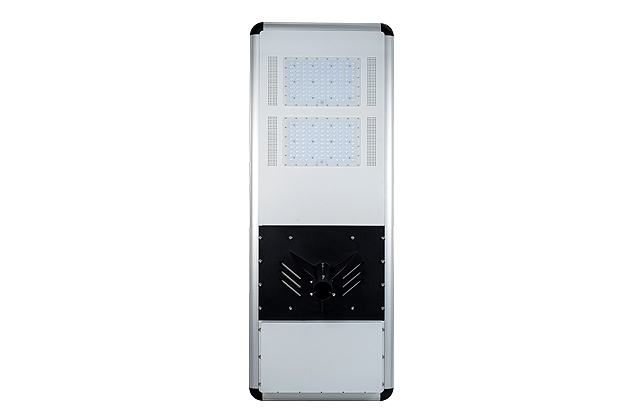

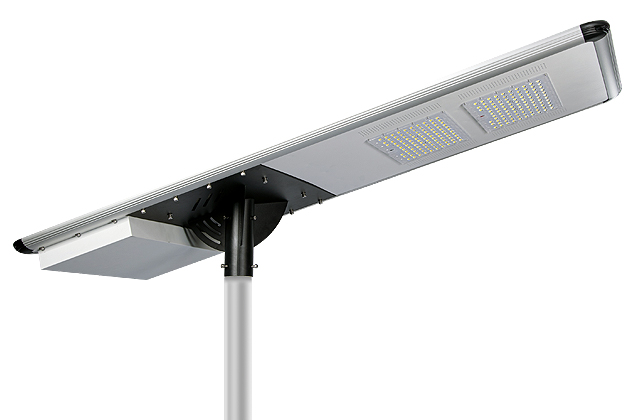

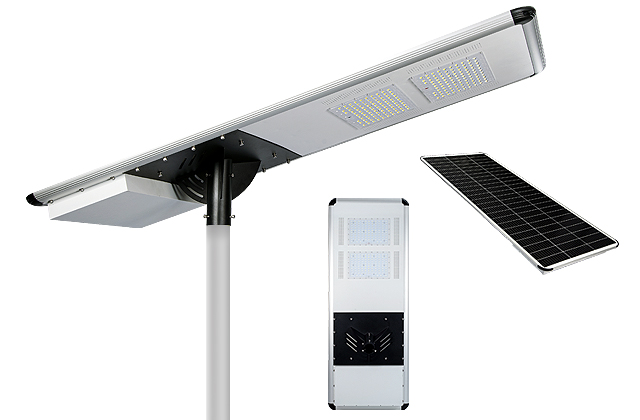

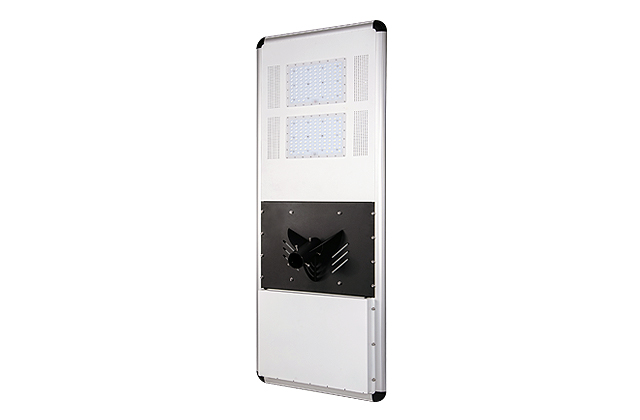

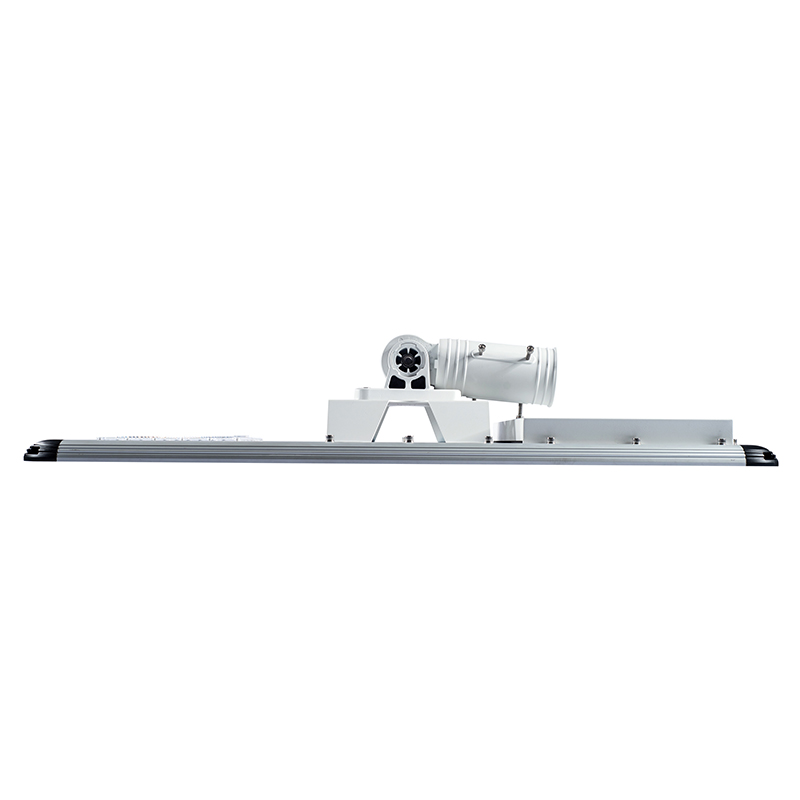

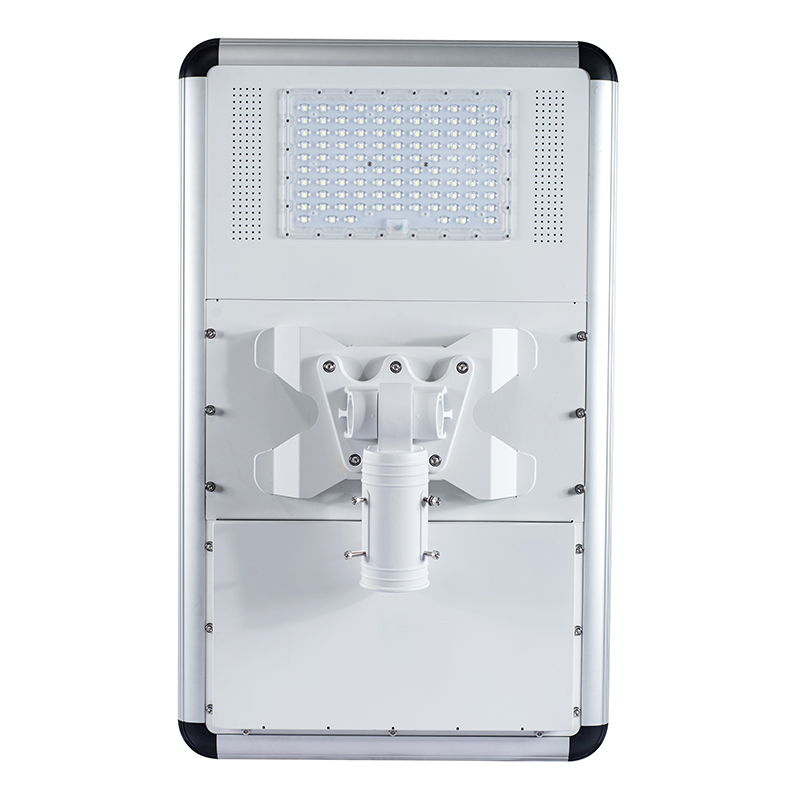

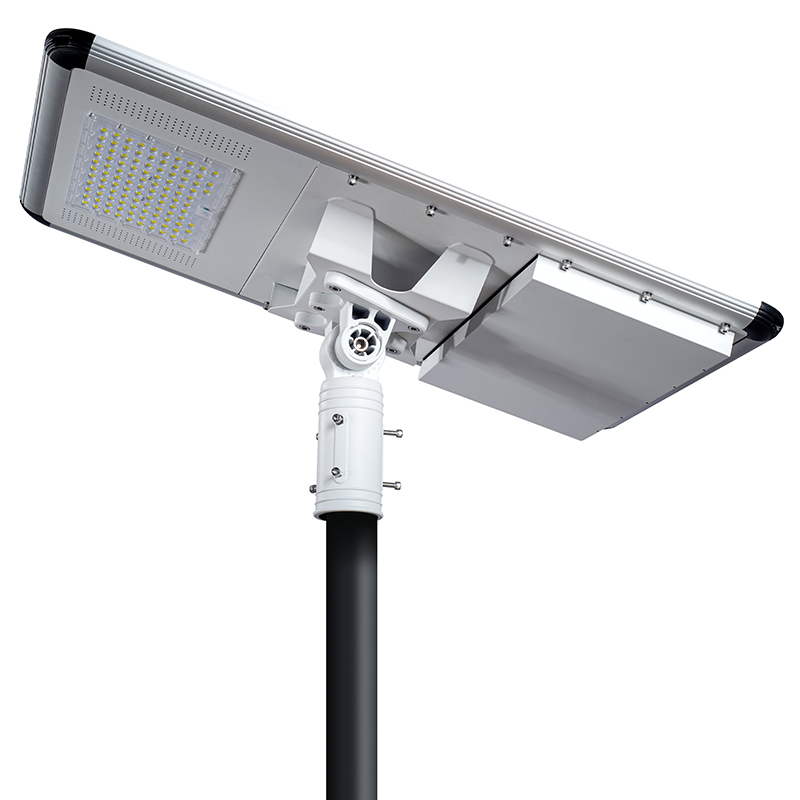

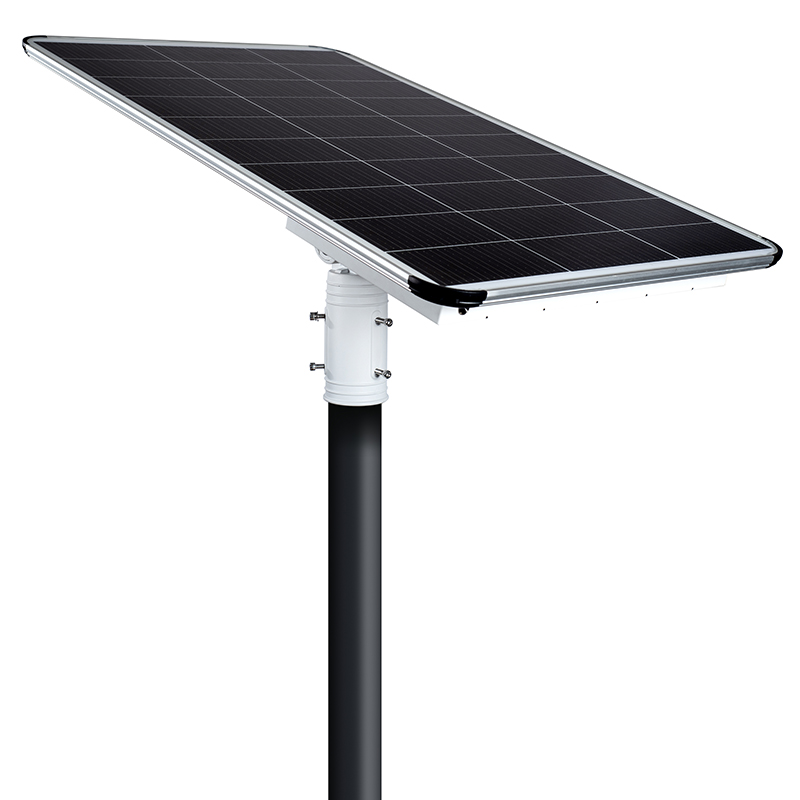

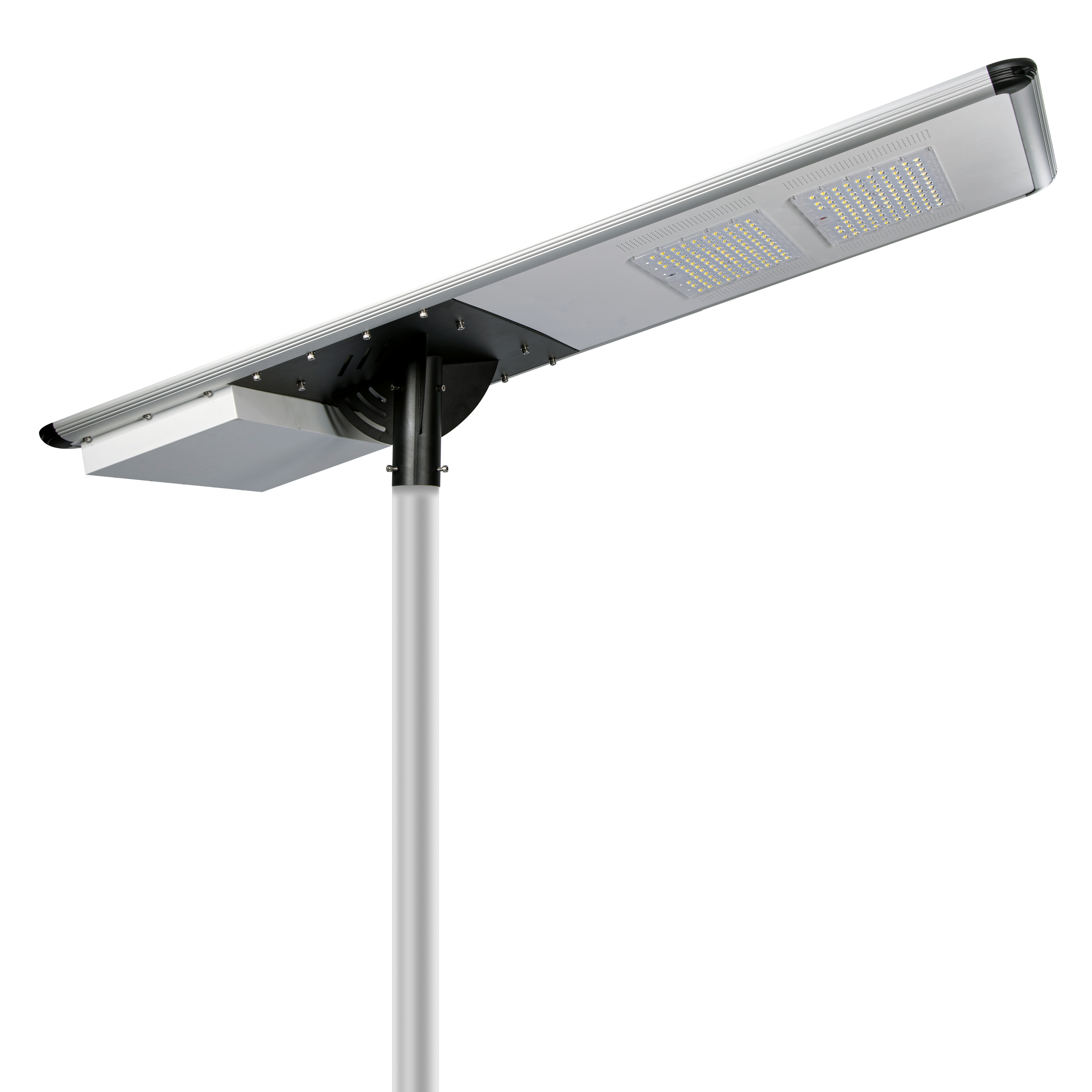

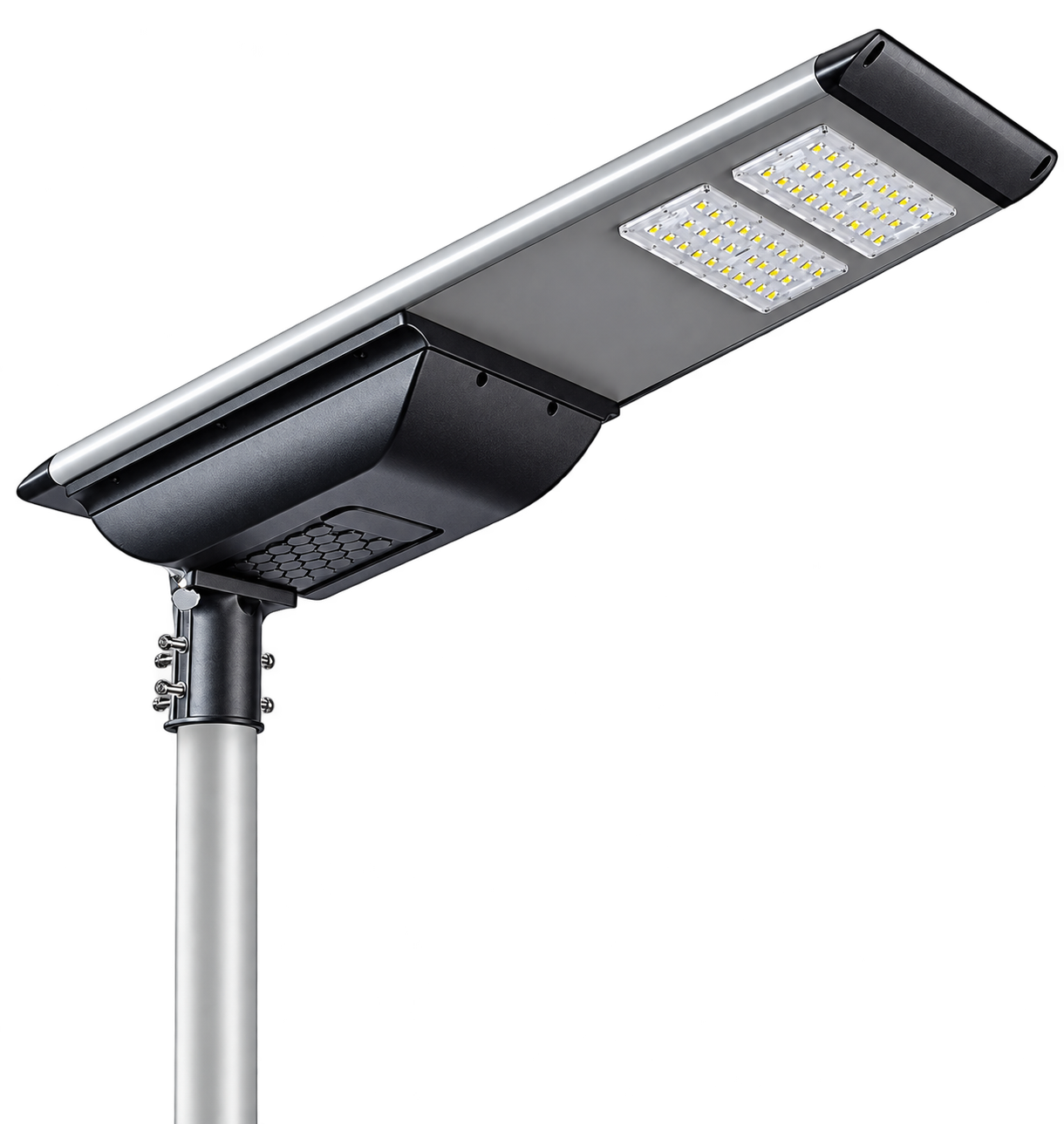

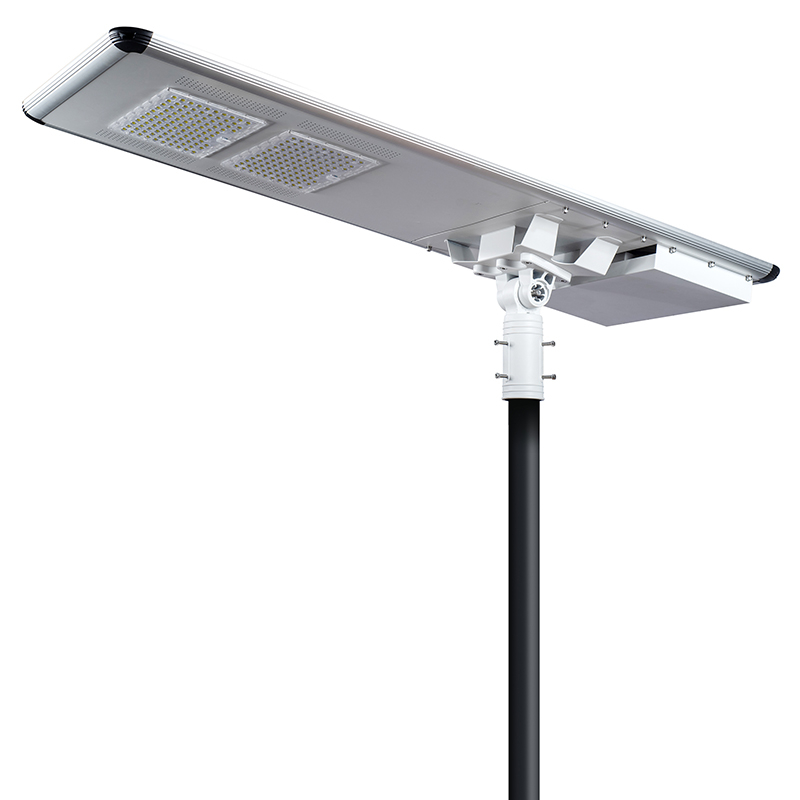

GH-LKA Series 80-150W

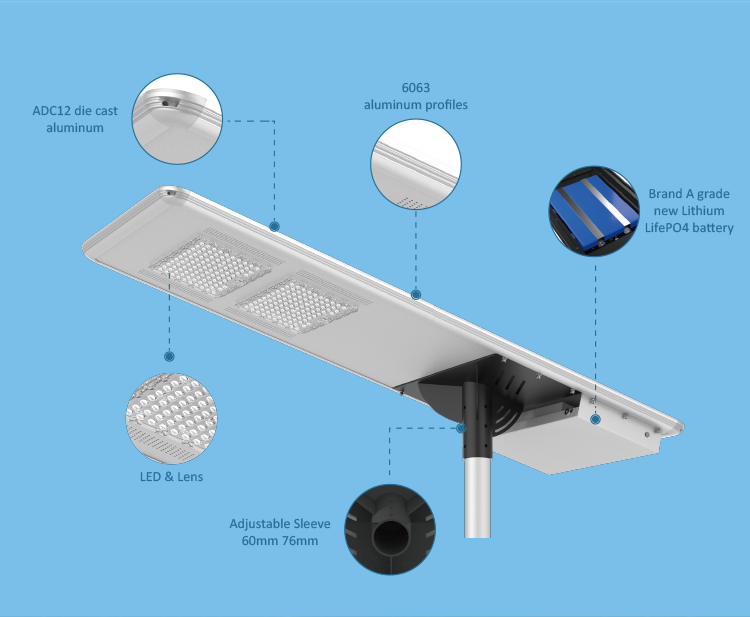

Full-power All-in-One Design High-strength Aluminum Alloy Frame High-efficiency LED chips Extra-large Battery Compartment In-house LiFePO₄Battery MPPT Smart Controller Top-quality Solar Panels & Premium Accessories

Power(W):80W~150W
LED Chip: Four-core SMD 5050
Light Efficiency:220 lm/w
Luminous Flux:17600~33000 Lumens
CCT:2700k ~ 6500K
Ra(CRI):80
Protection:IP65
Control method: light control
Lifespan(hour):50000
Certificate:CE, RoHS,IEC,LM79, LM80
Warranty: 3~5 Years

Request A Free Quote

Description
Video

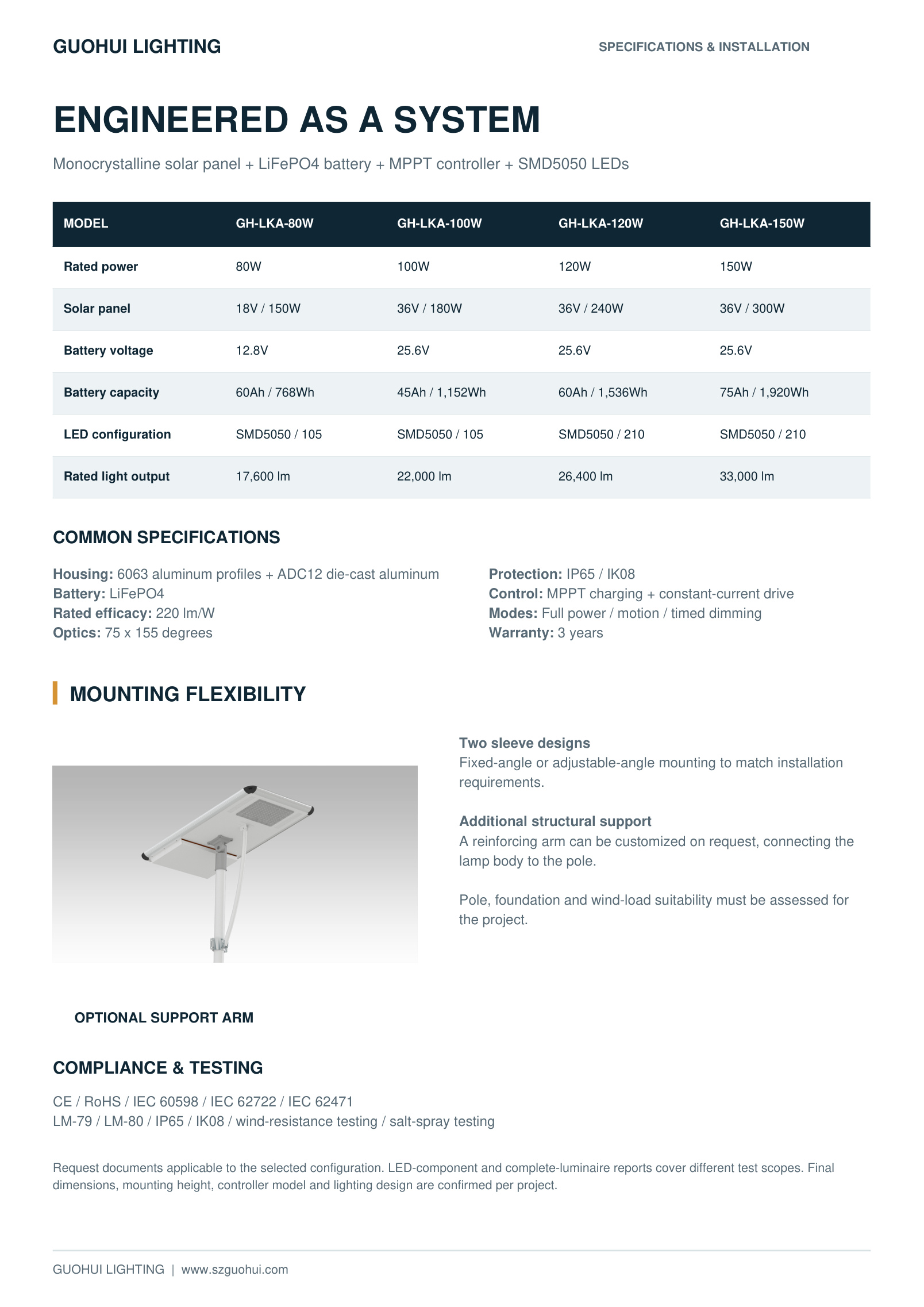

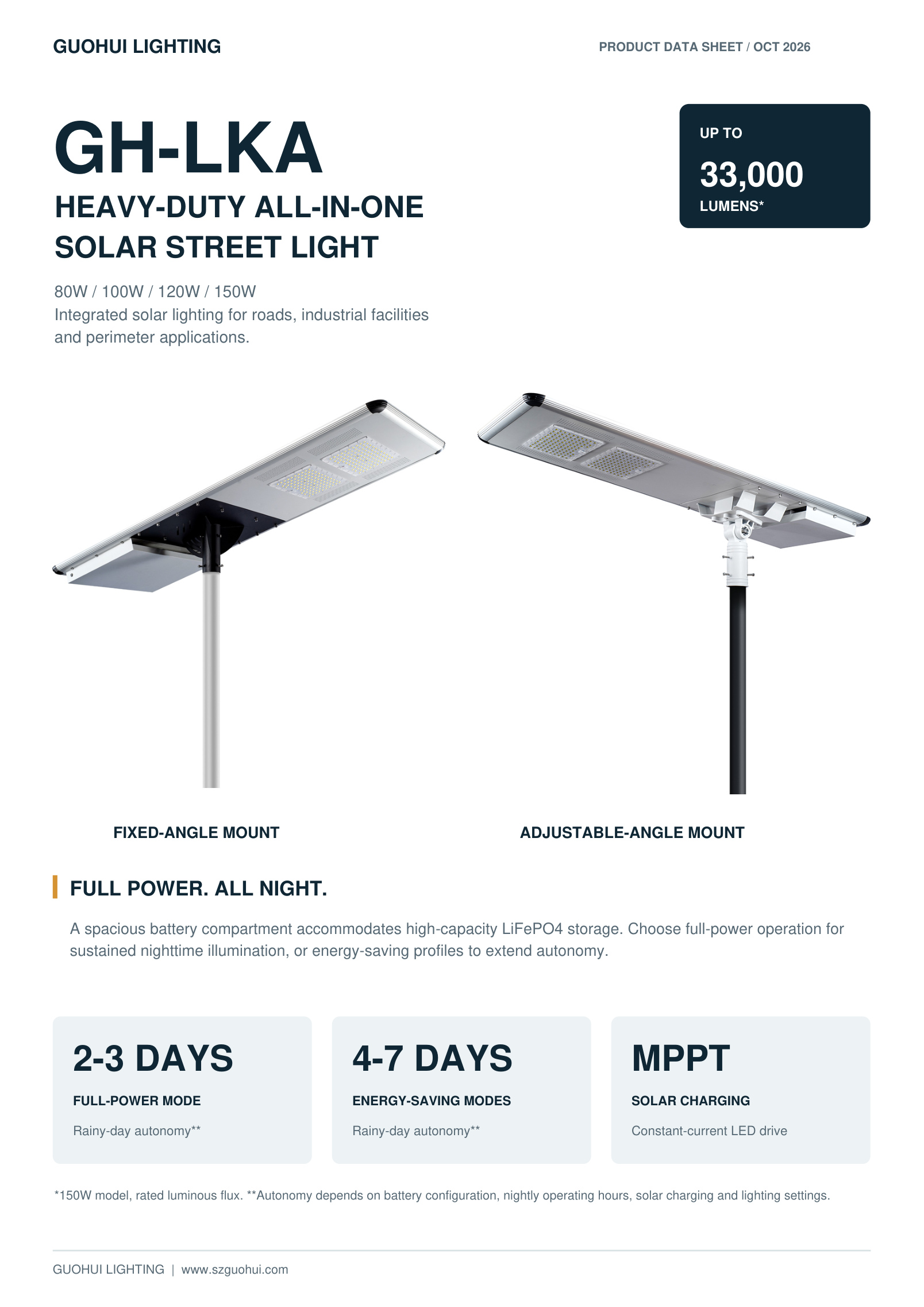

Data sheet
Optic & Dialux

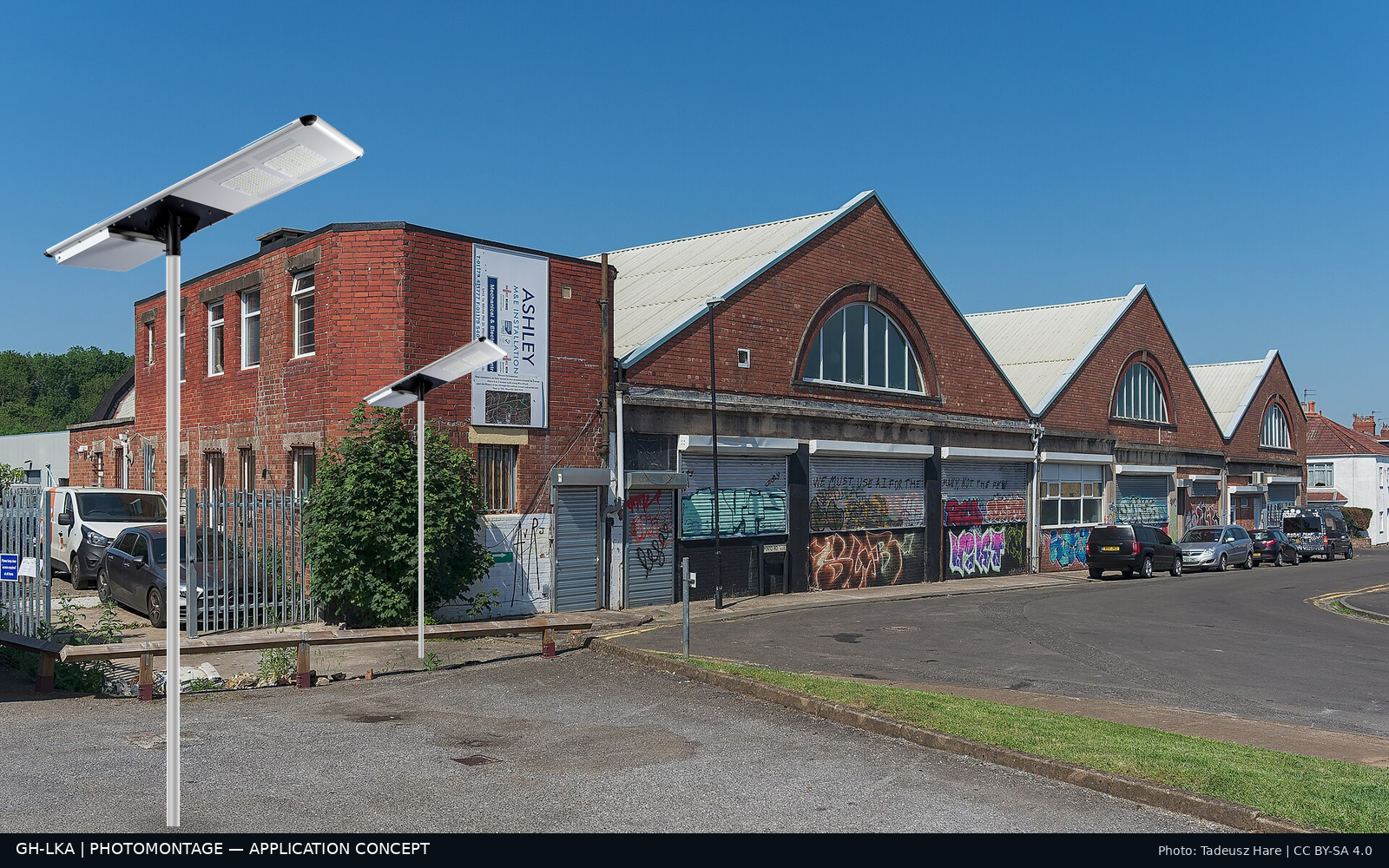

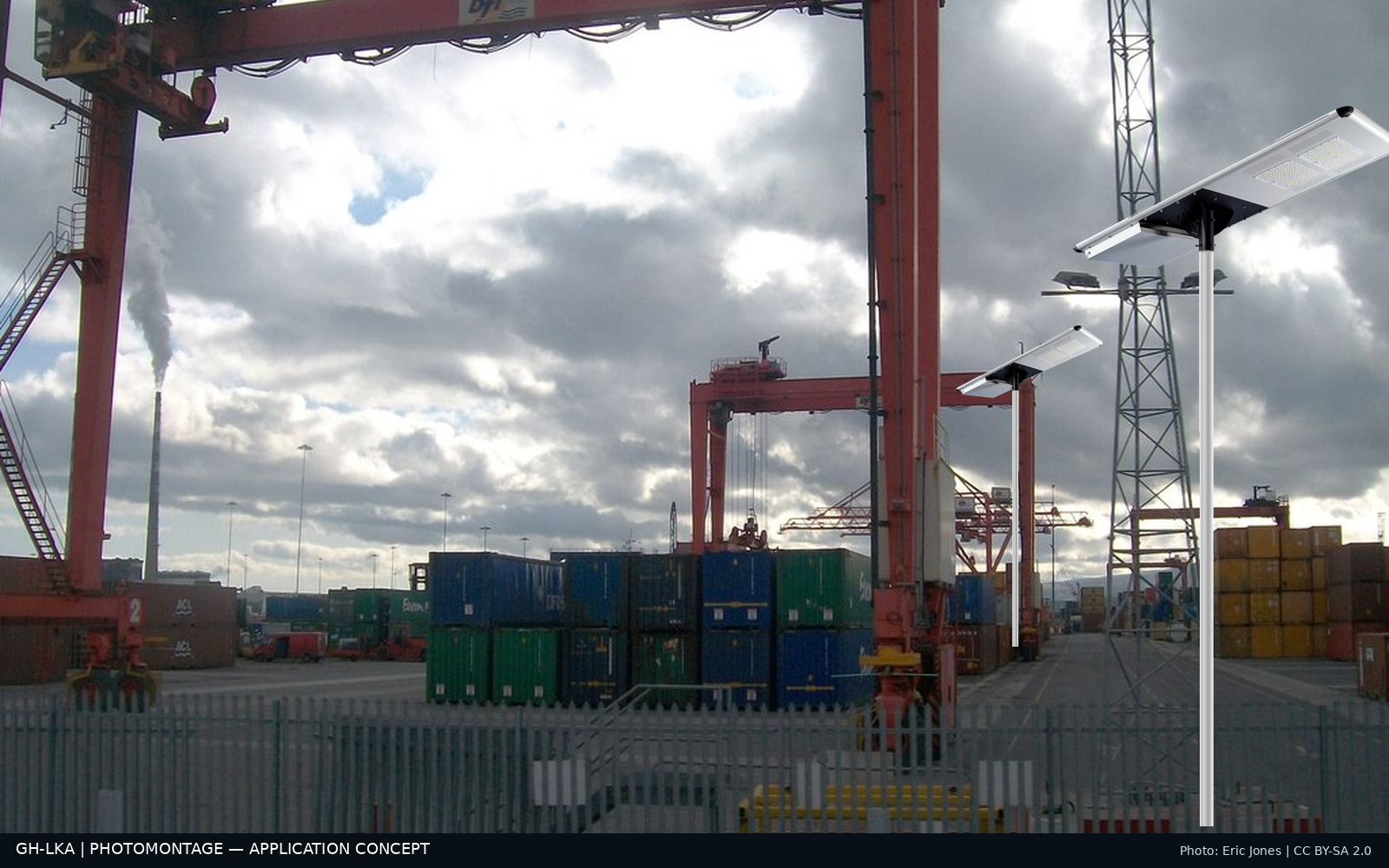

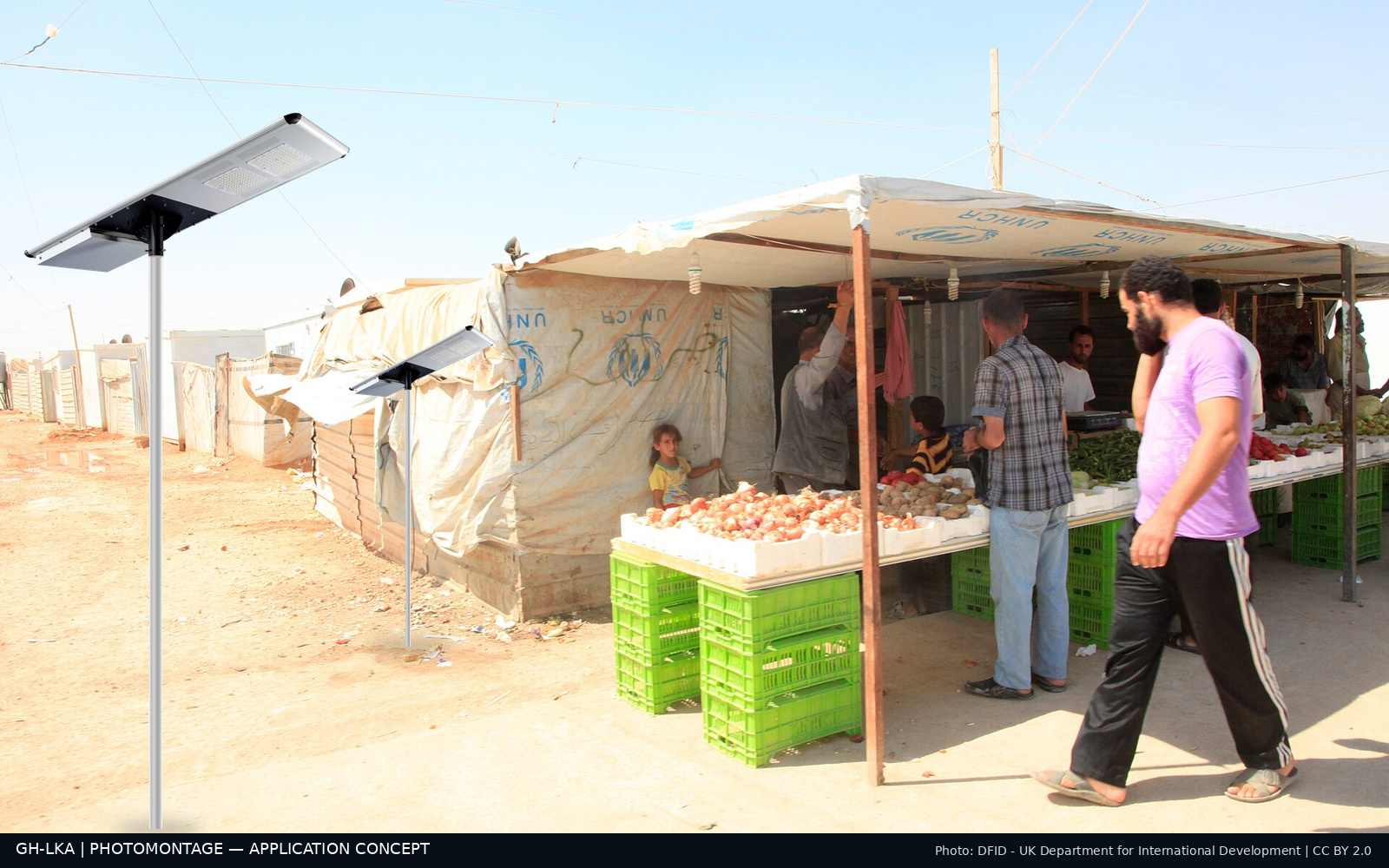

Application

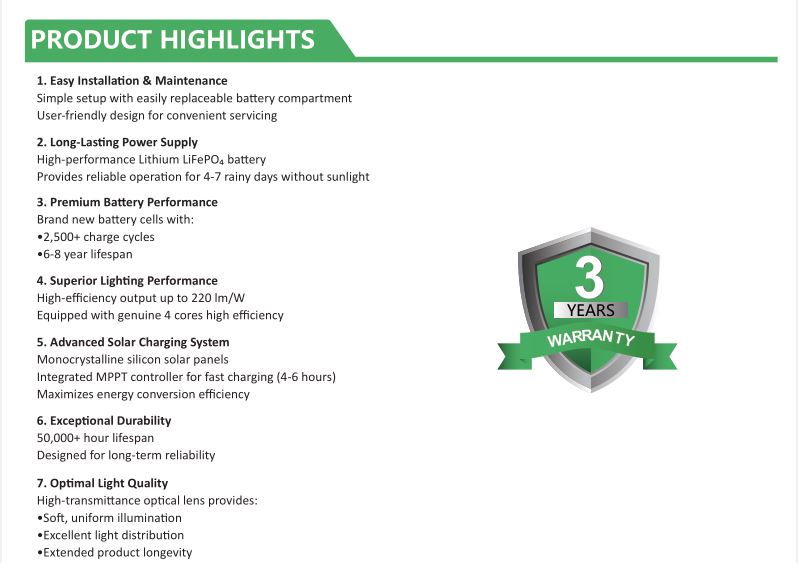

1. 0 electricity fee no wiring required work continuously for 3-5 rainy and cloudy days

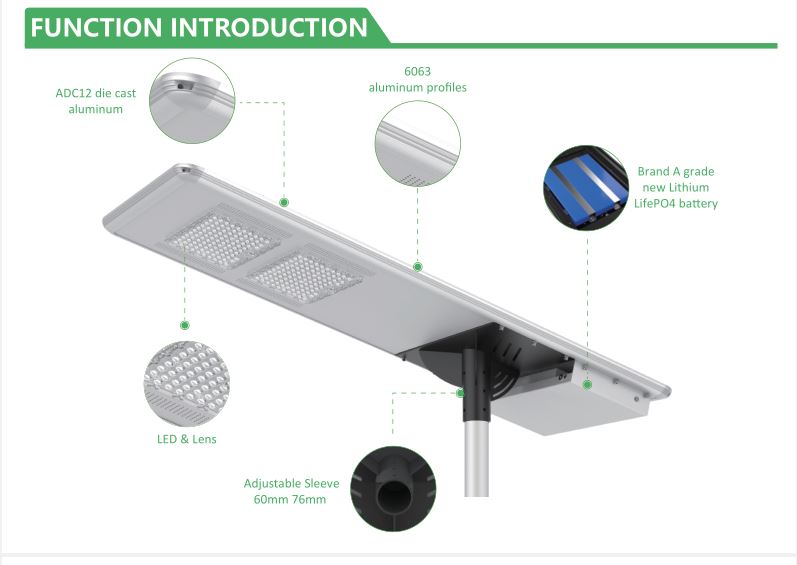

2. LKA series is All in One solar lighting system designed for cost-effective lighting for small to medium spaces. Reliability and easy installation, All key components are integrated within the solar panel and light head.

3. The design of the detachable battery compartment reduces maintenance difficulty and cost, which is conducive to the sustainable use of the product.

4. It uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.

5. Removable battery compartment for easy battery relacement, reducing maintenance time and maintenance costs.

6. High brightness Lumileds SMD 5050 LED chips up to 220lm/w ,super brightness ,reduce light decay.

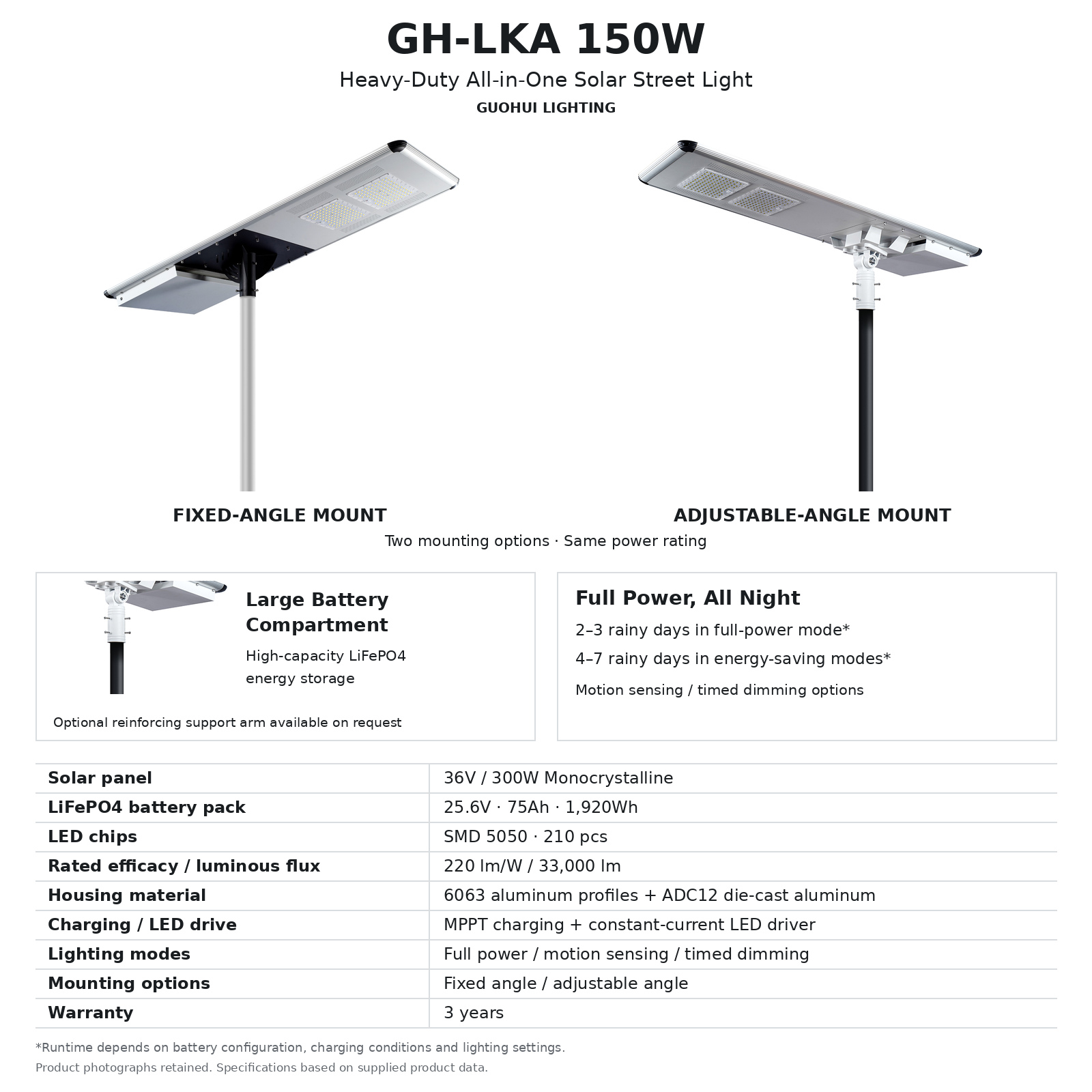

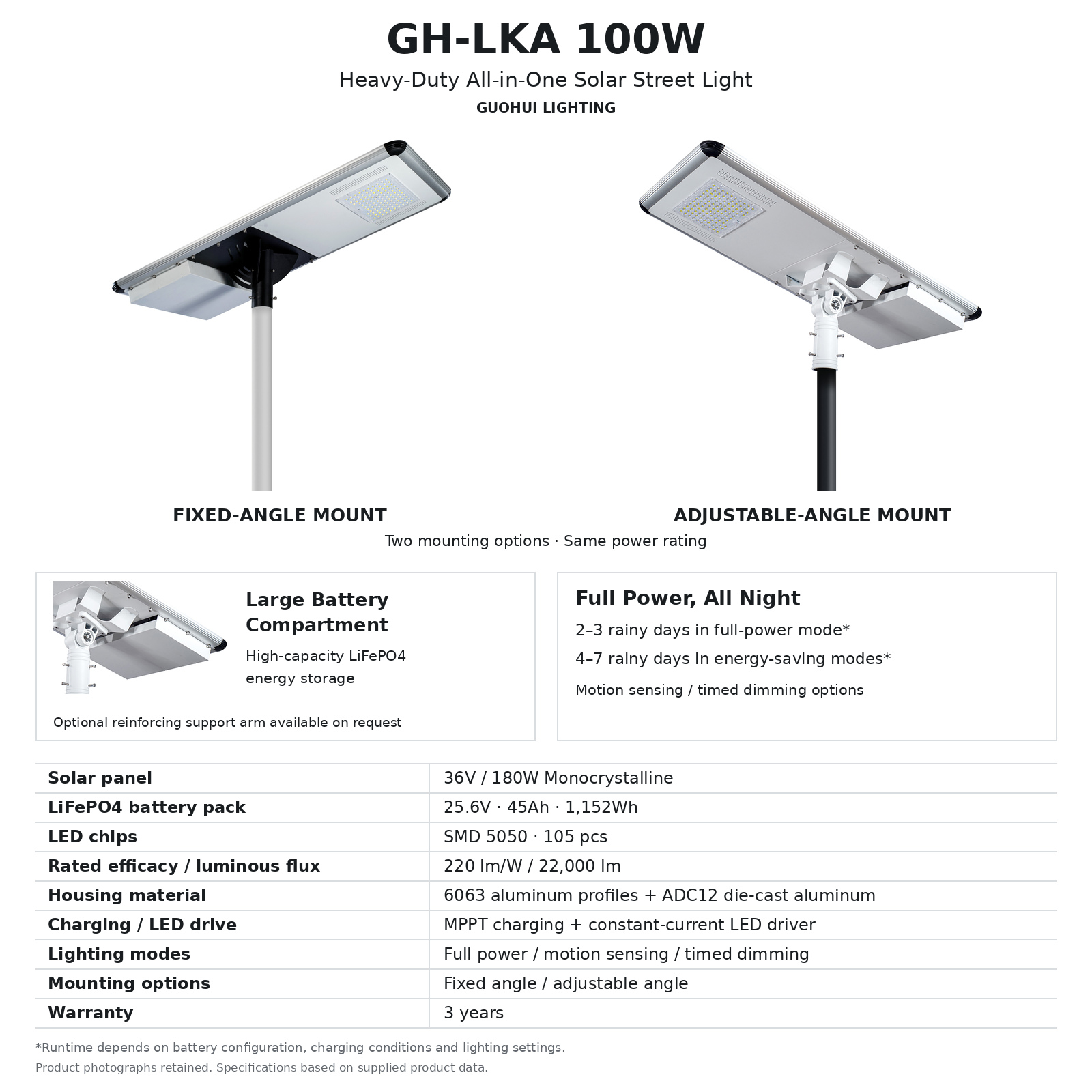

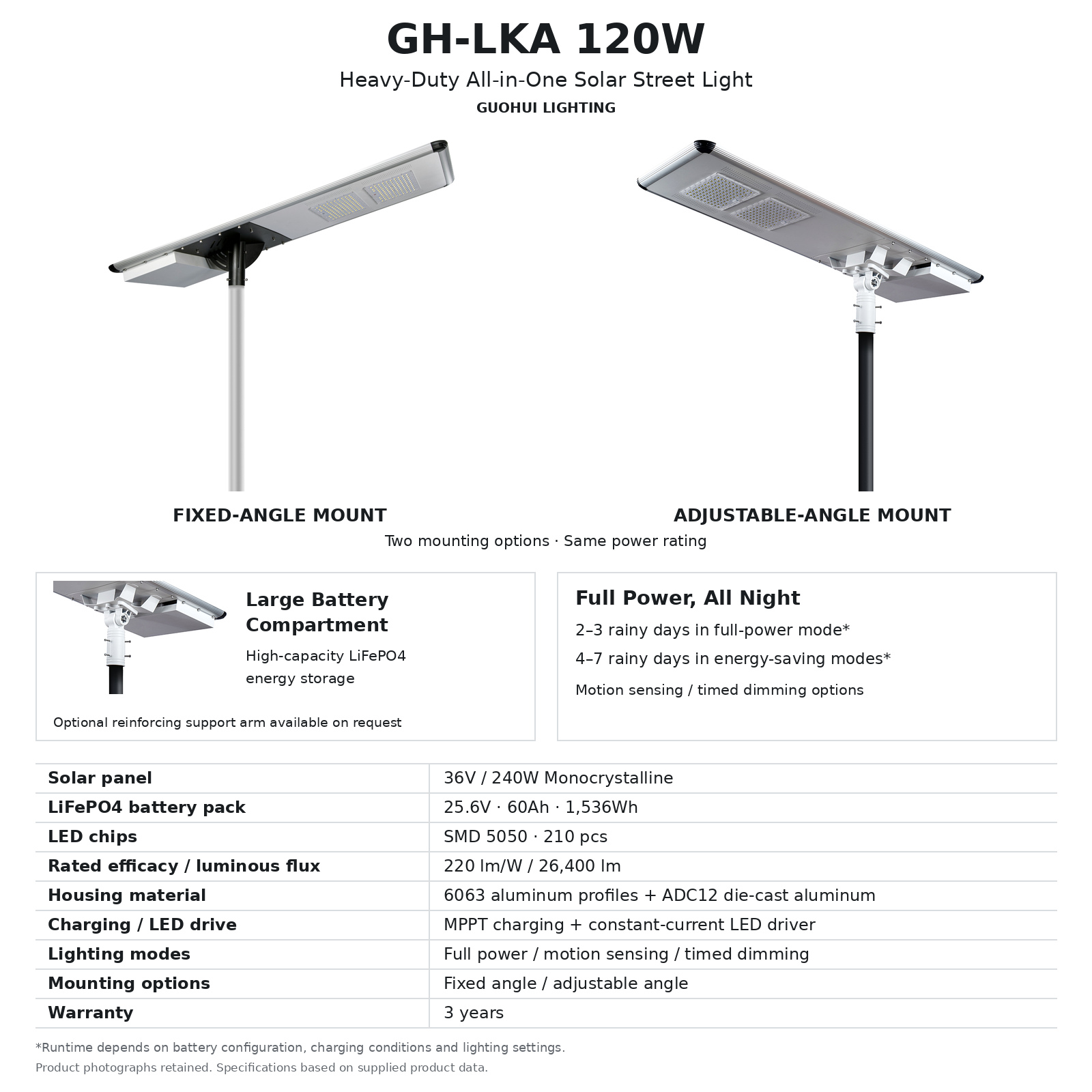

Model number	80W	100W	120W	150W

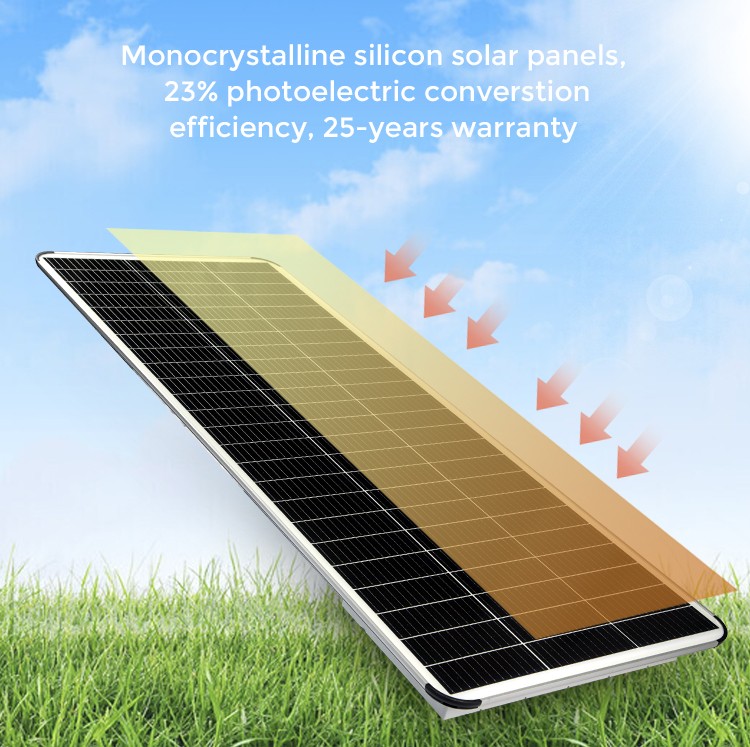

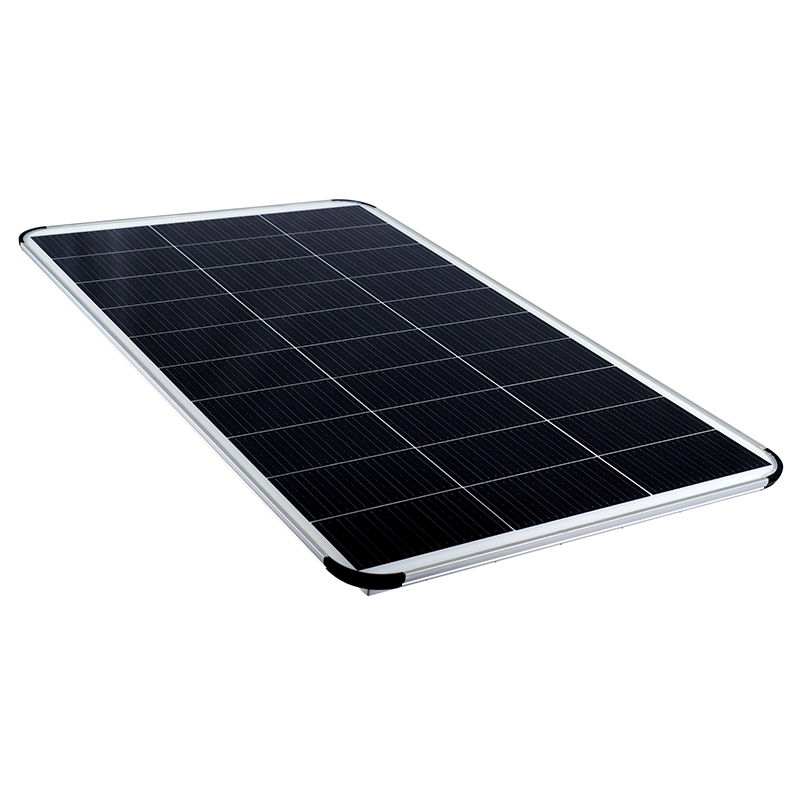

Single cystal solar panel	18V/50W	36V/180W	36V/240W	36V/300W
Solar panel size	11306794mm	11706794mm	17906794mm	19406794mm

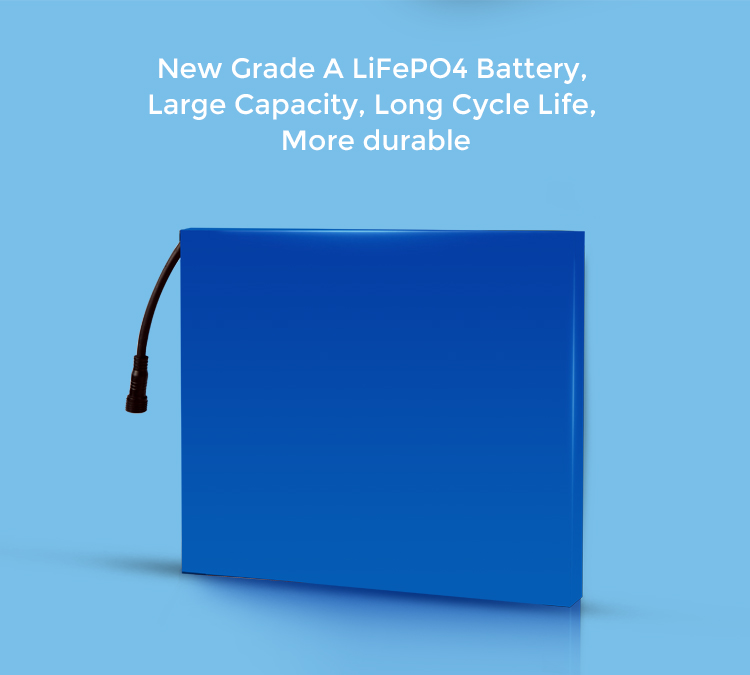

LiFePO4 battery	12.8V/60Ah	25.6V/45Ah	25.6V/60Ah	25.6V/75Ah
LED chip	SMD 5050, 105PCS	SMD 5050, 105PCS	SMD 5050, 210PCS	SMD 5050, 210PCS

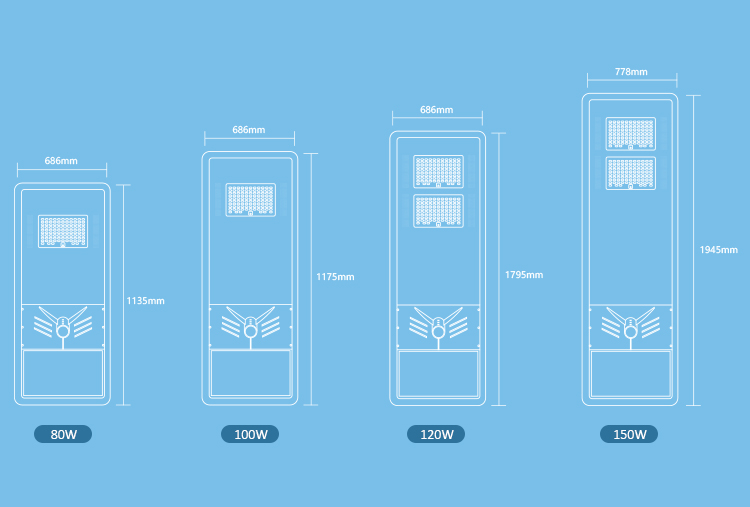

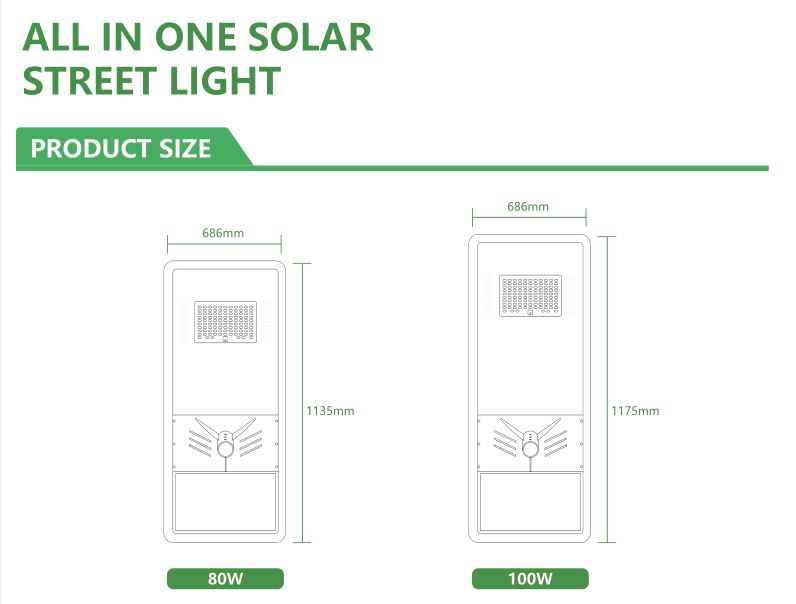

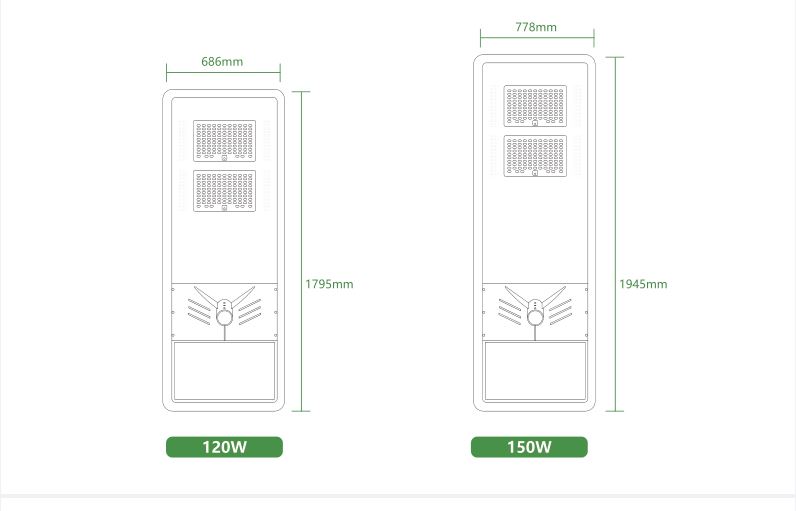

Product size	1135686280mm	1375686280mm	1795686280mm	1945778280mm
Light efficiency	220LM/W
Controller	MPPT
Lighting mode	segmented time control+intelligent control
Recommended installation height	8-10m	10-12m	12-13m	13-15m

Country Road
Front Yard
Parking Lot

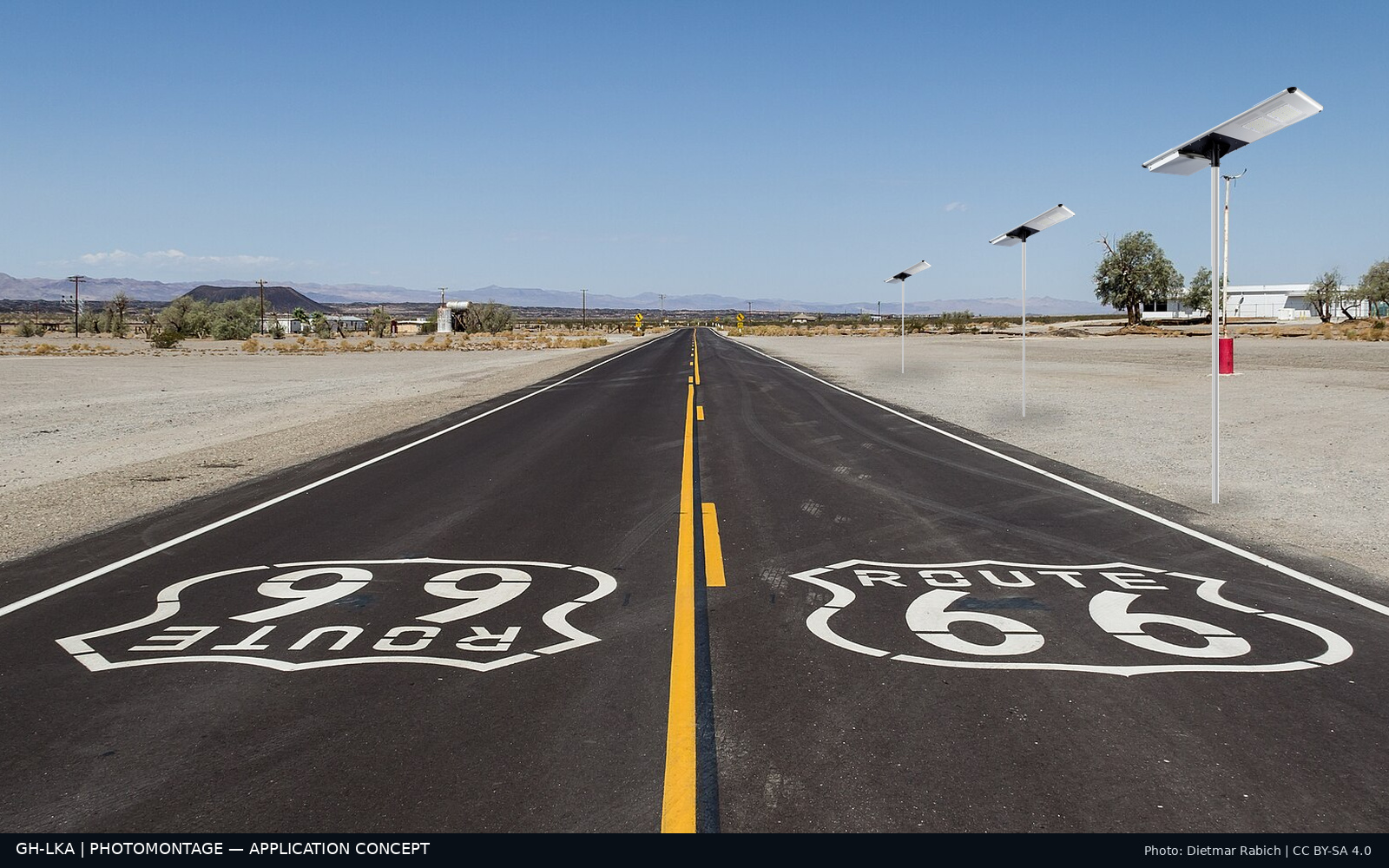

High Way
Rural Road
Viaducts
