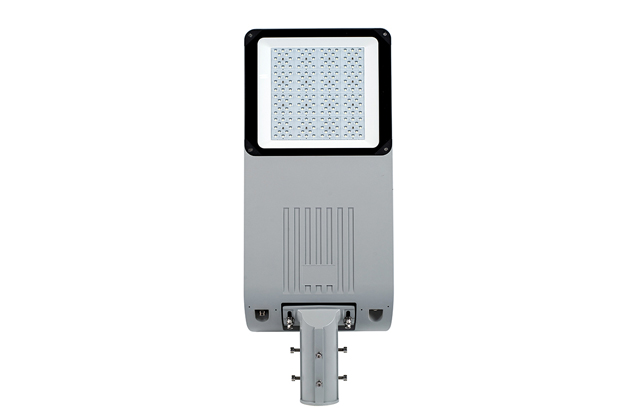

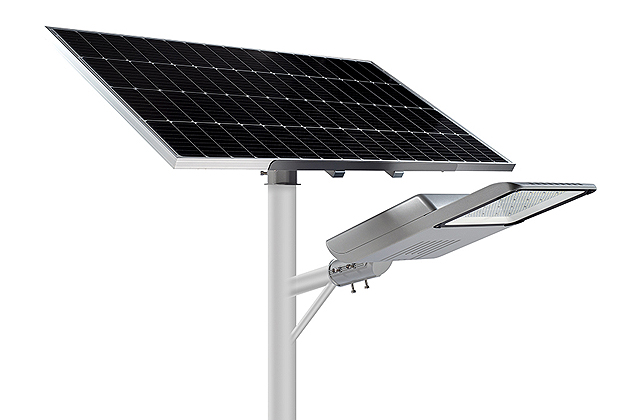

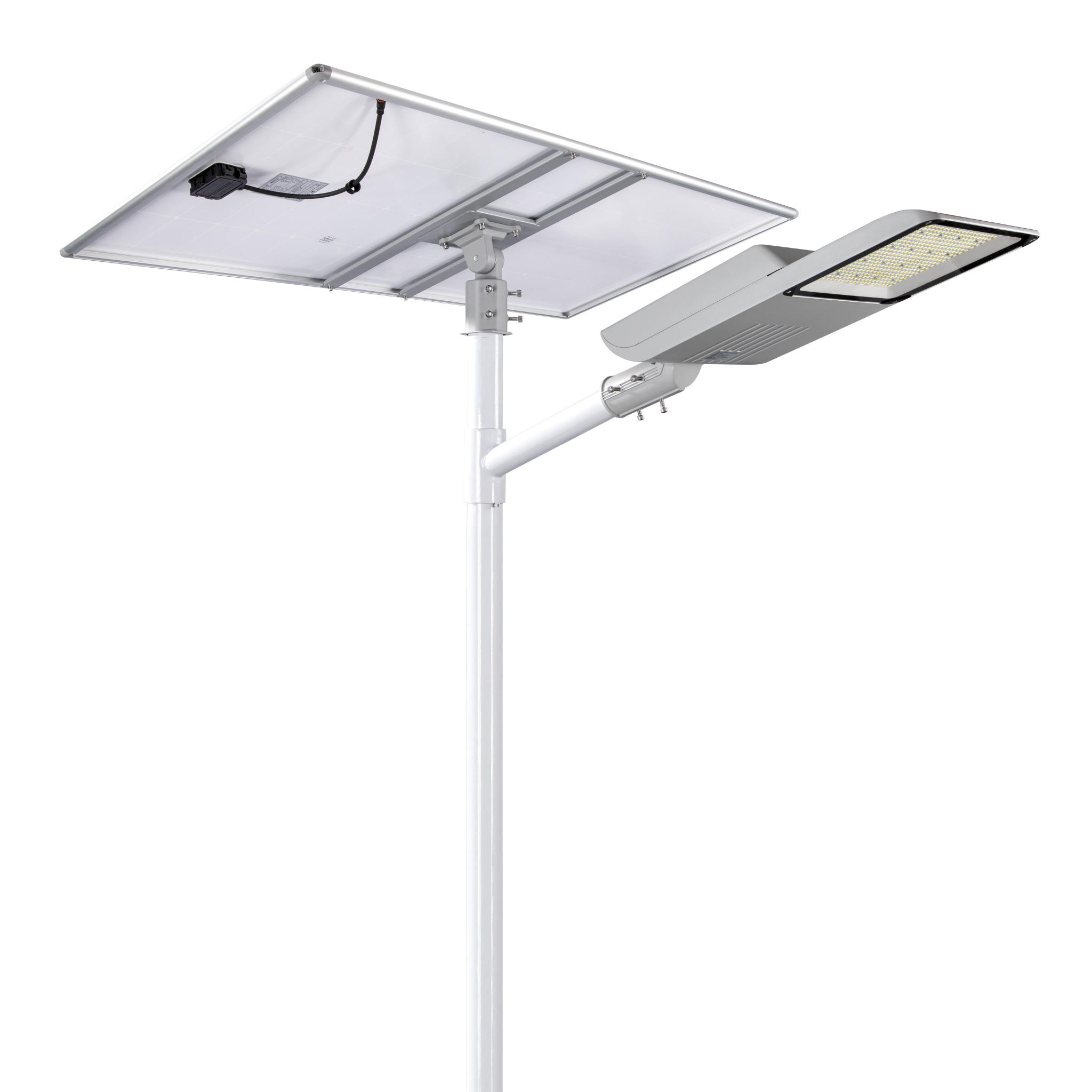

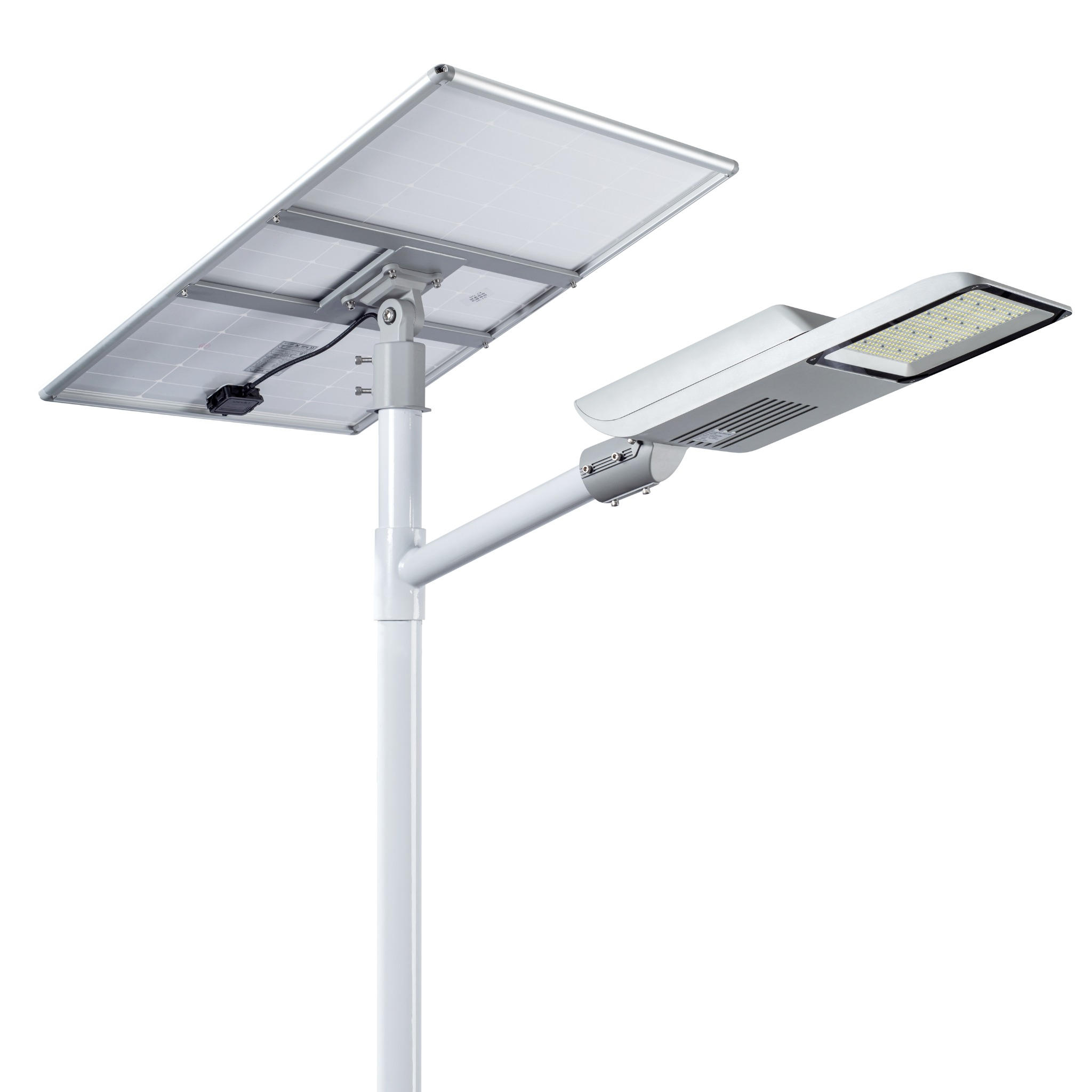

GH-LFT Series 60-120W

Flexible Split Design Higher Efficiency Solar Charging Enhanced Lighting Performance Customizable Battery Capacity Better Heat Dissipation Easy Maintenance & Upgradability Stable Performance in Harsh Environments

Power(W):60W~120W
LED Chip: Four-core SMD3030
Light Efficiency:180 lm/w
Luminous Flux:10800~21600 Lumens
CCT:2700k ~ 6500K
Ra(CRI):80
Protection:IP65

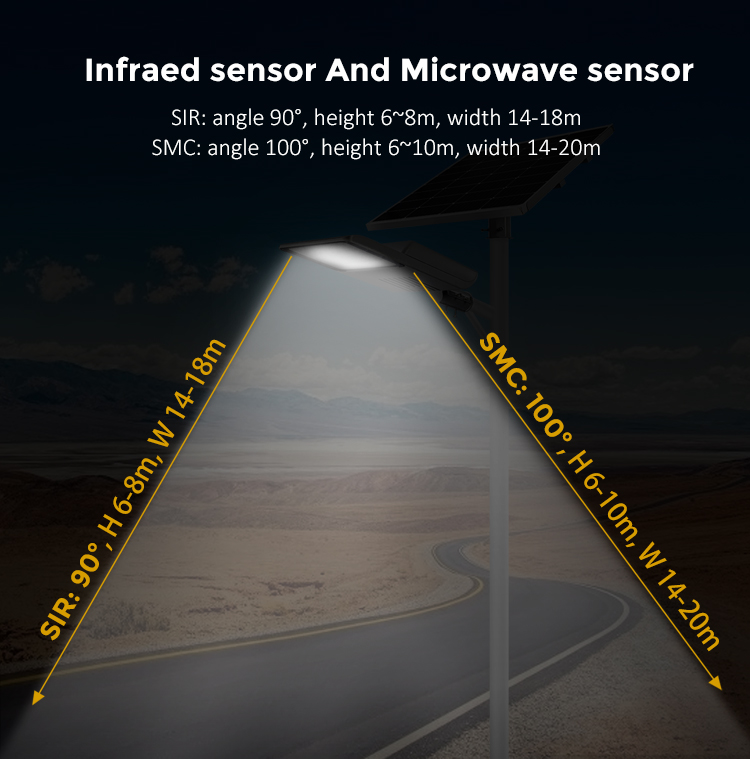

Control method:Human body induction + light control
Lifespan(hour):50000
Certificate:CE, RoHS,IEC,LM79, LM80
Warranty: 3~5 Years

Request A Free Quote

Description
Video
Data sheet
Optic & Dialux
Application

1. 0 electricity fee no wiring required work continuously for 3-5 rainy and cloudy days

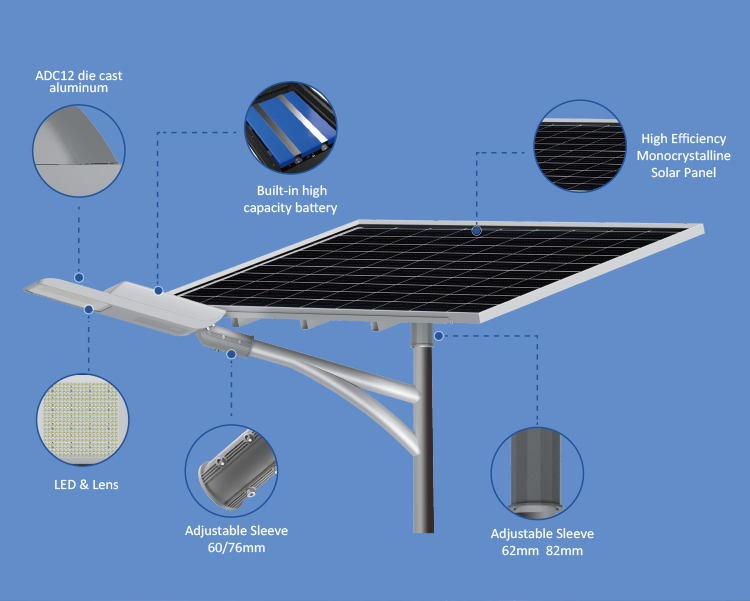

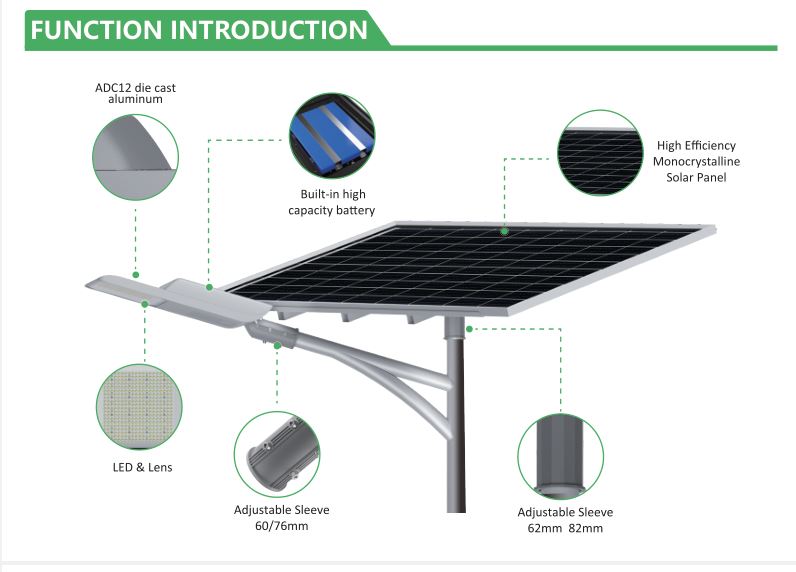

2. LFT series is All in One solar lighting system designed for cost-effective lighting for small to medium spaces. Reliability and easy installation, All key components are integrated within the solar panel and light head.

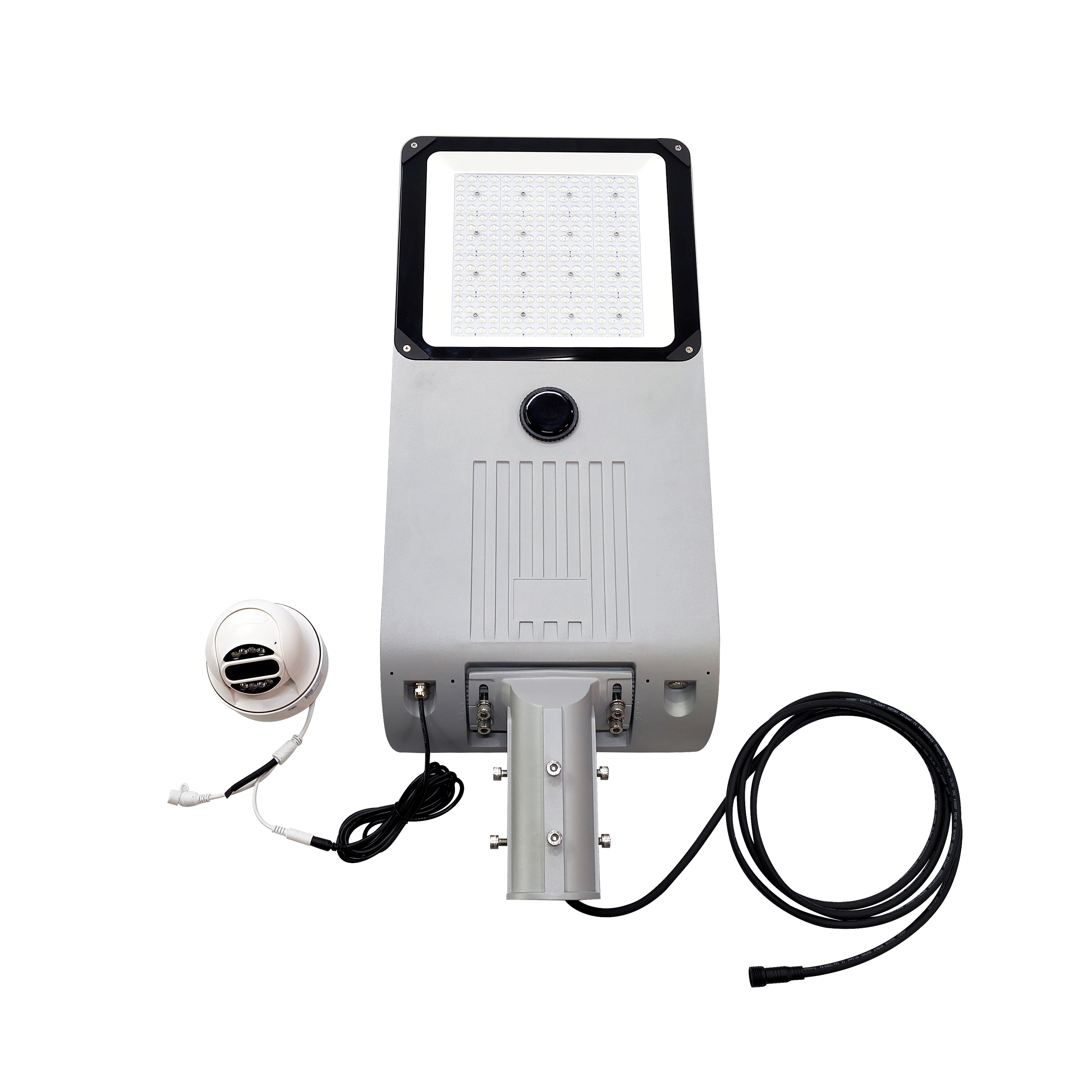

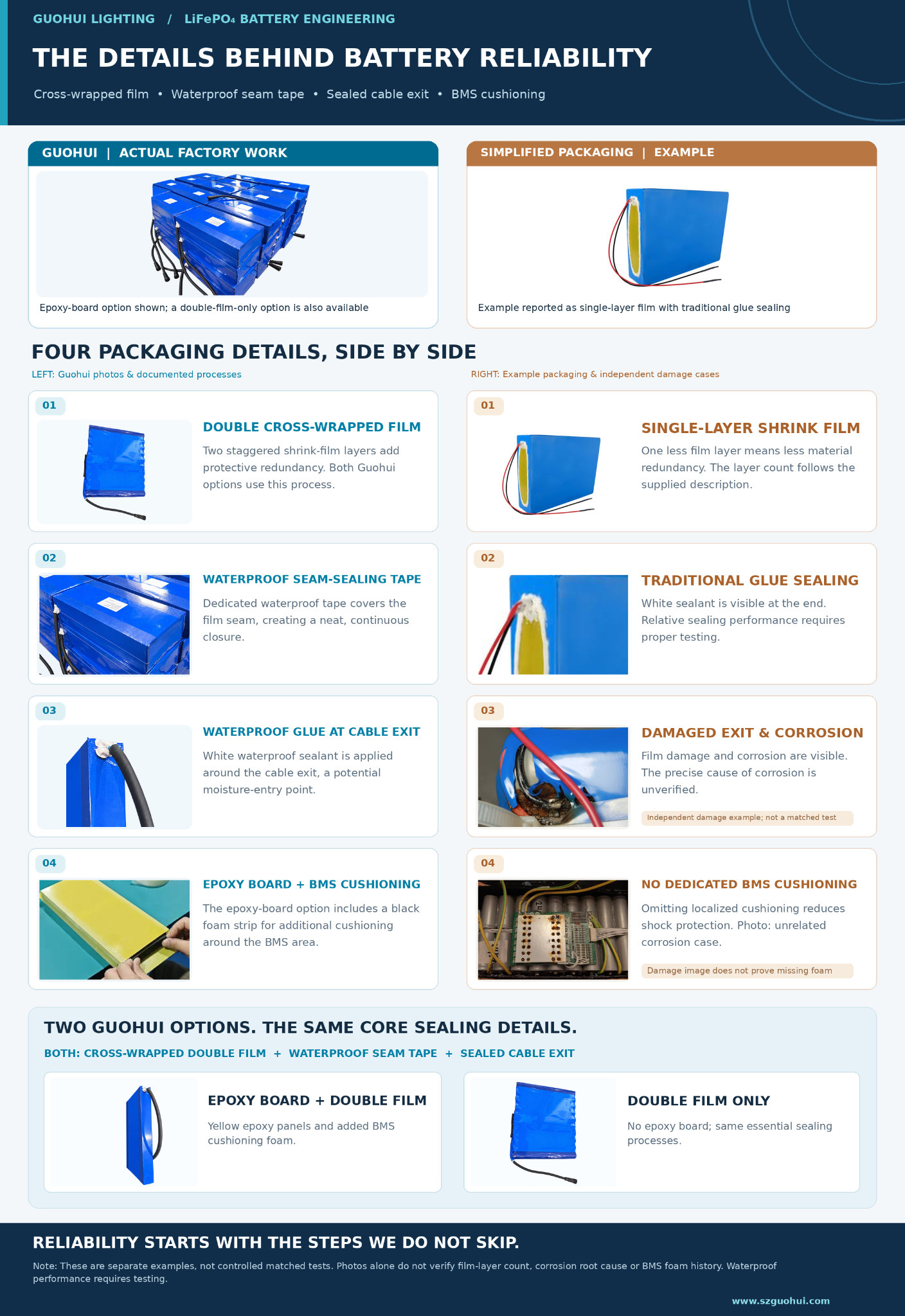

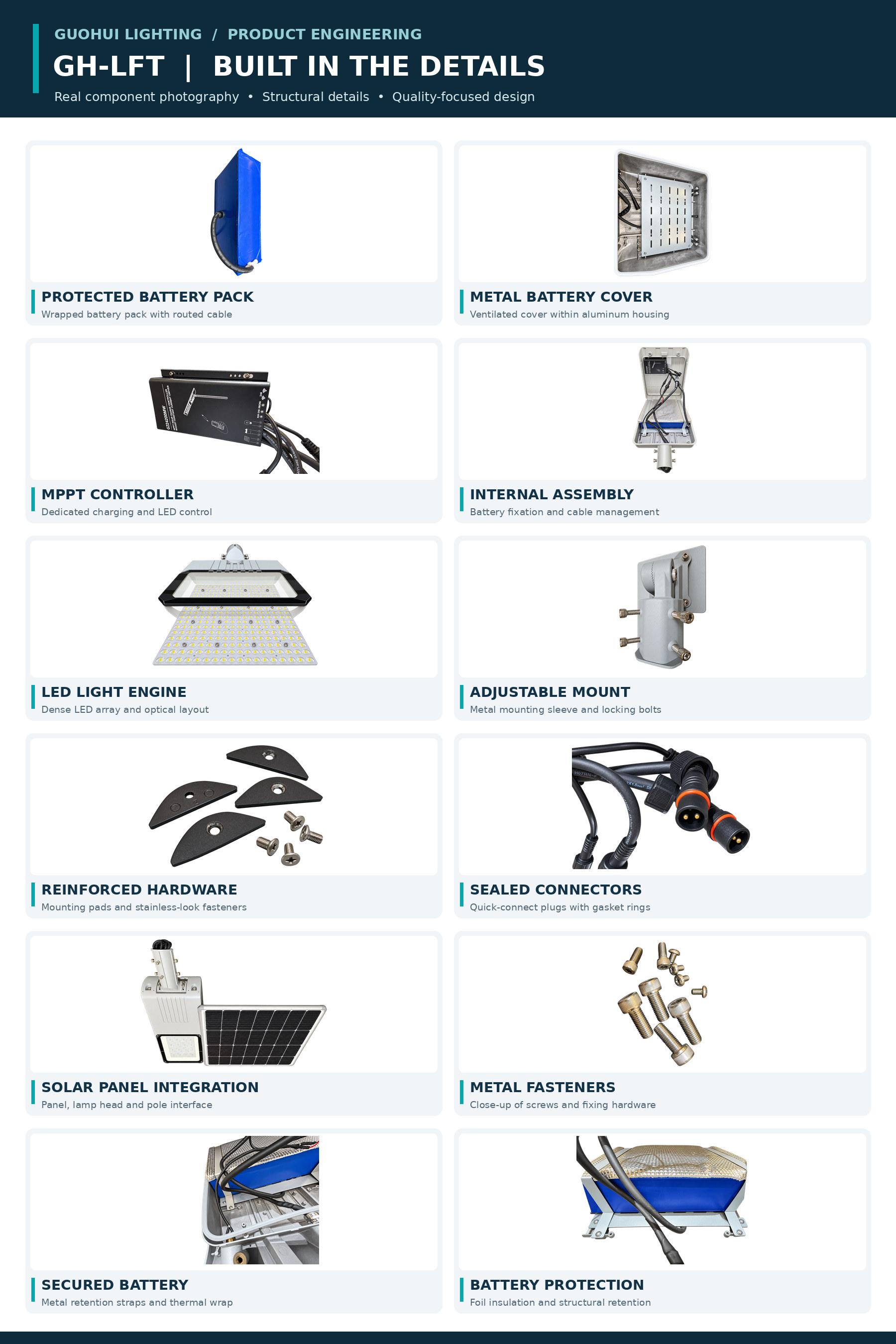

3. The design of the detachable battery compartment reduces maintenance difficulty and cost, which is conducive to the sustainable use of the product.

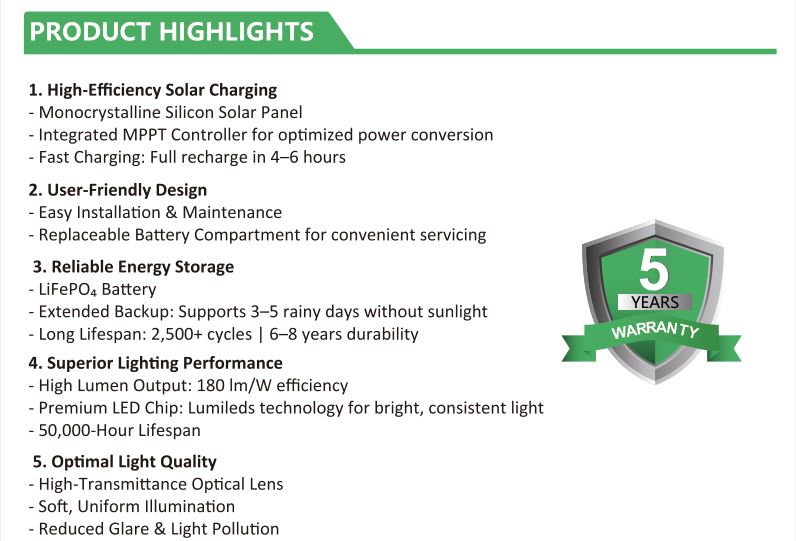

4. It uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.

5. Removable battery compartment for easy battery relacement, reducing maintenance time and maintenance costs.

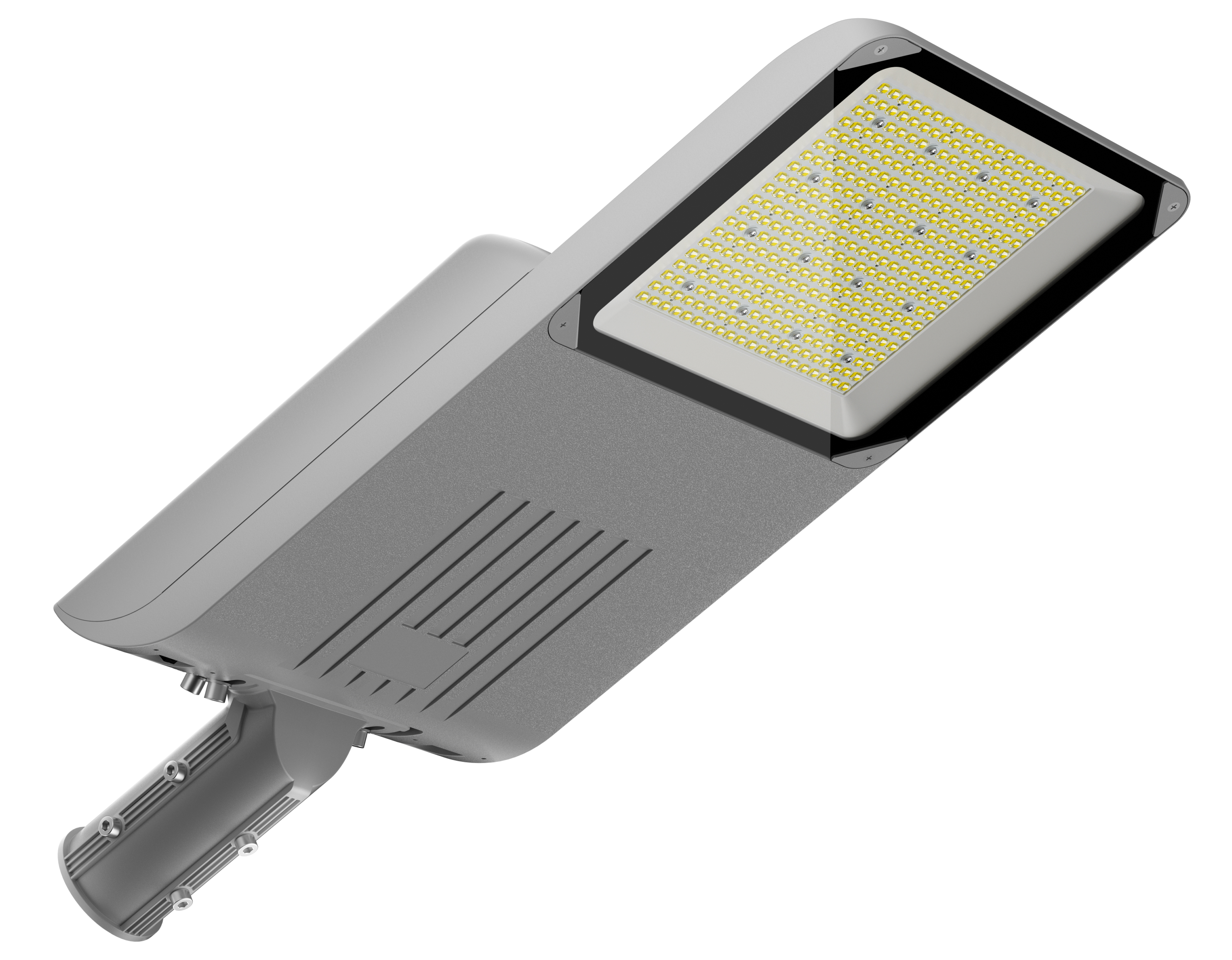

6. High brightness Lumileds SMD 3030 LED chips up to 180lm/w ,super brightness ,reduce light decay.

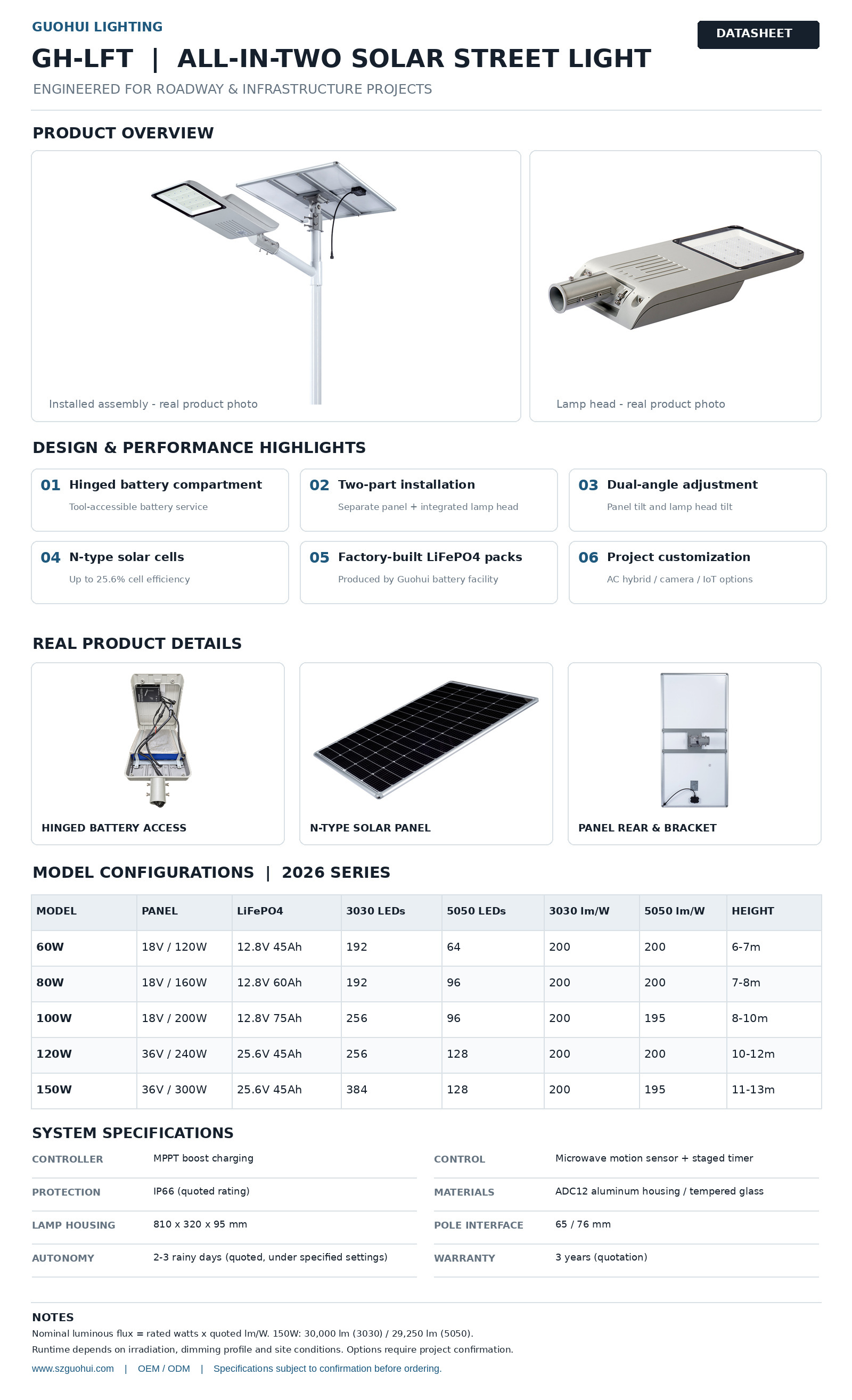

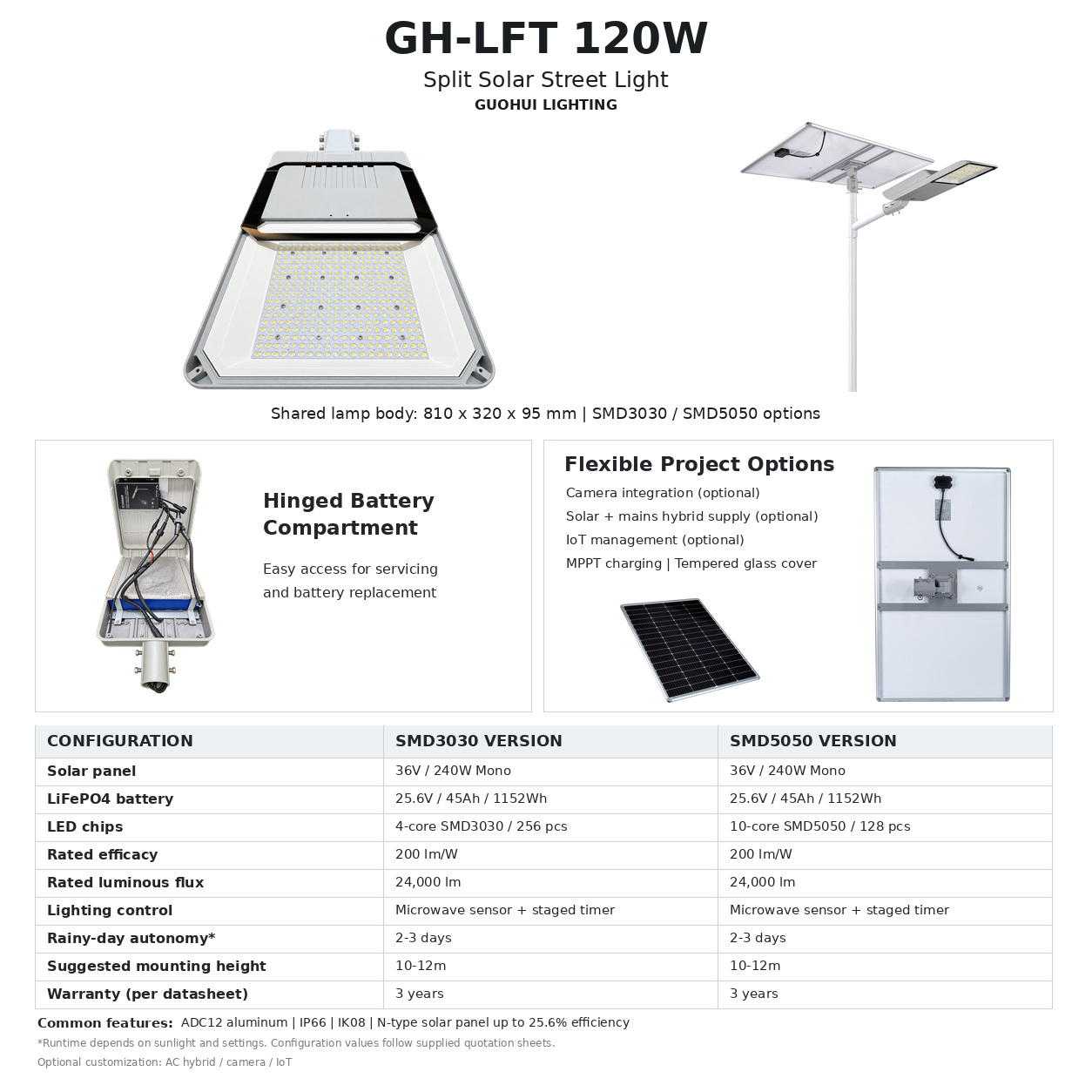

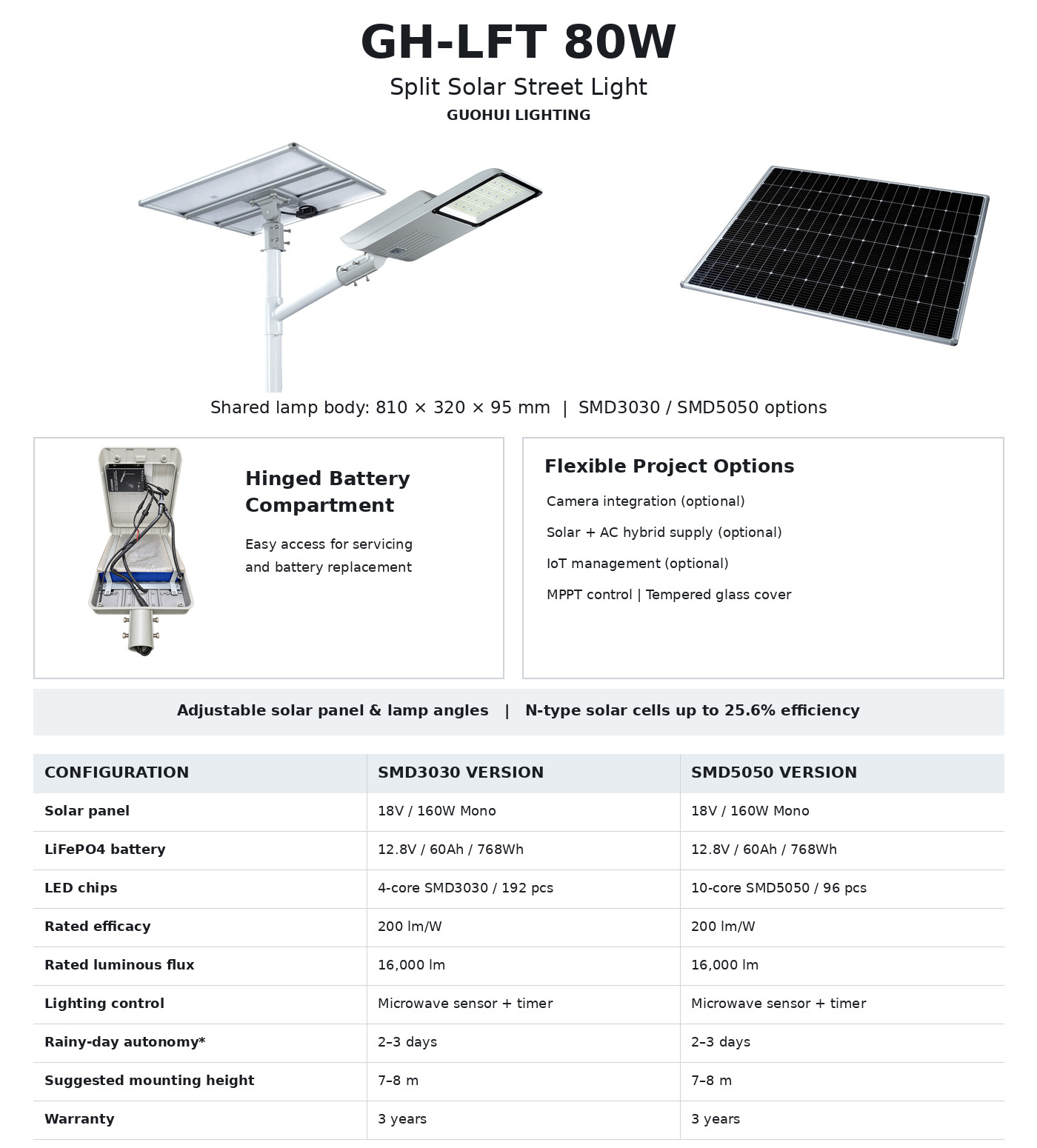

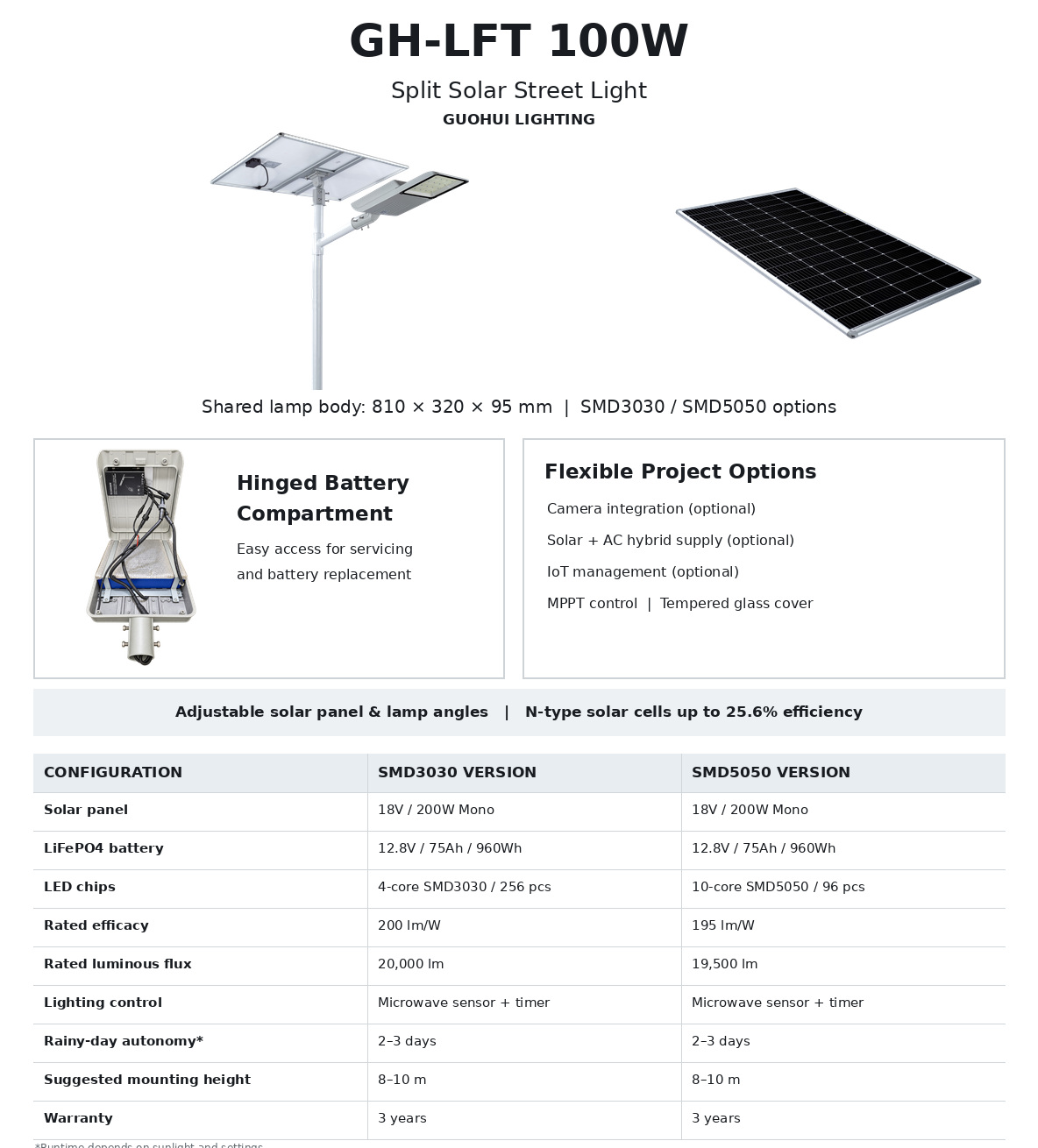

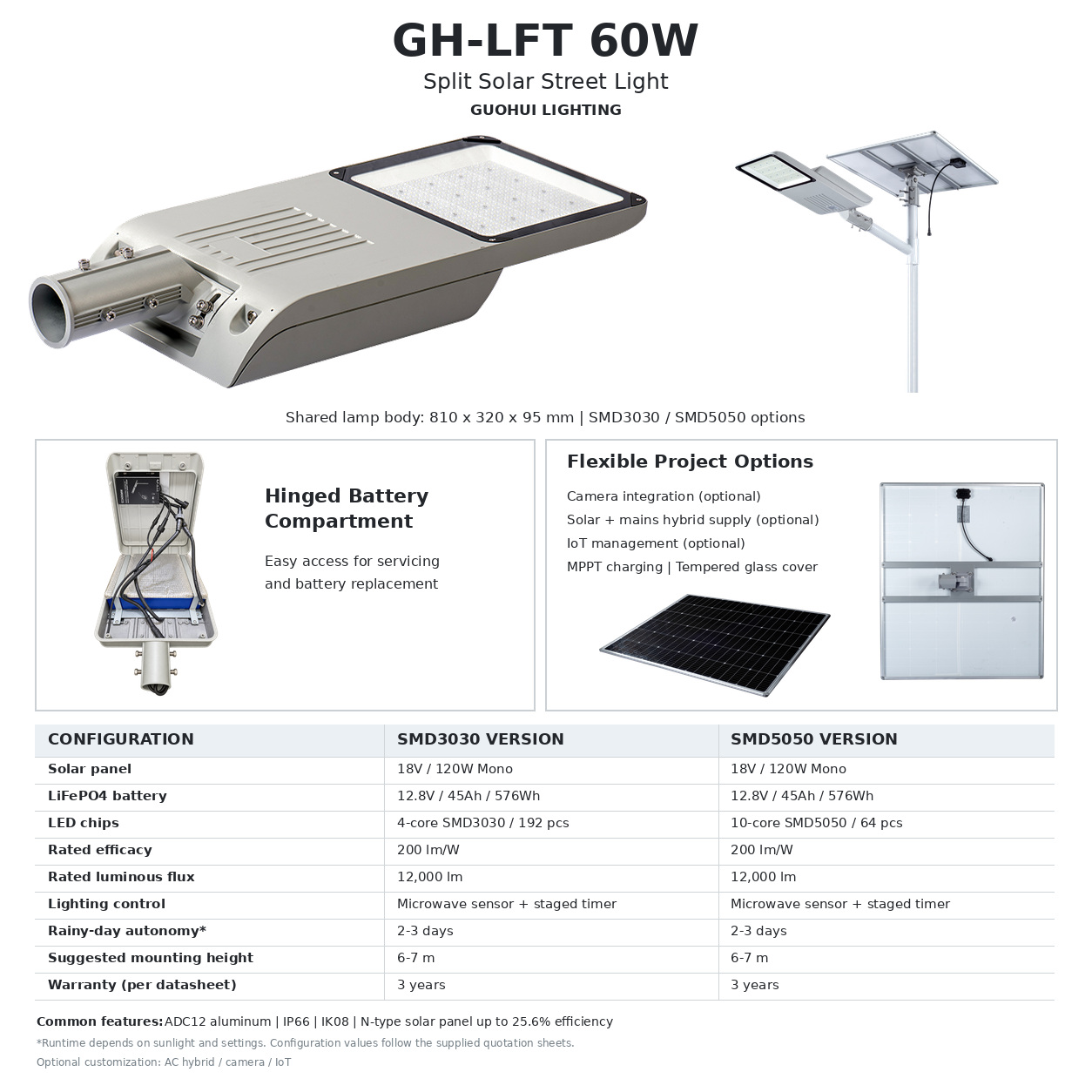

Model number	60W	80W	100W	120W

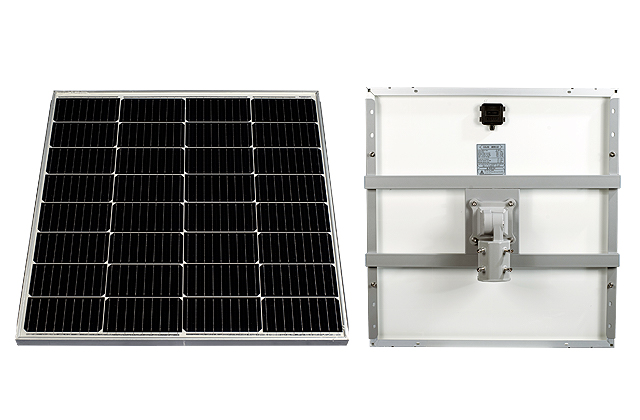

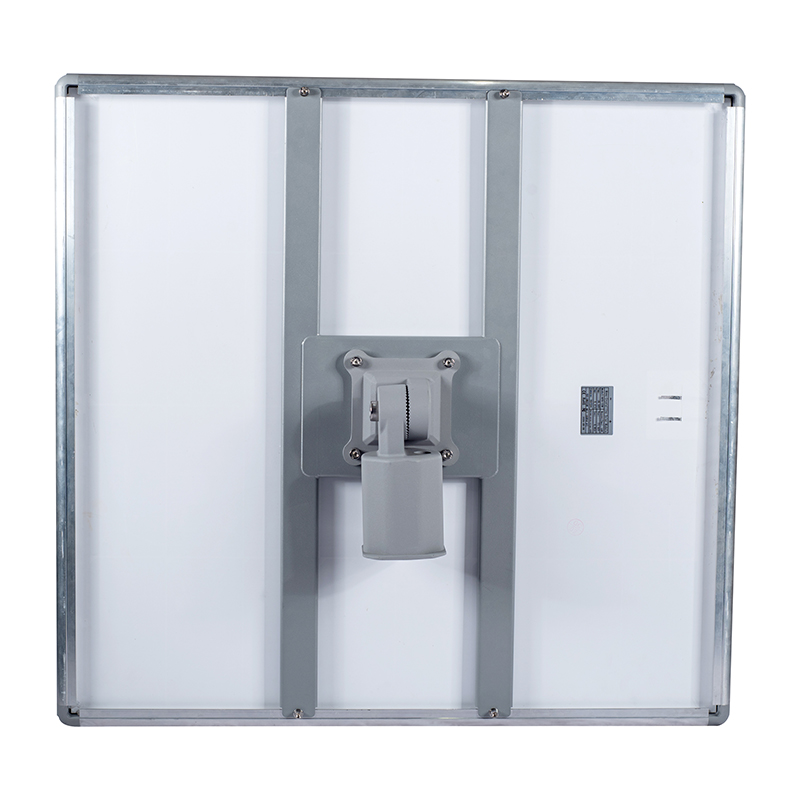

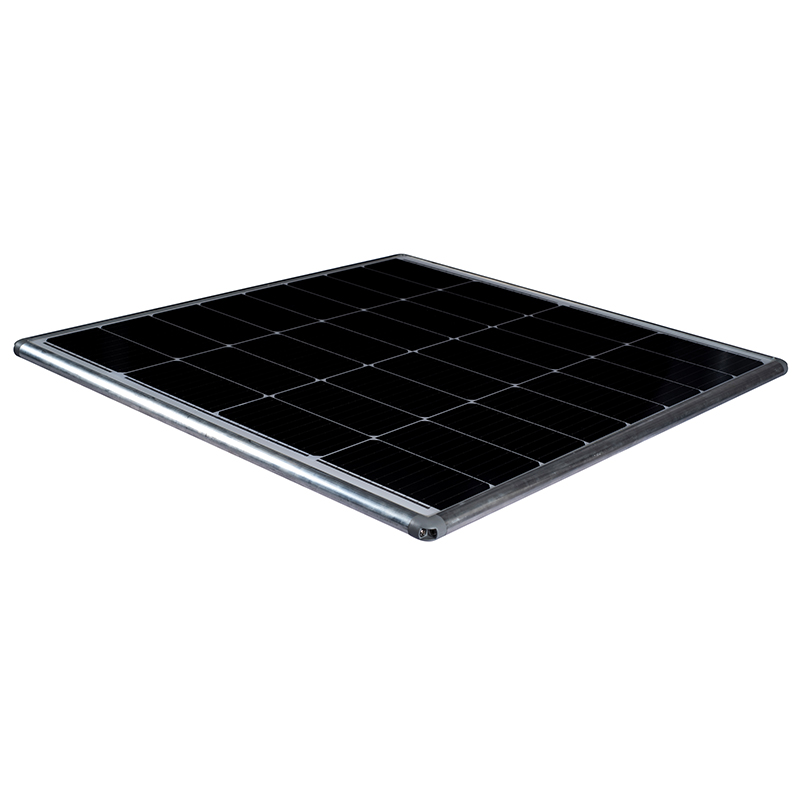

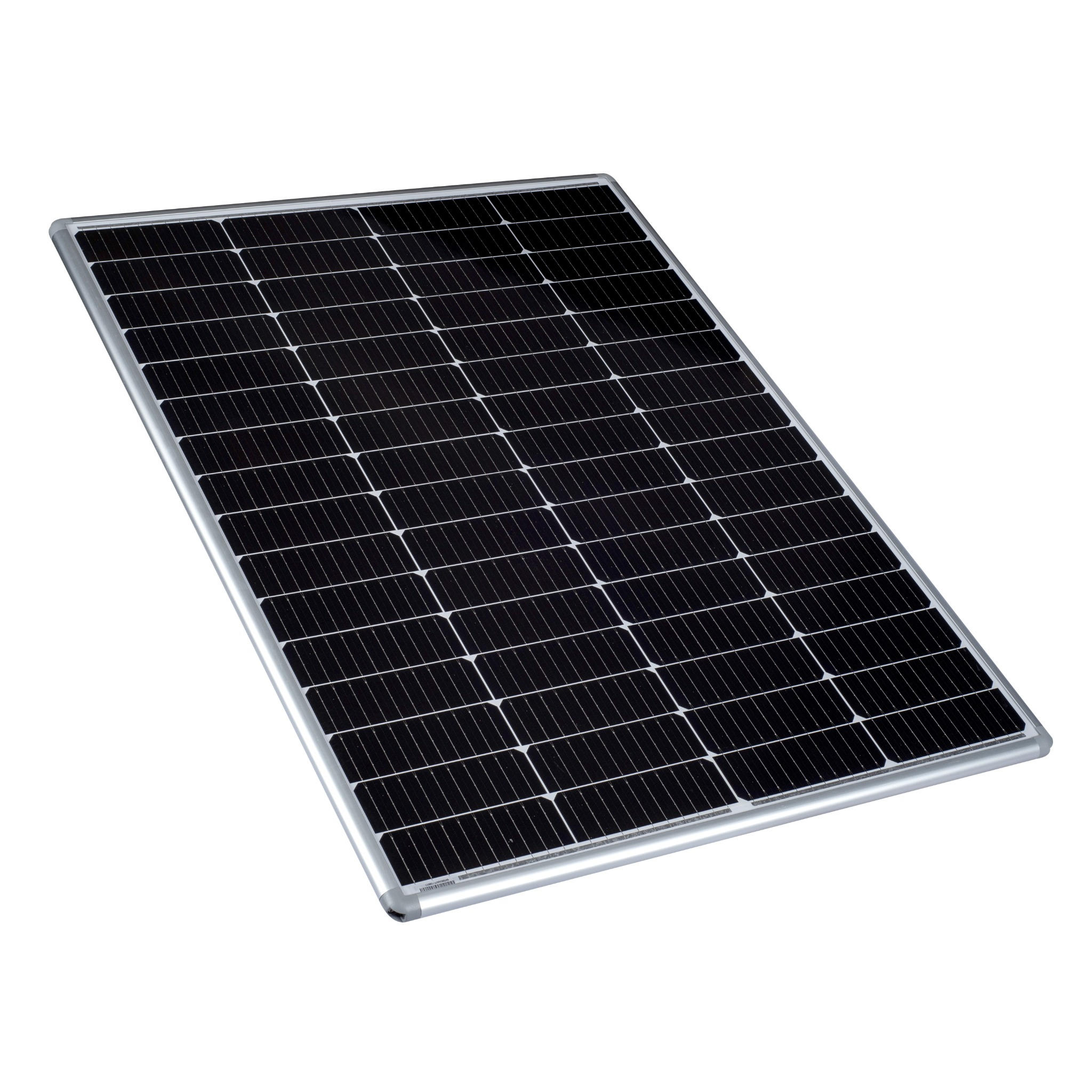

Single cystal solar panel	18V/120W	18V/160W	18V/200W	18V/240W
Solar panel size	80076030mm	104076030mm	132076030mm	154076030mm

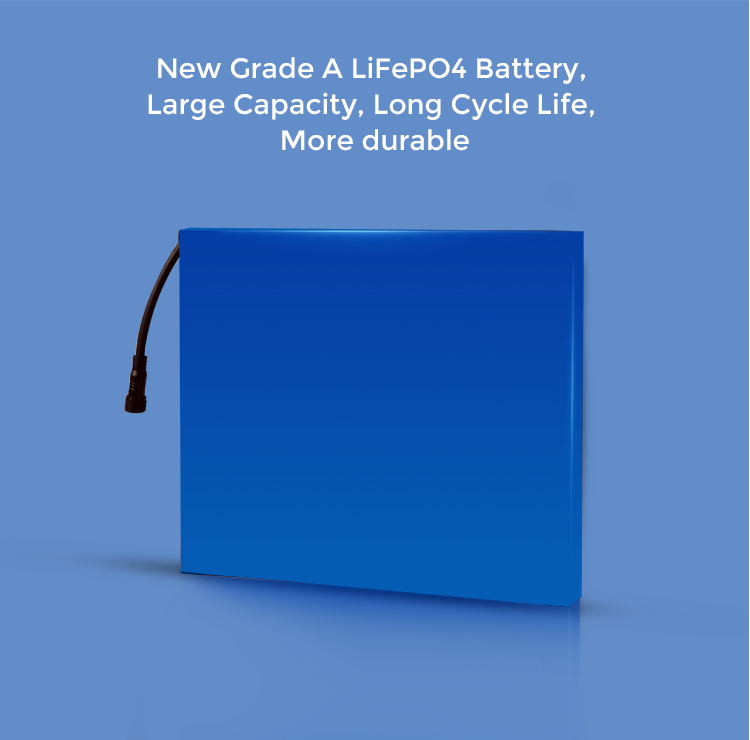

LiFePO4 battery	12.8V/45Ah	12.8V/60Ah	12.8V/75Ah	25.6V/45Ah
LED chip	SMD 3030,192PCS	SMD 3030,256PCS	SMD 3030,320PCS	SMD 3030,384PCS

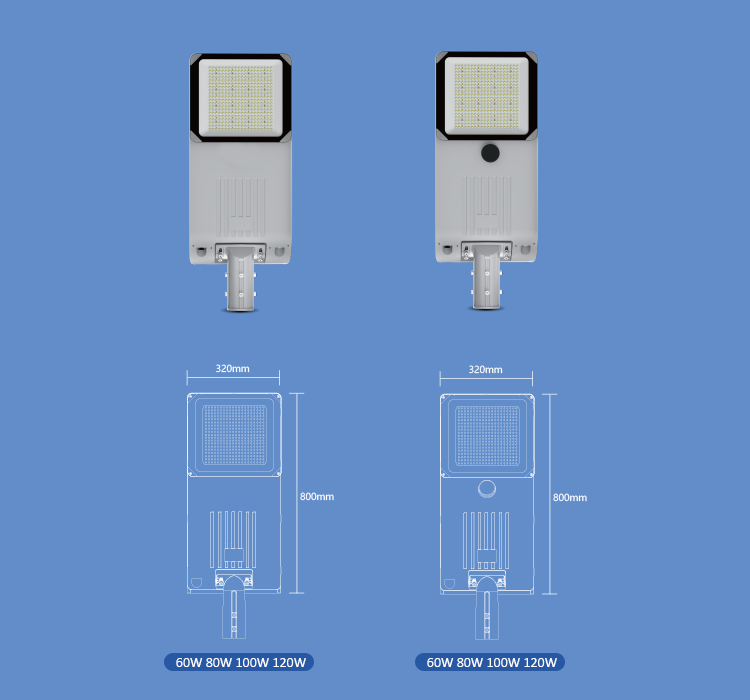

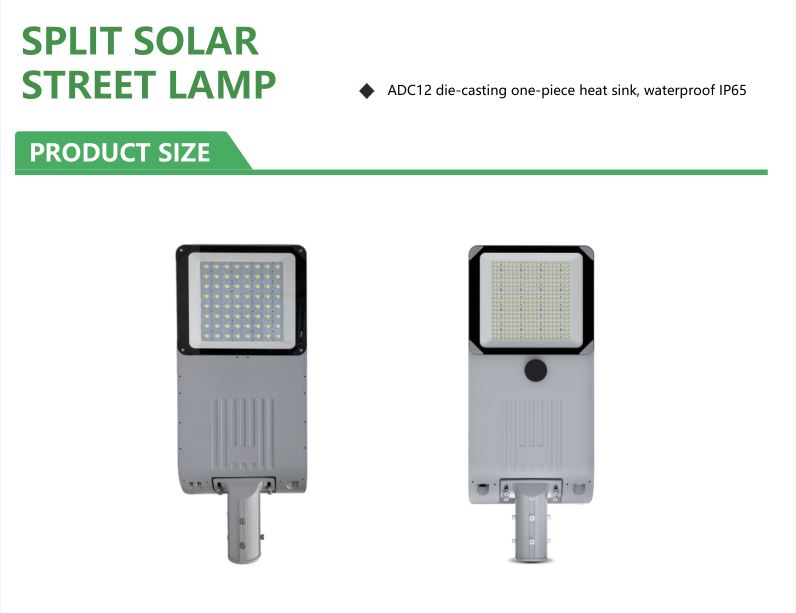

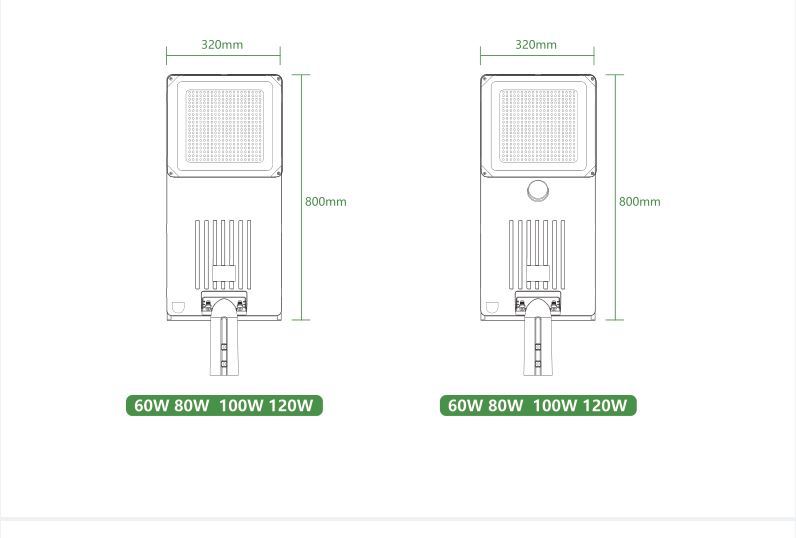

Product size	81095320mm	81095320mm	81095320mm	81095320mm
Light efficiency	180LM/W
Controller	MPPT
Lighting mode	First 4 hours 100% lighting, Second 2 hours 50% lighting, Last 6 hours 30% lighting
Recommended installation height	6-8m	8-10m	10-12m	12-15m

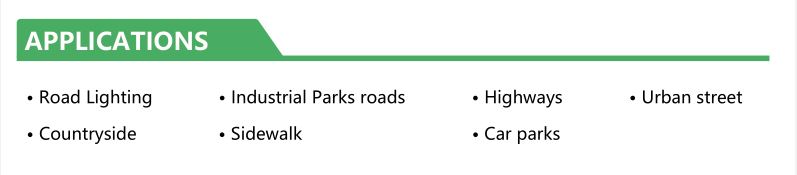

Country Road
Front Yard
Parking Lot
High Way
Rural Road
Viaducts
