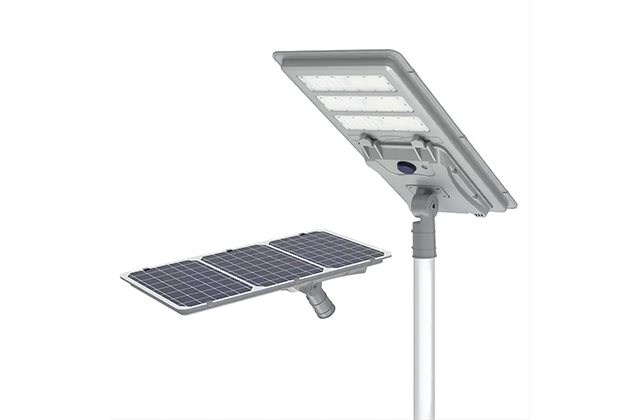

15W 20W 30W High Lumen Induction Motion Sensor Integrated Outdoor Luminaria Lighting

Professional optical design, effectively reduce glare With high efficiency lumen output, light efficiency ≥200lm/w, uniform brightness, meet the needs of urban road lighting perfectly

Led power: 15W( 3150LM), 20W(4200lm), 30W(6600lm)
Solar panel: Monocrystalline silicon
Battery: LifePO4 Lithium battery
Light efficiency: 200lm/w Philips smd 3030(Osram, Cree, Bridgelux both available)
Controller: MPPT controller. 98% charging efficiency.
IP grade: IP66 outdoor using
Working mode: Dusk to dawn + Time controll + motion sensor
Lifespan: 8-10 years.
Warranty: 3 years, if any faulty during warranty, we will replace you new ones.
Application: Countryside, road lighting, town road, village road, urban roads, sports fields.

Request A Free Quote

Description
Video
Data sheet
Optic & Dialux
Application

1.0 electricity fee no wiring required work continuously for 3-7 rainy and cloudy days

2.GH-LKD series is All in One solar lighting system designed for cost-effective lighting for small to medium spaces. Reliability and easy installation, All key components are integrated within the solar panel and light head.

3.The design of the detachable battery compartment reduces maintenance difficulty and cost, which is conducive to the sustainable use of the product.

4.It uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.

5.Removable battery compartment for easy battery relacement, reducing maintenance time and maintenance costs.

6.High brightness Lumileds SMD 2835 LED chips up to 200lm/w ,super brightness ,reduce light decay.

Model No	GH-LKD-15W	GH-LKD-20W	GH-LKD-30W
Solar Panel Mono.	6V/25W	6V/35W	6V/50W
Solar panel lifespan	25 years
Solar panel Size	500*279mm	605*323mm	842*341mm
Battery	LiFePO4 Lithium 3.2V 24AH	LiFePO4 Lithium 3.2V 32AH	LiFePO4 Lithium 3.2V 72AH
Battery lifespan	>2000 times cycle charging
LEDs Chips	Lumileds SMD 2835/3030
Beam Angle	TYPE II, TYPE III, TYPE IV, TYPE V
Light Efficiency	200lm/w
Lumen
Charge time	4-6 hours
Working Temp	-30℃-+55℃
Controller	PWM & MPPT
Warranty	3 Years
Light Method	Microwave induction + time control + intelligent control

Country Road
Front Yard
Parking Lot
High Way
Rural Road
Viaducts
