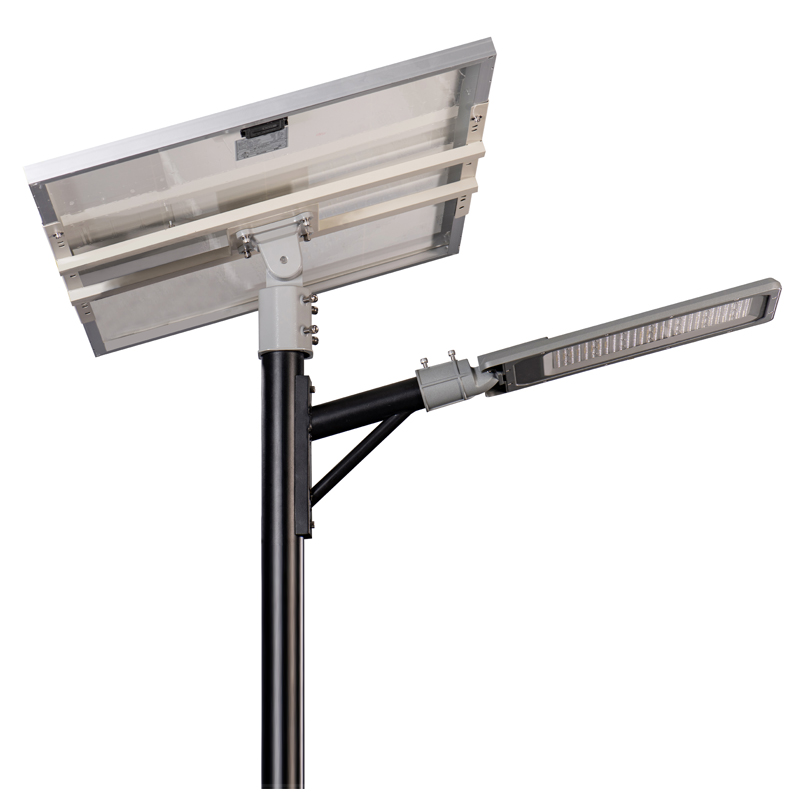

GH-SLKB SPLIT SOLAR STREET LIGHT

Independent External Battery. Flexible Configuration.

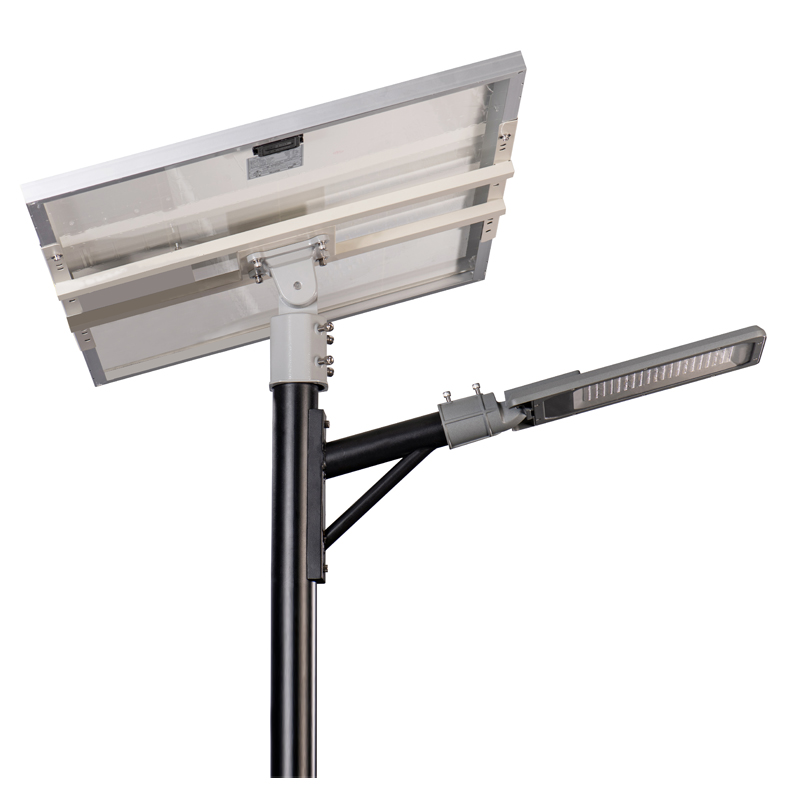

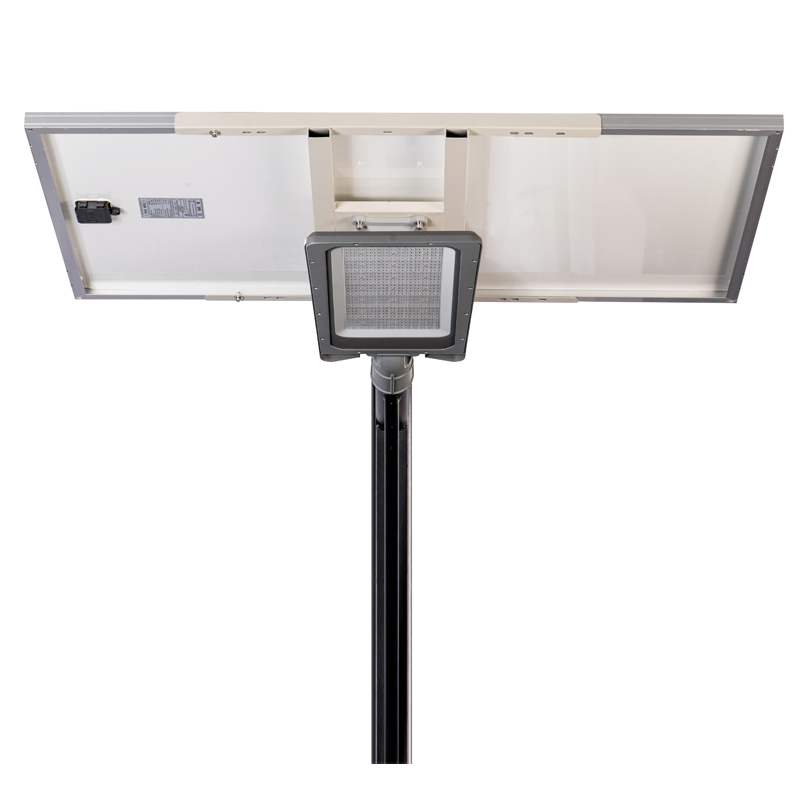

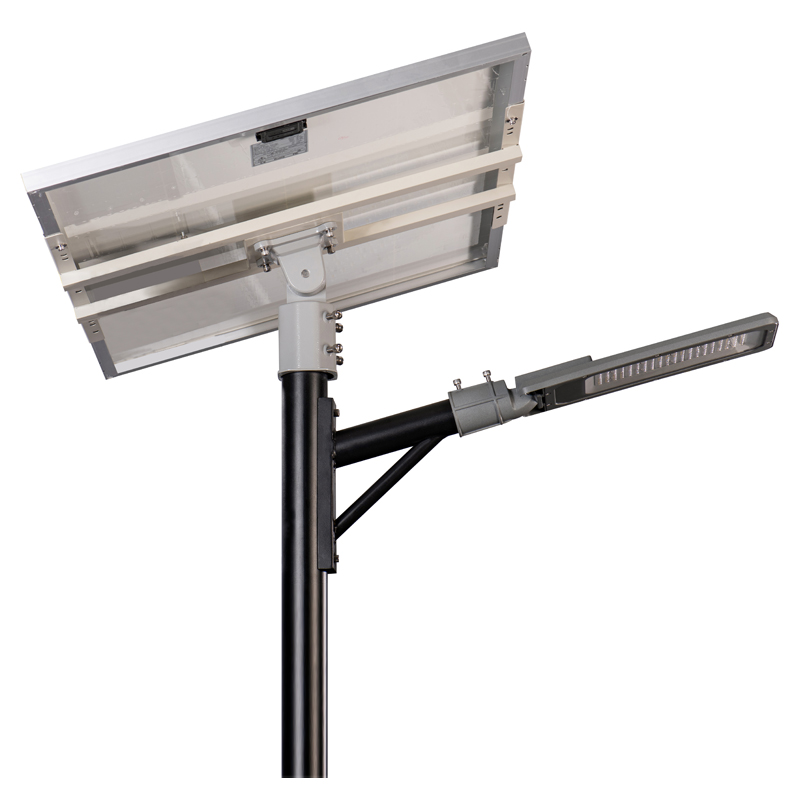

The GUOHUI Lighting GH-SLKB is a split solar street light with a separate monocrystalline solar panel, independent external LiFePO4 battery and LED luminaire. Available from 40W to 120W, it provides flexible configurations for roads, industrial parks, parking areas and rural lighting projects.

EXTERNAL BATTERY FOR GREATER FLEXIBILITY

The battery is housed separately from the LED luminaire, giving you more flexibility to select battery capacity according to nightly operating hours, dimming schedules and backup requirements.

Compared with designs that accommodate the battery inside the lamp body, this arrangement provides more room for configuration changes. It also allows battery servicing without opening the LED luminaire, making future maintenance more convenient.

HIGH-EFFICIENCY LED LIGHTING

Equipped with 4-core SMD3030 LEDs, the GH-SLKB offers a specified luminous efficacy of approximately 193–196 lm/W. High-transmittance lenses and a tempered glass cover help distribute light across the target area.

Select the appropriate wattage and optical distribution according to mounting height, road width, pole spacing and required illumination.

MONOCRYSTALLINE SOLAR PANEL AND MPPT CONTROL

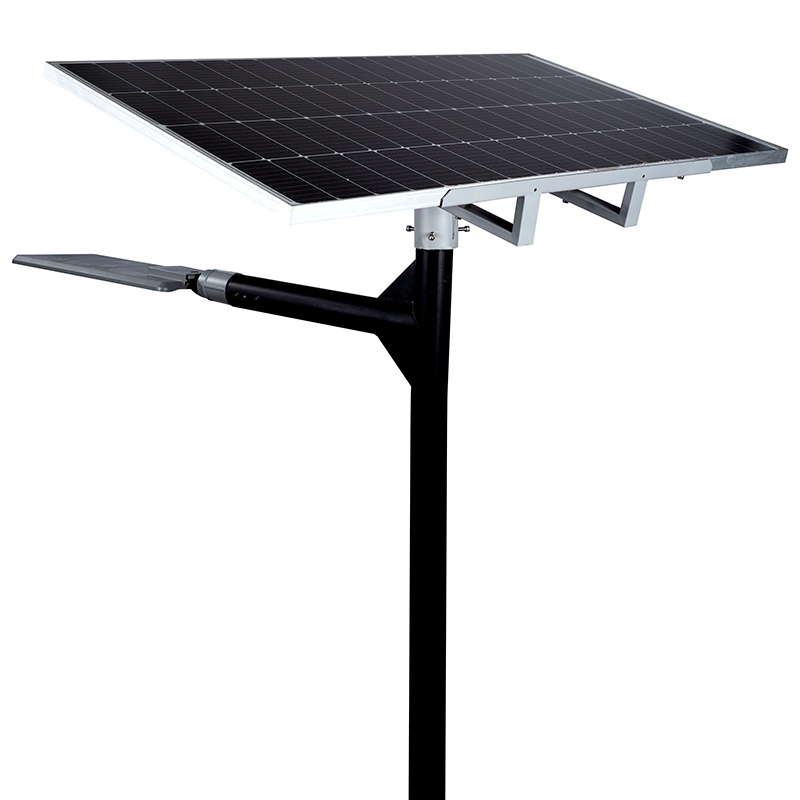

A separate monocrystalline solar panel allows its orientation to be adjusted independently of the lighting direction, helping installers position the panel for available sunlight.

The intelligent boost MPPT controller manages solar charging and programmed lighting operation. Panel and battery configurations can be selected to suit project requirements.

LiFePO4 BATTERY STORAGE

The GH-SLKB uses a rechargeable lithium iron phosphate battery pack. Standard configurations range from 384Wh to 1,152Wh.

GUOHUI Lighting’s dedicated LiFePO4 battery pack manufacturing capability supports customized battery configurations for different operating requirements.

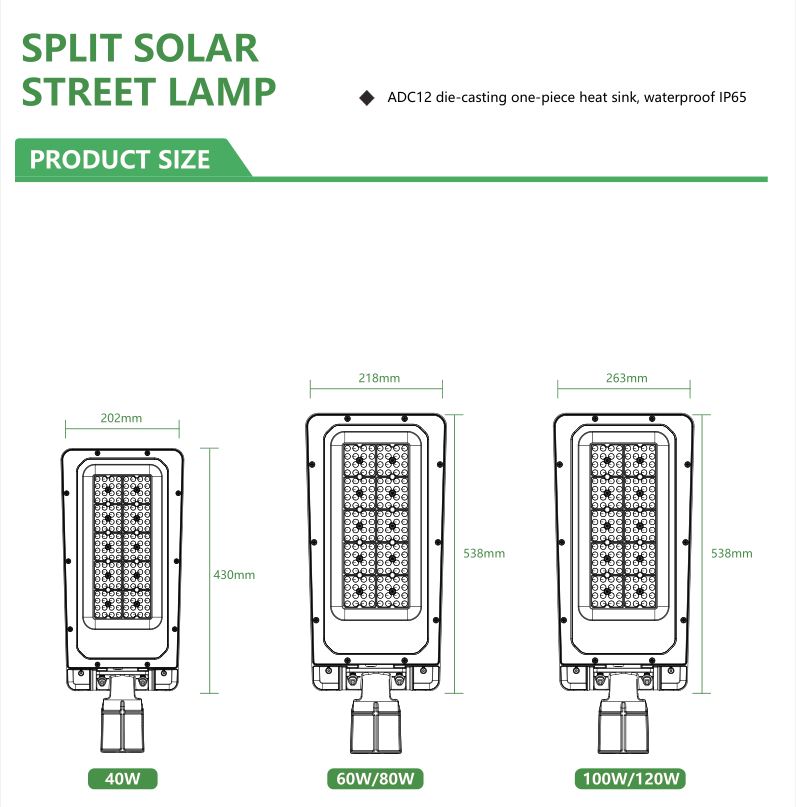

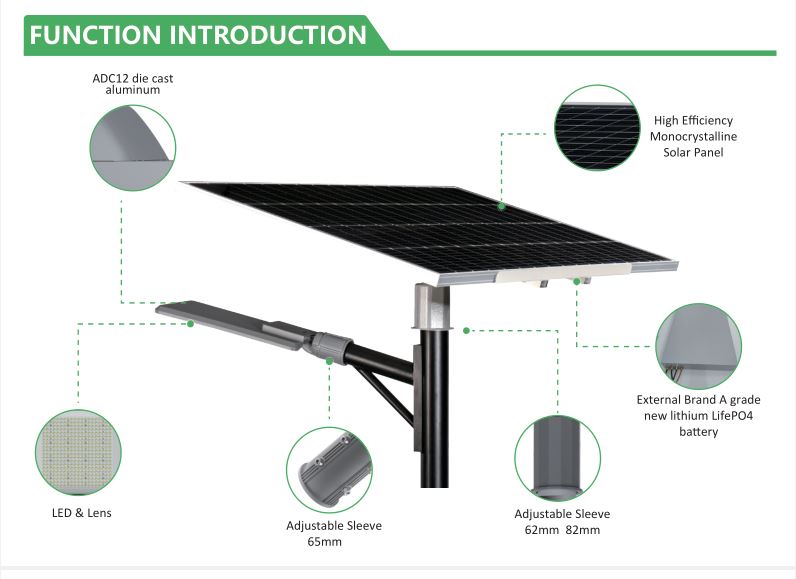

DURABLE ADC12 ALUMINUM LUMINAIRE

The ADC12 die-cast aluminum housing combines a high-conductivity aluminum LED board with a heat-dissipating structure. An anti-corrosion coating helps protect the housing during outdoor use.

The luminaire features IP66 protection, a tempered glass optical cover and an adjustable mounting sleeve with a standard 65mm interface.

PROGRAMMED NIGHTLY LIGHTING

The standard 12-hour lighting schedule is:

• First 4 hours: 100% output

• Next 2 hours: 50% output

• Final 6 hours: 30% output

•


Specified rainy-day operation is 2–3 days under the configured operating conditions. Actual autonomy depends on solar charging, battery condition and lighting settings.

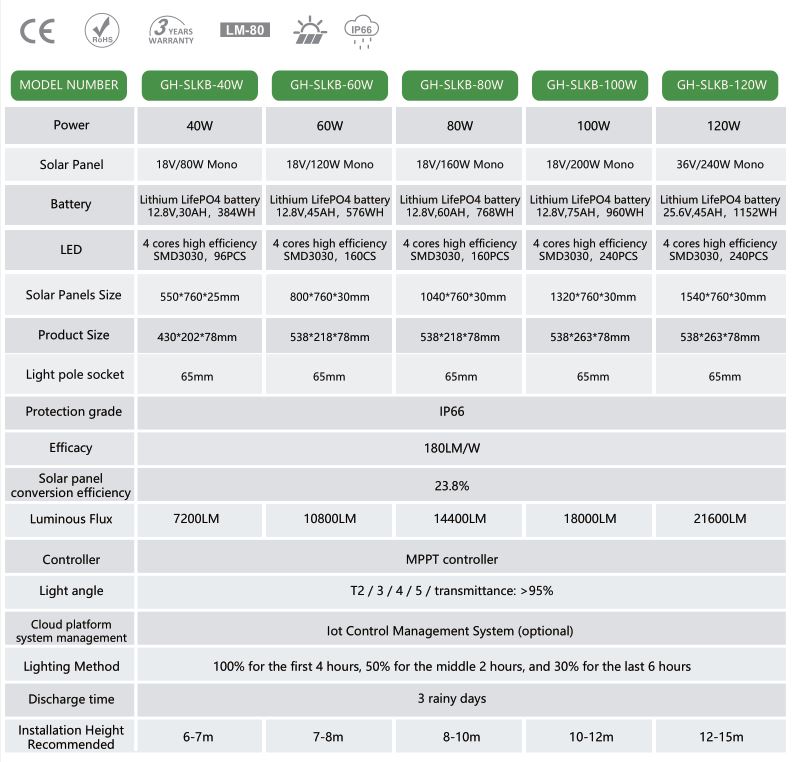

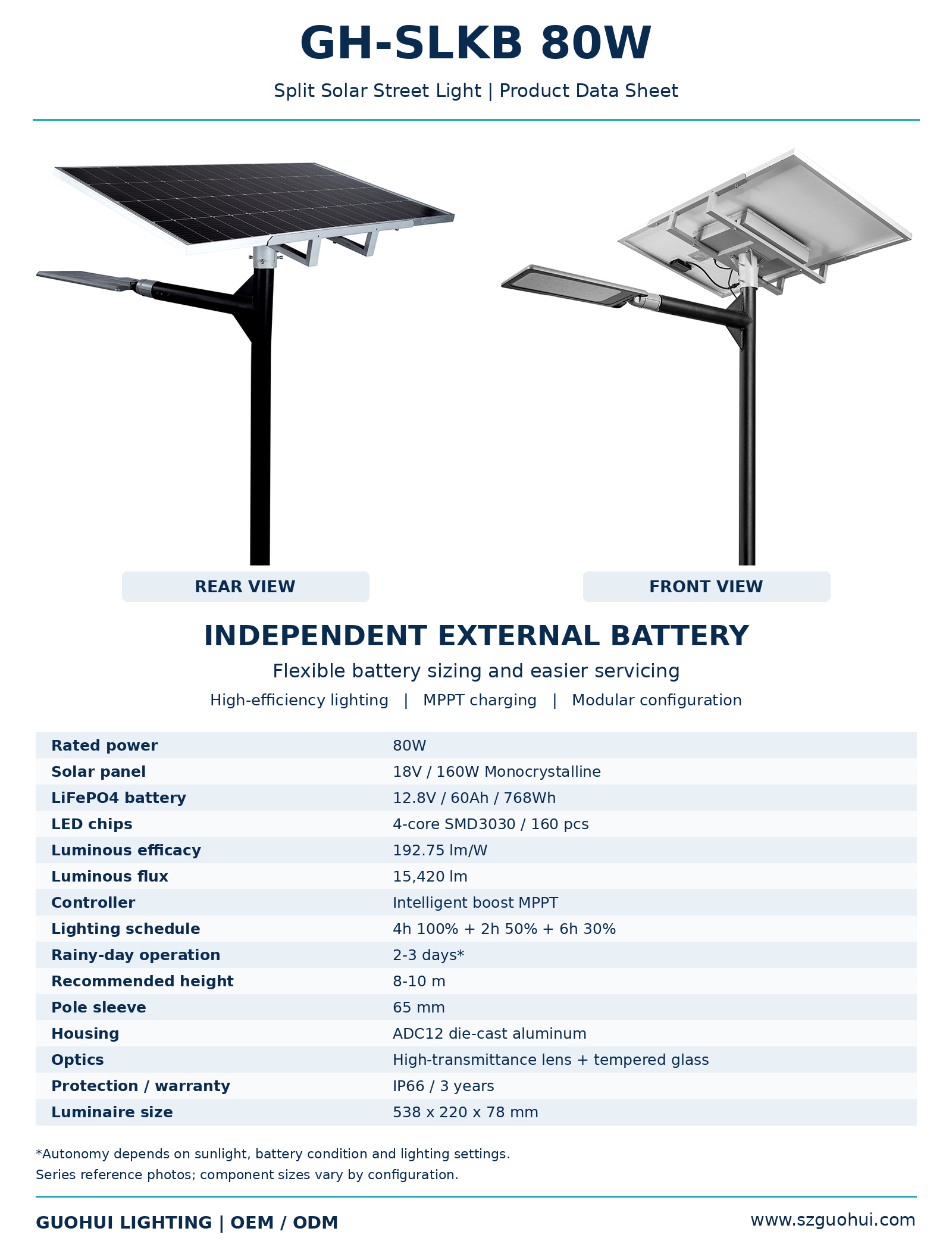

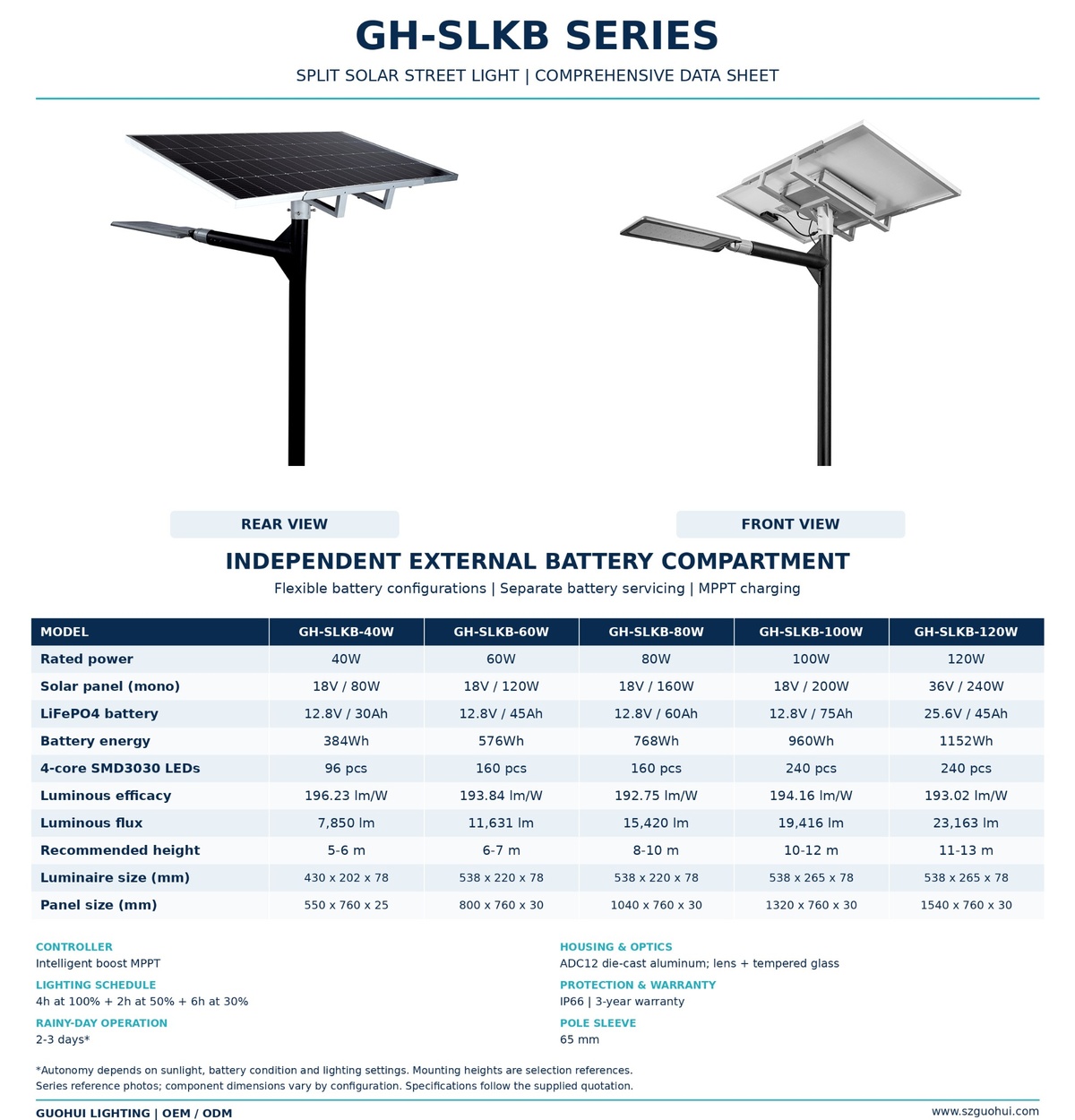

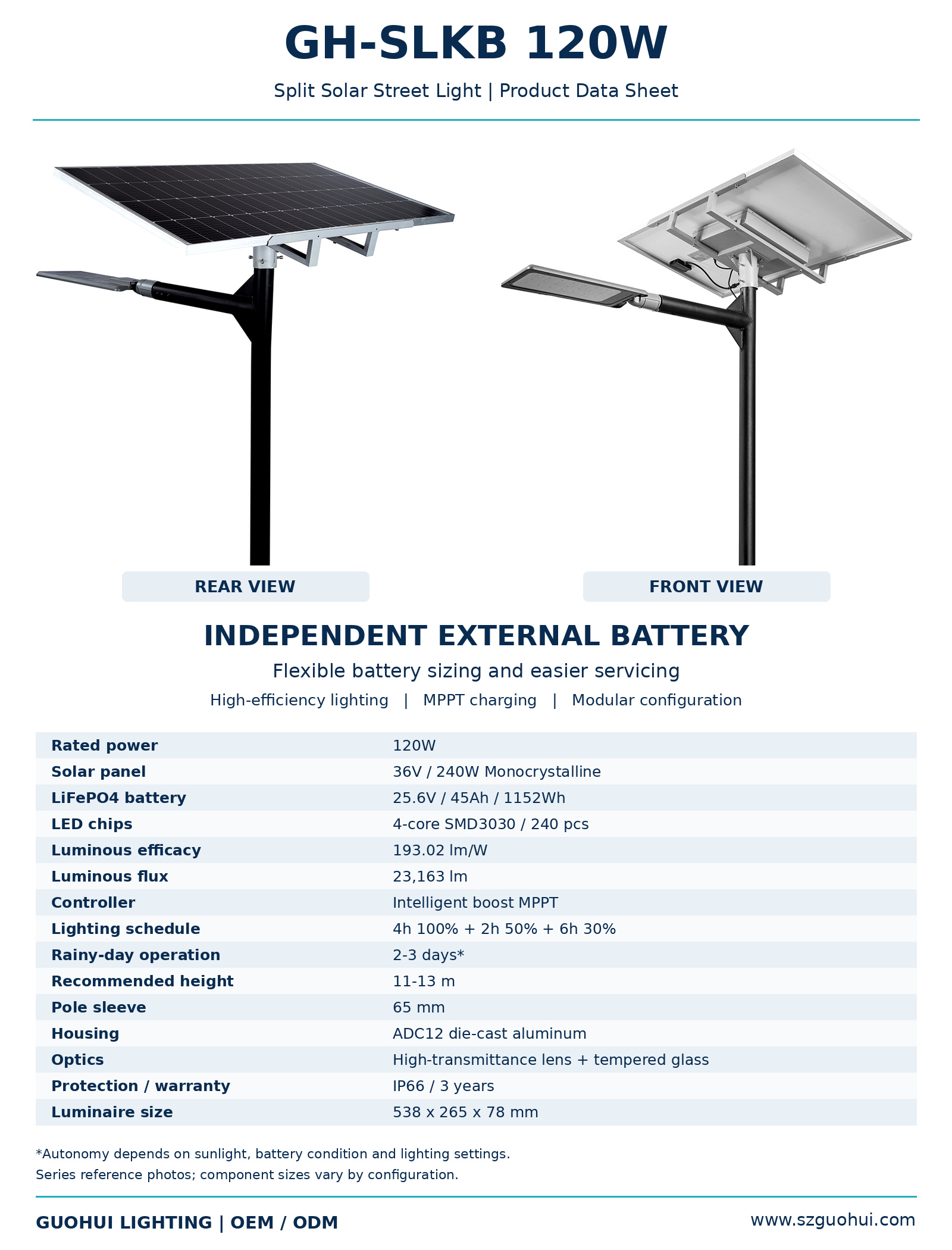

STANDARD CONFIGURATIONS

Mounting heights are selection references. Final configurations should be confirmed through project-specific lighting design.

FACTORY-DIRECT OEM / ODM SUPPORT

As a solar street light manufacturer, GUOHUI Lighting supports distributors, contractors and project buyers with product selection, customized configurations, DIALux lighting simulations and technical documentation.

The GH-SLKB comes with a 3-year warranty.

REQUEST A PROJECT QUOTATION

Share your project location, road width, pole height, pole spacing, quantity and nightly operating requirements. Our team will recommend a suitable GH-SLKB configuration and provide a quotation.
