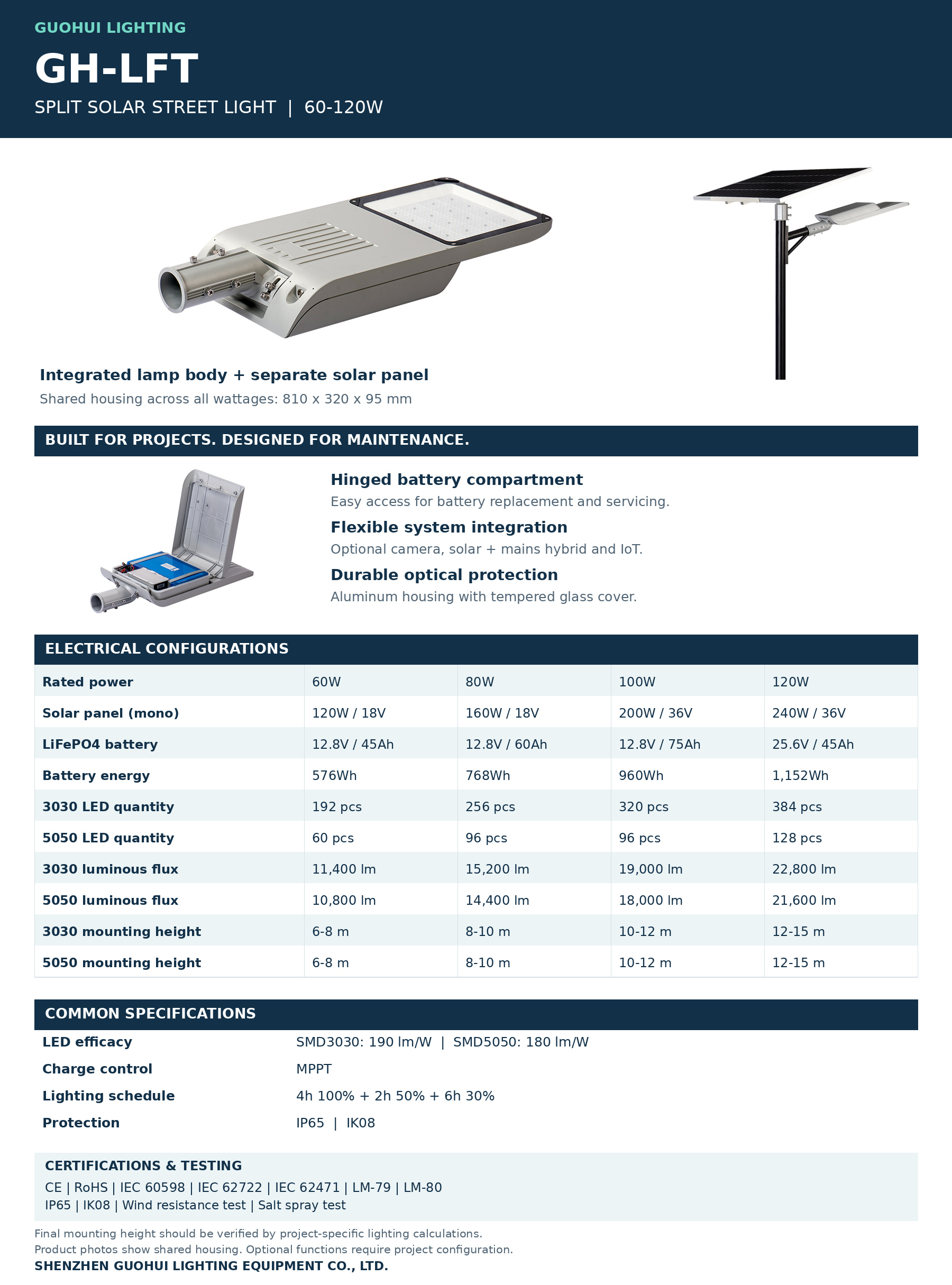

GH-LFT Split Solar Street Light | 60W–120W

The GH-LFT split solar street light from Guohui Lighting combines a separate solar panel with a compact lamp body that integrates the LED module, LiFePO4 battery and MPPT controller. Its service-friendly design, flexible LED options and expandable functions make it suitable for roads, residential communities, industrial parks and municipal lighting projects.

Separate Solar Panel, Flexible Installation

The separate solar panel allows its orientation to be adjusted independently of the lamp head. This gives installers more flexibility to position the panel for sunlight while directing the light where it is needed.

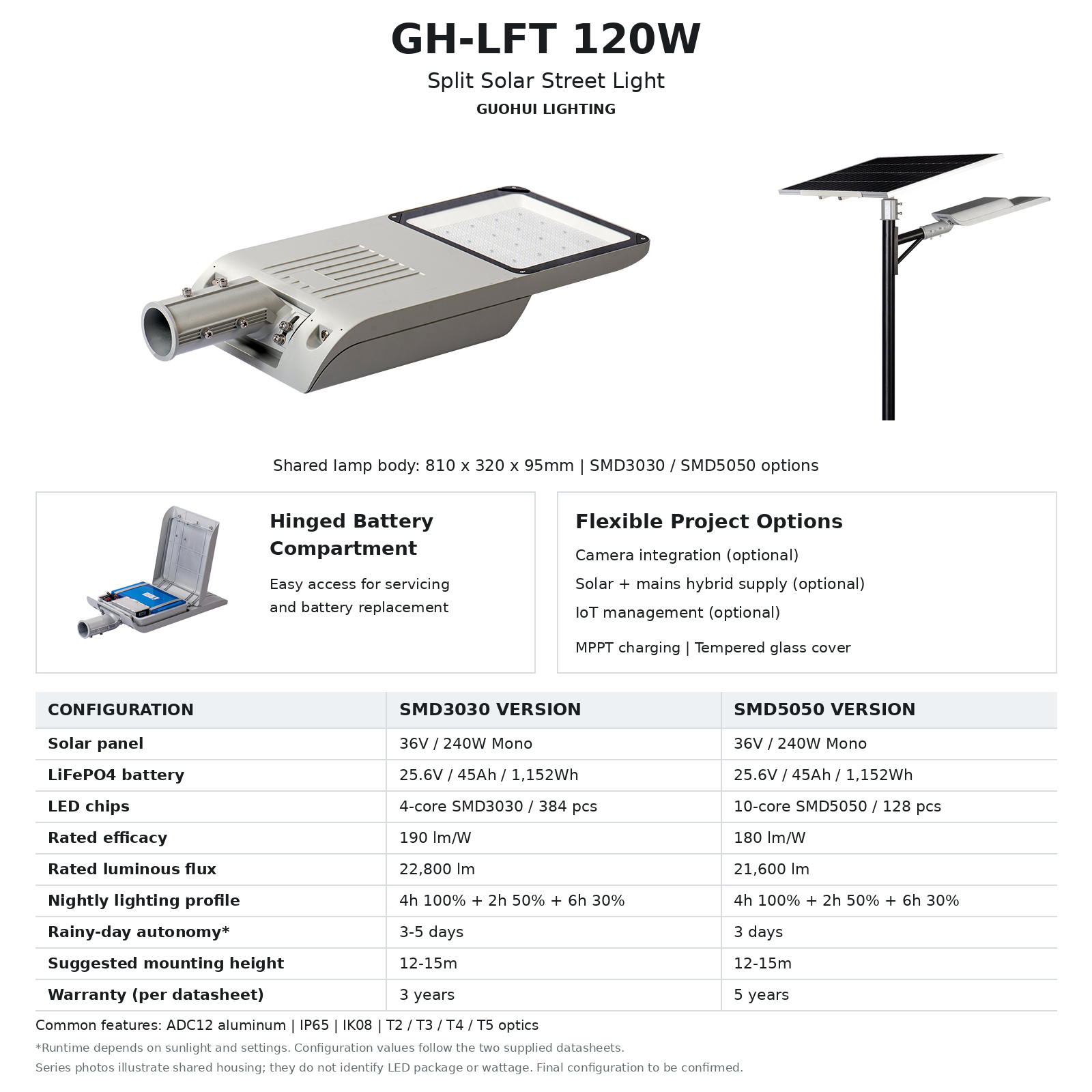

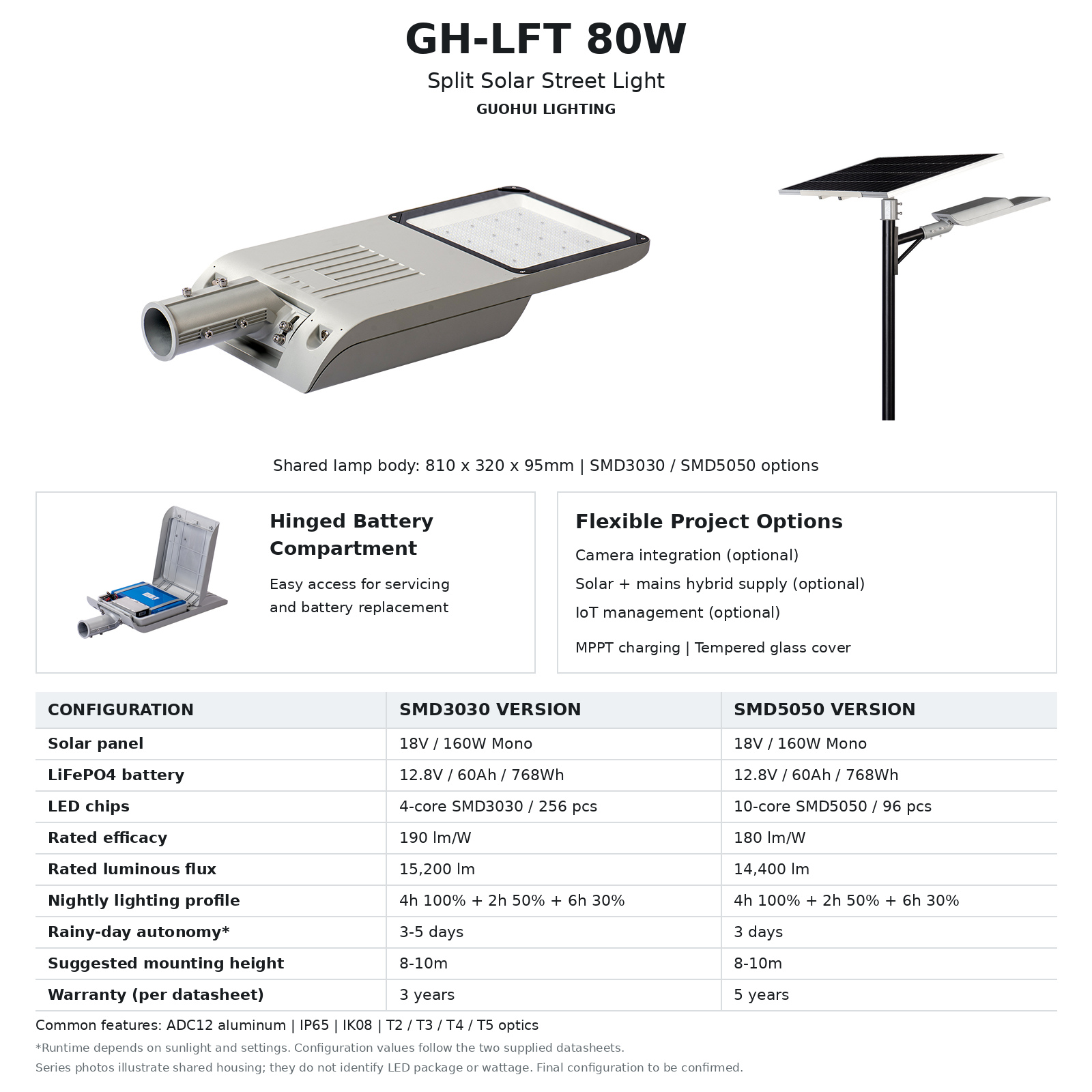

All 60W–120W models share the same 810 × 320 × 95 mm lamp housing, providing a consistent appearance across projects with different lighting requirements.

Easy-Access Battery Compartment

The GH-LFT features a hinged battery compartment that opens for convenient inspection, servicing and battery replacement.

This accessible design simplifies maintenance and helps reduce the time required to service each light—particularly useful for installations spread across long roads or large sites.

SMD3030 or SMD5050 LED Options

Choose the LED configuration that matches your project requirements:

Rated efficacy reaches 190 lm/W with SMD3030 and 180 lm/W with SMD5050. T2, T3, T4 and T5 optical options support different lighting layouts.

Final mounting height, pole spacing and optical selection should be confirmed through project-specific lighting calculations.

LiFePO4 Battery and MPPT Charging

Each GH-LFT solar street light uses a LiFePO4 battery and MPPT charge controller to store and manage solar energy.

A typical nightly lighting schedule is 4 hours at 100%, 2 hours at 50%, followed by 6 hours at 30%. Lighting settings can be selected according to project requirements, available sunlight and operating priorities.

Durable Materials for Outdoor Use

The aluminum housing combines structural strength with heat dissipation. A tempered glass cover protects the optical assembly and resists the yellowing associated with some plastic covers.

An adjustable mounting sleeve allows the lamp angle to be set during installation. The GH-LFT is specified with IP65 protection and IK08 impact resistance for outdoor applications.

Optional Camera, Hybrid Power and IoT Functions

The GH-LFT platform can be configured beyond standard solar road lighting:

•


• Camera integration: Add a camera to support site monitoring.

• Solar + mains hybrid power: Combine solar energy with mains backup where grid power is available.

• IoT management: Enable remote monitoring and lighting management with a compatible control system.

•


These functions are optional and should be specified when requesting a quotation.

Applications

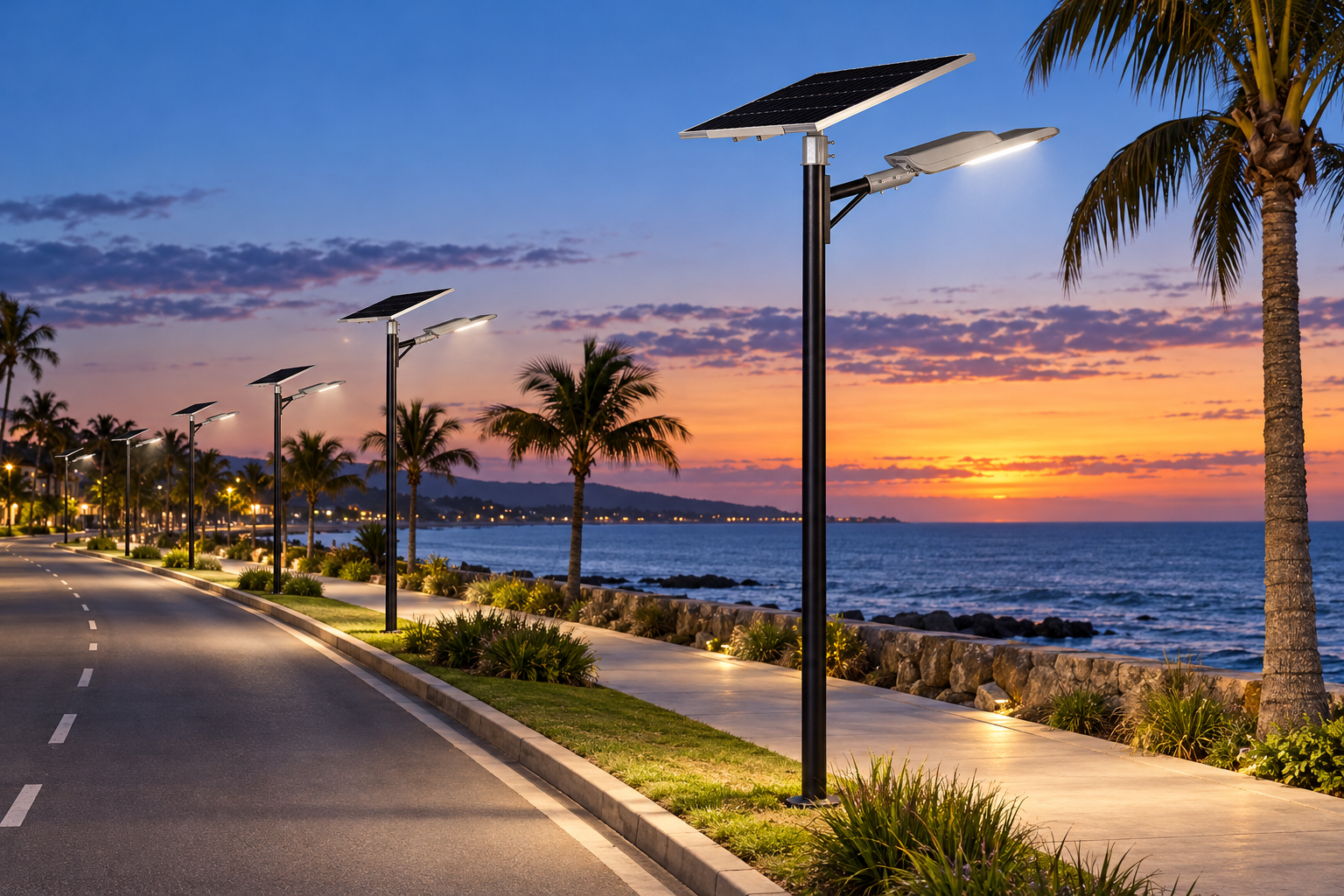

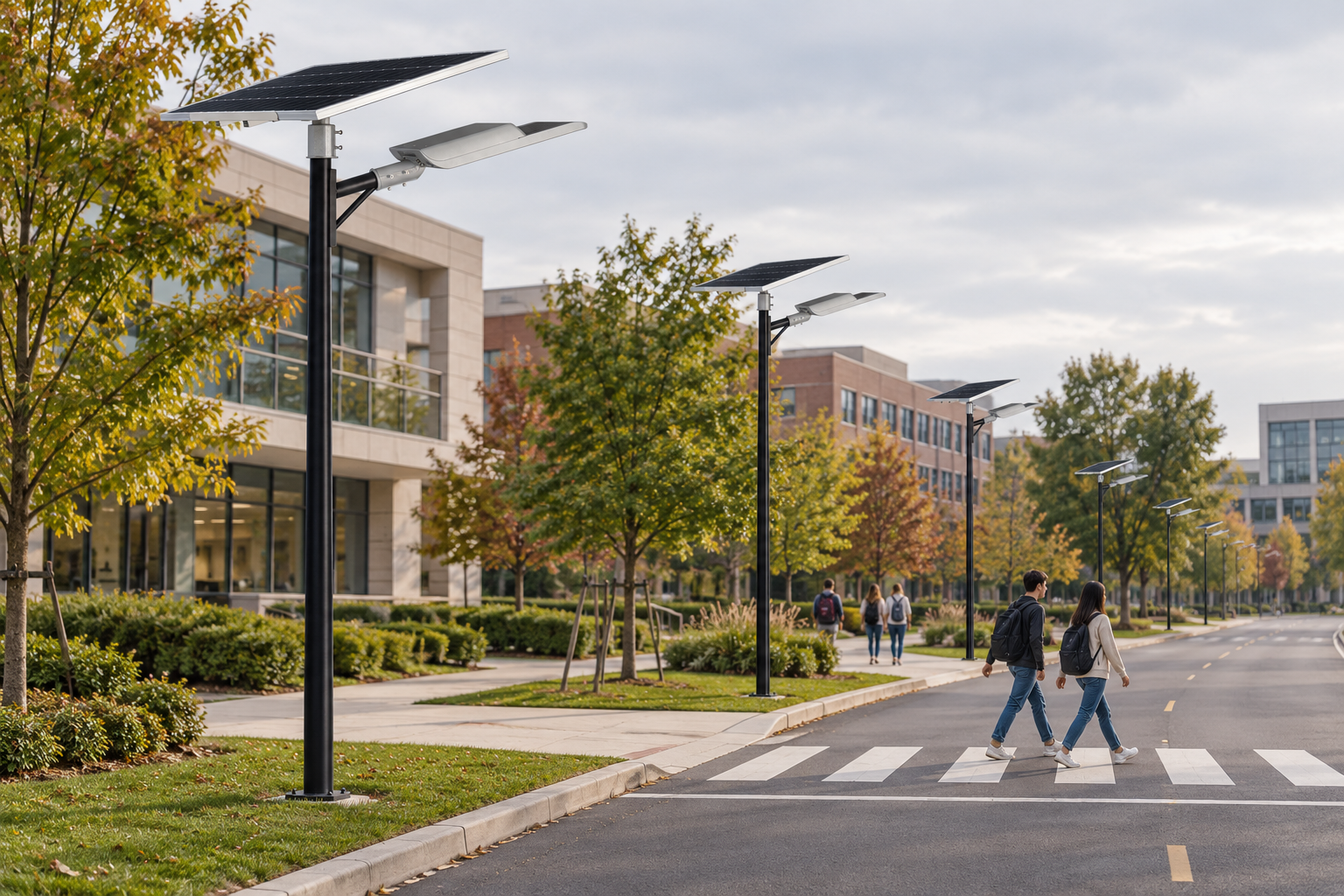

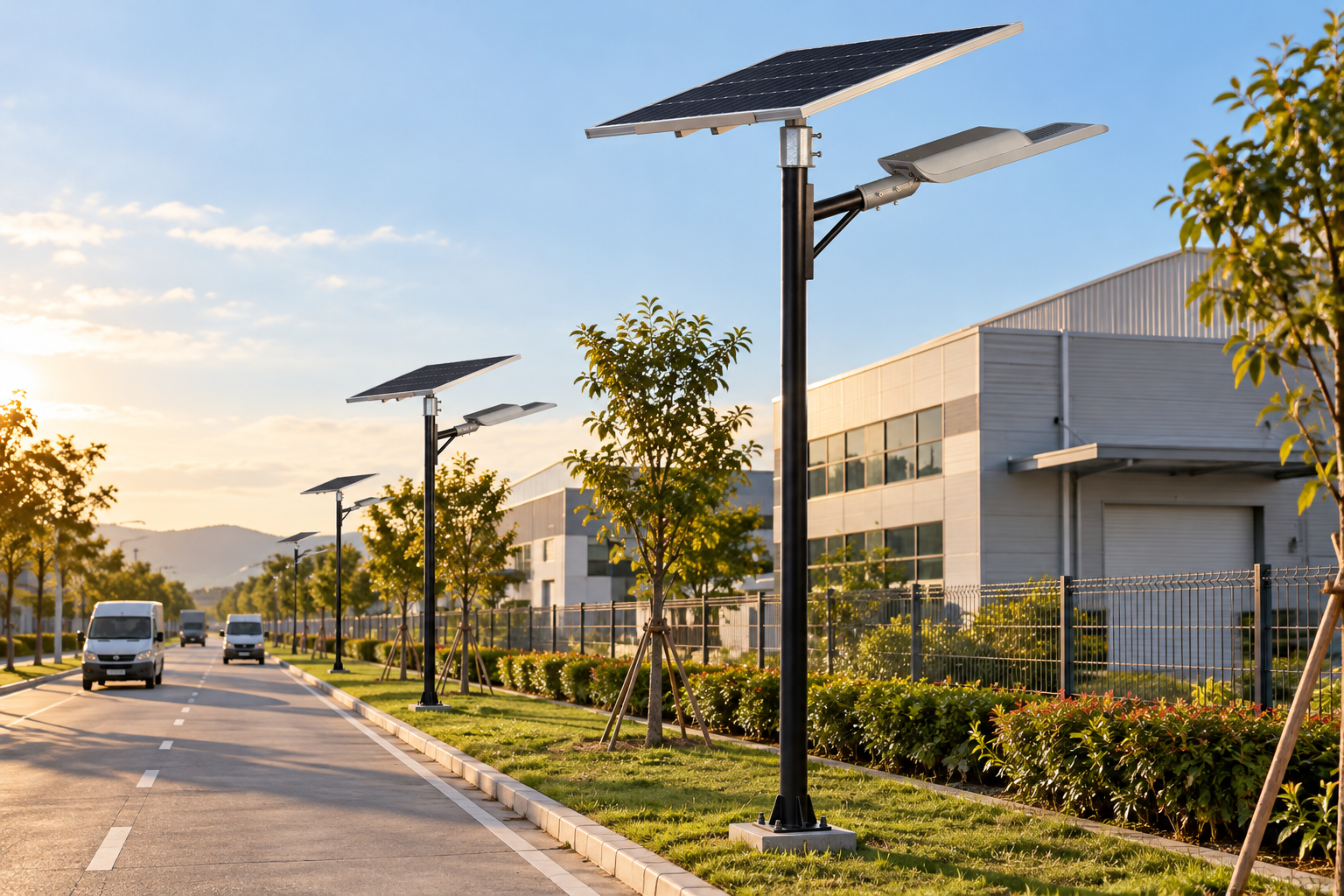

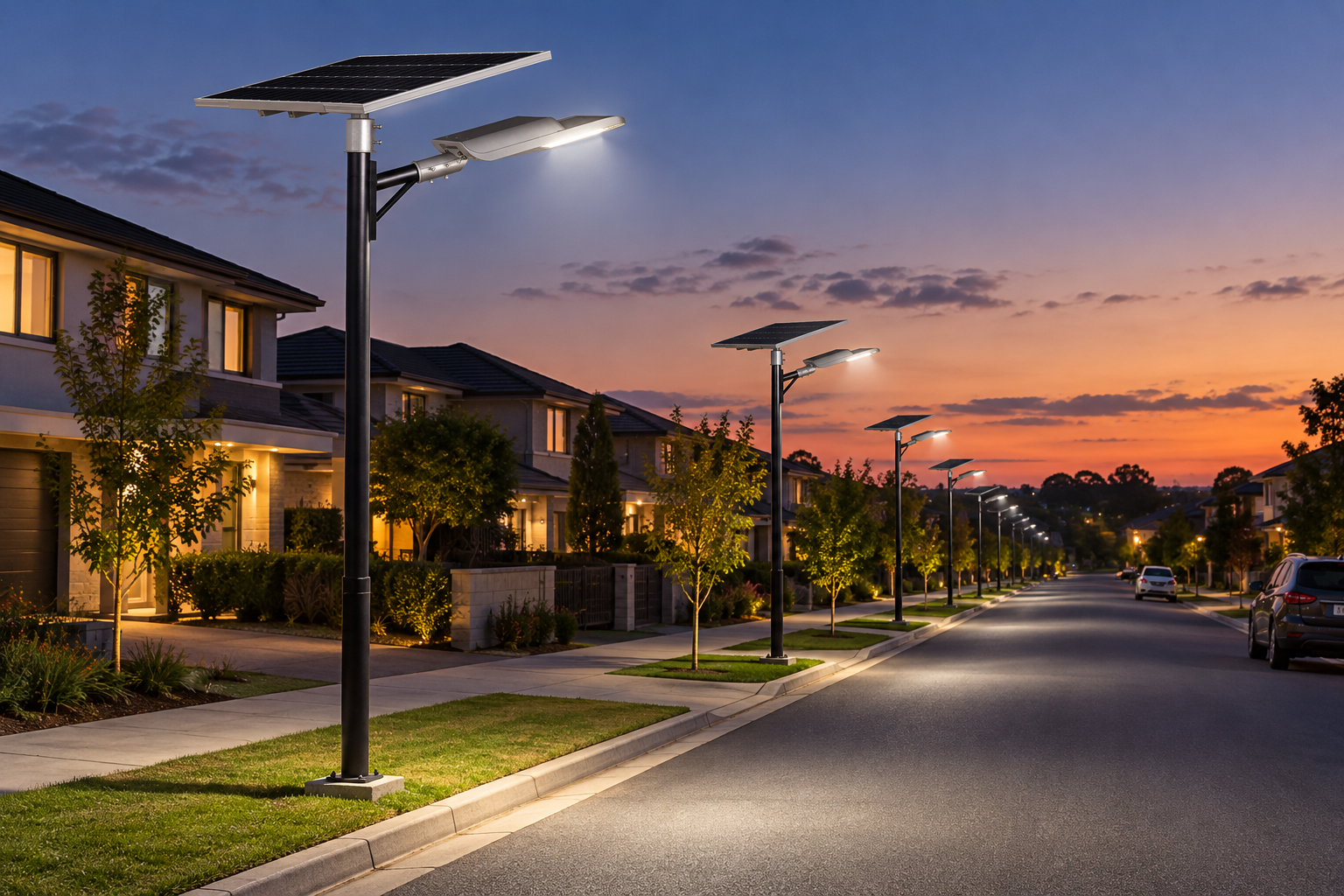

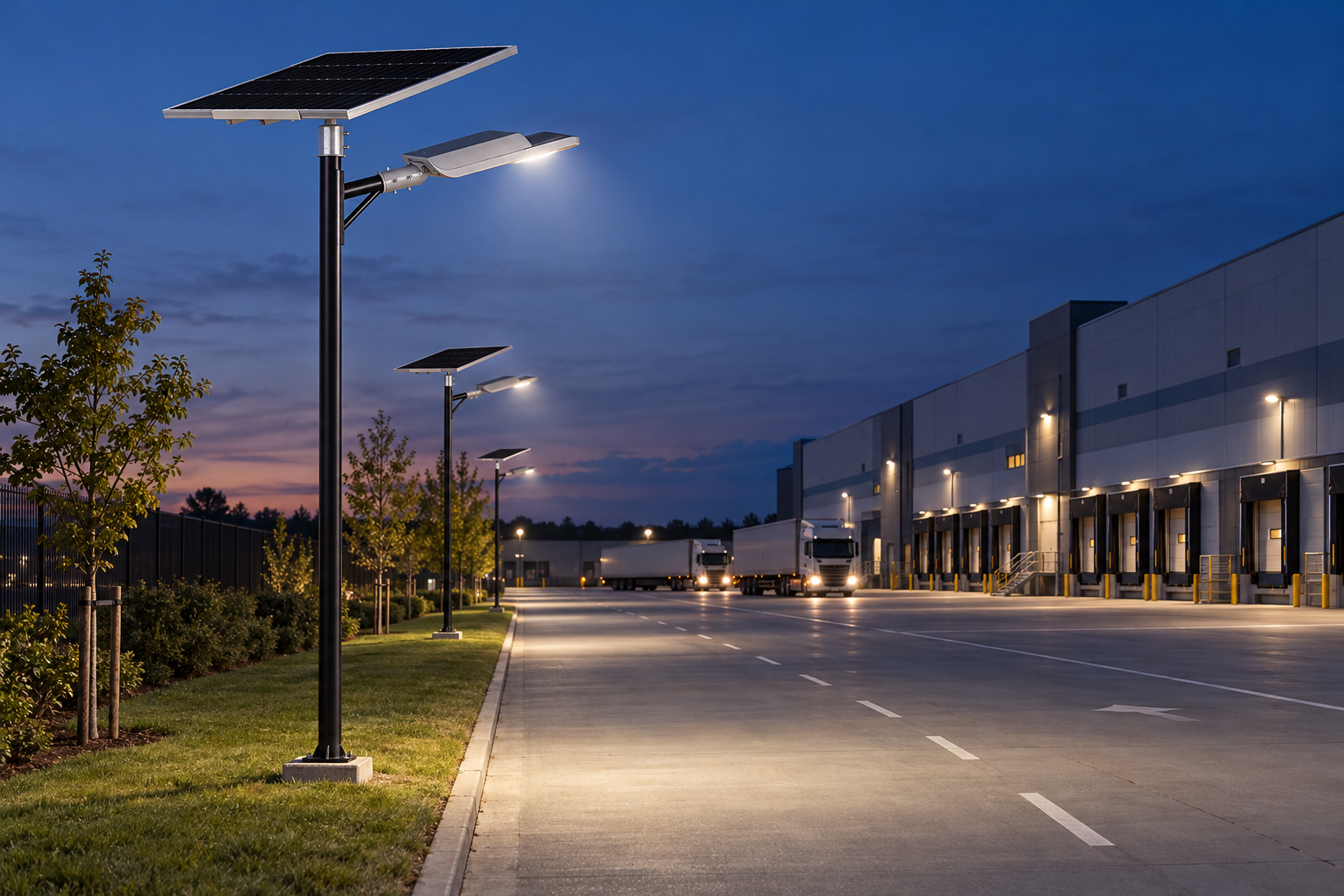

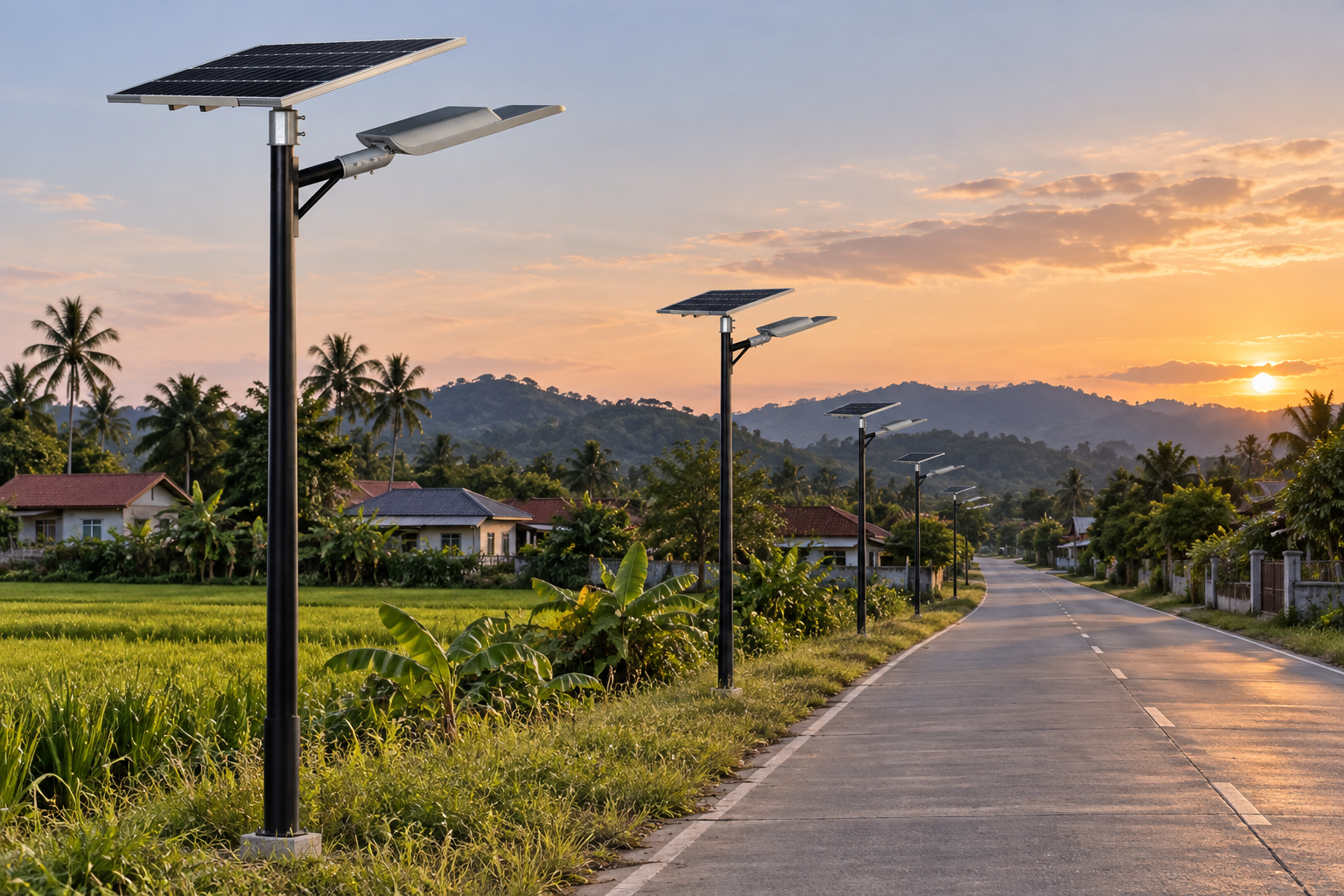

The GH-LFT split solar street light is suitable for municipal roads, residential streets, industrial park roads, rural access roads, parking areas and campus roads.

Its separate panel and accessible battery compartment offer practical flexibility for projects where solar collection, lighting performance and long-term maintenance all matter.

Certifications and Testing

Available certification and testing documentation includes CE, RoHS, IEC 60598, IEC 62722, IEC 62471, LM-79, LM-80, IP65, IK08, wind resistance testing and salt spray testing.

Please contact Guohui Lighting to confirm the documents applicable to your selected configuration and project requirements.

Request Your GH-LFT Lighting Proposal

Tell us your road width, installation location, pole height, operating hours and required quantity. Guohui Lighting can help select the GH-LFT configuration and provide DIALux lighting simulations, technical specifications and a project quotation.
