120W 150W 180W High brightness Aluminum LED Intelligent Street Lamp

Guohui Lighting's led street light provide reduced offsite visibility as well as effective security light levels. They can yield a significant reduction in system energy and virtually eliminate ongoing maintenance expenses.

120W/150W/180W
AC100-277V 50/60Hz universial voltage.
Die-casting aluminum body,uv-resistant, anti-corrosion painting

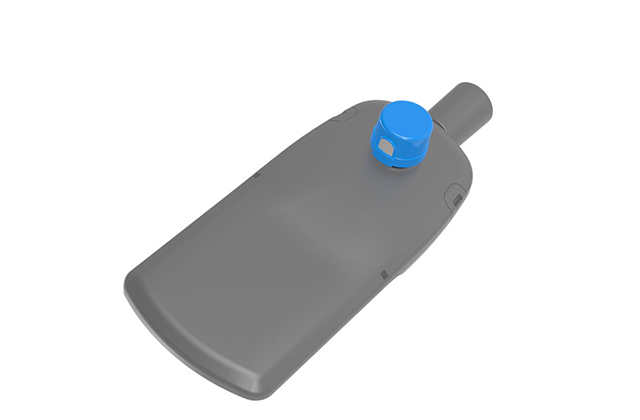

Microwave Sensor
DALI/0-10 Dimming
Light Efficacy up to 160lm/W
Lumileds SMD3030 highlights chip
IP67 waterproof for outdoor use.
5 years warranty

Request A Free Quote

Description
Video
Data sheet
Optic & Dialux
Application

LED Smart Lamps

1.Adopts integrated design of heat sink and lamp housing. The LED is directly connected to the outer casing, and the heat dissipation fins transfer the light source heat out fast, which fully ensure the lifetime 50,000 hours of the LED street light.

2.The lamp housing is made of die-casting aluminum, and the reasonable structure design ensure the effective heat dissipation performance, waterproof and dustproof. The luminaire surface is with UV-resis tant and anti-corrosive treatment, and the overall luminaire meets the IP67 standard.

3.Modular design allows for separation of components for best heat dissipation.

4.Use high bright Philips SMD 3030, the luminous efficiency of whole lamp up to 130lm/W standard, 160lm/w for option.

Product Number	GH-SLL-120W	GH-SLL-150W	GH-SLL-180W
Input Power	120W	150W	180W
Product Size	60924498.5mm	66024498.5mm	66024498.5mm
LEDs Brand	Lumileds SMD 3030/5050
Light Efficiency	130-160lm/w
Input Voltage	AC100-277V
Power Factor	>0.95
Power Supply	Meanwell/Sosen/Inventronics
Beam Angle	TYPE II, TYPE III, TYPE IV, TYPE V
CRI/Ra	>70
IP Grade	IP67
CCT	2700K-6500K
Beam Angle	TYPE II,TYPE III,TYPE IV, TYPE V
Material	Aluminum
Lifetime	50000 Hours
Working Temp	-25℃~+45℃
Warranty	5 Years
Certifications	CE RoHs

Side Road
Viaduct Rads
Rural Road
Highway
City Road
Park Road
