1200W 1500W Aluminium IP67 Waterproof LED Stadium Modular Flood Lights
This series of floodlights are widely used in outdoor places. IP67 design can be installed in large sports centers, docks, airports, tower cranes, high mast, etc...

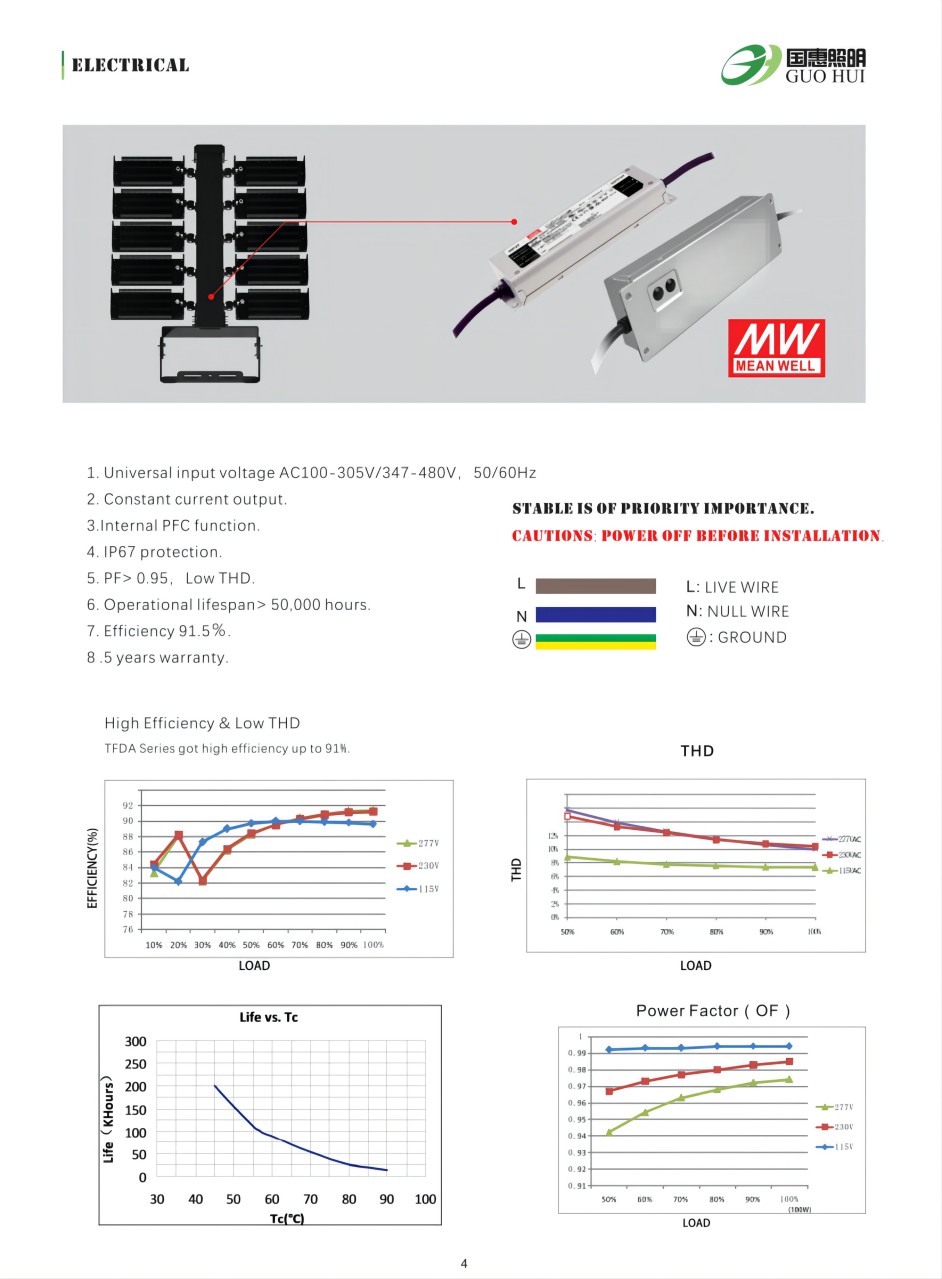

- Power: 1200W/1500W
- Universal input voltage AC100-305V/347-480V, 50/60Hz
- Constant current output
- Lumileds SMD5050
- Light efficiency:140lm/w efficiency 91.5%
- Internal PFC function
- IP67 protection
- PF>0.95, low THD
- Operational lifespan>50,000 hours
- 5 years warranty
- Description
- Video
- Data sheet
- Optic & Dialux
- Application
Outdoor IP67 Waterproof Energy Saving SMD 480 Watts Module Led Flood Lighting
1.Using 1060 fin type radiator. The thermal conductivity is as high as 230W/M.K. The heat dissipation surface area of the fin aluminum structure is about more than that of the die-casting aluminum lamp body of the same power 1.8 times.
2.Air convection structure has been adopted for battery house. Seperated spaces for cool and hot parts. Lower temperature for led driver. Longer longevity.
3.Meanwell/Sosen/Inventronics is adopted. Stable performance trouble-free for projects.
4.Modules are adjustable. Either vertically ofr Horizontally. Met the requirements for precision lighting distributions.
5.Strong bracket. The angle is lockable and fixed with screws.. Resistance to strong wind and corrosion.
6.Lumileds SMD5050 LED chips. Brighter luminous flux. Longer lingevity.
7.Different lenses for diversified lighting distributons. Lenses available 20°/40°/60°/90°/120°/140°*100°
Model No. | GH-TFDA-1200W | GH-TFDA-1500W |
Power | 1200W | 1500W |
Input Voltage | AC100-305V | |
LEDs Brand | Lumileds SMD3030/5050 | |
Light Efficiency | 140lm/w | |
Driver Brand | Meanwell/Sosen/Inventronics | |
Bean Angle | 20°/40°/60°/90°/140°*100° | |
CRI/Ra | >70 | |
CCT | 2700K-6500K | |
Protection Grade | IP67 | |
Warranty | 3 Years | |
Certifications | CE RoHs LM80 IP67 | |
Product Size | 780*1004*190mm | |
Net Weight | 32.6KG | 34KG |
-
