200W 240W Monitoring Smart Multi-functional Road Street Light Pole With CCTV Camera

Scope of application: main road, industrial park road lighting,Highways, viaducts, city streets, country roads,Sidewalks and other road lighting, rural and urban roads.

  • 200W/240W
  • AC100-277V 50/60Hz universial voltage.
  • Die-casting aluminum body,uv-resistant, anti-corrosion painting
  • Lumileds SMD3030 highlights chip
  • ​IP67 waterproof for outdoor use.
  • Camera: 2 million 1080P
  • Connection method: WIFI APP
  • 5 years warranty
Request A Free Quote
  • Description
  • Video
  • Data sheet
  • Optic & Dialux
  • Application

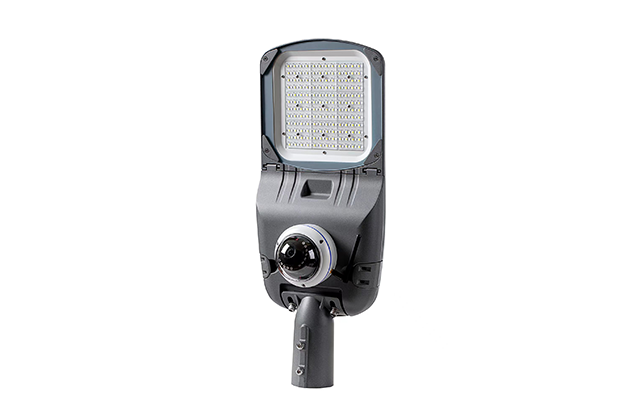

LED Smart Street Light with Camera


1.Adopt one body die casting molding, standard ADC12 die casting aluminum


2.Professional light distribution design, Japanese Emperor 1250Z, LED + Lens secondary light distribution + glass, lens angle: T3 light.


3.The wind protection grade of the whole lamps and lanterns; 10


4.Combine high quality Lumileds SMD3030 chip and optical V-trigger, Provides brighter lighting effffects.


Model

GH-SLL-200W

GH-SLL-240W

Power

200W

240W

Product Size

711*299*98.5mm

711*299*98.5mm

Photosynthetic Efficiency

≥130LM/W

PF

>0.95

CRI/Ra

>70

Beam Angle

TYPE II, TYPE III, TYPE IV, TYPE V

IP Grade

IP67

CCT

2700K-6500K

Material

Aluminum

The Focal Length

3.6mm、6mm optional

Camera Pixel

2 million 1080P

LEDs Brand

Lumileds SMD3030/5050

Monitor Power Consumption

2.5W

Monitor Working Time

24 Hours

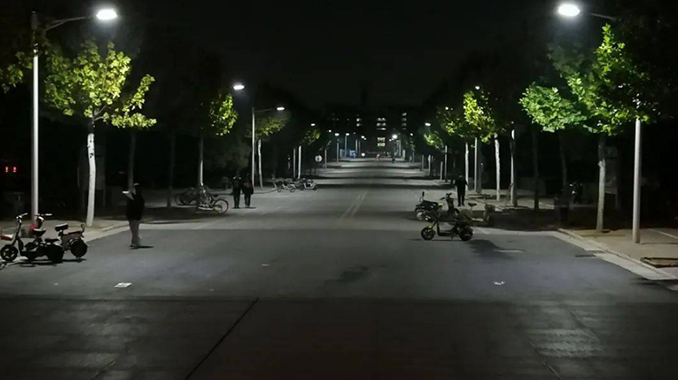

  • Park Roads

    Park Roads

  • Side Roads

    Side Roads

  • Highway

    Highway

  • Rural Roads

    Rural Roads

  • Viaducts

    Viaducts

  • Country Streets

    Country Streets
