Product center

We Are Solar Lighting Manufacturer, 14 Years Of Factory Experience, Factory Price, High Quality, Low MOQ, Support OEM&ODM.

Home Product center > Led Flood Light > GH TFD Series

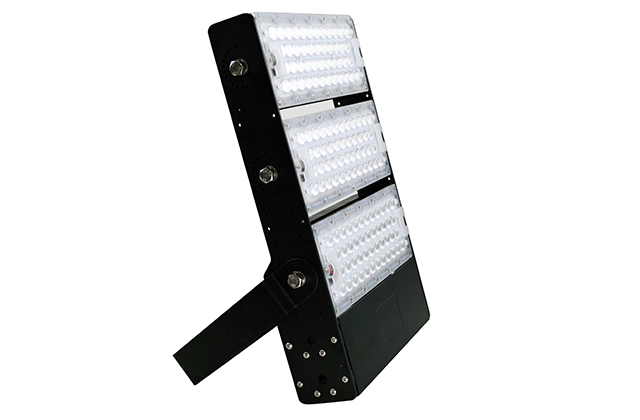

360W 450W 480W 600W Black IP67 Projector Lamp SMD Meanwell Driver Stadium Floodlights

The TFD series is a patent modular design.The cost-effective and versatile lighting system suits large-sized appplications and is available for modular swivel version which allows adjustment of the light head for better light distribution.

Watts: 360w, 450w, 480w, 600w
Material: the die casting aluminum alloy which makes the good heat dissipation.
Wide input voltage AC85-265V, AC100-277V, AC90-305V. high voltage can make AC200-500V or AC480W.
Low input voltage is available,like DC12-30V or DC20-50V both ok.
Lifespan: 12-15 years.
Warranty: 5-7 years.
IP rating: IP67 grade

Request A Free Quote

Description
Video
Data sheet
Optic & Dialux
Application

Guohui Lighting hotsale Led Flood light 160lm/w with Philips smd 5050/3030 long lifespan

1.The TFD series is another Modular design from Guohui Lighting on a more powerful scale.

2.It features a highly efficient Meanwell Driver with Philips LED chip and a powerful Lumen output 165lm/W.

3.The cost-effective and versatile lighting system suits large-sized applications, and spaces and is available for the dimmable solution.

4. ( 1~10V /DALI/Photocell/NB-LOT) and a modular Swivel version which allows adjustment of the light head for better light distribution.

5. Meanwell sery Led driver to power up the lamp, which ensure the top quality.

6. Water proof is IP67 grade.

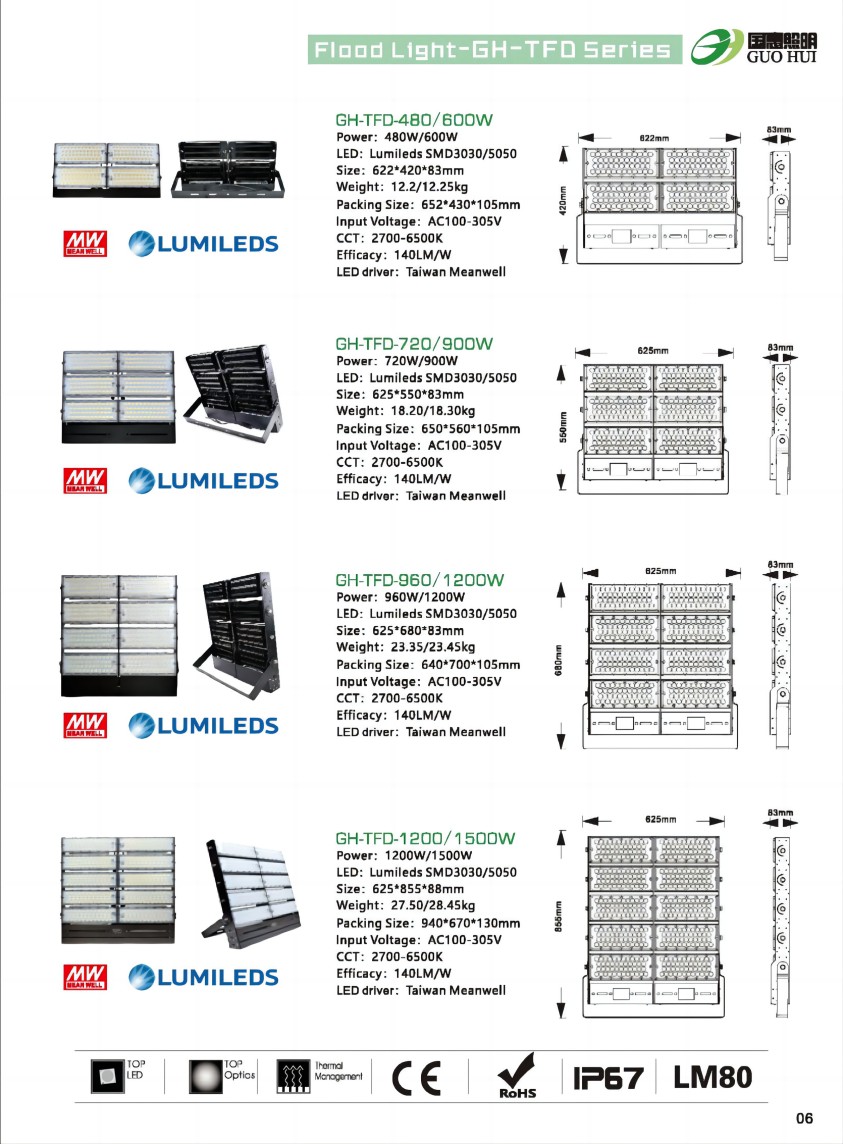

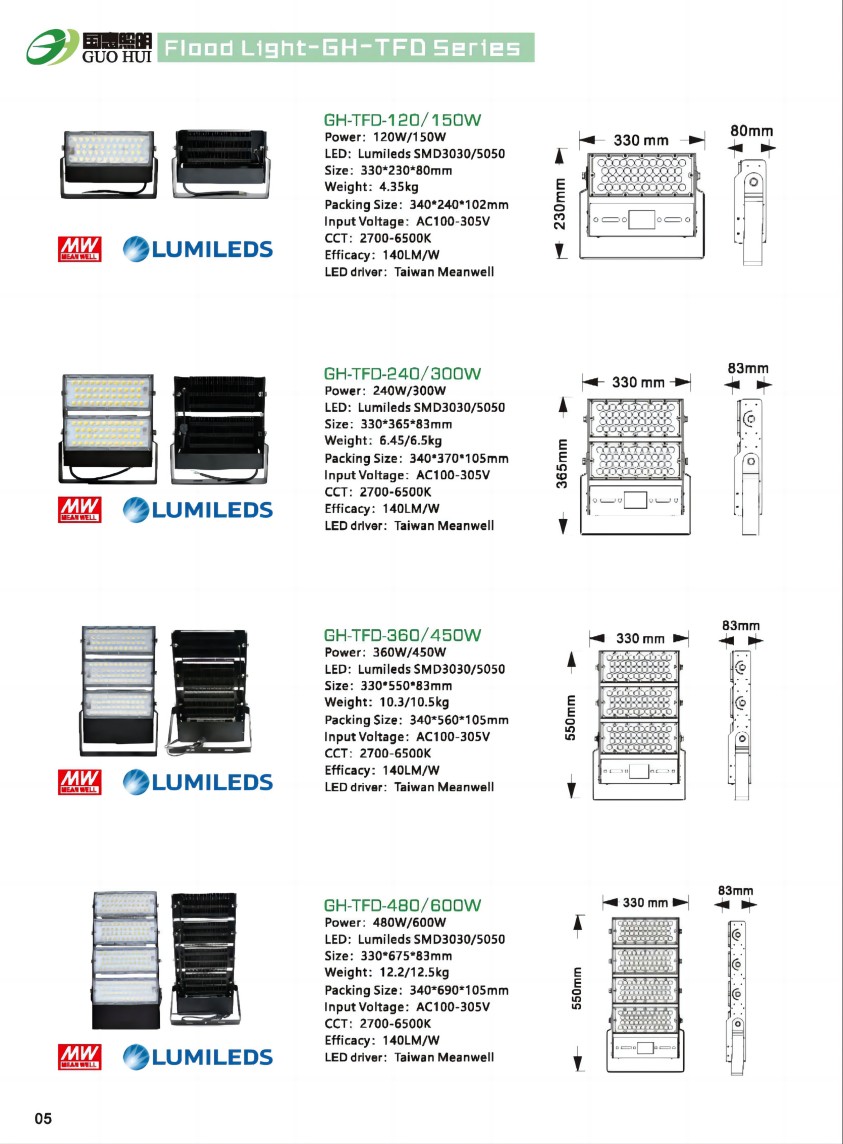

Model No.	GH-TFD-360W	GH-TFD-450W	GH-TFD-480W	GH-TFD-600W
Power	360W	450W	480W	600W
Product Size	33055083mm		33067583mm
Input Voltage	AC100-305V
Material	Fin-type 1060 Aluminum
Light Efficiency	140lm/w standard, 165lm/w for optional
LEDs Brand	Lumileds SMD 3030/5050
Driver	Meanwell
CCT	2700K-6500K
Beam Angle	20°/40°/60°/90°/120°/140°*100°
Lifespan	50,000 Hours
Warranty	5 Years
Certifications	CE, RoHs
Product Size	33055083mm		33067583mm
Net Weight	10.3KG	10.5KG	12.2KG	12.5KG

Tennis Court
Football Pitch
Stadium Area
Racetrack Area
Basketball Area
Marine Terminal
