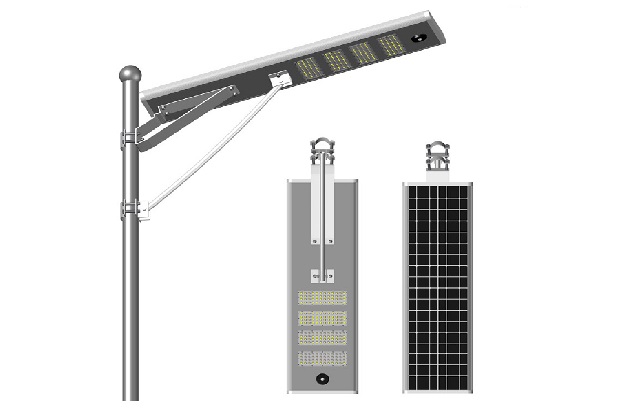

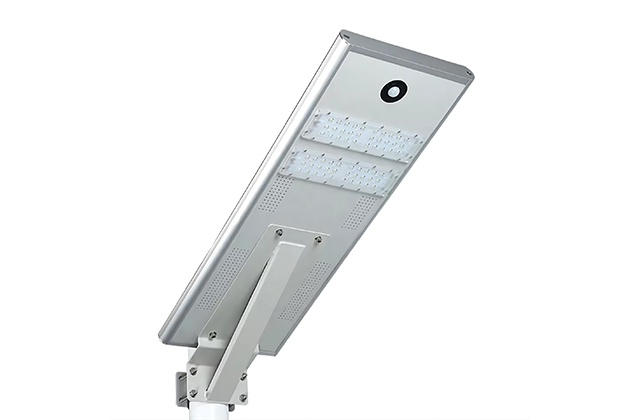

20W 30W 40W High Efficiency LED Solar Street Lights with HD Camera
China solar street light manufacturer with 15 years experiences, support OEM and ODM, high quality, factory direct price; Rich experiences in road/government solar street light projects.
- 20W/ 30W/ 40W
- Made of 6063 aluminum
- Monocrystalline solar panel
- Auto On/Off + Microwave induction + time control + intelligent control
- LiFePO4 Lithium Battery
- Charge Time: 4-6 hours
- Discharge Time: supporting 3-7 rainy days
- HD Camera for option
- IP65 waterproof
- 3 Years warranty.
- Description
- Video
- Data sheet
- Optic & Dialux
- Application
1.The radiator is made of 6063 aluminum, which is treated with thickened anti-corrosion paint.
2.No additional wiring is required, saving expenses; multiple mounting brackets can be installed in tubes, arms, etc.
3.Direct lighting design, high light transmittance PC protective cover, light transmittance over 90%, high Light effect.
4.Genuine imported chip lamp beads, high Light effect, low light decay, high energy saving efficiency.
5.High thermal conductivity aluminum substrate and radiator, low temperature rise, good heat dissipation of the whole lamp, and more guaranteed life.
6.3-year warranty commitment, lifetime cost price maintenance.
7.Assembly line operation, large-scale production, stable product performance and more guaranteed quality.
Product Number | GH-LK-20W | GH-LK-30W | GH-LK-40W |
Solar Panel | Monocrystalline 18V/35W | Monocrystalline 18V/50W | Monocrystalline 18V/60W |
Panel Size | 630*331 mm | 830*340 mm | 988*340 mm |
LEDs Brand | Lumileds SMD 2835/3030 | ||
Light Efficiency | 180lm/w | ||
Lumen | 3600lm | 5400lm | 7200lm |
Controller | PWM / MPPT | ||
Lighting Method | Auto On/Off + Microwave Induction + Time Control + Intelligent Control | ||
Charging Time | 4-6 hours | ||
Battery | LiFePO4 Lithium 3.2V 36AH | LiFePO4 Lithium 3.2V 76AH | LiFePO4 Lithium 3.2V 100AH |
IP Grade | IP65 | ||
CCT | 2700K-6500K | ||
Beam Angle | TYPE II, TYPE III, TYPE IV, TYPE V | ||
Material | 6063 Aluminum+ PMMA Lens | ||
Lifetime | 50,000 Hours | ||
Working Temp | -30℃~+55℃ | ||
Warranty | 3 Years | ||
Certifications | CE RoHs LM80 IP65 | ||
Package | Support customized company logo and package, OEM & ODM are available | ||
Packing Size | 857*395*120mm | 900*400*135mm | 1060*400*135mm |
Gross Weight | 9.6KG | 10.5KG | 12.5KG |
-
Country road
-
Front yard
-
Parking lot
-
High way
-
Rural Road
-
Viaducts
-
