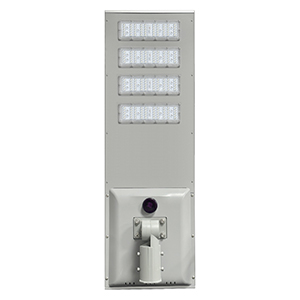

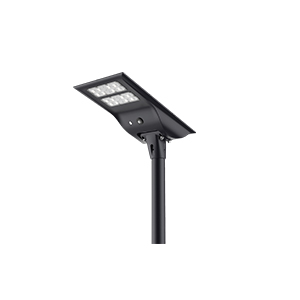

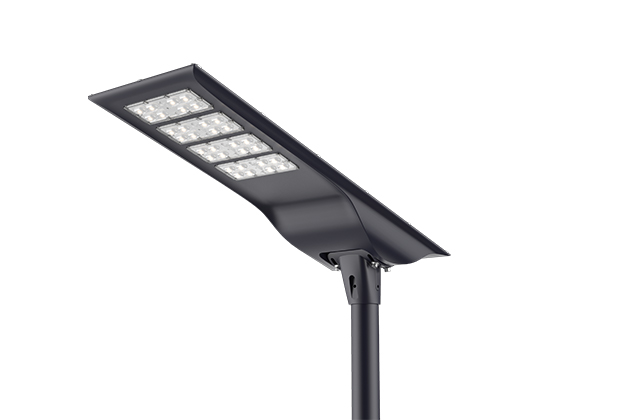

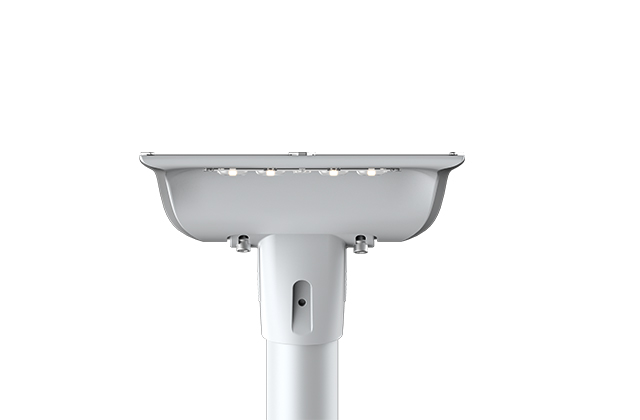

Highway 40W Aluminium Solar led Lighting Street Light with Remote Control PIR Motion Sensor

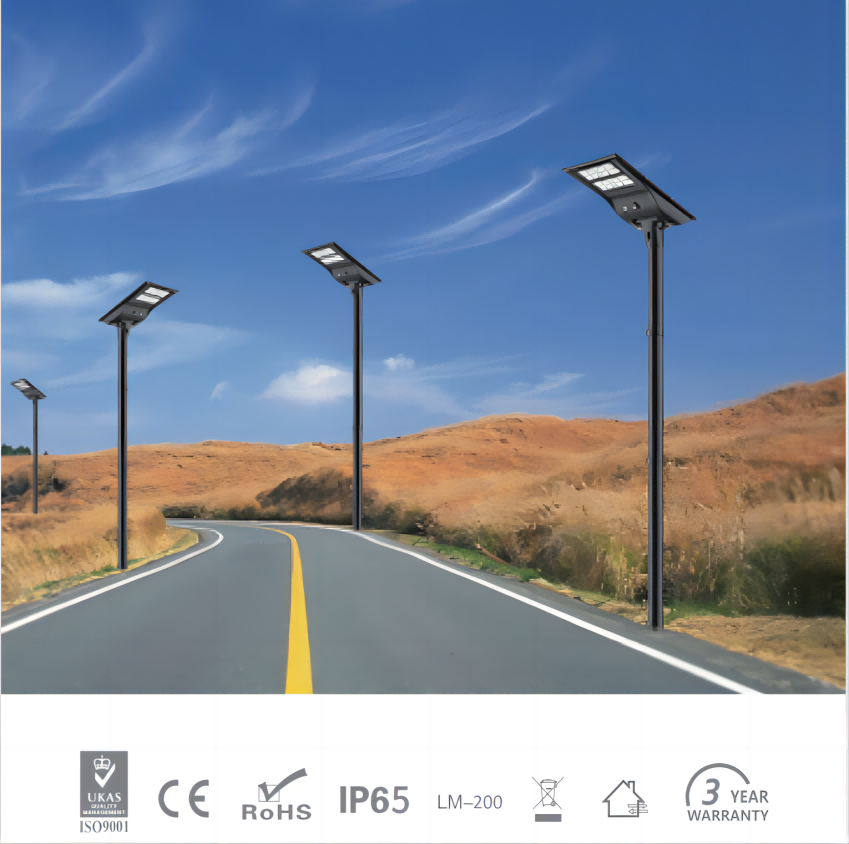

Scope of application: main roads, road lighting in industrial parks, highways, viaducts, urban street, country road, sidewalk and other road lighting.

Led power: 20W( 4200LM), 30W(6600lm), 30W(8000lm)

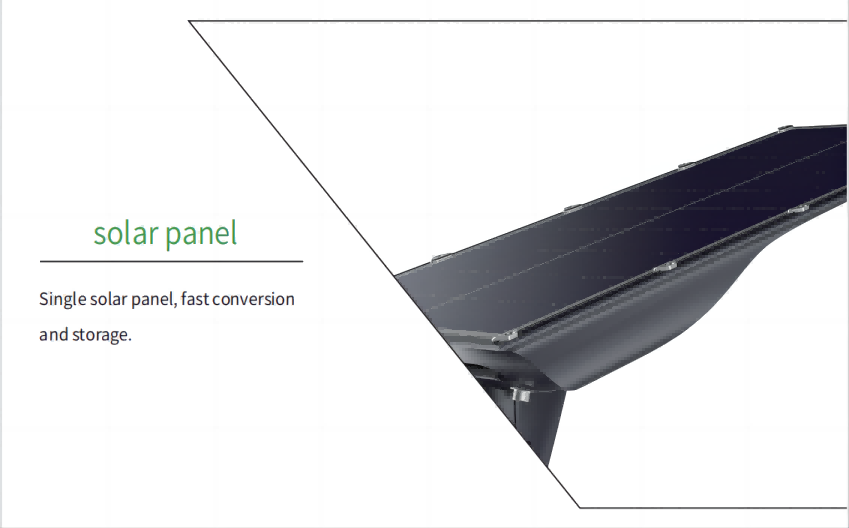

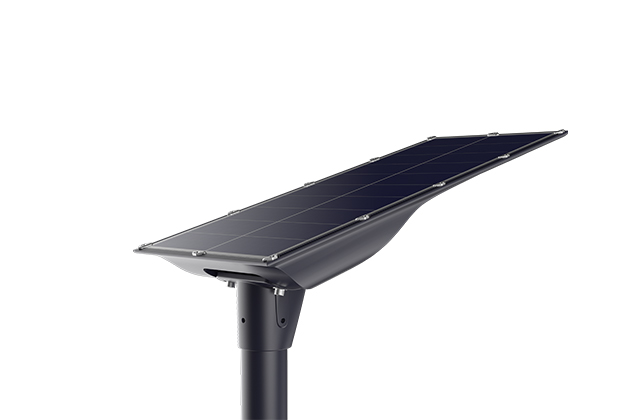

Solar panel: Monocrystalline silicon
Battery: LifePO4 Lithium battery
Light efficiency: 200lm/w Philips smd 5050(Osram, Cree, Bridgelux both available)
Controller: MPPT controller. 98% charging efficiency.

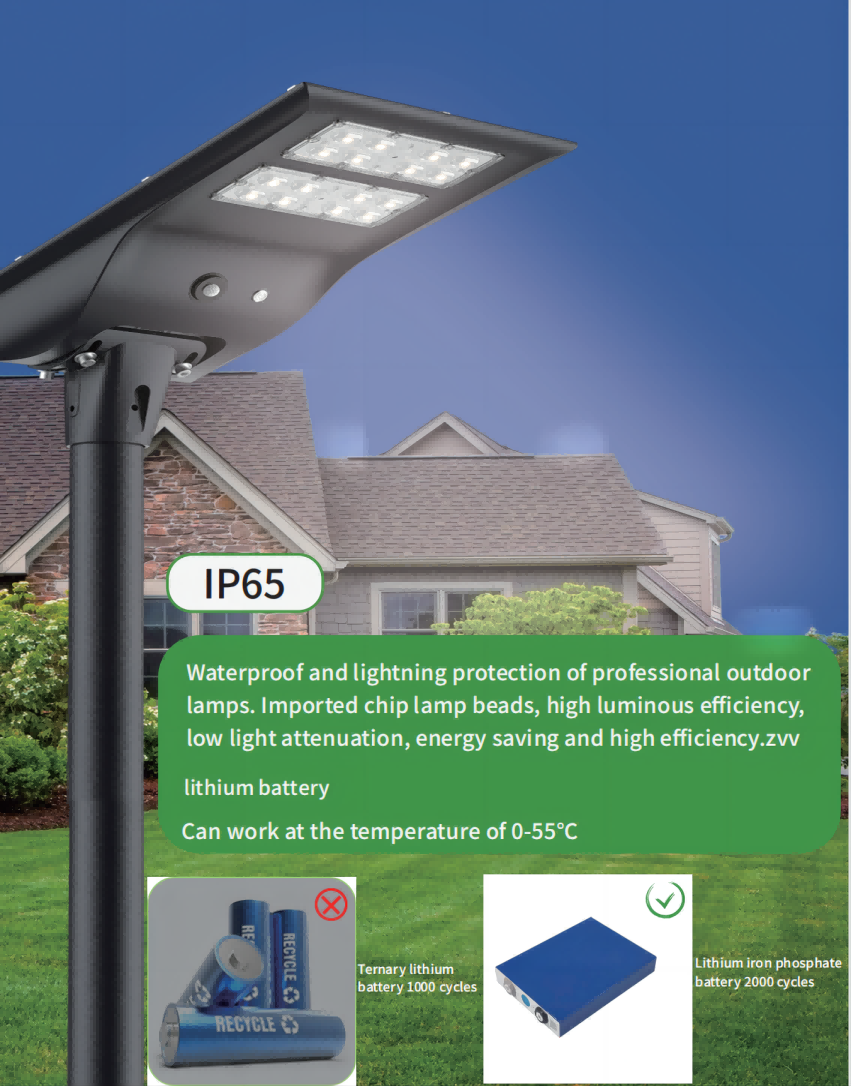

IP grade: IP65 outdoor using
Working mode: Dusk to dawn + Time controll + motion sensor
Lifespan: 8-10 years.
Warranty: 3 years, if any faulty during warranty, we will replace you new ones.
Application: Countryside, road lighting, town road, village road, urban roads, sports fields.

Request A Free Quote

Description
Video
Data sheet
Optic & Dialux
Application

1.The radiator is 6063 aluminum, which adopts thick anti-corrosion paint treatment.

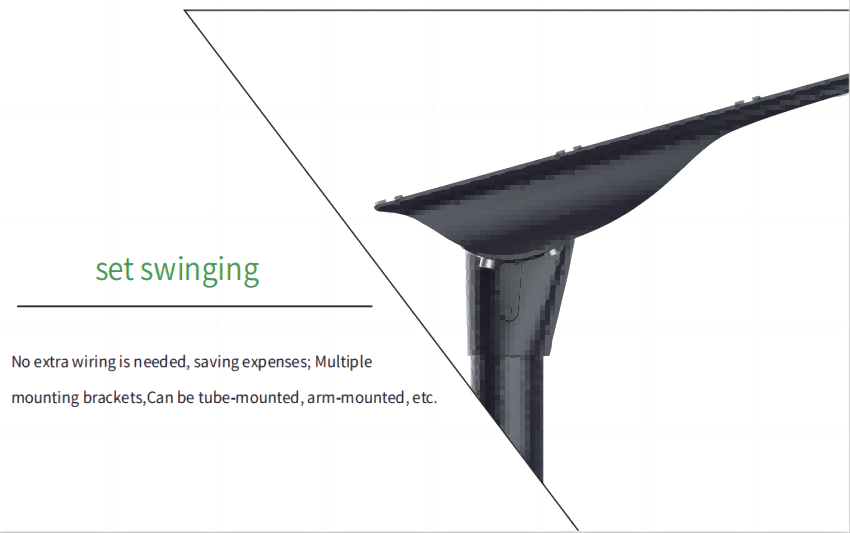

2.No additional wiring is required, saving costs, multiple mounting brackets can be tube mounted.

3.High light transmission PC protective cover of more than 90%, high light efficiency.

4.High charging efficiency up to 95%. MPPT controller is automatically adjust the output power according to weather changing.

5.Using Lumileds SMD 2835 led chips, high luminous efficiency up to 180lm/w, low luminous decay, high energy-saving.

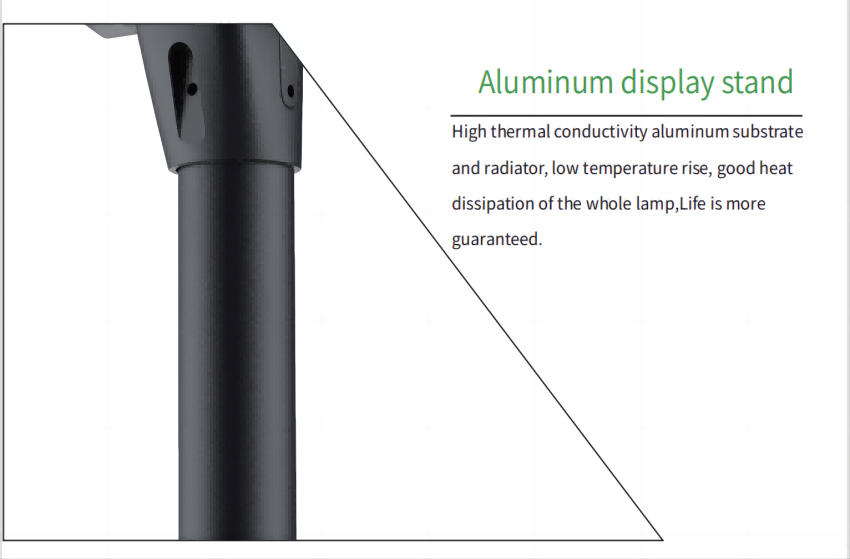

6.High thermal conductivity aluminum substrate and radiator, low temperature rise, good heat dissipation of the whole lamp, and more guaranteed life.

7.3 Years warranty guarantee, lifetime cost and priec maintenance.

Product Model	GH-LKF-20W	GH-LKF-30W	GH-LKF-40W
Monocrystalline solar panel	18V/40W	18V/50W	18V/65W
Battery	Lithium LifePO4 3.2V 36AH	Lithium LifePO4 3.2V 76AH	Lithium LifePO4 3.2V 100AH

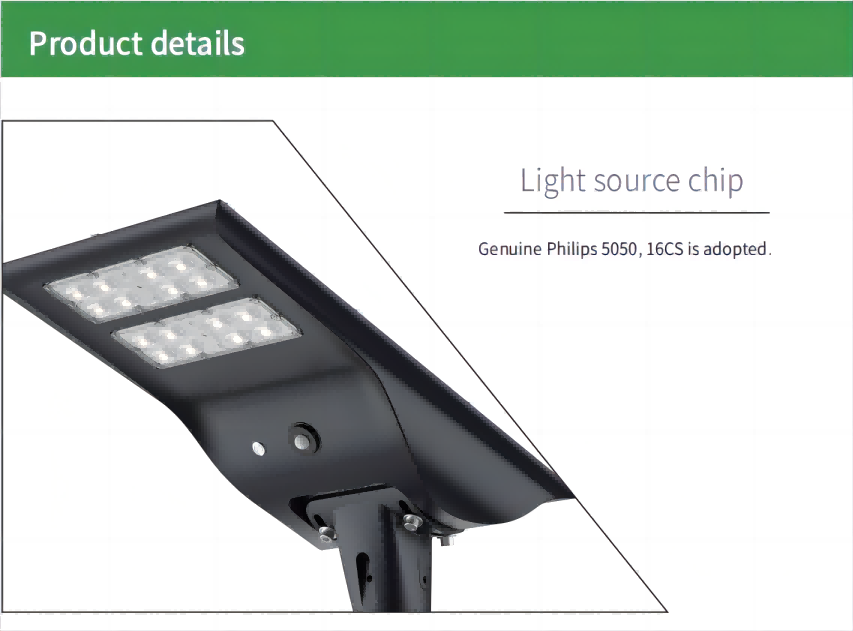

LEDs Chips	Philips 5050
Material	Die-casting aluminum
Luminous Efficiency	200lm/w
Controller	MPPT boost constant current integrated control
Lighting Mode	Microwave induction+segmented time control+intelligent control
Charge Time	Supporting 5-7 rainy days
Discharge Time	Sunshine lasts for 6 hours
Working Hours	>50,000 hours
IP Grade	IP65
Warranty	3 years
Product Size	760430150mm	910430150mm	1160430150mm

Country Road
Front Yard
Parking Lot
High Way
Rural Road
Viaducts
