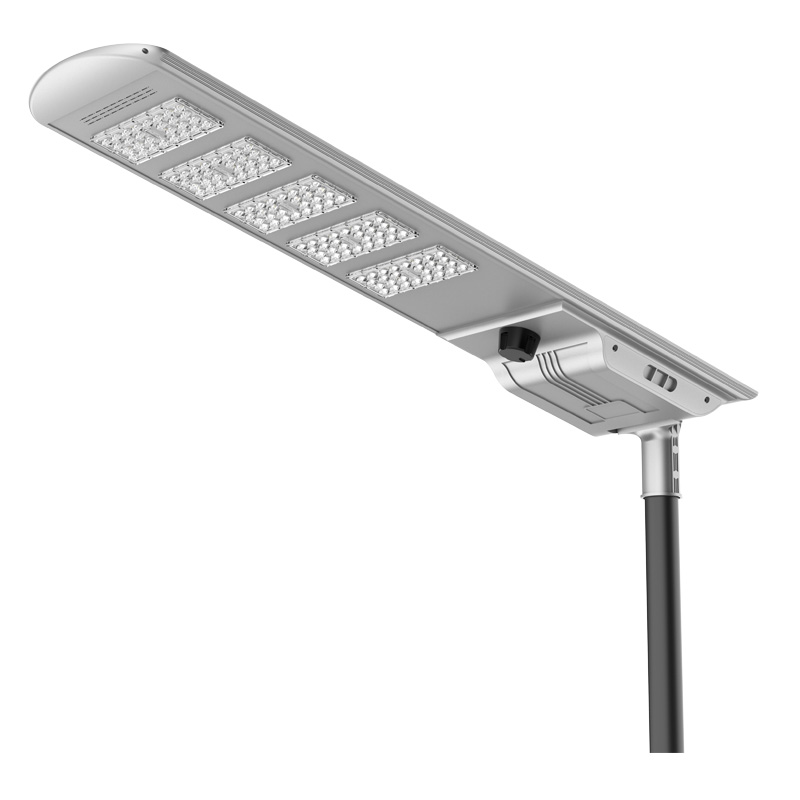

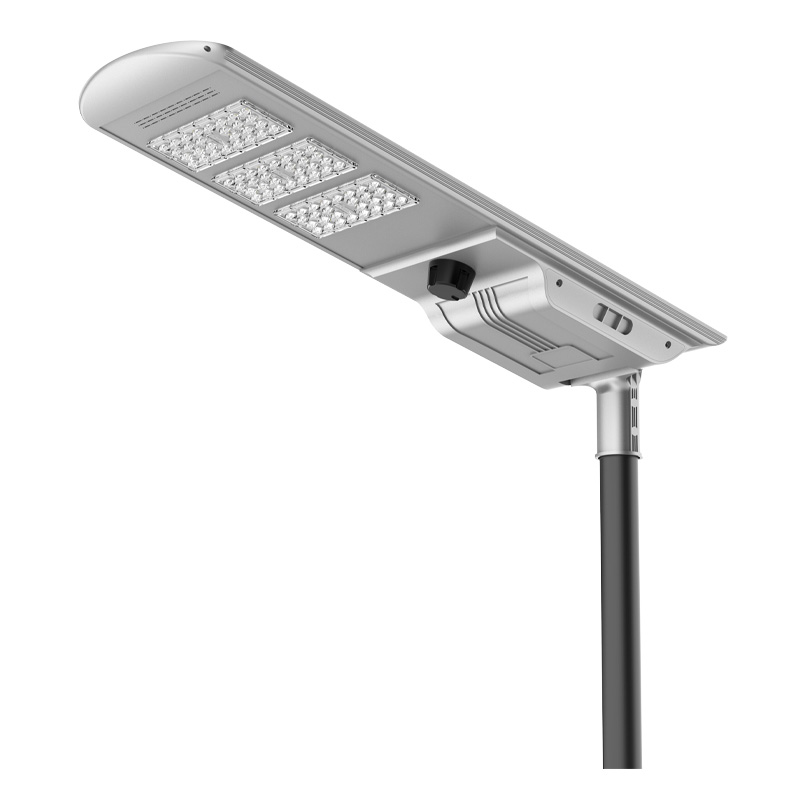

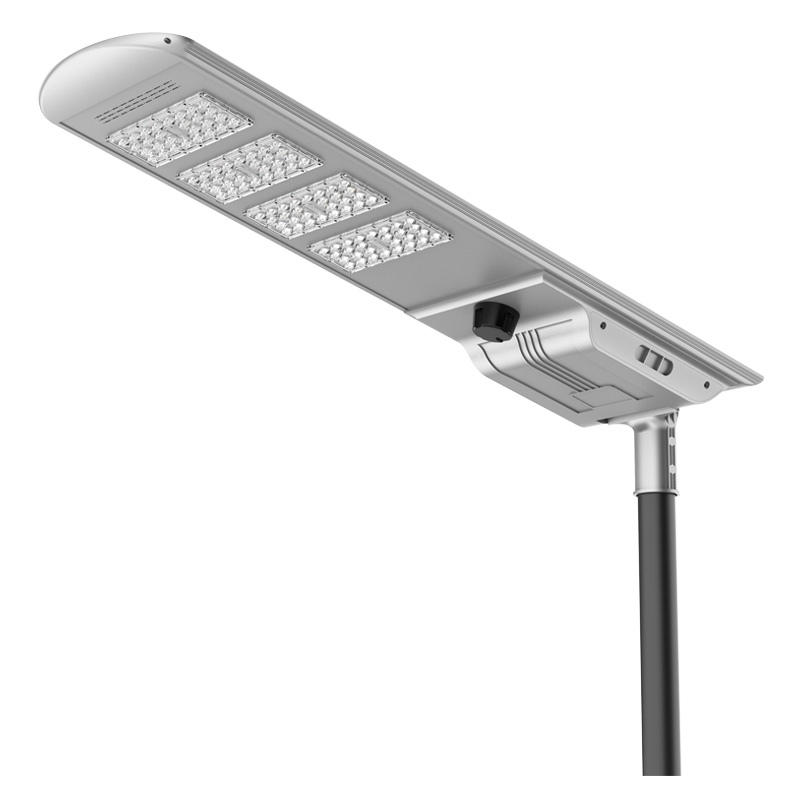

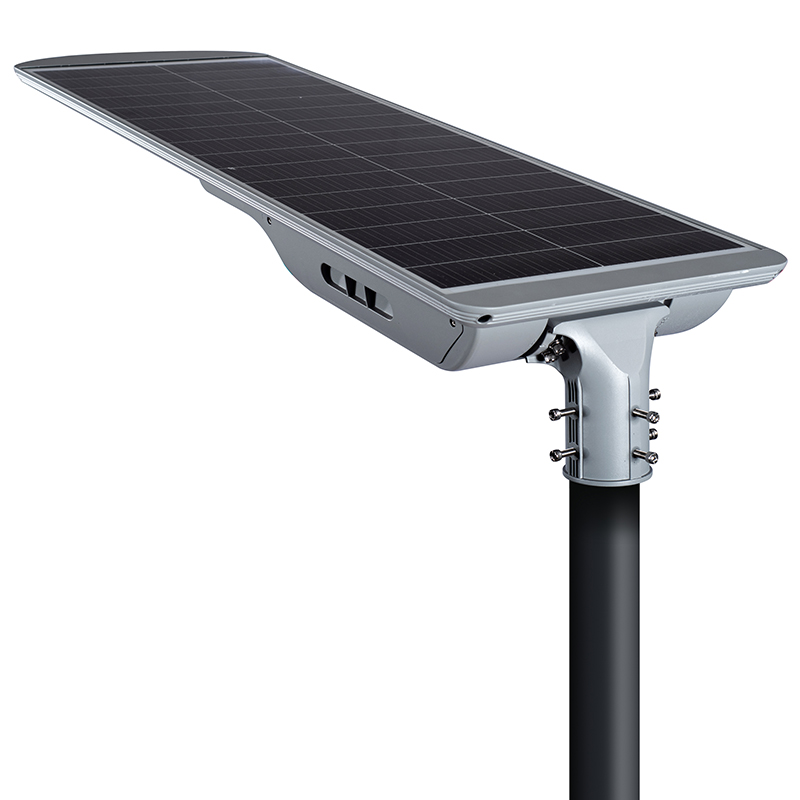

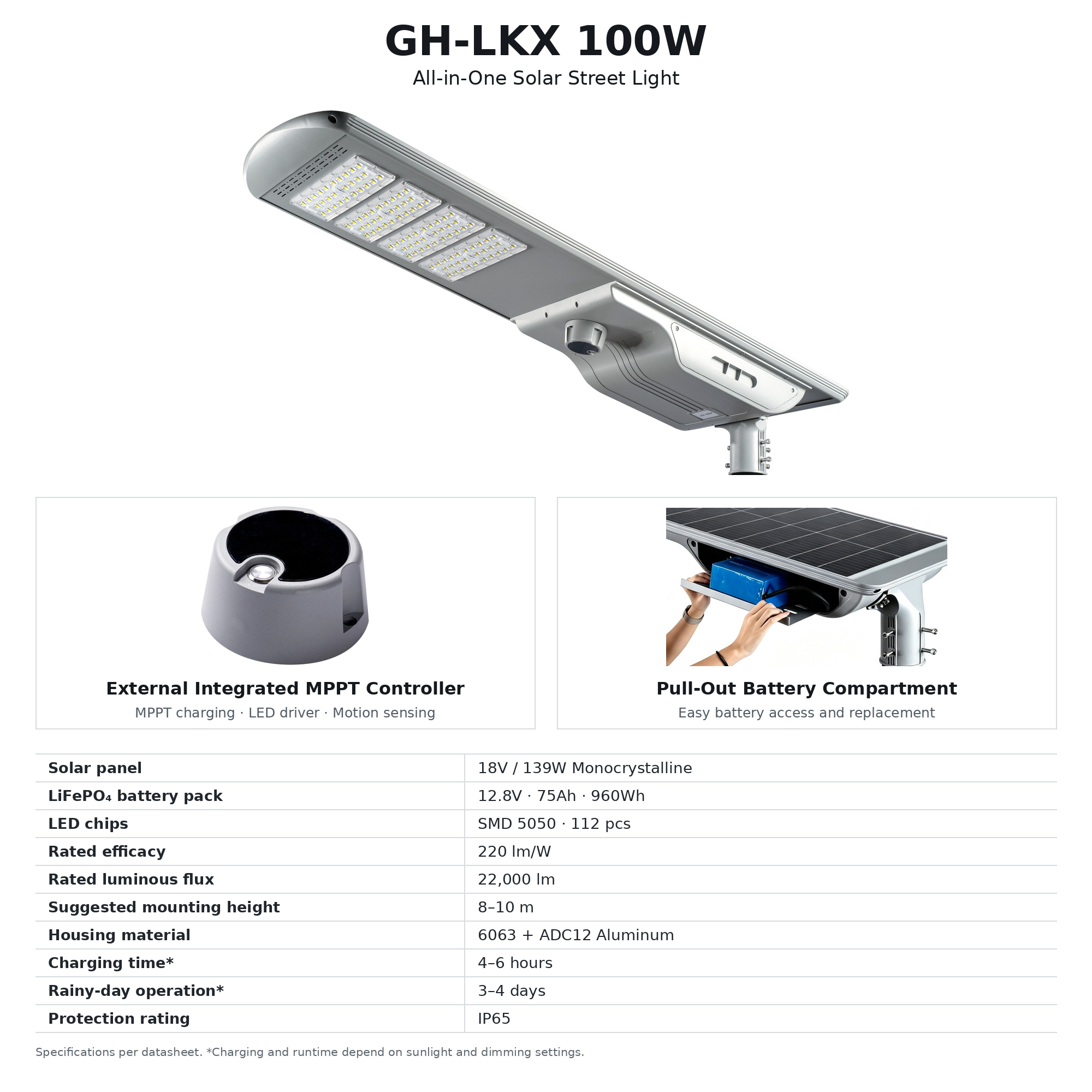

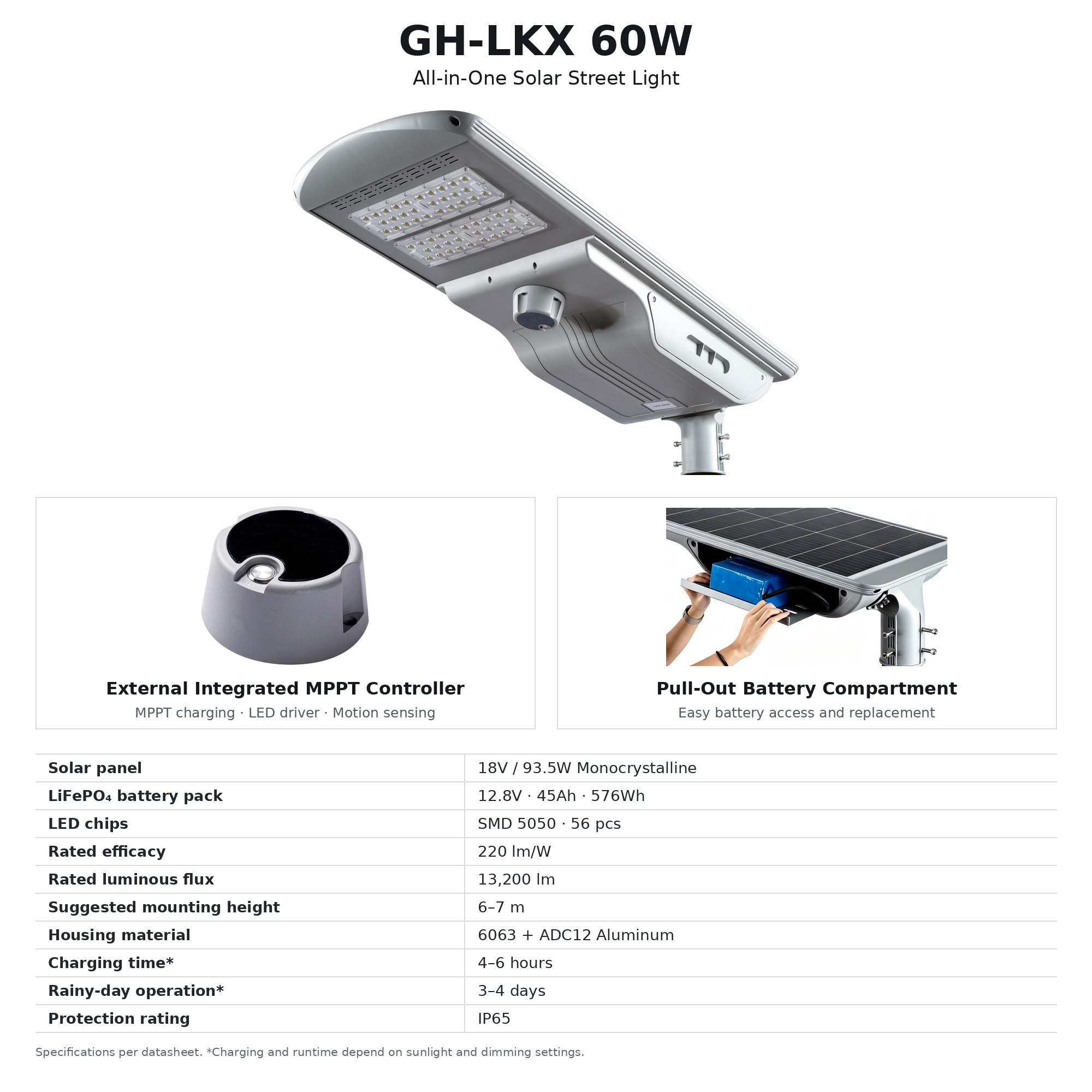

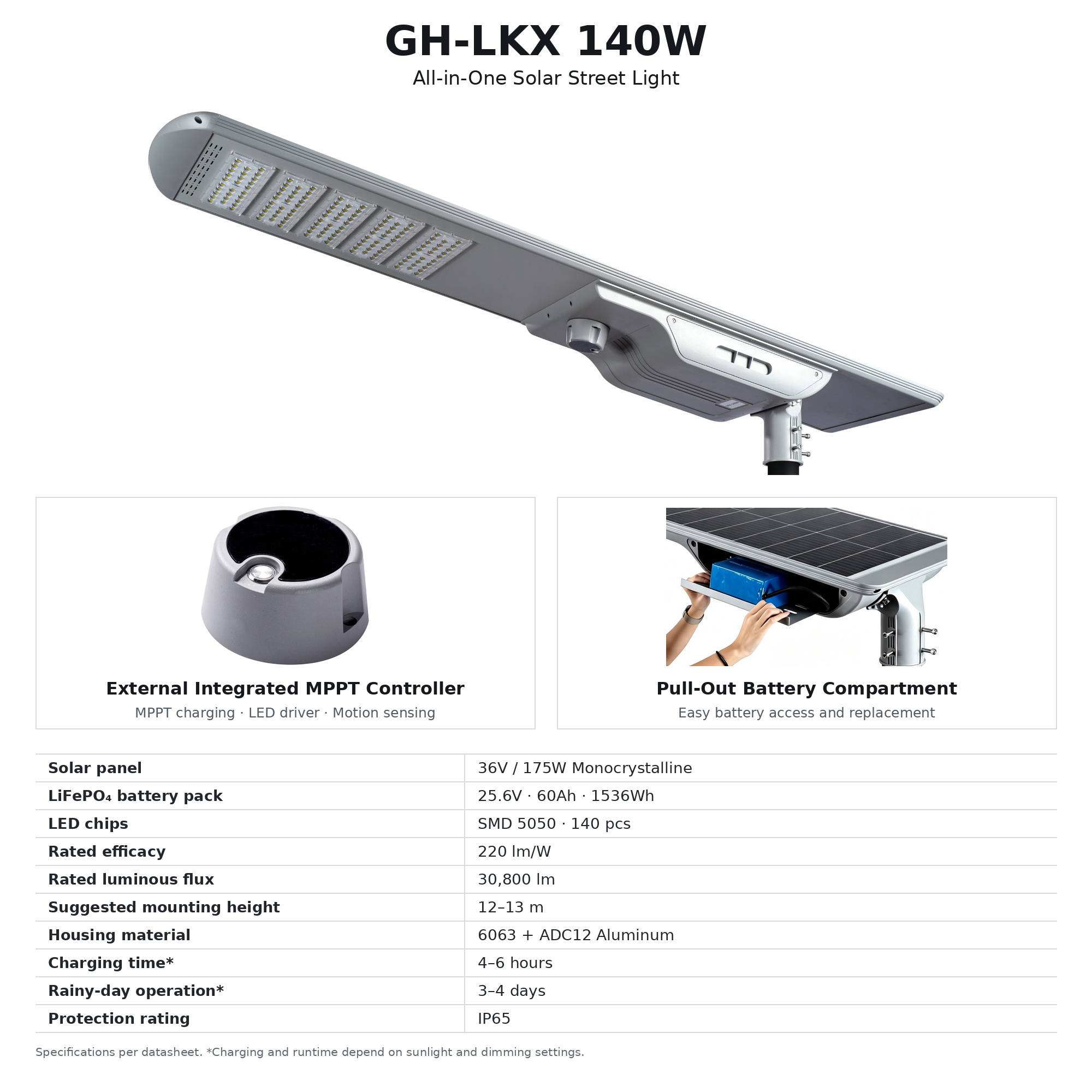

GH-LKX | 60W–140W All-in-One Solar Street Light

GH-LKX is Guohui’s premium 60W–140W all-in-one solar street light for highways, urban roads and government projects, featuring an external MPPT controller and pull-out LiFePO4 battery compartment for easy maintenance.

Power(W):60W,80W,100W,120W,140W
LED Chip: Ten-core SMD5050
Light Efficiency:220 lm/w
Luminous Flux:13200-28600 Lumens
CCT:1700k ~ 6500K
Ra(CRI):80
Protection:IP65
Control method:Microwave Motion Sensor + Multi-Period Time Control
Lifespan(hour):50000
Certificate:CE, RoHS,IEC,LM79, LM80
Warranty: 3~5 Years

Request A Free Quote

Description
Video

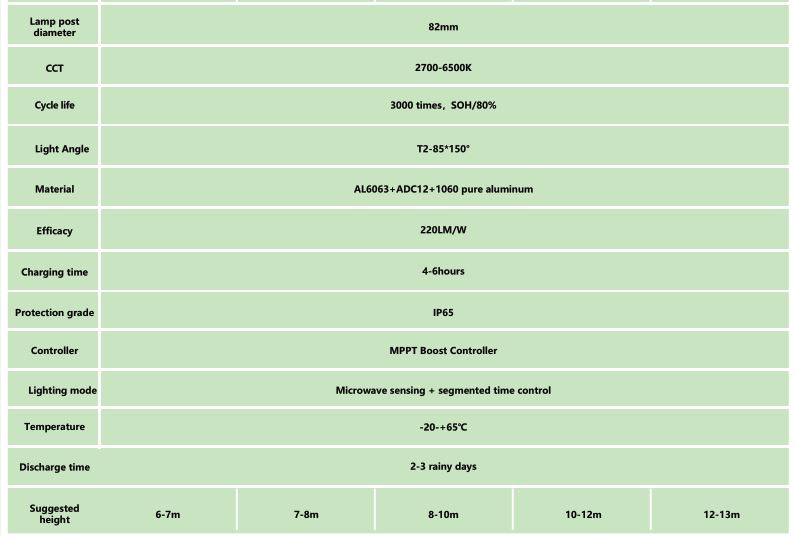

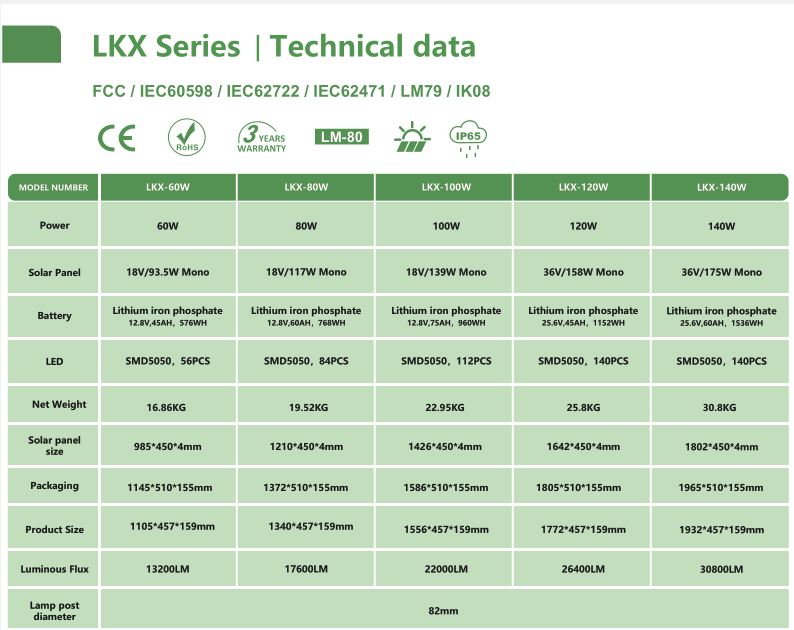

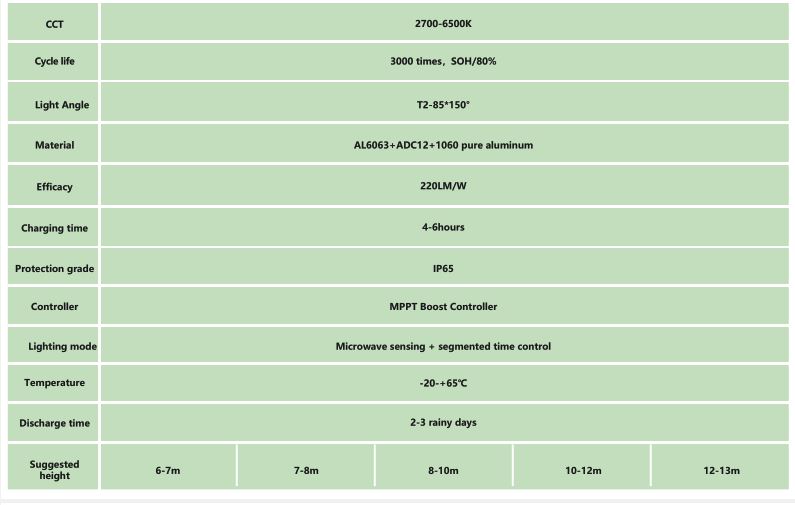

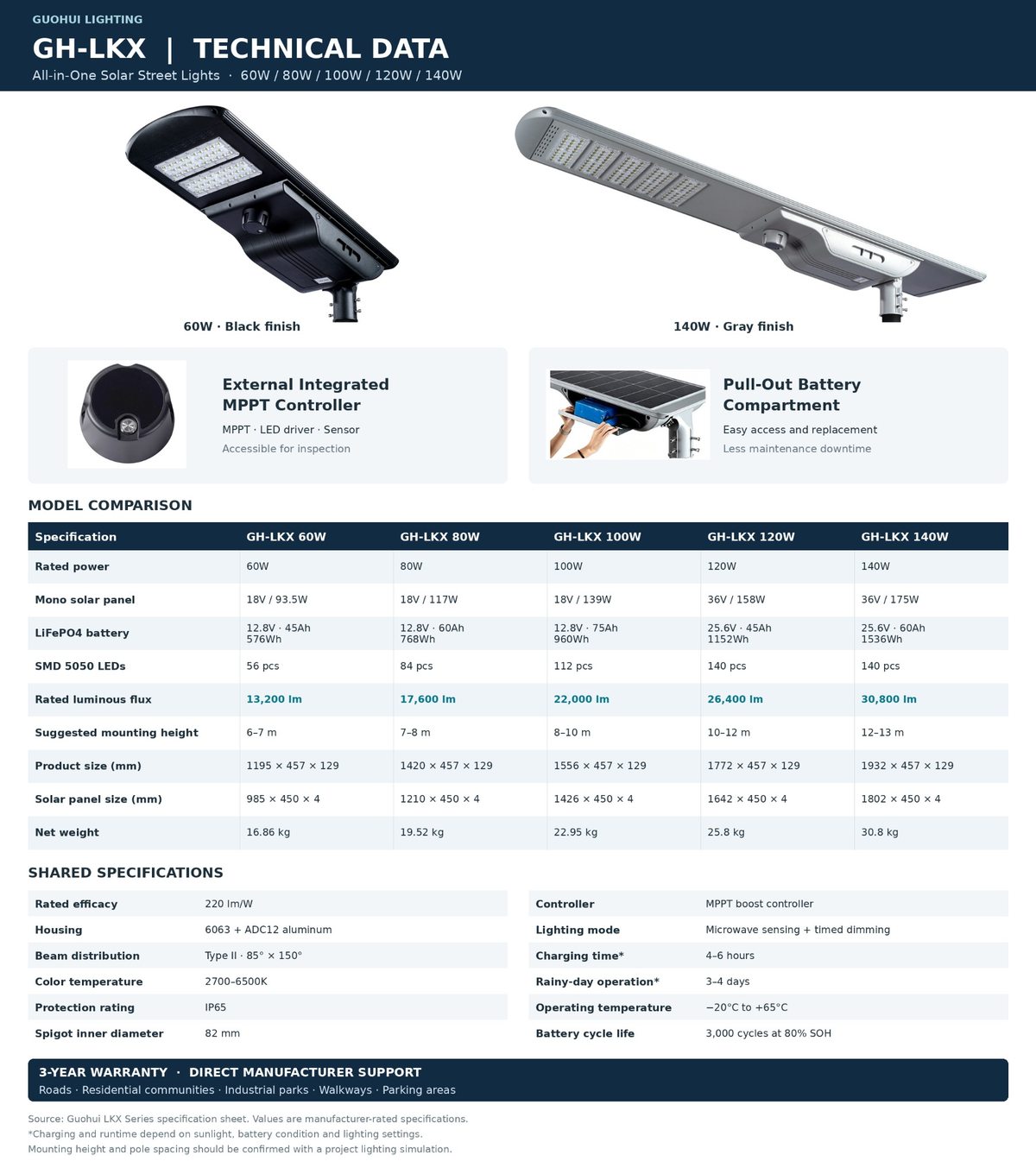

Data sheet
Optic & Dialux
Application

GH-LKX: Premium Solar Street Lighting for Government Projects

The GH-LKX all-in-one solar street light is Guohui Lighting’s premium series, designed for large-scale government and infrastructure projects. Available in 60W–140W, it delivers a rated light output of 13,200–30,800 lumens for highway lighting, urban roads and other demanding applications.

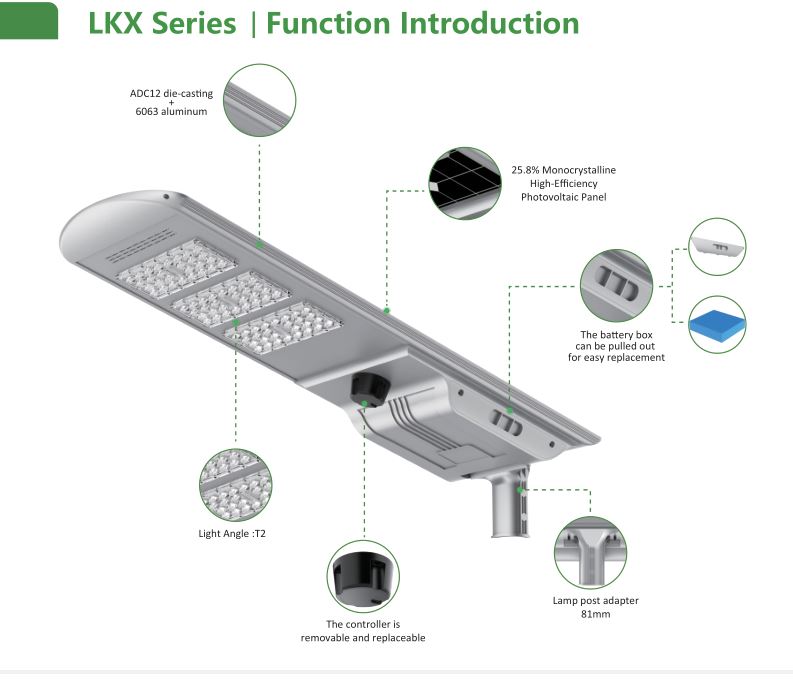

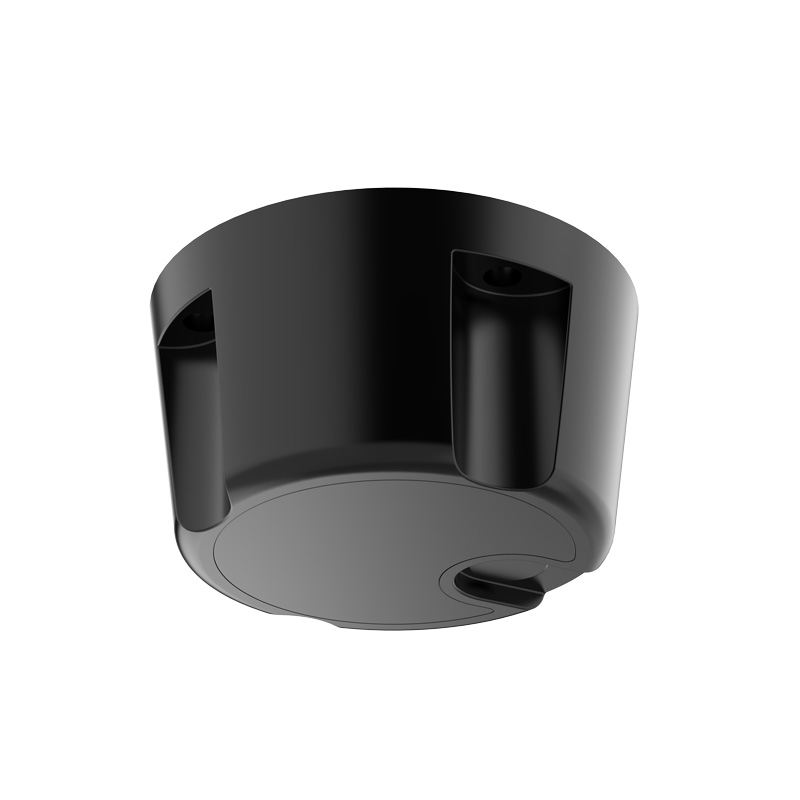

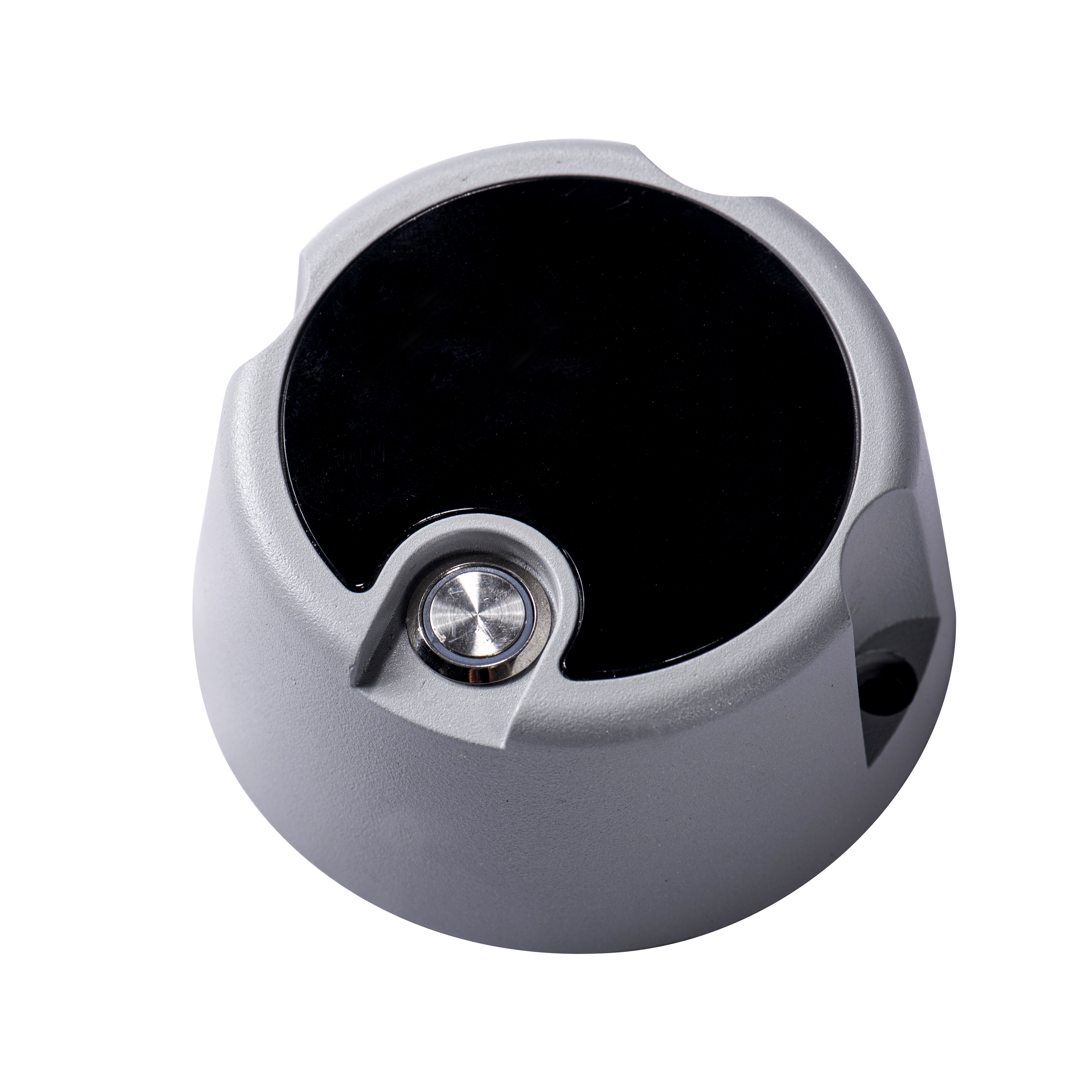

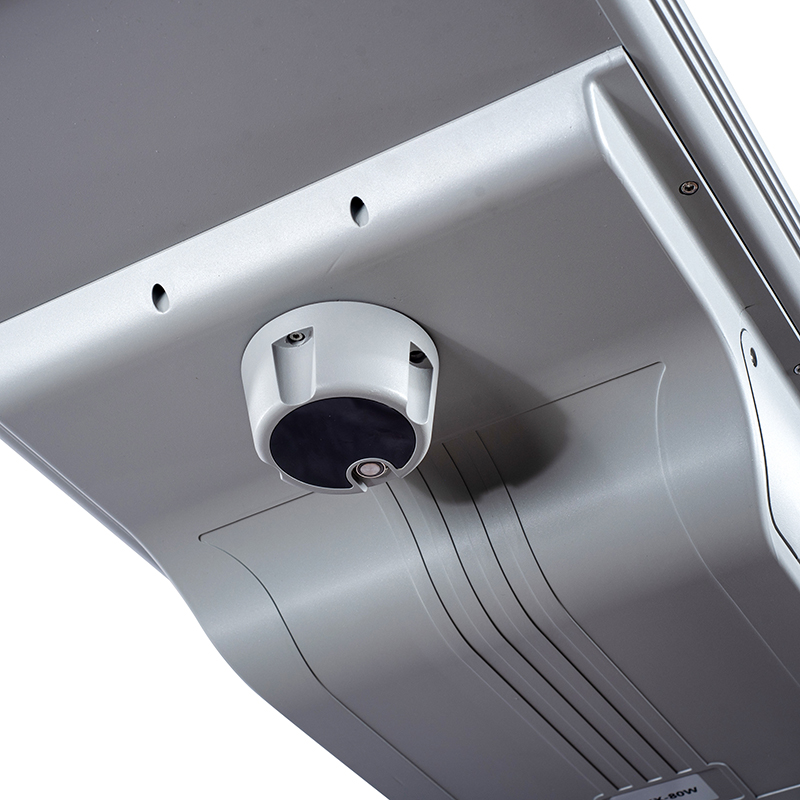

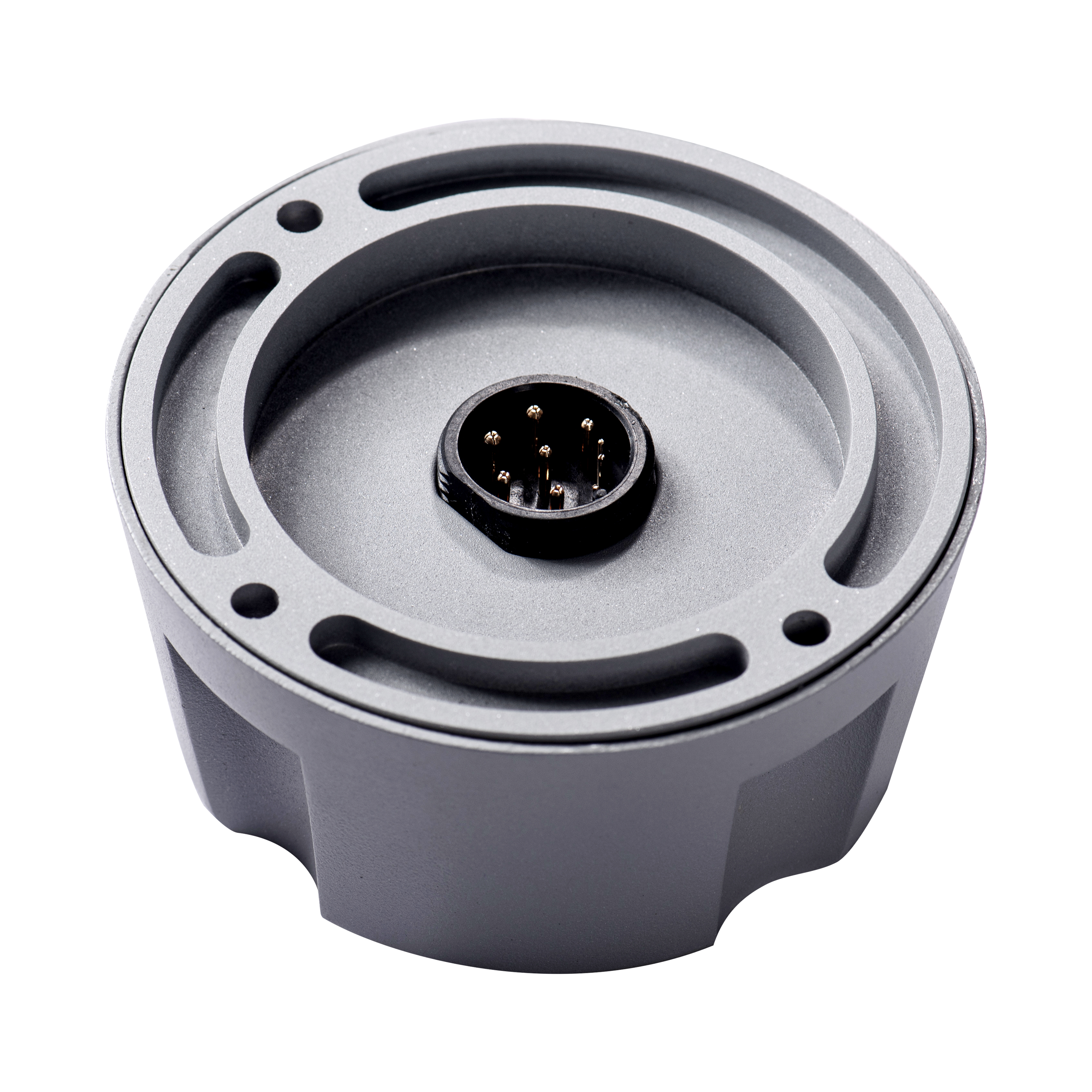

External Integrated MPPT Controller

The external controller combines MPPT charging, LED driving, microwave sensing and fault indication. Its accessible position simplifies inspection and servicing while helping reduce exposure to heat buildup inside the lamp—an advantage for projects in hot climates.

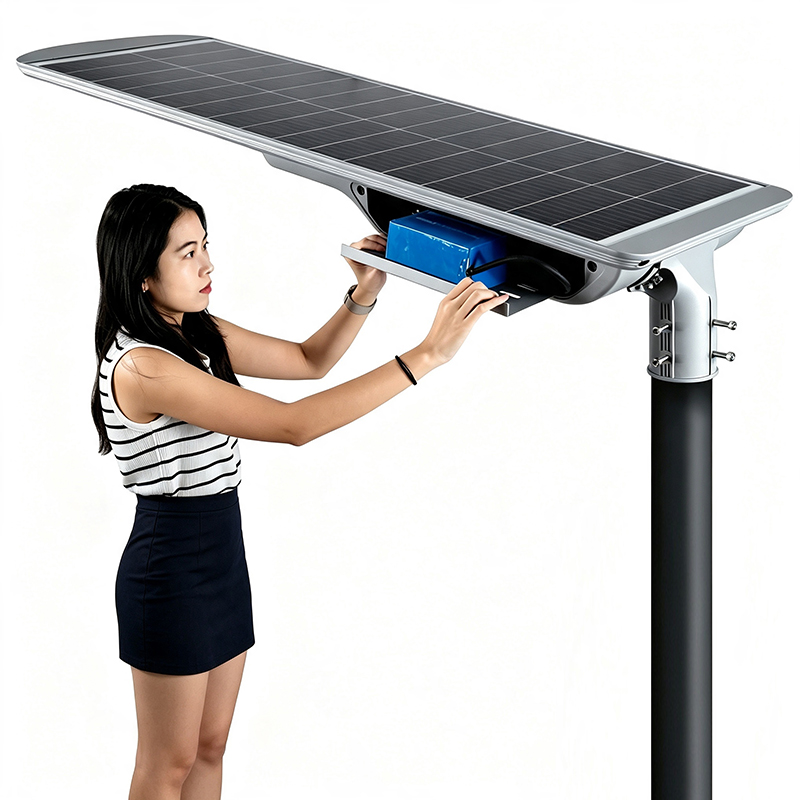

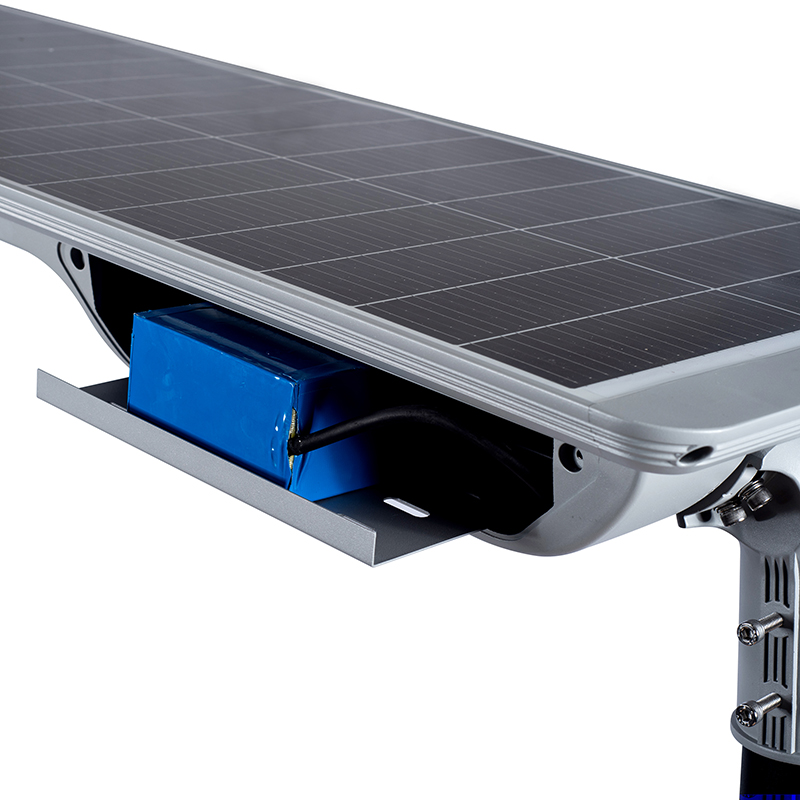

Pull-Out Battery Compartment

The drawer-style LiFePO4 battery compartment makes battery access and replacement easier. For large installations, faster servicing helps reduce downtime, maintenance labor and long-term operating costs.

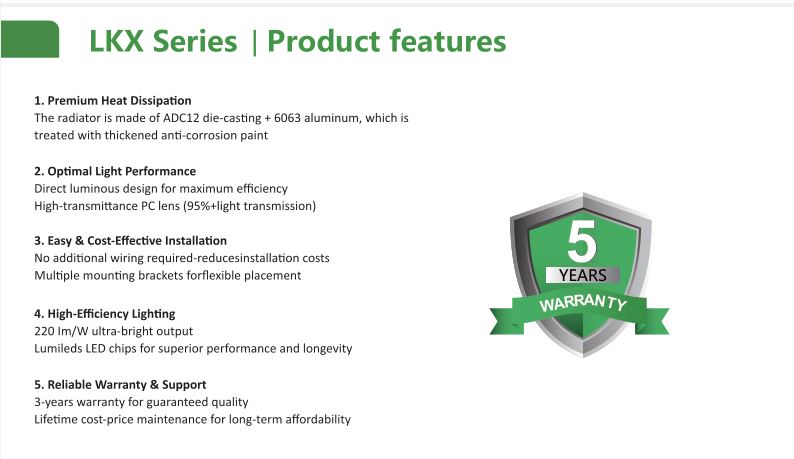

High Output & Durable Construction

SMD 5050 LEDs provide a rated efficacy of 220 lm/W, with Type II light distribution for roadway applications. A 6063 aluminum and ADC12 die-cast housing, anti-corrosion coating and IP65 protection support outdoor operation.

Monocrystalline solar panels, MPPT charging and programmed dimming work together to manage energy for nighttime illumination.

Built for Infrastructure Applications

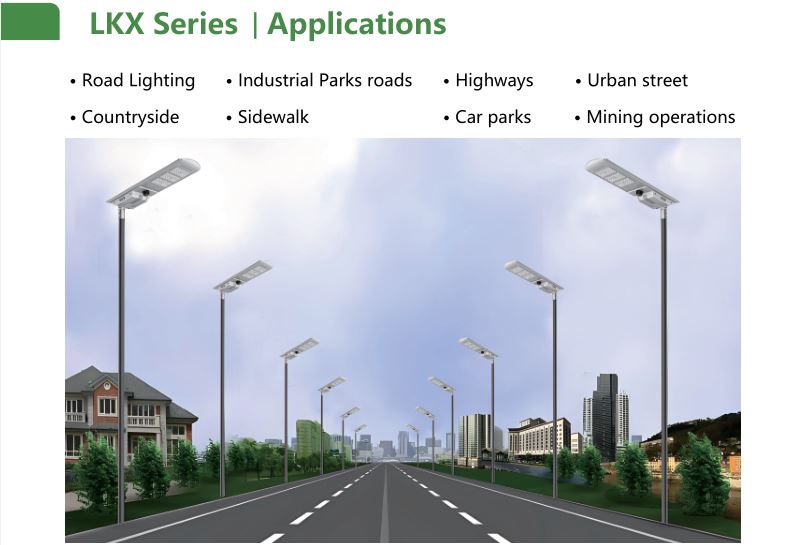

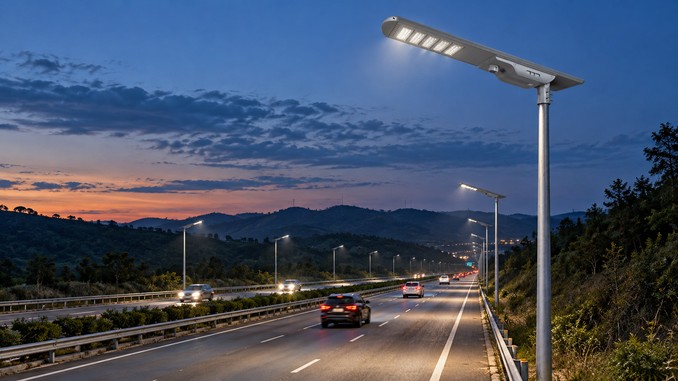

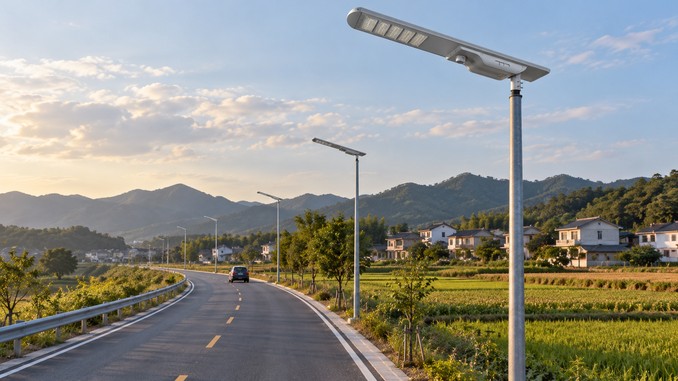

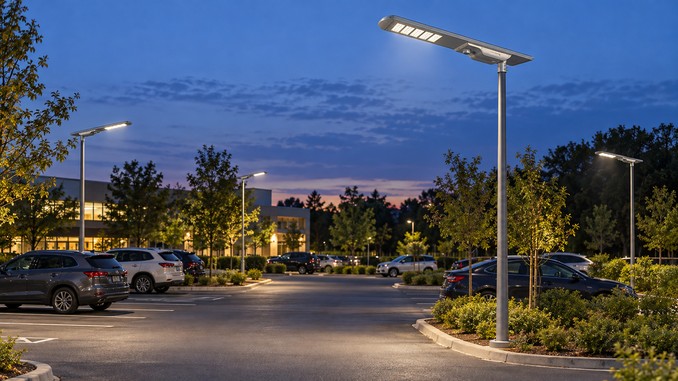

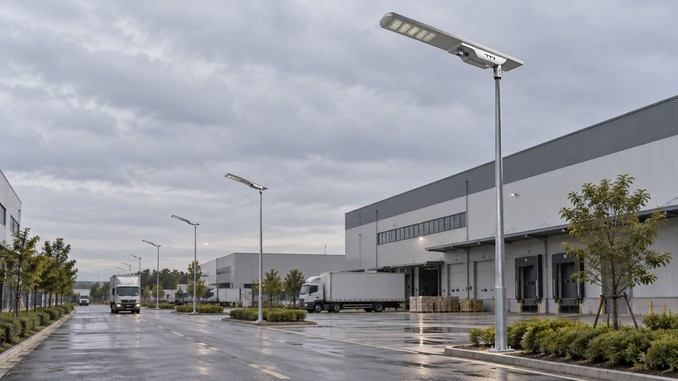

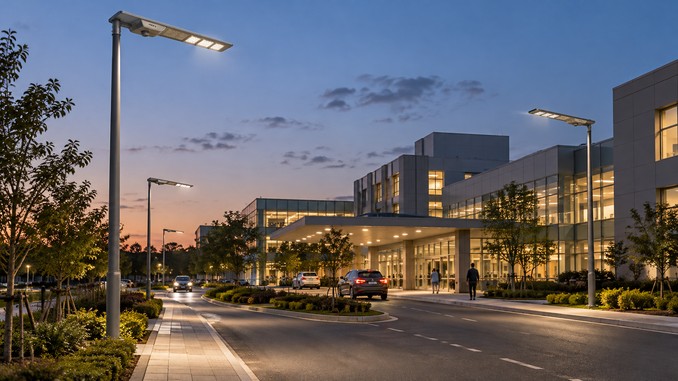

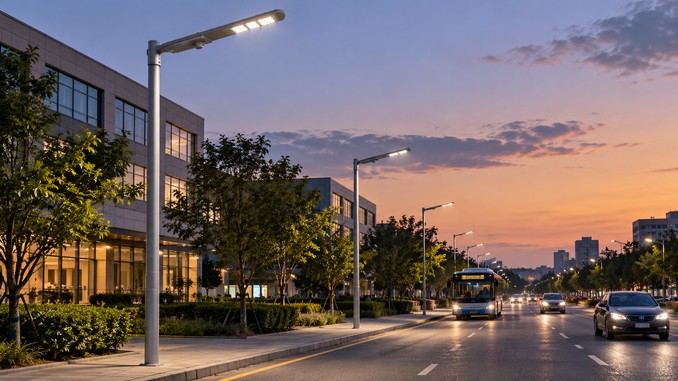

GH-LKX is designed for solar highway lighting, urban street lighting, municipal roads, industrial park roads and large parking areas. Recommended mounting heights range from 6 to 13 meters, depending on the model.

Guohui Lighting supports project procurement with DIALux simulations, technical specifications, test documentation, OEM/ODM services and a three-year warranty.

Contact us for a GH-LKX configuration tailored to your road lighting project.

Specifications are manufacturer-rated. Final configuration and pole spacing depend on project lighting requirements and local solar conditions.
