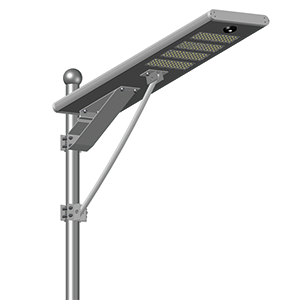

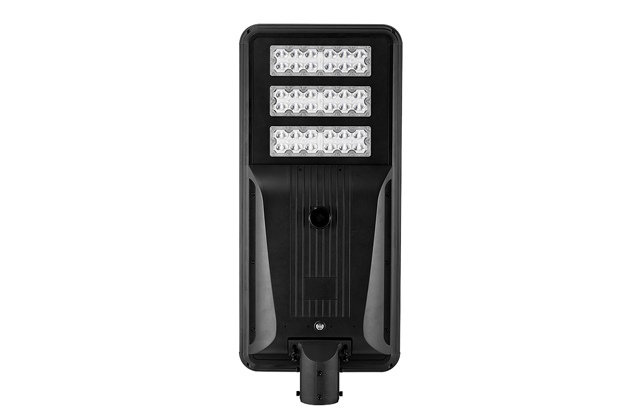

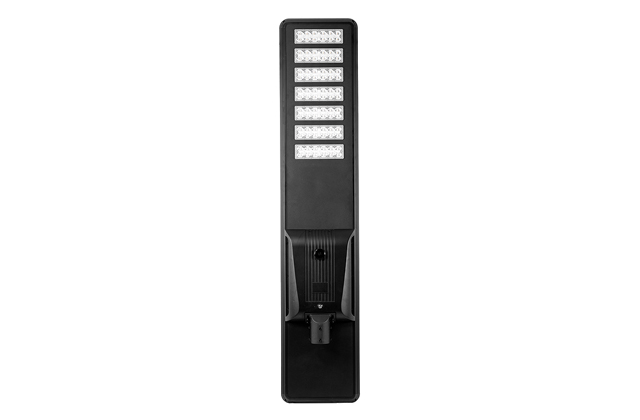

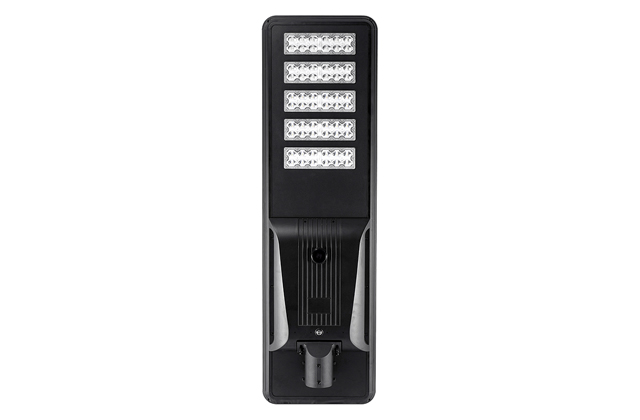

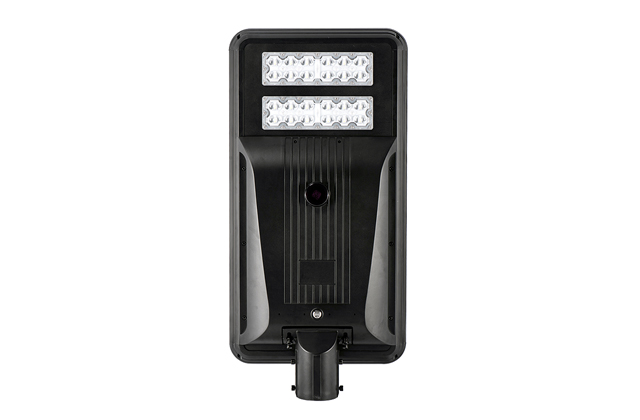

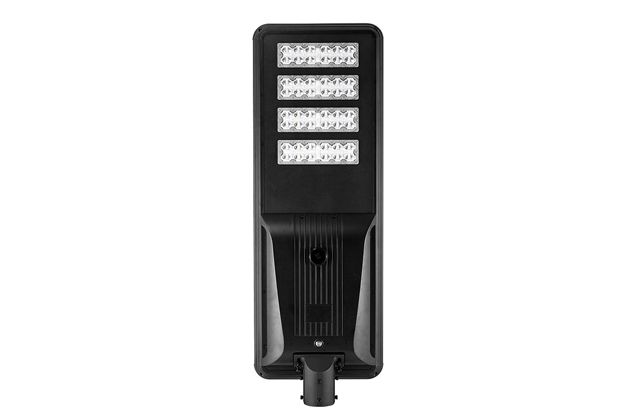

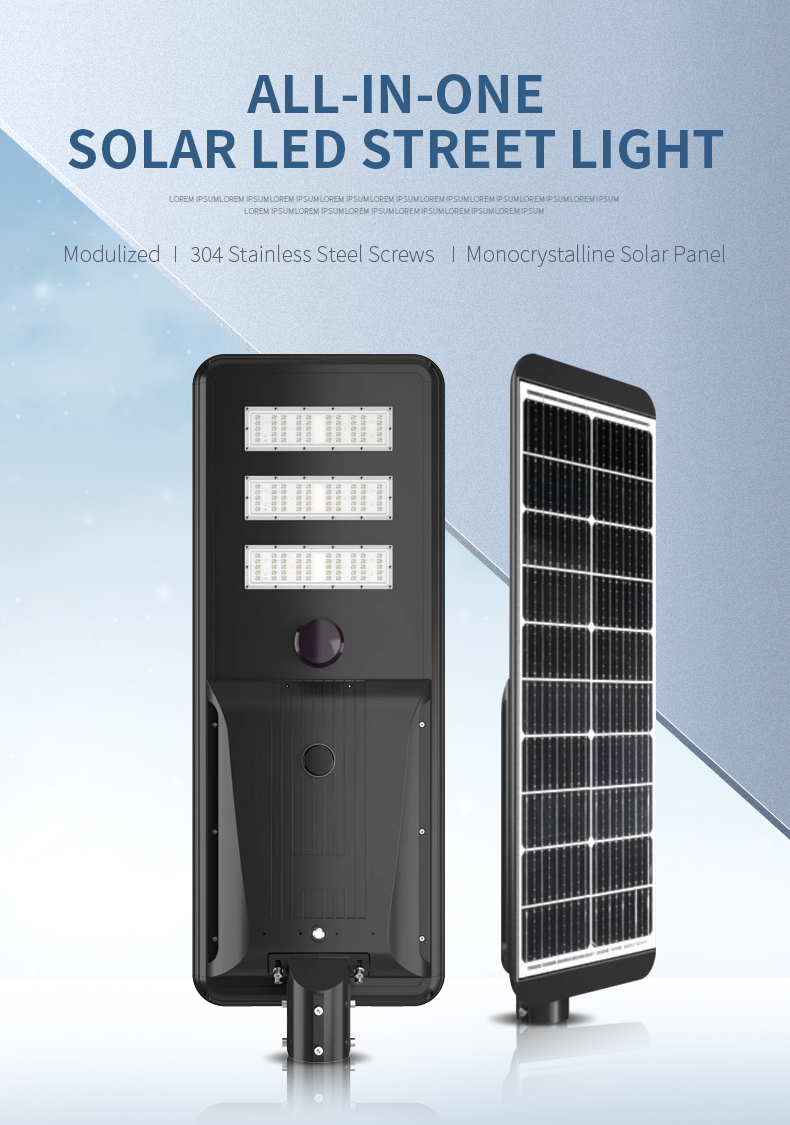

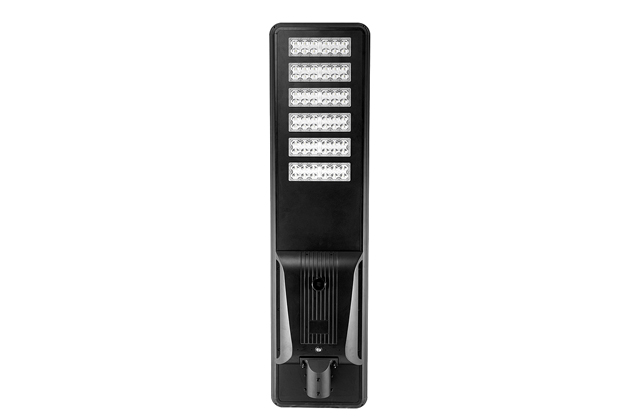

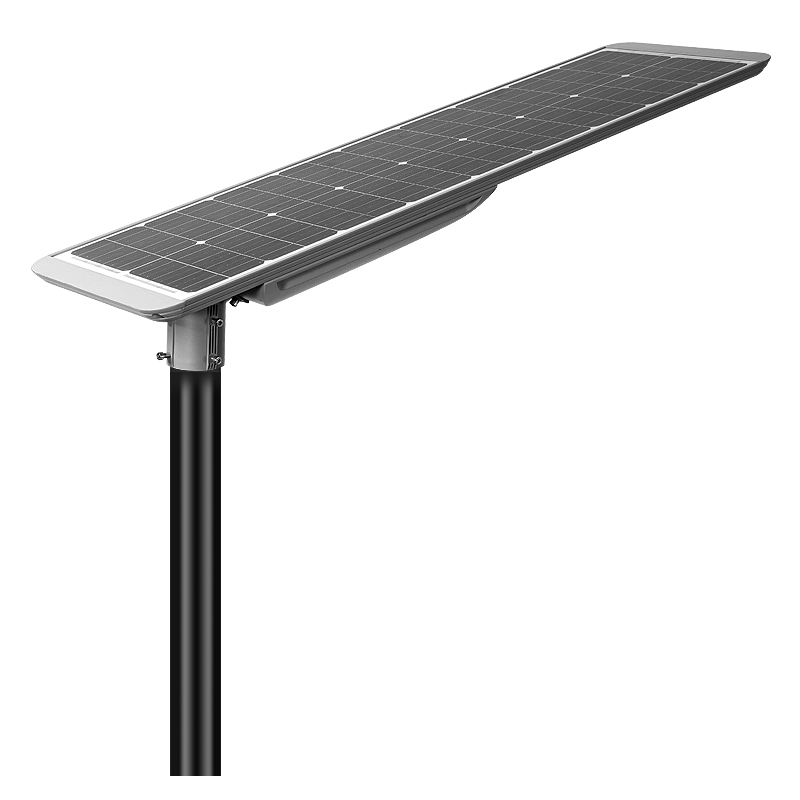

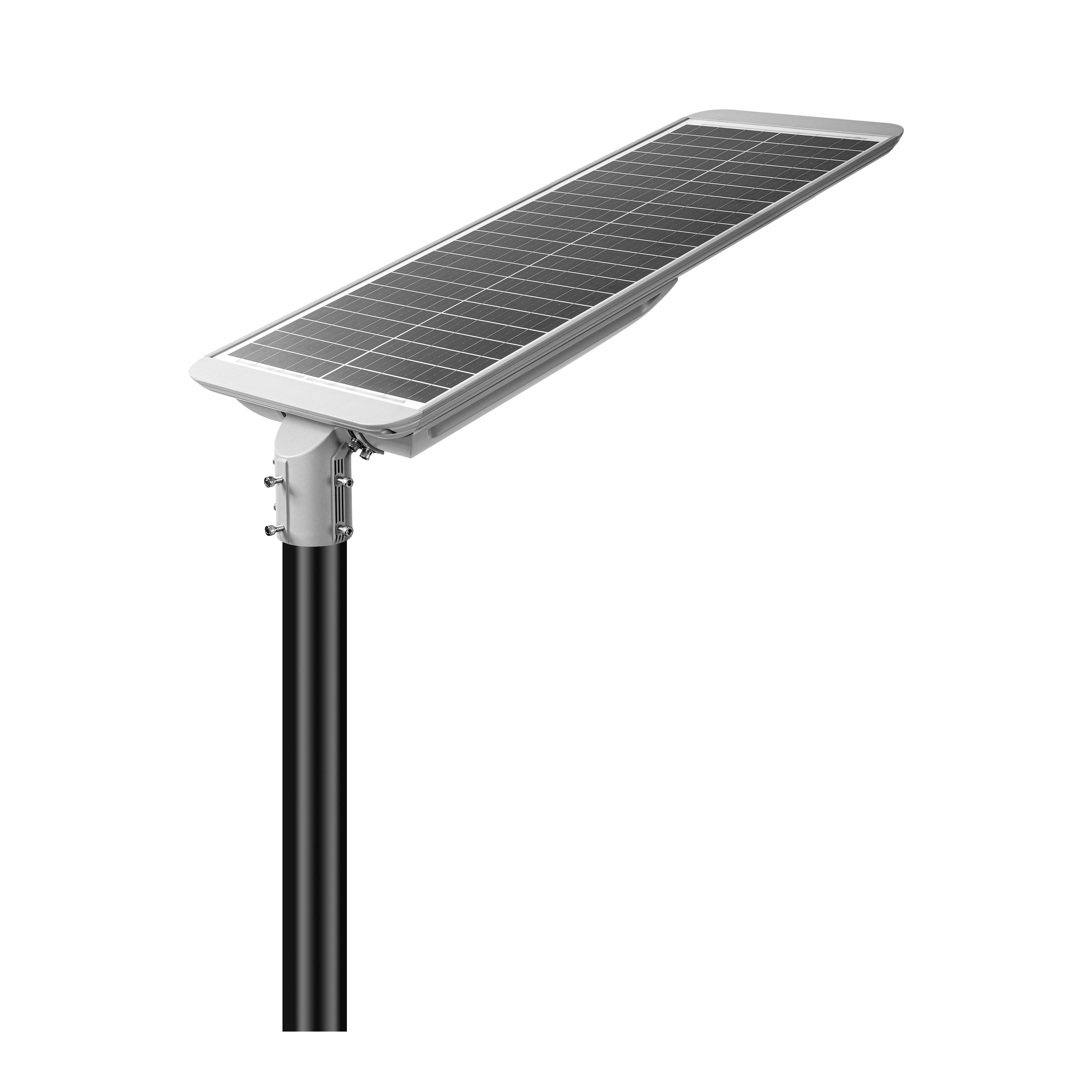

GH-LKH Series 30-120W

Proven Project Performance<br/> High Brightness LED<br/> Quick Installation & Low Maintenance <br/> Combines Functionality with Attractive Design <br/> Stable Performance Under Harsh Outdoor Conditions

  • Power(W):30W~120W
  • LED Chip: Four-core SMD3030
  • Light Efficiency:200 lm/w
  • Luminous Flux:6000~24000 Lumens
  • CCT:2700k ~ 6500K
  • Ra(CRI):80

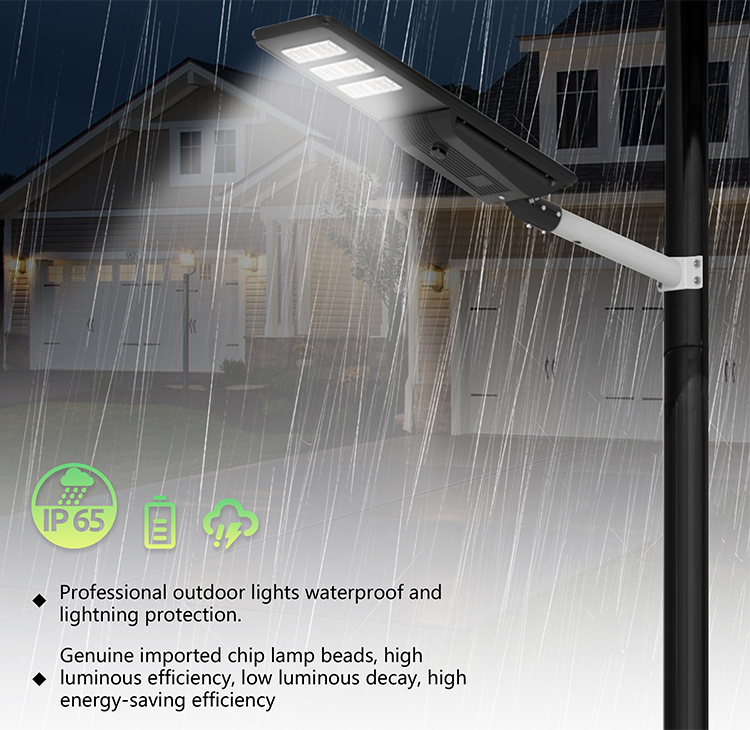

  • Protection:IP65
  • Control method:Human body induction + light control
  • Lifespan(hour):50000
  • Certificate:CE, RoHS,IEC,LM79, LM80
  • Warranty: 3~5 Years
Request A Free Quote
  • Description
  • Video
  • Data sheet
  • Optic & Dialux
  • Application

GH-LKH Core Selling Points & Advantages


1. Proven Track Record in Mega-Scale Infrastructure Projects

  • The Ultimate Endorsement: Successfully deployed in multiple international engineering projects, most notably a massive 3-year African Highway Solar Lighting Project (currently in its second successful year).

  • Zero-Defect Quality: Operational data shows zero reported quality issues under harsh outdoor conditions, proving its long-term reliability and stability in high-stakes municipal projects.


2. Private Mold Design (Exclusive Competitive Edge)

  • Unique Market Positioning: As a proprietary private mold design from Guohui Lighting, the GH-LKH protects B2B distributors, wholesalers, and contractors from fierce price wars associated with generic public molds, offering higher profit margins and brand exclusivity.

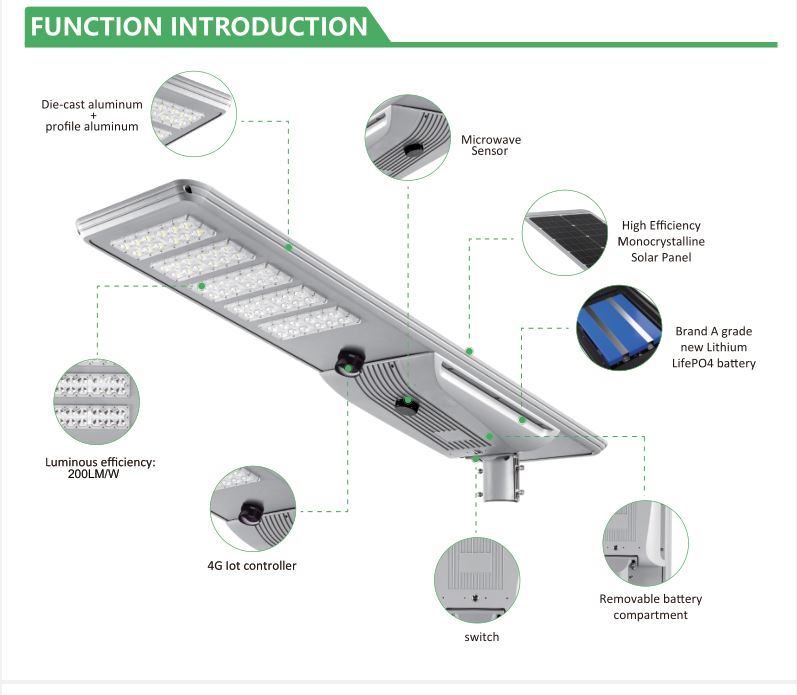

3. Tri-Alloy Engineering: Superior Ruggedness & Thermal Management

The entire housing is engineered using full aluminum, precision-optimized with three distinct aluminum alloy materials based on structural and thermal needs:

  • ADC12 Die-Casting Aluminum: Provides high structural density, exceptional impact resistance, and long-term durability against harsh weather elements.

  • One-Piece Heat Sink Technology: Features an integrated, high-efficiency heat dissipation system that rapidly cools the LED and electrical compartments, significantly extending the lifespan of the entire fixture.


4. Vertically Integrated Battery Production (100% Quality Control)

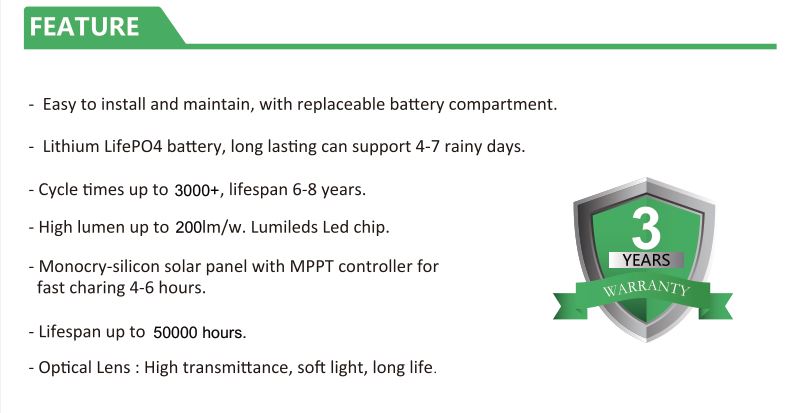

  • In-House LiFePO4 Battery Packs: Unlike competitors who outsource volatile battery components, Guohui Lighting manufactures its own Lithium Iron Phosphate (LiFePO4) battery packs.

  • Total Traceability: This vertical integration guarantees 100% controllable quality, unmatched safety, superior cycle life, and consistent discharge performance.


5. Unbeatable Cost-Performance Ratio (B2B Profit Maximizer)

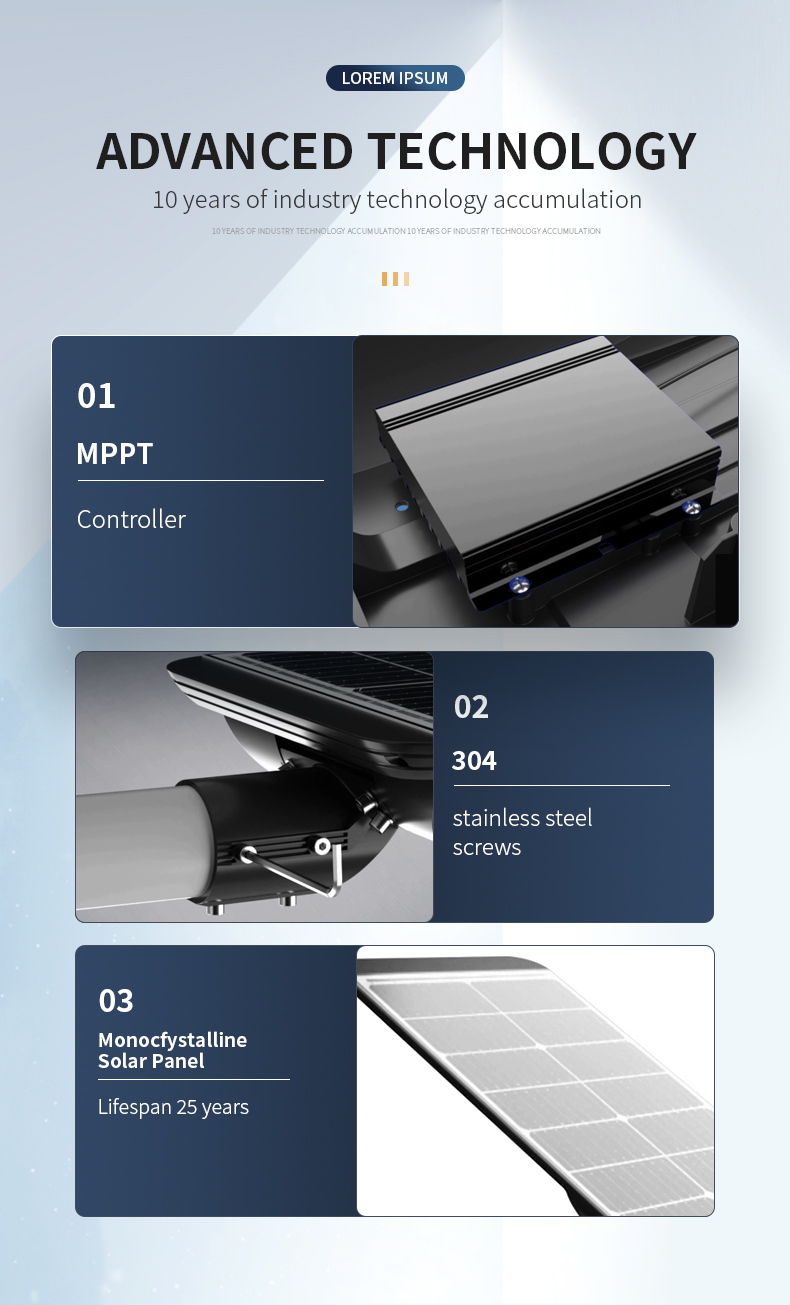

  • Decade-Long Supply Chain Synergy: Leveraging over 15 years of deep supply chain integration, Guohui selected industry-leading, high-ROI components—including advanced MPPT controllers and smart motion sensors.

  • The Perfect Balance: GH-LKH breaks the industry bottleneck by delivering premium aesthetic appeal and high-performance engineering at a highly competitive wholesale price point, making it the ultimate choice for ROI-driven project bidding.

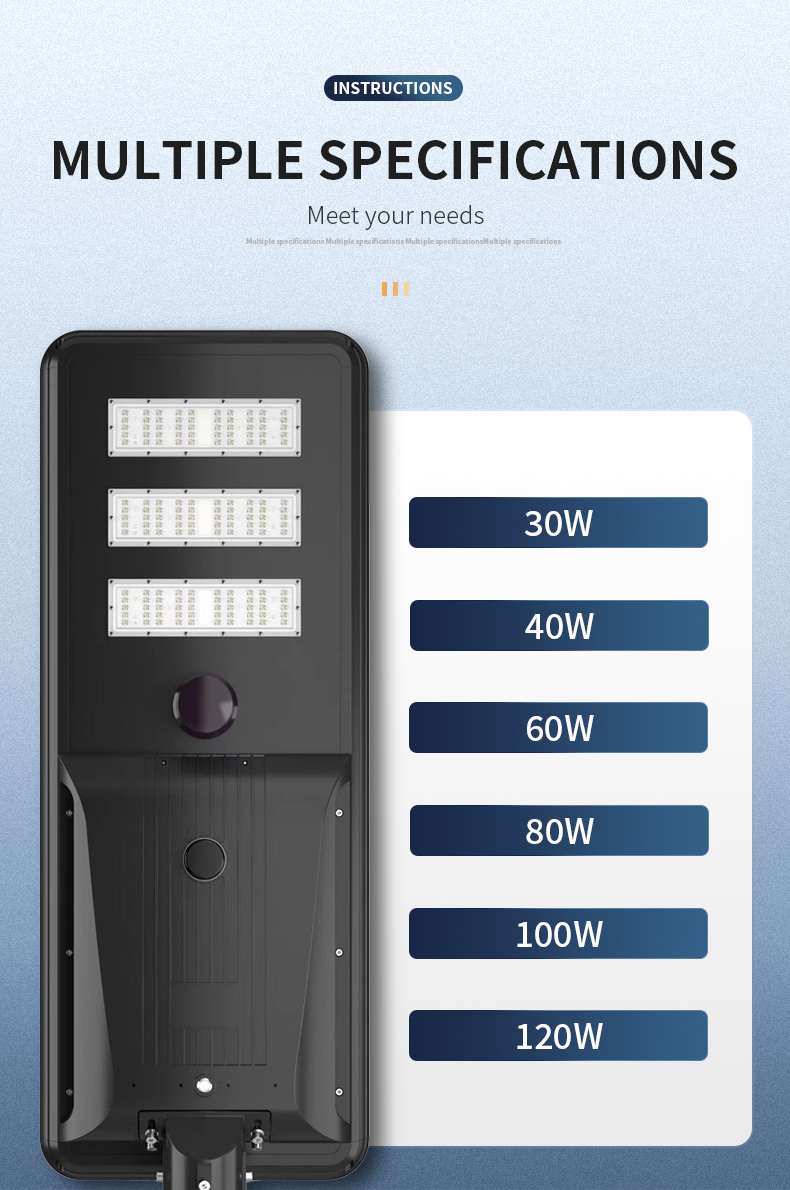

Model number30W40W60W80W100W120W

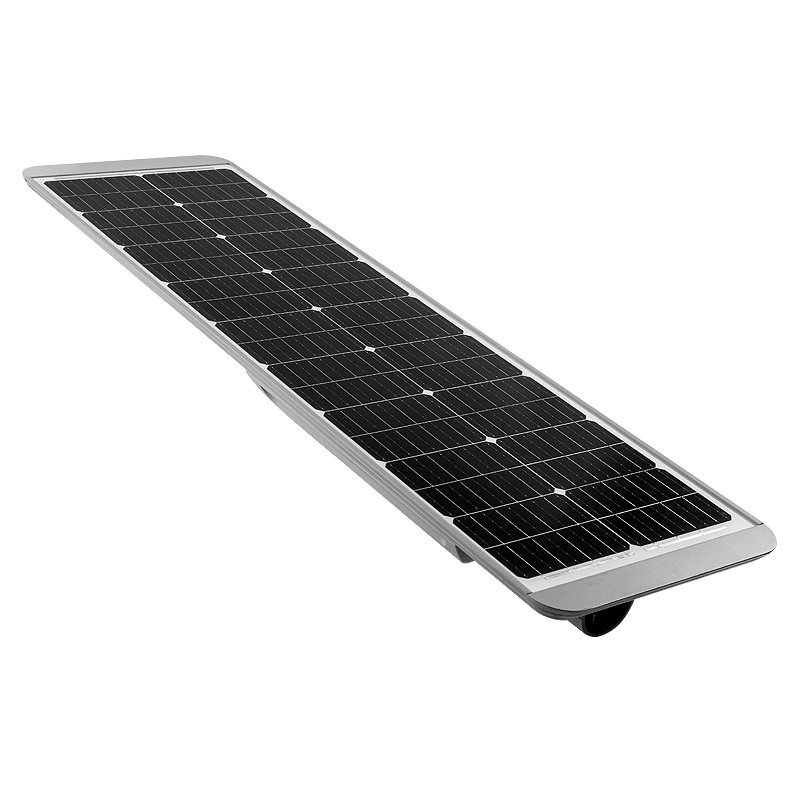

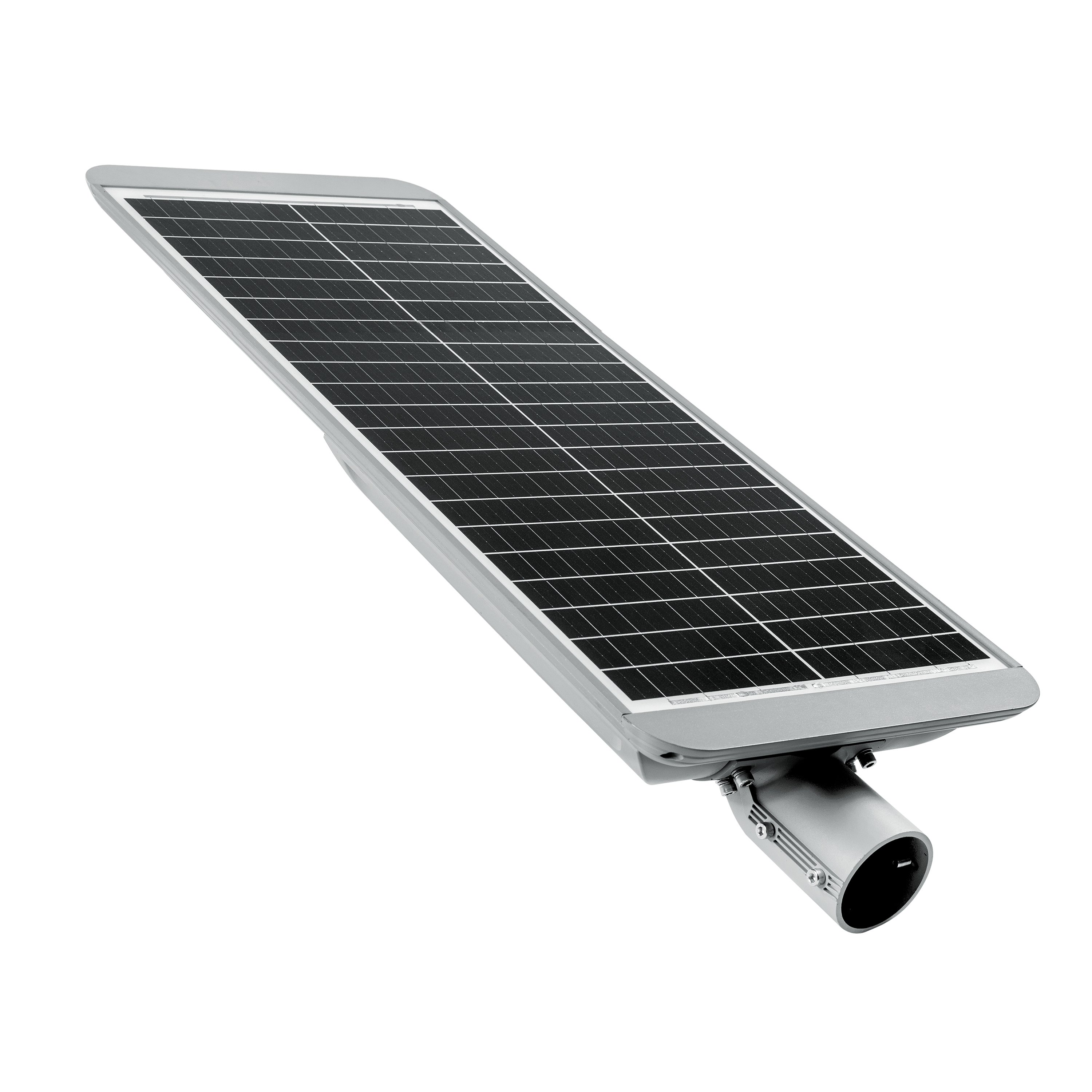

Single cystal solar panel18V/50W18V/60W18V/80W18V/105W18V/130W18V/150W
Solar panel size680*398mm785*398mm1025*398mm1298*398mm1510*398mm1915*398mm
LiFePO4 battery3.2V,72AH3.2V,100AH12.8V 30AH12.8V,45AH12.8V,60AH12.8V,75AH
LED chipSMD 3030, 96PCSSMD 3030, 144PCSSMD 3030, 192PCSSMD 3030, 240PCSSMD 3030, 288PCSSMD 3030, 336PCS

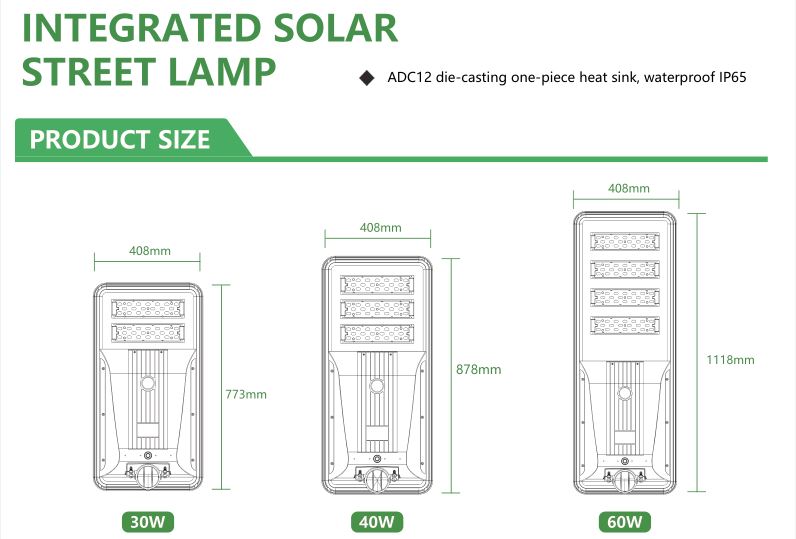

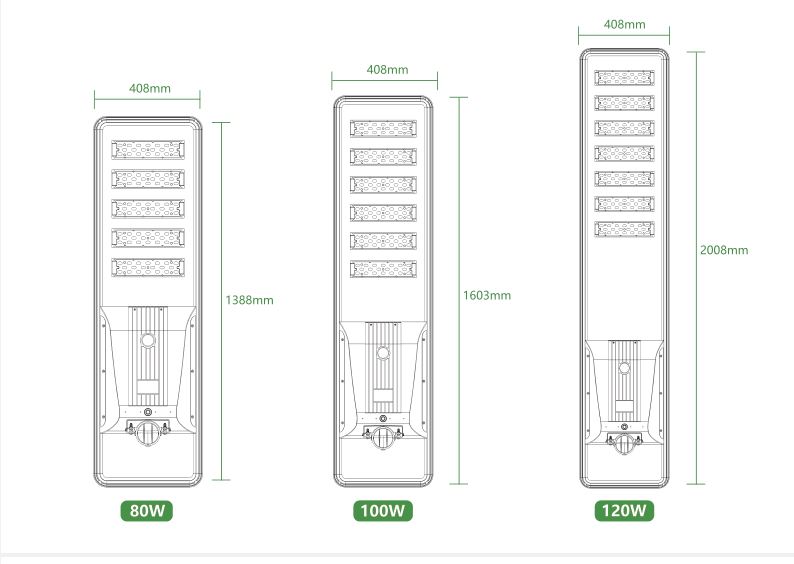

Product size773*408*135mm 878*408*135mm1118*408*135mm1388*408*135mm1603*408*135mm2008*408*135mm
Light efficiency200LM/W
ControllerMPPT

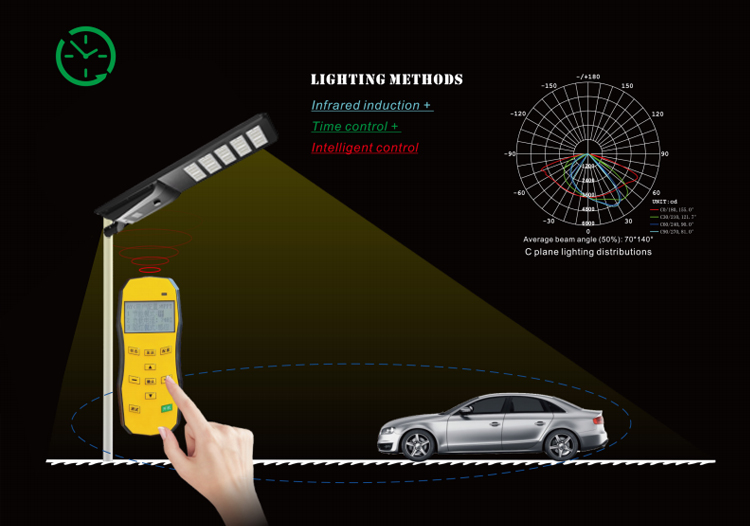

Lighting modeinfrared sensing+segmented time control+intelligent control
Recommended installation height5~7 meter6~8 meter8~10 meter10~12 meter12~15 meter14~16 meter

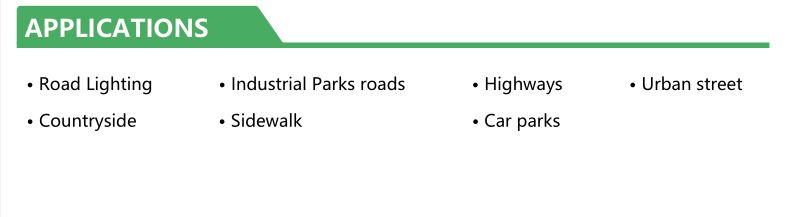

  • Country Road
