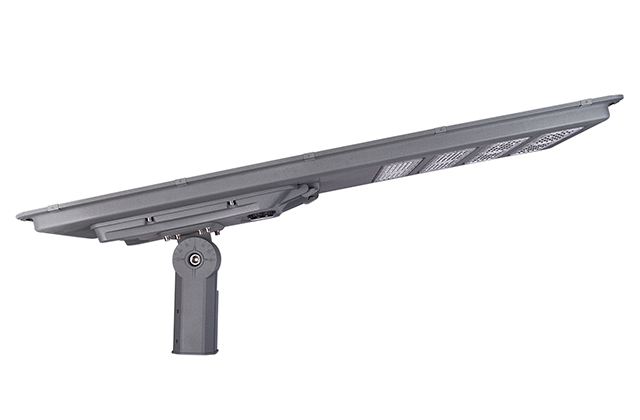

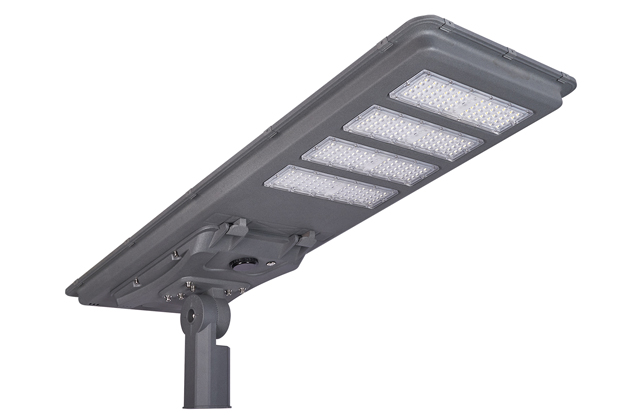

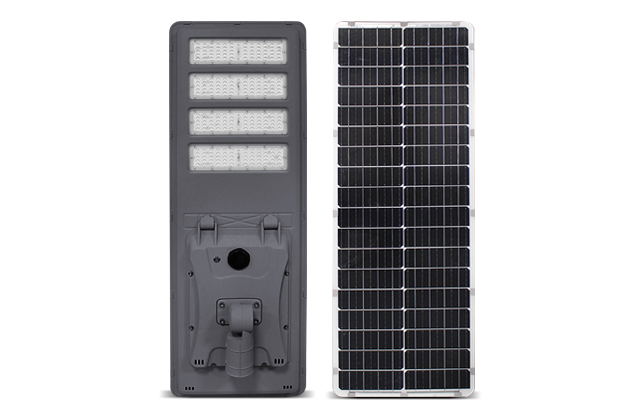

GH-LKD Series 15-80W
Stainless Steel Integrated Die-cast Body <br/> In-house LiFePO4 Battery <br/> High-efficiency LED chips & solar panels <br/> MPPT Smart Controller <br/> High cost-performance

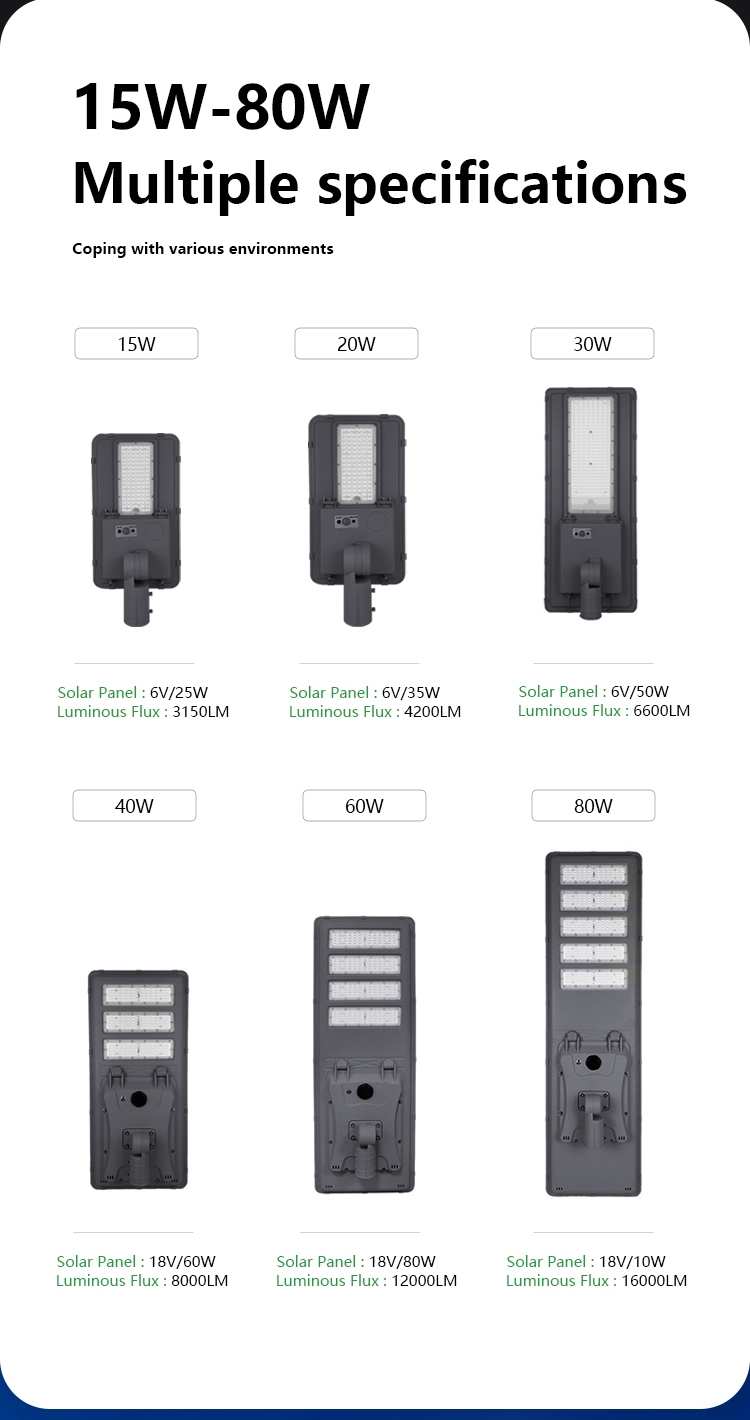

- Power:40W(8000lm), 60W(12000lm), 80W(16000lm)
- Easy to install and maintain, with replaceable battery compartment
- Lithium LifePO4 battery, long lasting can support 4-7 rainy days.
- Cycle times up to 2000+, high temperature resistance 60℃.
- High lumen up to 200lm/w. Lumileds Led chip.
- Monocry-silicon solar panel with MPPT controller for fast charing 4-6 hours
- Lifespan up to 50.000 hours.
- 3 years warranty
- Optical Lens : High transmittance, soft light, long life
- Description
- Video
- Data sheet

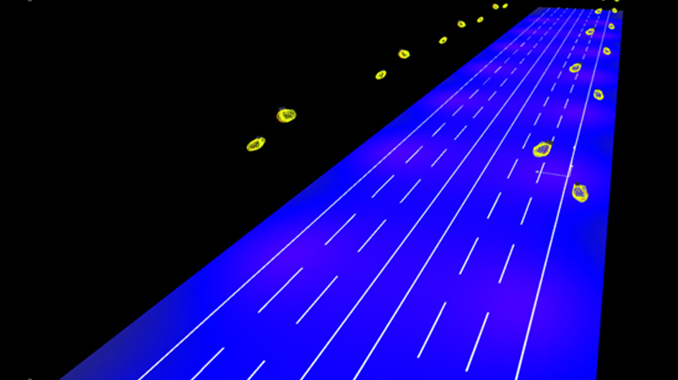

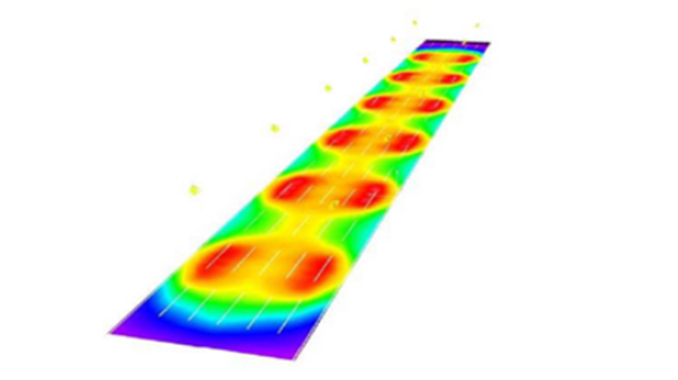

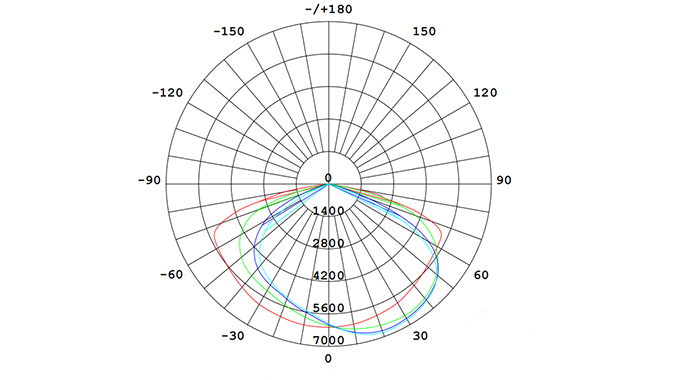

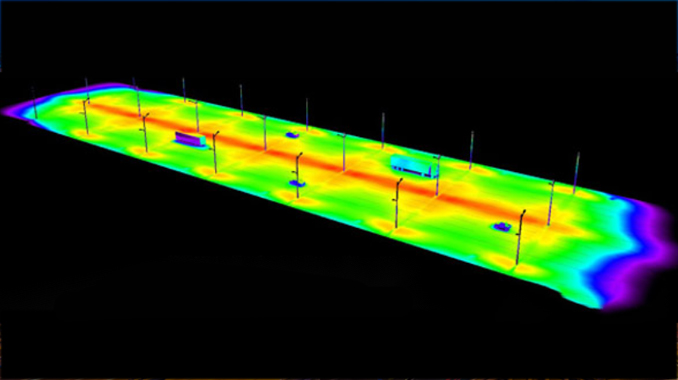

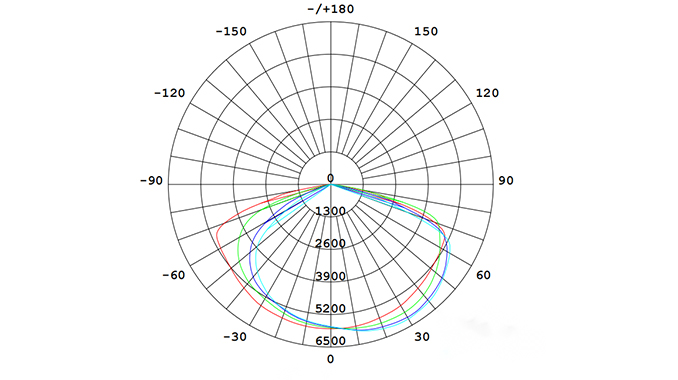

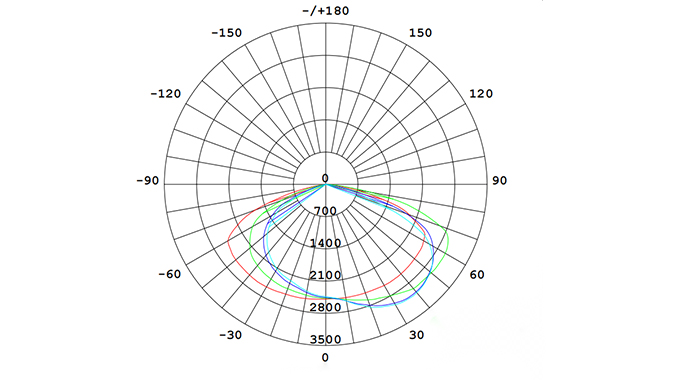

- Optic & Dialux
- Application

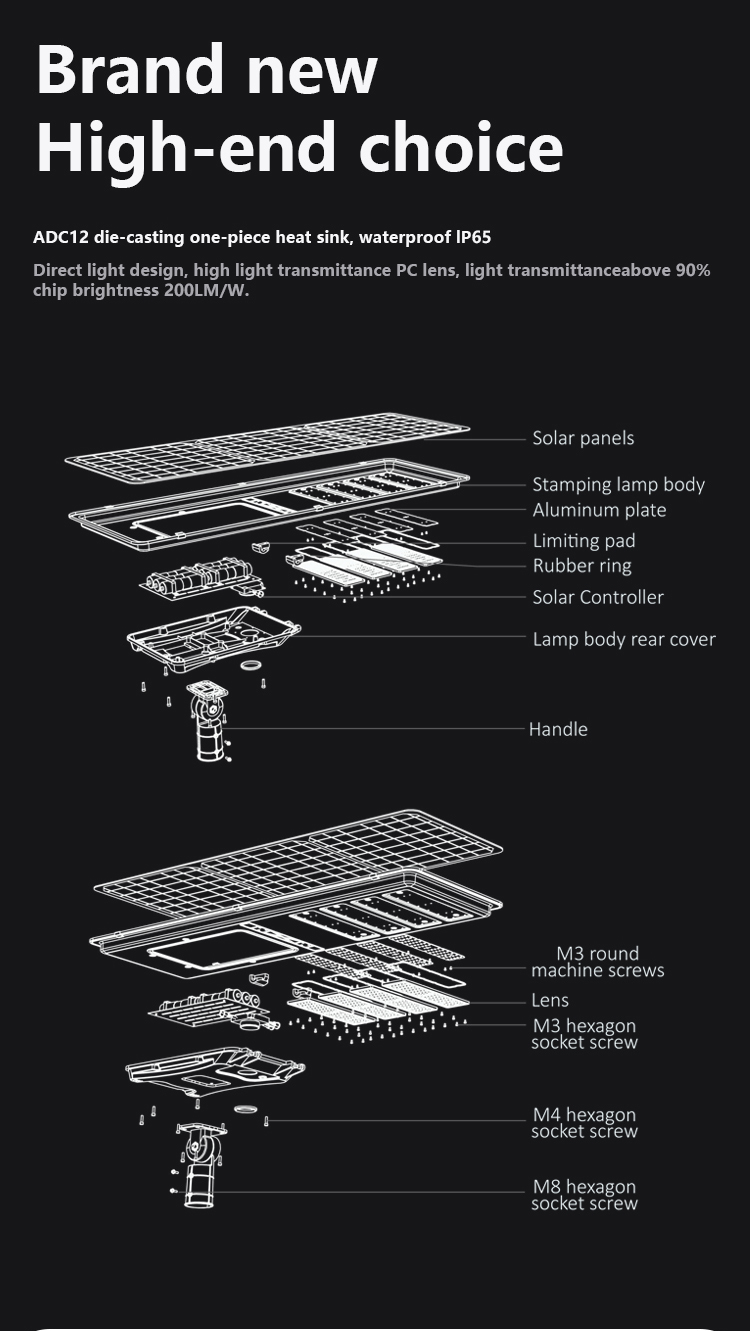

1.Using anti-oxidation 6063 die-casting aluminum shell, high hardness, fast heat dissipation, thick anti-corrosion paint treatment.

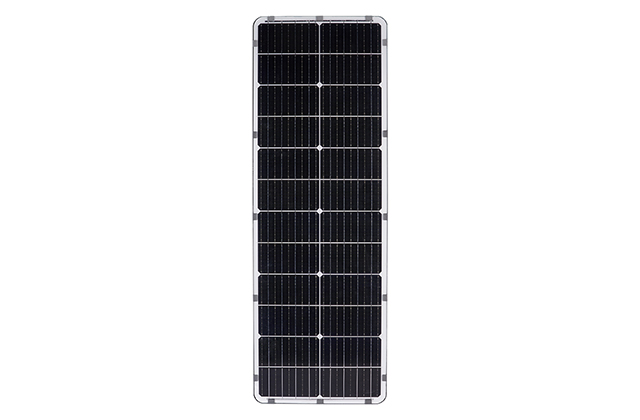

2.Single monocrystalline solar panel, high photoelectric conversion rate, fast storage speed.
3.Using genuine Philips SMD 2835 lamp beads, high thermal conductivity, low light decay, pure light color, no ghosting, luminous efficiency high up to 200lm/w.

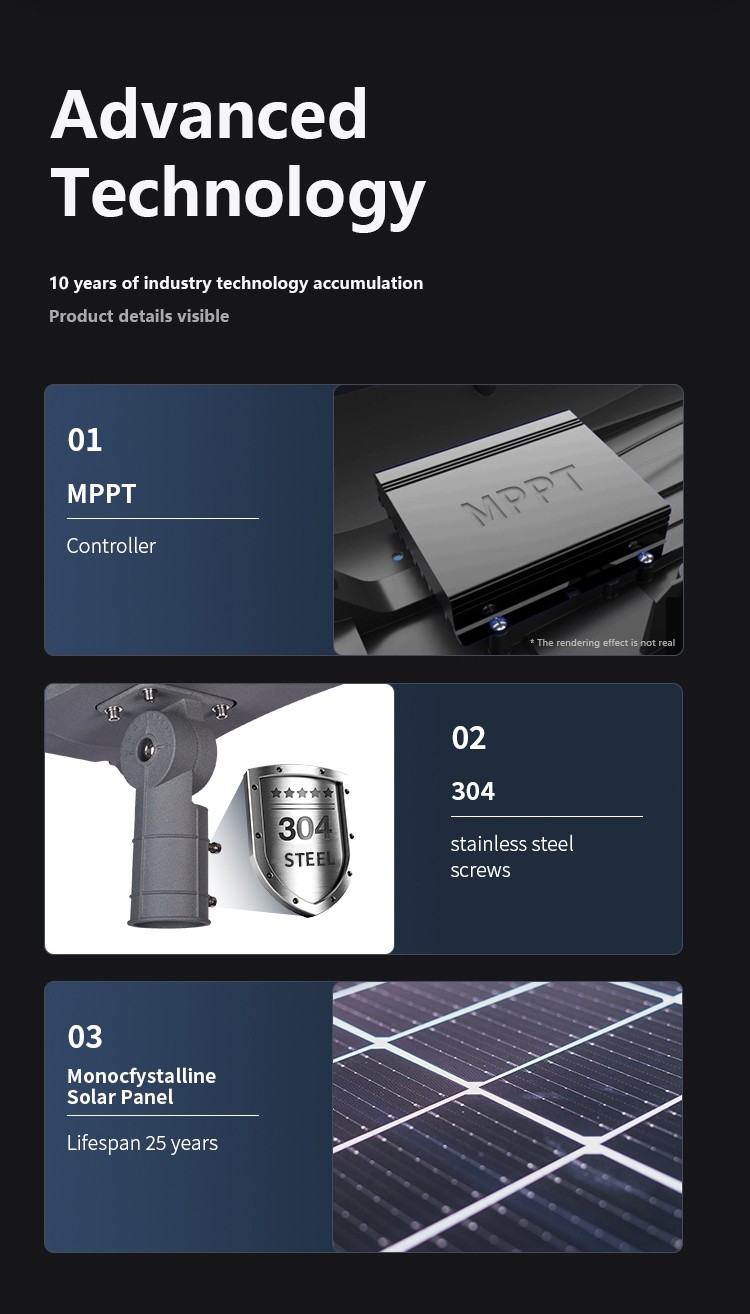

4.MPPT controller, human body induction + light control, automatic switch can be set according to actual needs.
5.IP65 waterproof rating, suitable for various lighting scenes: rural roads, municipal roads, highways, scenic spots, outdoor basketball courts, parks, communities, etc.
Model No | GH-LKD-40W | GH-LKD-60W | GH-LKD-80W |
Solar Panel Mono. | 6V/60W | 6V/80W | 6V/100W |
Solar panel lifespan | 25 years | ||
Solar panel Size | 885*398mm | 1157*398mm | 1434*398mm |
Battery | Lithium LiFePO4 3.2V 100AH | Lithium LiFePO4 3.2V 36AH | Lithium LiFePO4 3.2V 42AH |
Battery lifespan | >2000 times cycle charging | ||
LEDs Chips | Lumileds SMD 2835 | ||
Beam Angle | TYPE II, TYPE III, TYPE IV, TYPE V | ||
Charge time | 4-6 hours | ||
Discharge time | induction mode>48H, full power>14H, suporting 3-7 rainy days | ||
Controller | PWM & MPPT | ||
Warranty | 3 Years | ||
Light Method | Microwave induction + Segmented time + intelligent control | ||
-
Country Street
-

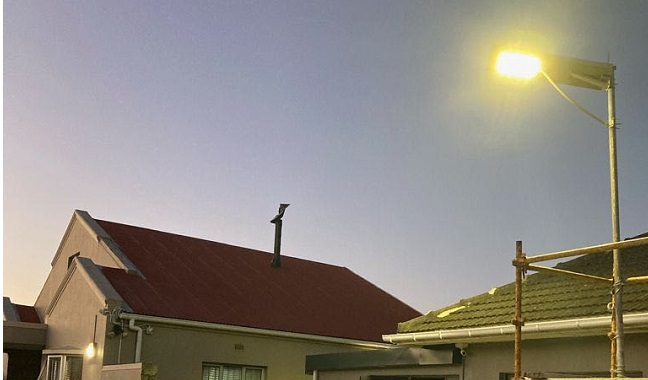

Front Yard
-

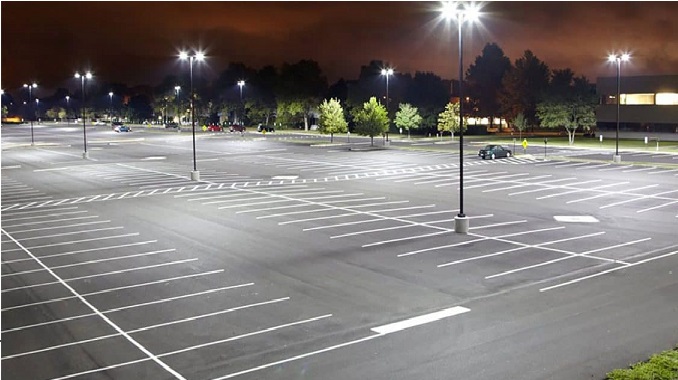

Parking Lot
-

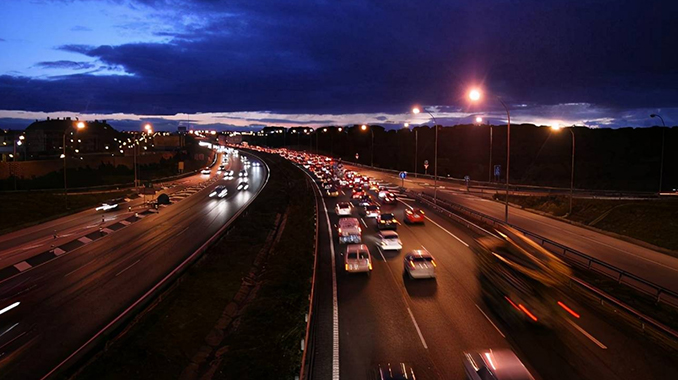

High Way
-

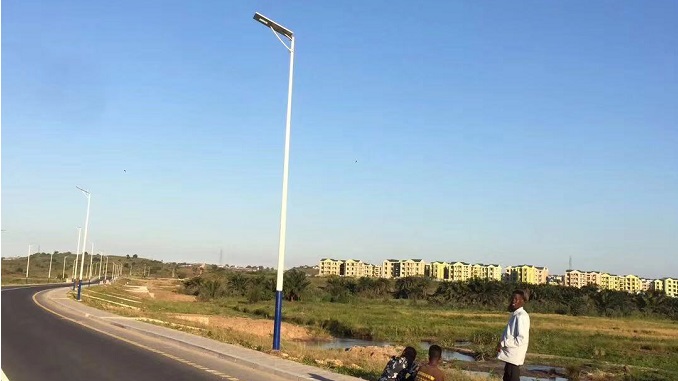

Rural Road
-
Viaducts
-
