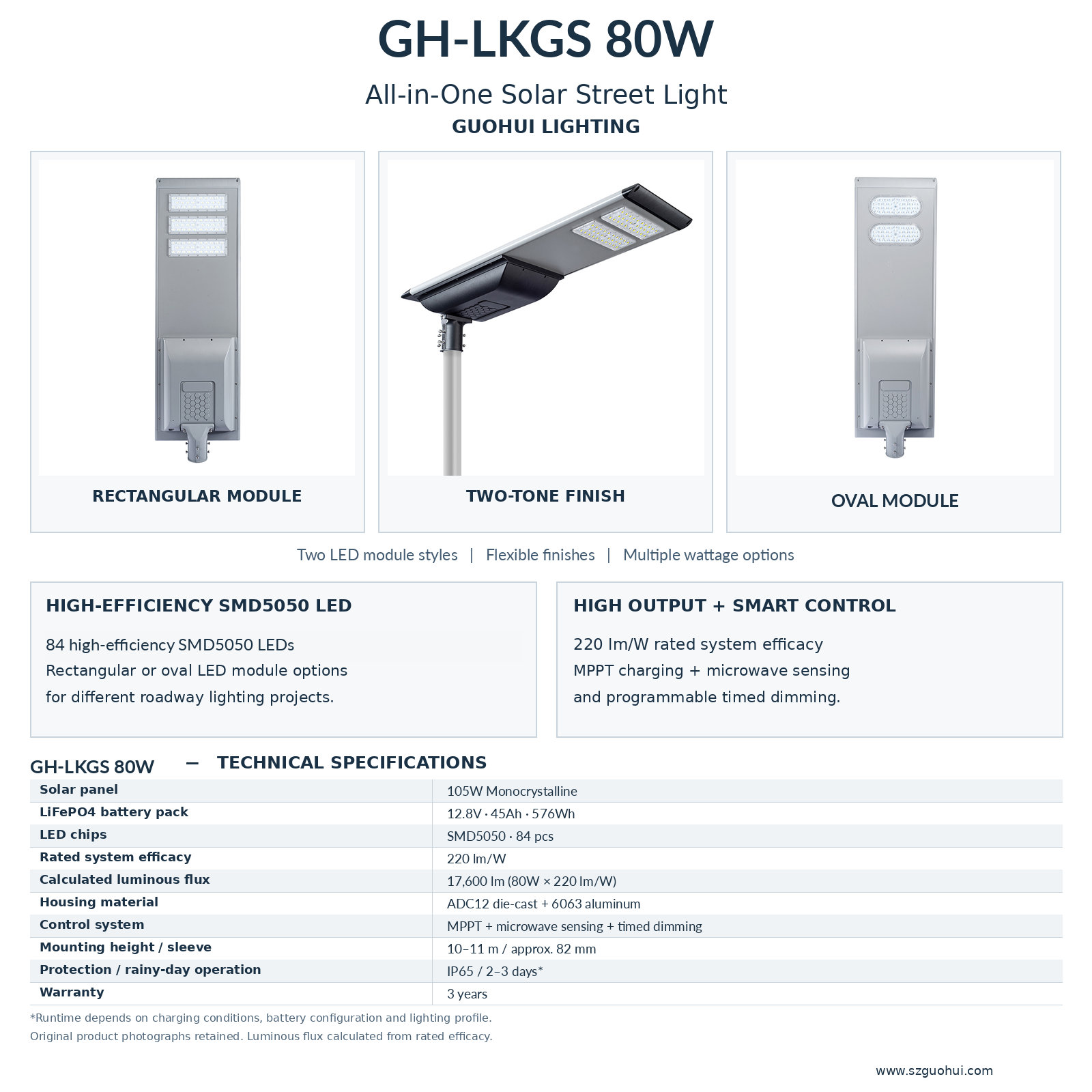

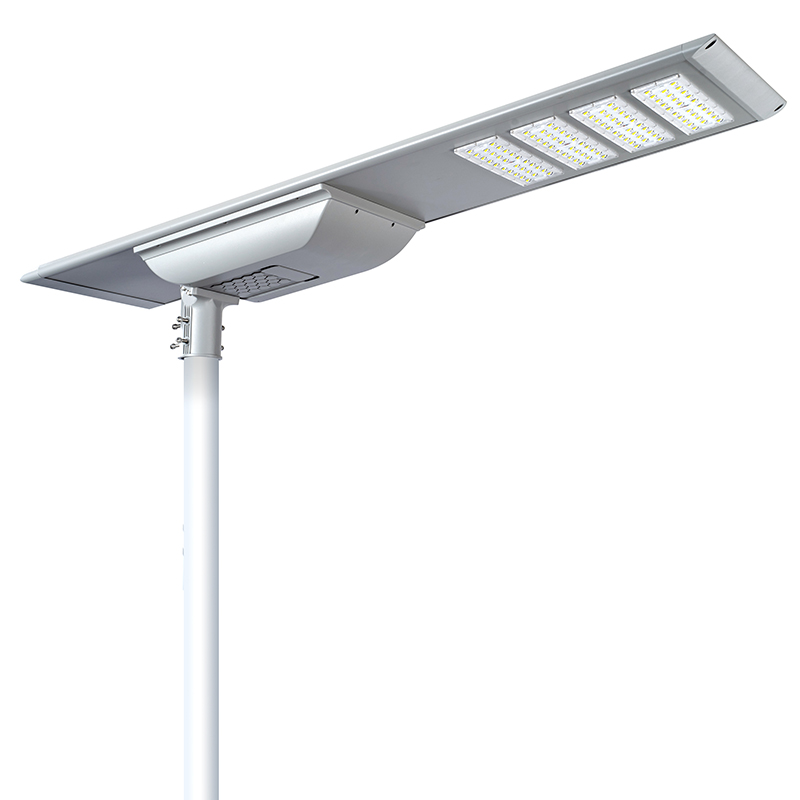

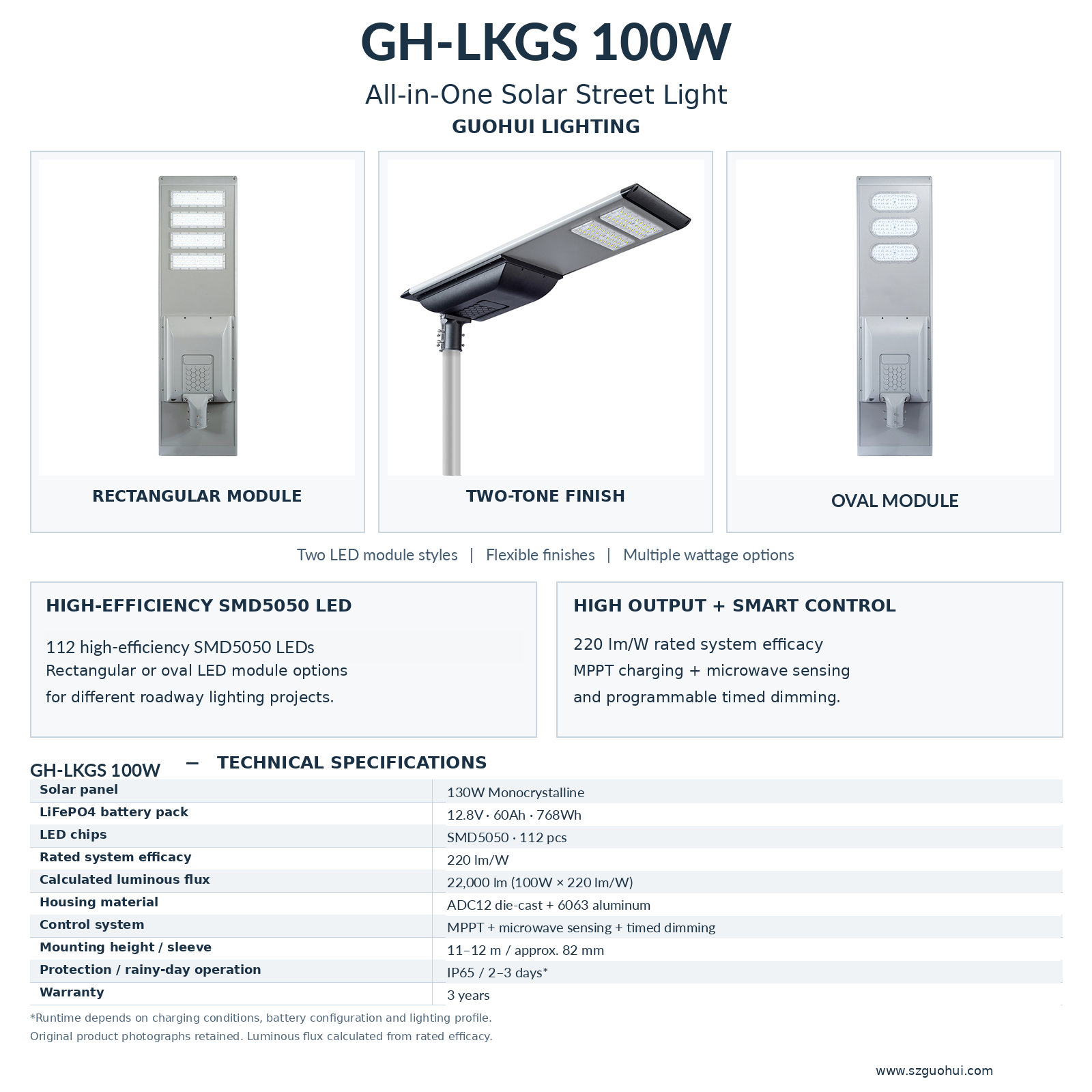

GH-LKGS All-in-One Solar Street Light

High Efficiency | Reinforced Structure | Smart Control | Built for Projects

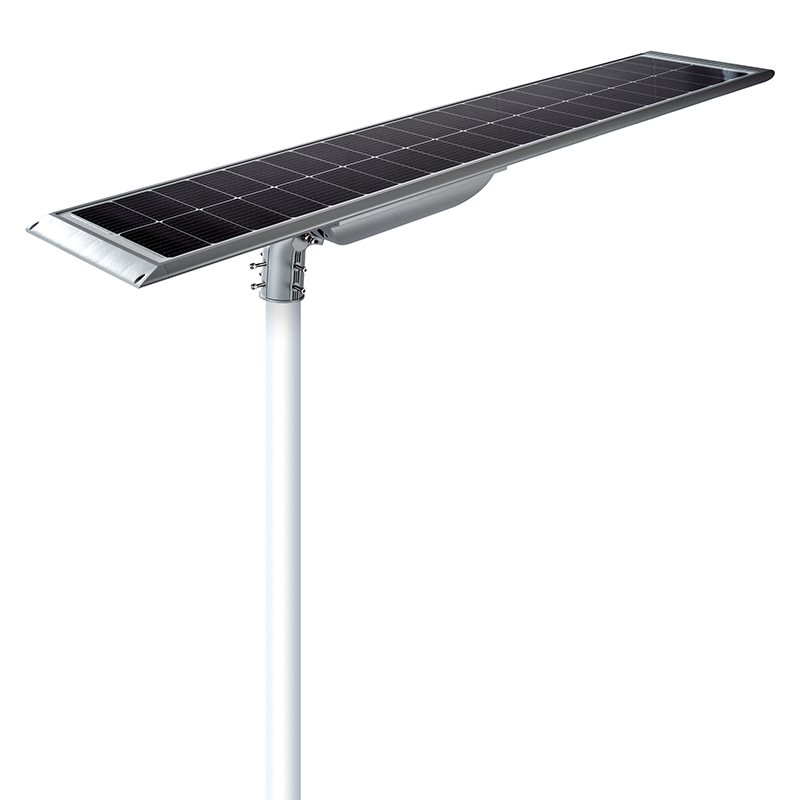

The GH-LKGS is a new-generation all-in-one solar street light developed by Guohui Lighting for reliable outdoor illumination. Combining modern aesthetics with practical engineering, it integrates a high-efficiency solar panel, LiFePO4 battery, LED lighting modules and an intelligent MPPT controller into one compact system.

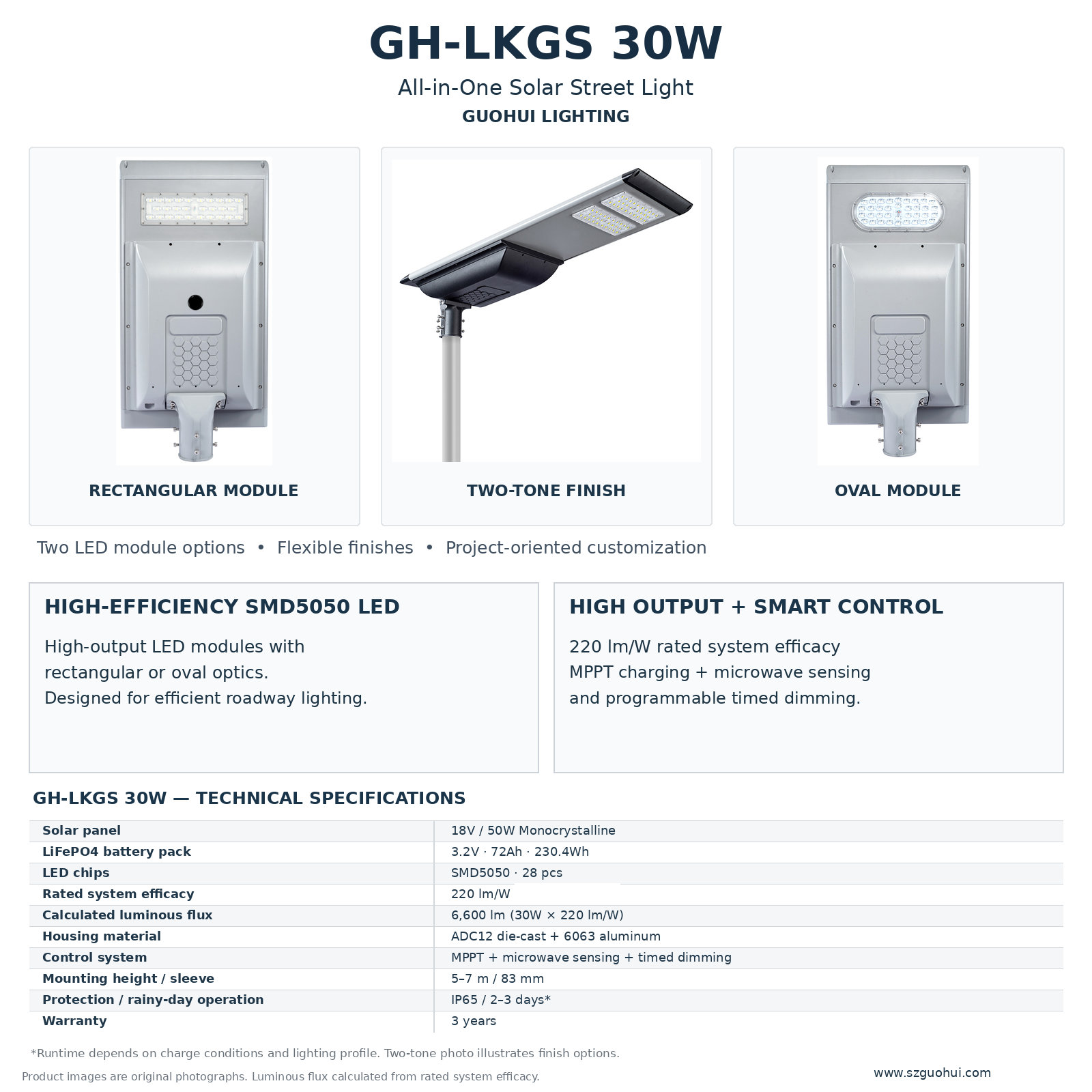

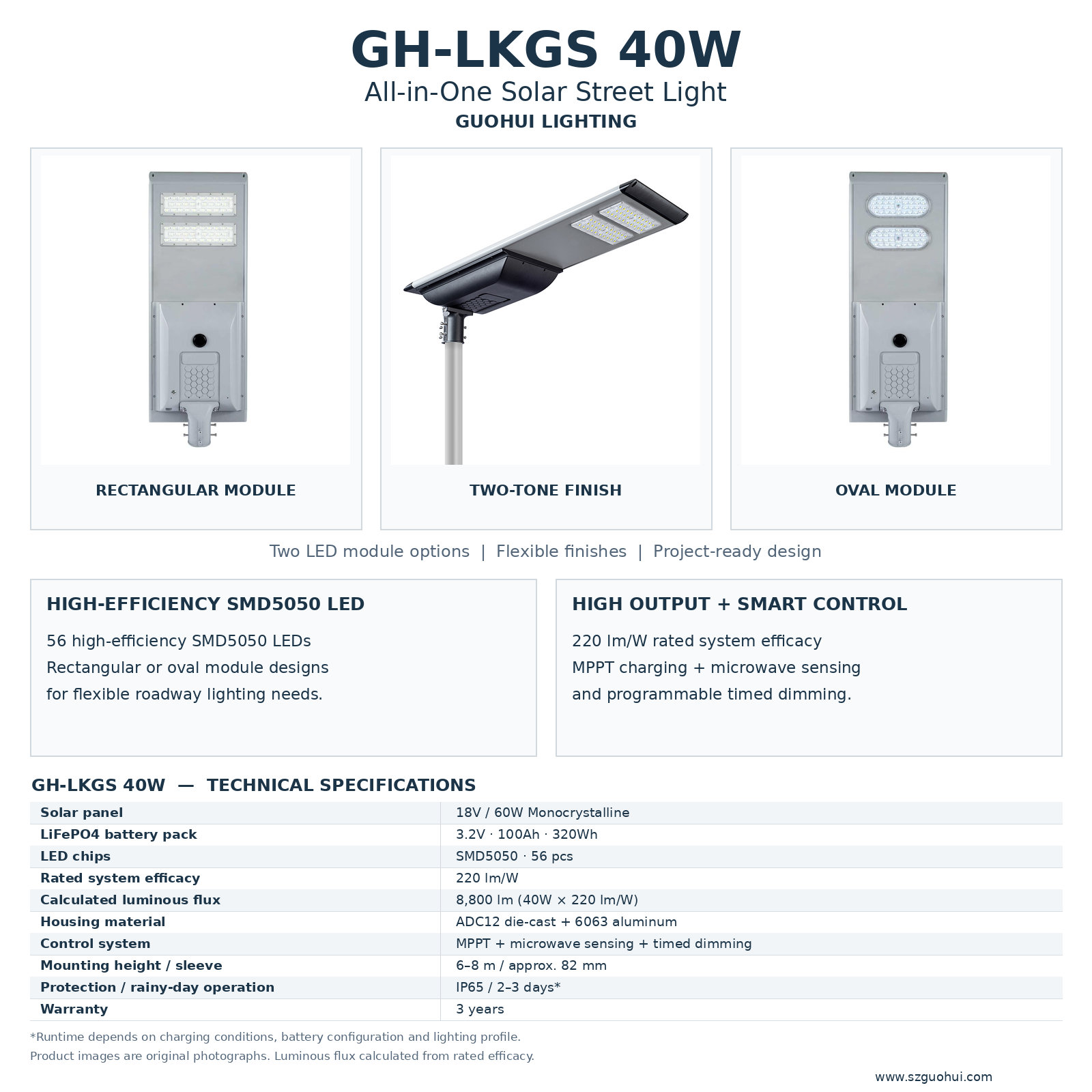

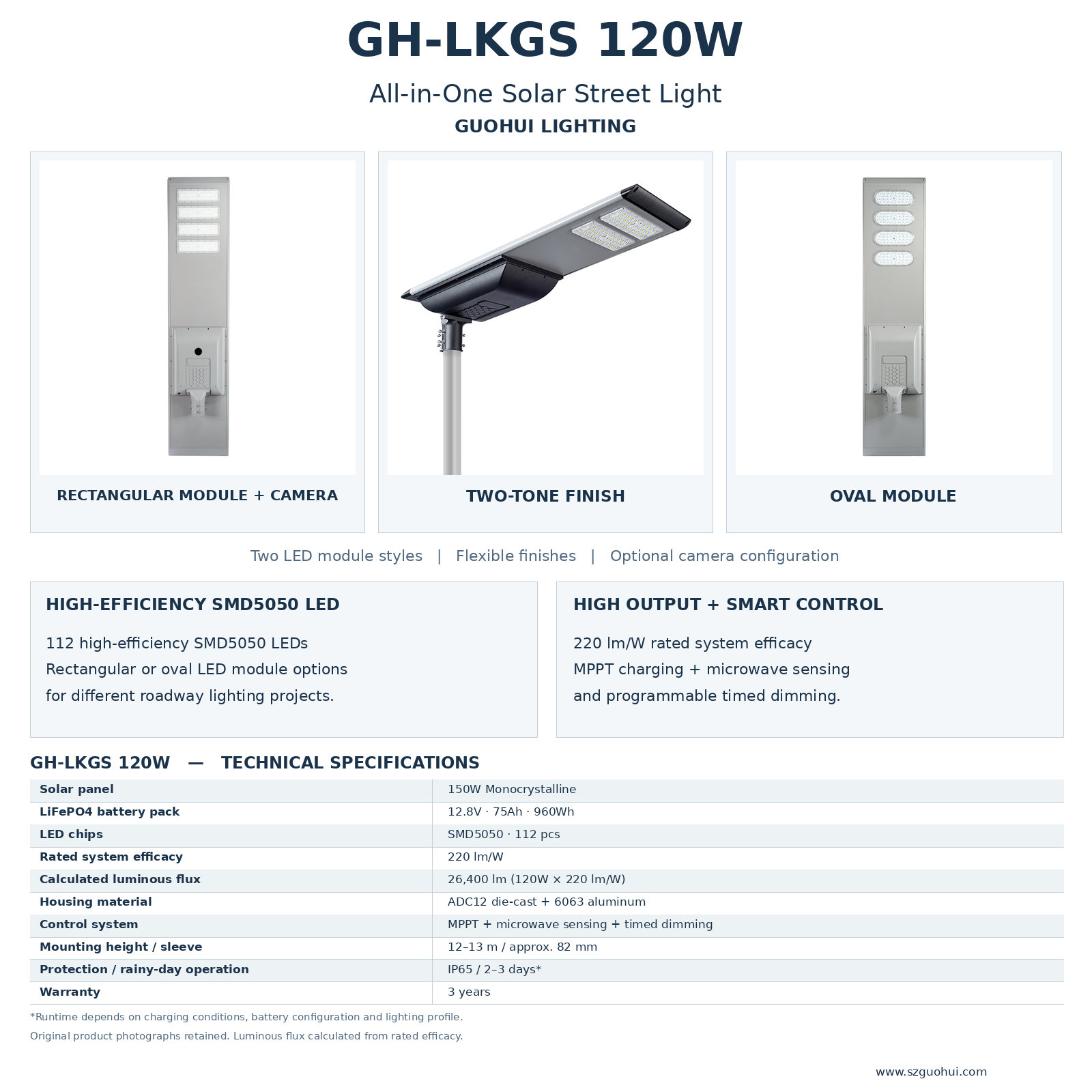

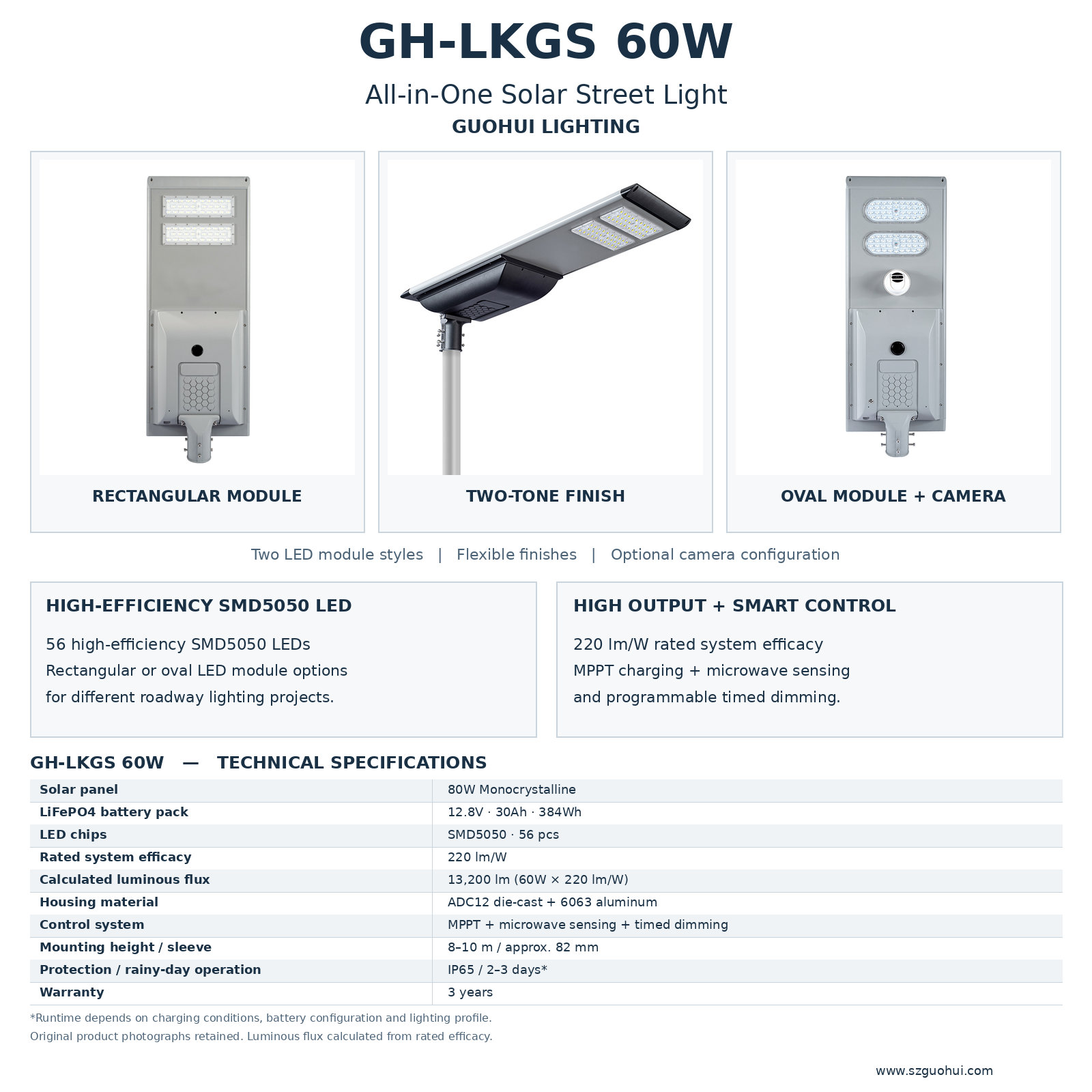

Available in 30W, 40W, 60W, 80W, 100W and 120W, the GH-LKGS is suitable for roads, residential communities, industrial parks, parking areas and municipal lighting projects.

Key Product Features

1. High-Efficiency LED Lighting — 220 lm/W

Equipped with high-performance SMD5050 LED chips, the GH-LKGS delivers a rated system efficacy of 220 lm/W, providing high luminous output with optimized energy consumption.

Two optical configurations are available:

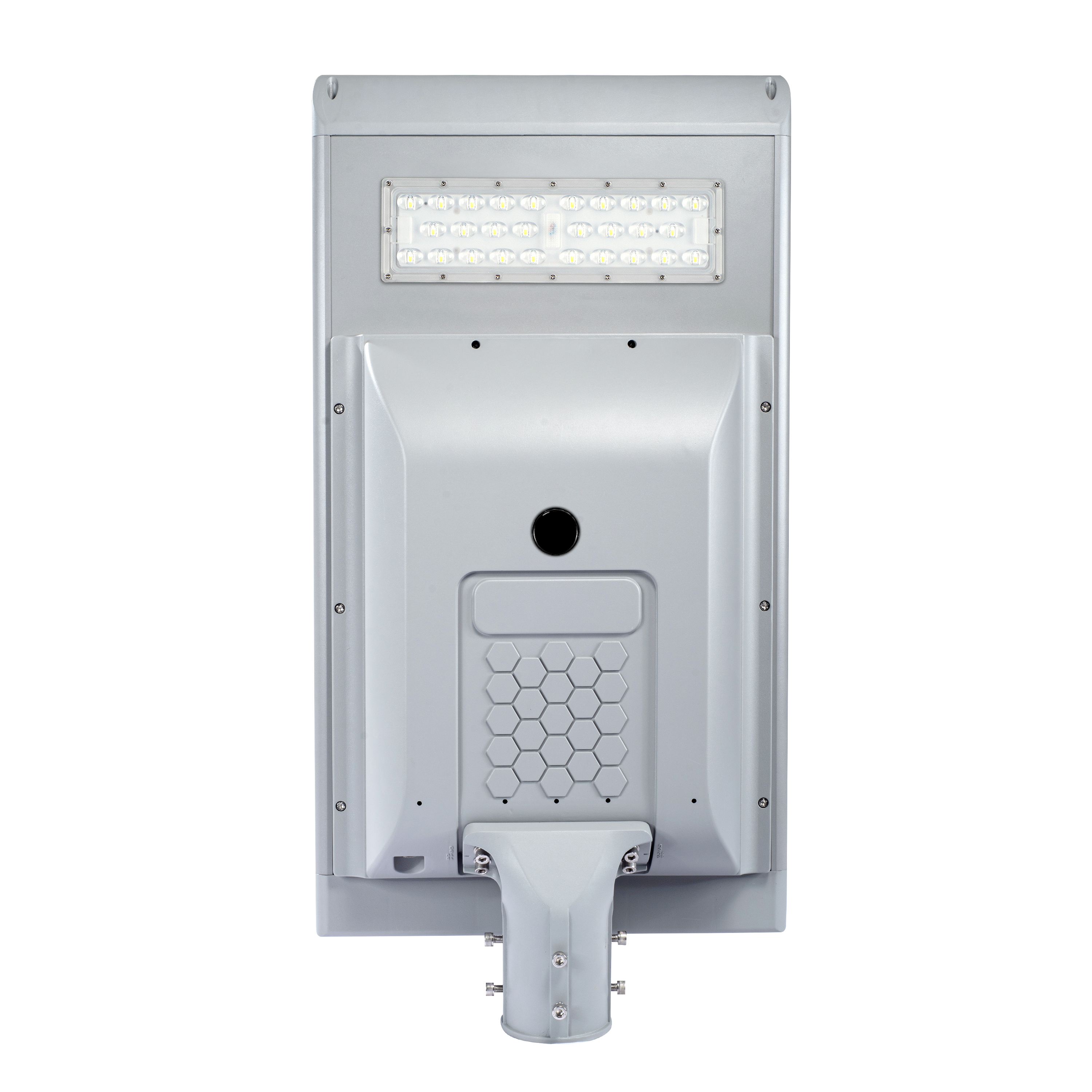

• Rectangular LED modules

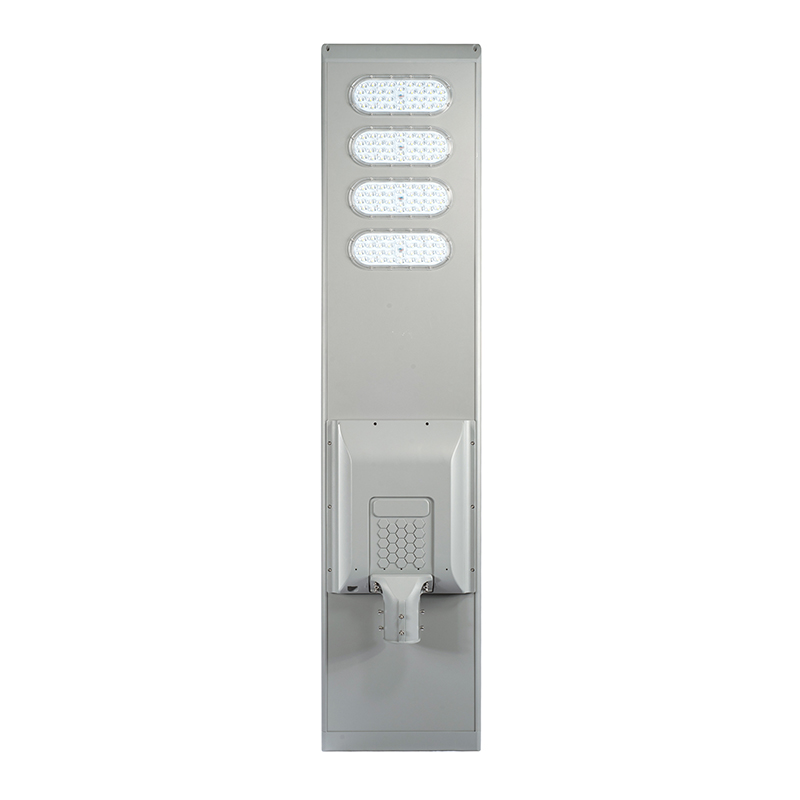

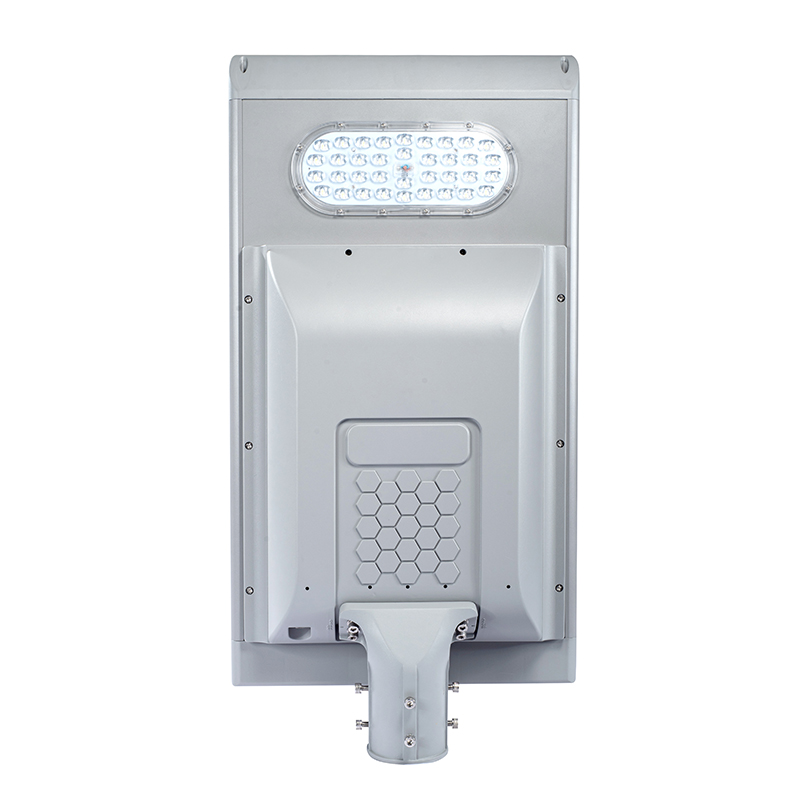

• Oval LED modules

These options offer greater flexibility for different lighting requirements and project preferences.

2. Reliable LiFePO4 Battery System

The GH-LKGS uses LiFePO4 batteries designed for long-term solar lighting applications.

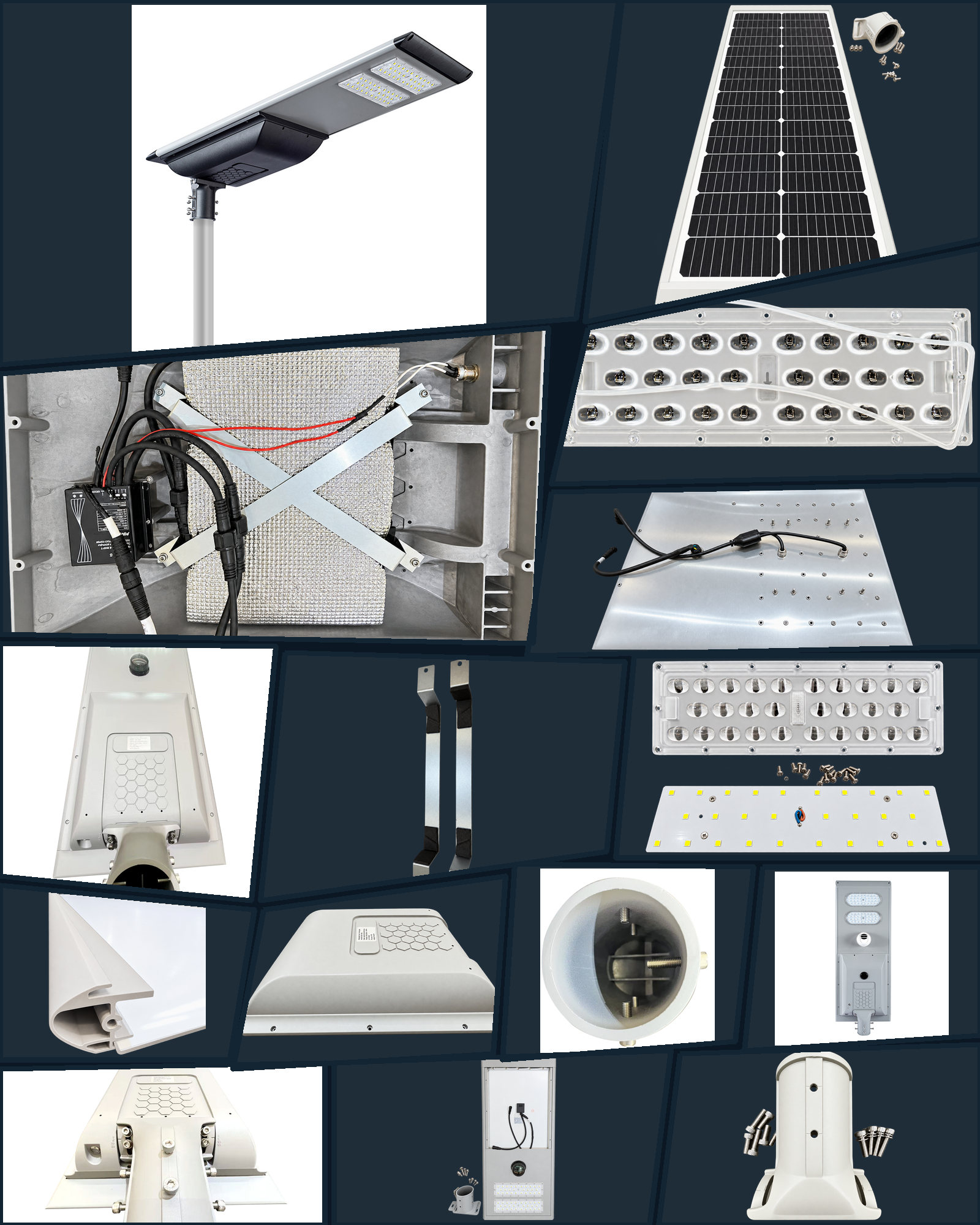

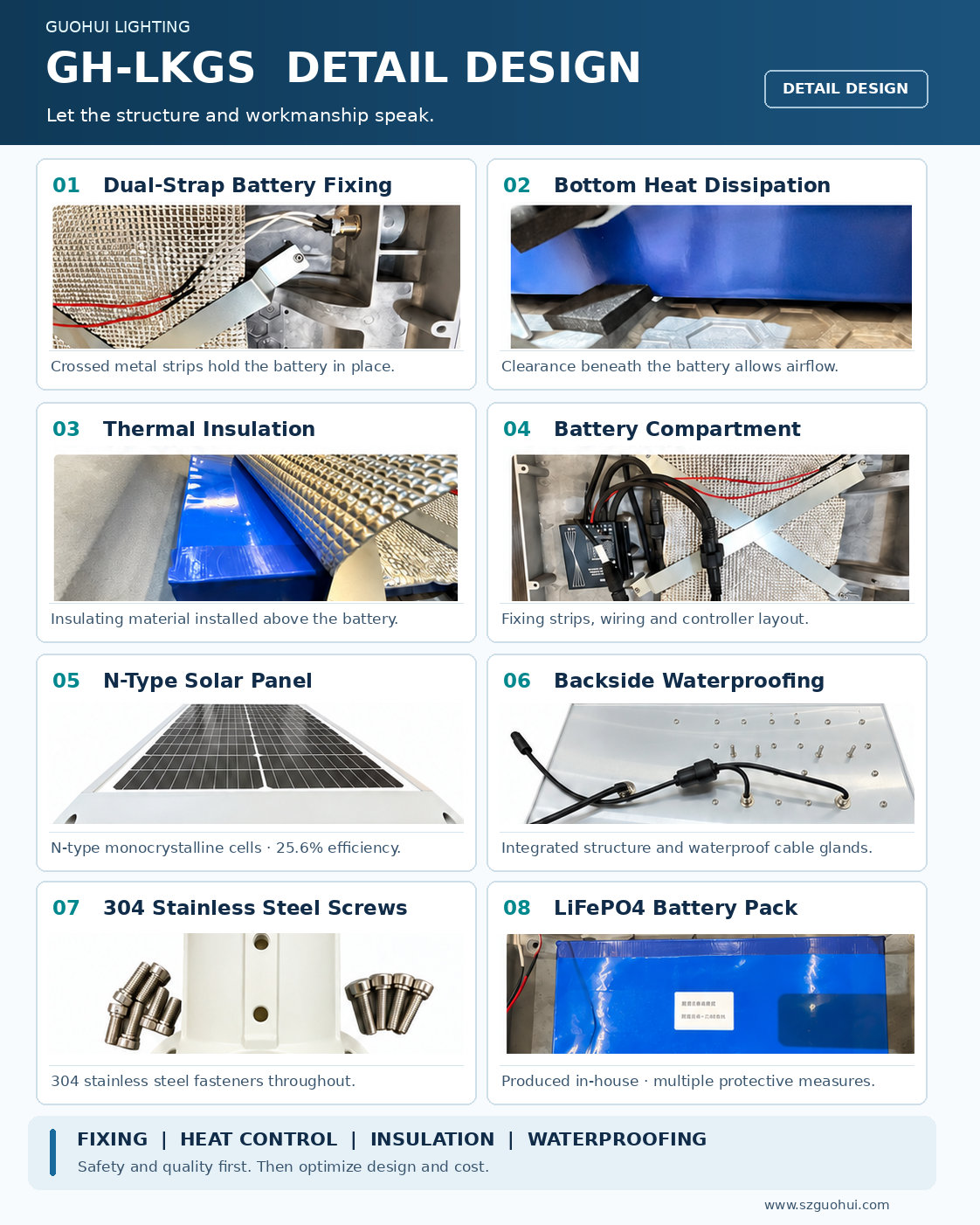

Inside the battery compartment, Guohui adopts a reinforced dual-strap fixing structure to keep the battery securely positioned.

Additional thermal insulation and structural protection help improve durability under outdoor operating conditions.

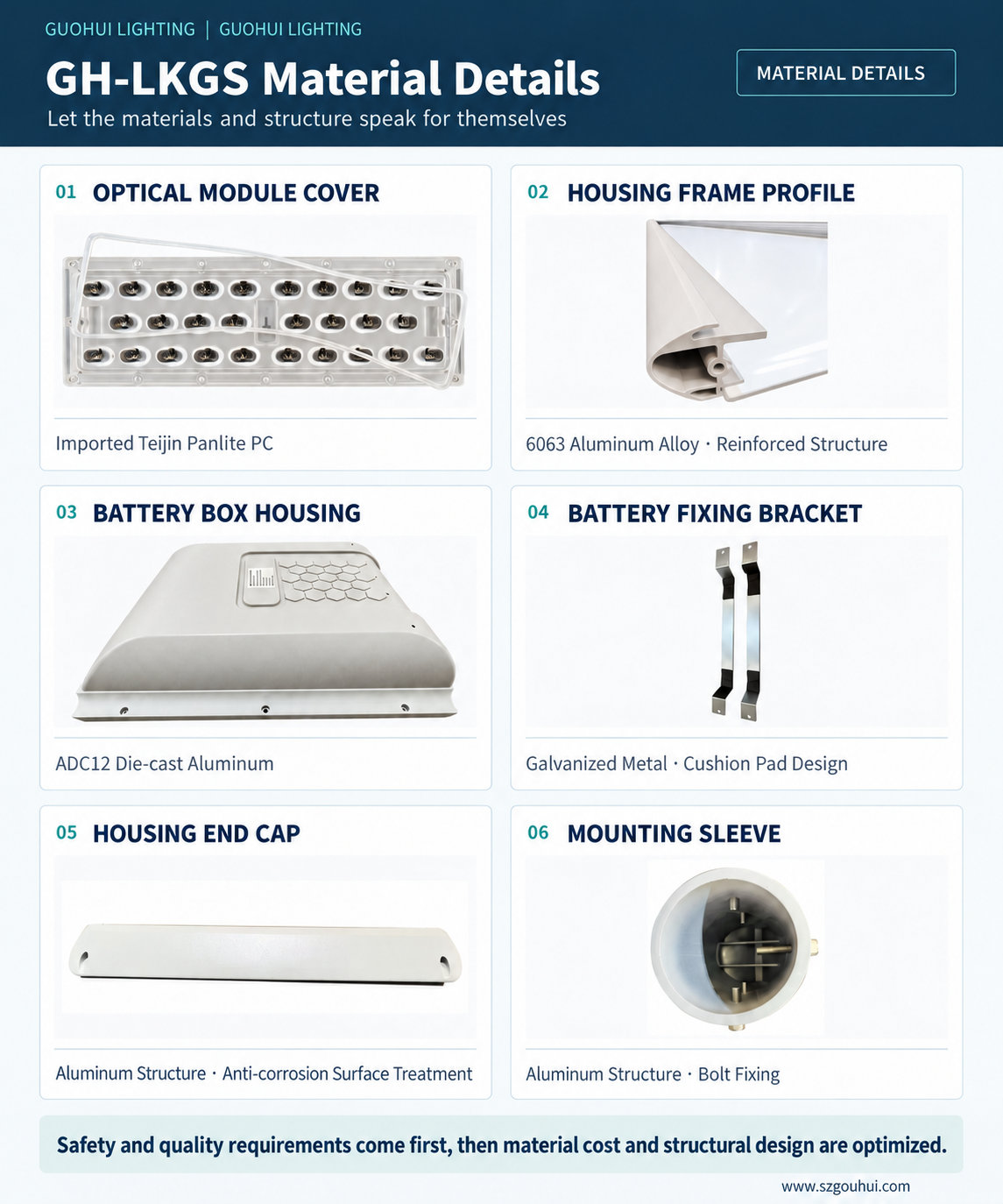

3. Reinforced Aluminum Construction

The housing combines ADC12 die-cast aluminum components with 6063 aluminum profiles for structural strength, corrosion resistance and efficient heat dissipation.

An integrated rear waterproof cable gland improves cable sealing, while the carefully designed housing supports stable outdoor operation.

4. Smart MPPT Charging & Microwave Sensor

The intelligent MPPT controller optimizes solar charging efficiency and manages battery energy.

Microwave motion sensing and programmable timed dimming help reduce unnecessary power consumption, extending lighting autonomy during cloudy or rainy weather.

Typical rainy-day operation: 2–3 days, depending on battery configuration, charging conditions and lighting schedules.

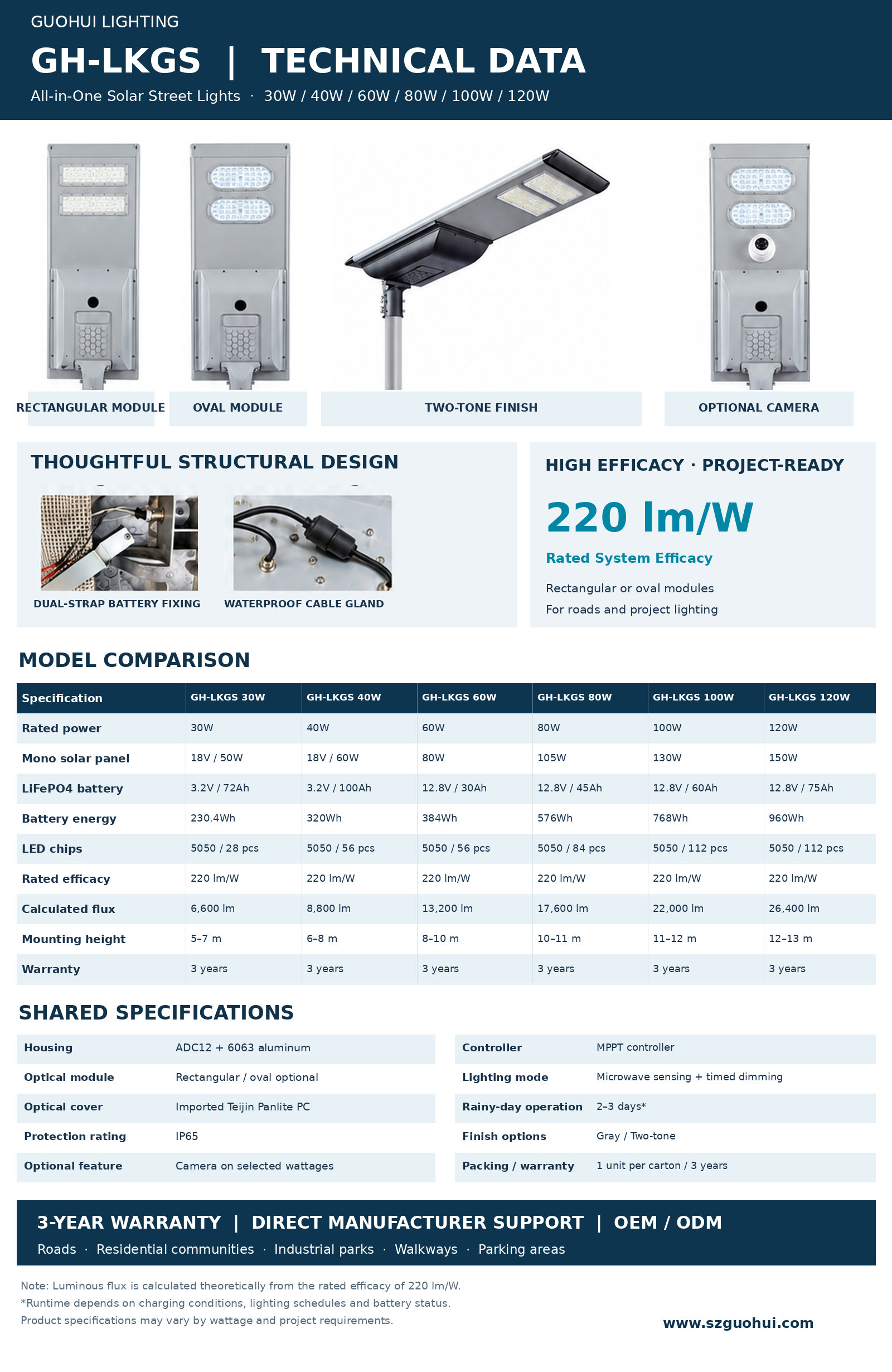

5. Flexible Configurations for Different Projects

The GH-LKGS offers multiple options to meet different project requirements:

• Power options from 30W to 120W

• Rectangular or oval LED modules

• Gray or two-tone housing finishes

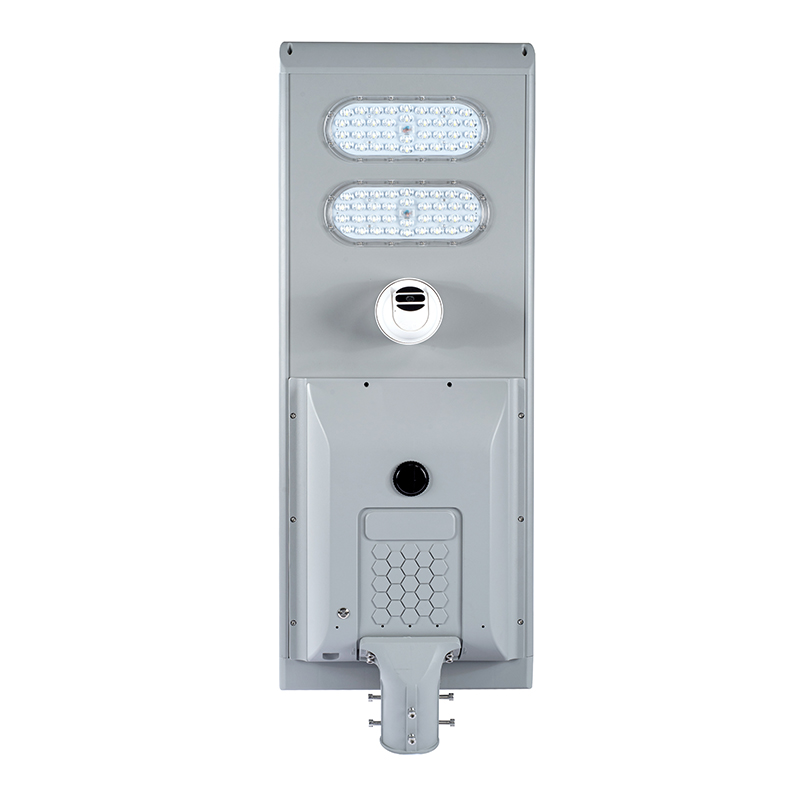

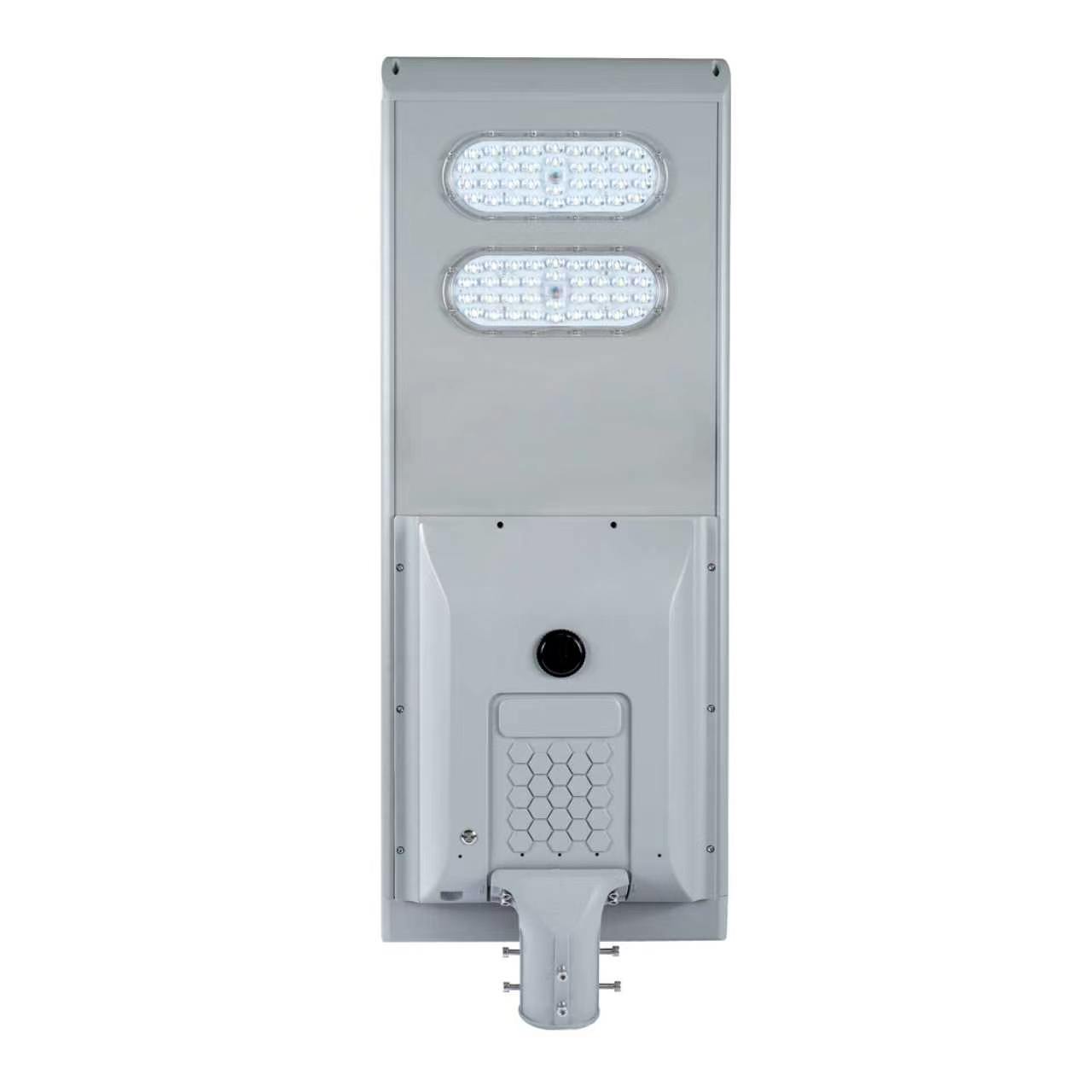

• Optional camera for selected wattages

• Customized lighting schedules

• OEM/ODM project customization

Designed for Real-World Applications

GH-LKGS is suitable for a wide range of outdoor lighting projects, including:

• Municipal Roads and Streets

• Residential Communities

• Industrial Parks and Factories

• Parking Lots

• Walkways and Public Areas

• Commercial and Infrastructure Projects
